DA-1100
Intel® Pentium® N4200 / Celeron® N3350 Processor Affordable Fanless Embedded Computer
PRODUCTS FEATURES
- Onboard Intel® Pentium® N4200 / Celeron® N3350 Processor
- Supports Triple Independent Display
- Supports PoE+ Function (with optional CFM module)
- Supports CMI Interface for I/O Expandability
- 1x 2.5” SATA Drive Bay, 1x mSATA Socket
- 2x Full Size Mini-PCIe Socket, 1x SIM Card Socket
- Ultra Compact Size (150 x 105 x 52.3 mm)
- Wide Operating Temperature -40°C to 70°C
- Safety: UL, cUL, CB, IEC/EN62368-1
OVERVIEW

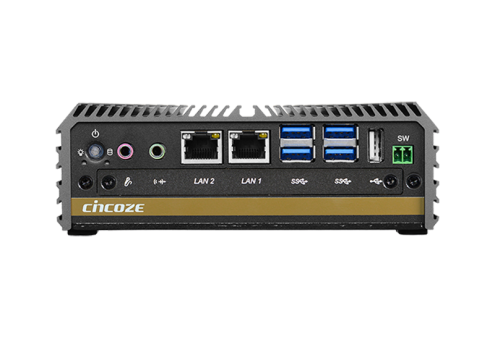

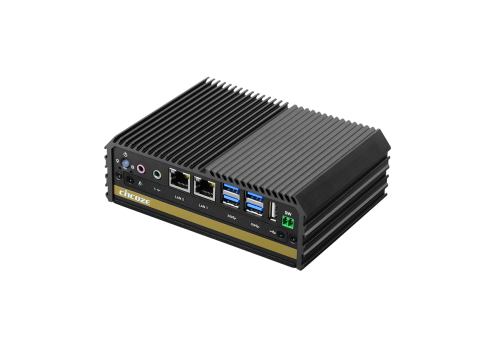

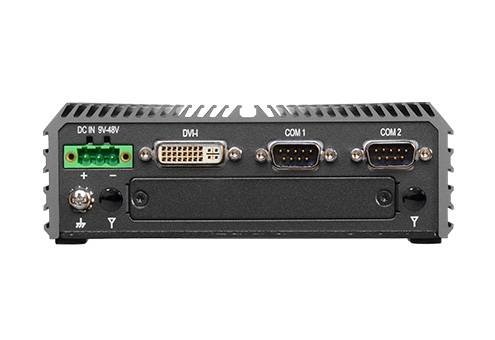

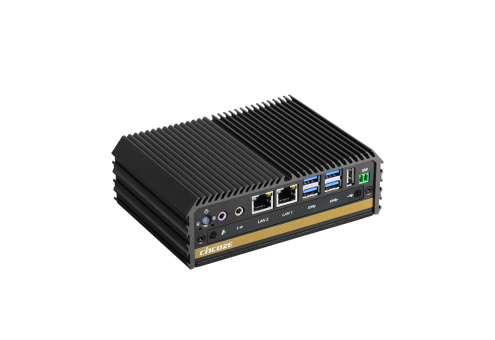

Cincoze’ DA-1100 affordable fanless embedded computer is based on the Intel® Pentium® N4200 / Celeron® N3350 processor. This mainstream Intel® SoC (Apollo Lake) integrates the Intel® Gen 9 graphics architecture with triple display support in 4K/2K UHD resolution. DA-1100 supports both Combined Multiple I/O (CMI) and Control Function Module (CFM) which are specially designed for flexible I/O and function expandabilities, such as COM ports, optical isolated digital I/O, LPT/PS2, HDMI, DisplayPort, DVI-D, VGA, and Power over Ethernet (PoE).
Leveraging a reliable fanless and durable cable-free design in an ultra-compact aluminum housing, DA-1100 is ideally for deployment in space-constrained place and continuous operation under harsh environments.
Product Category >>>> Rugged Embedded Fanless PC
Leveraging a reliable fanless and durable cable-free design in an ultra-compact aluminum housing, DA-1100 is ideally for deployment in space-constrained place and continuous operation under harsh environments.
Product Category >>>> Rugged Embedded Fanless PC
RESOURCES
SPECIFICATION
| Model Name | DA-1100 | |
|---|---|---|
| Processor System | CPU | • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz • Onboard Intel® Celeron® N3350 Dual Core Processor, up to 2.40 GHz |
| BIOS | AMI BIOS, 8MB SPI Flash ROM built on board | |
| Memory | Technology | DDR3L 1333/1600/1866 MHz un-buffered and non-ECC Memory (supports up to 1600 MHz) |
| Max. Capacity | 8 GB | |
| Socket | 1x 204-Pin SO-DIMM | |
| Display | Integrated Graphics | • Integrated Intel® HD Graphics 505 (Pentium® N4200) • Integrated Intel® HD Graphics 500 ( Celeron® N3350) |
| Triple Display Supported | Yes (DVI-D + VGA from DVI-I, one output from optional CMI module) | |
| Audio | Codec | Realtek ALC888-GR |
| I/O Ports | DVI-I | 1 (1920 x 1080 @60Hz) |
| GbE LAN | 2 (RJ45, Intel® I210 Supports WoL, Teaming, Jumbo Frame & PXE) | |
| USB | 4x 5Gbps USB 3.2 Gen1, Type A 1x 480Mbps USB 2.0, Type A | |
| COM Port | 2 (DB9, RS-232/RS-422/RS-485 with Auto Flow Control) | |
| Line-out | 1 | |
| Mic-in | 1 | |
| ATX Power On/Off Button | 1 | |
| AT/ATX Mode Switch | 1 | |
| Clear CMOS Switch | 1 | |
| Remote Power On/Off Connector | 1 | |
| Storage | SATA Drive Bay | 1x 2.5" HDD/SSD or 1x Half-Slim SSD (SATA 3.0) |
| mSATA | 1 (SATA 3.0, Shared by Mini-PCIe Socket) | |
| Expansion | Mini-PCIe Socket | 2 (Full-size) |
| SIM Socket | 1 | |
| Control Function Module (CFM) Interface | 1 | |
| Combined Multiple I/O (CMI) Interface | 1 | |
| Antenna Holes | 2 | |
| Other Functions | Watchdog Timer | Software Programmable Supports 256 Levels System Reset |
| Supports Instant Reboot Technology | 0.2 sec | |
| Power Requirement | Power Type | AT / ATX |
| Power Supply Voltage | 9~48VDC | |
| Power Connector | 1x 3-pin Terminal Block | |
| Power Adaptor | Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W (Optional) | |
| Physical | Dimension (WxDxH) | 150 x 105 x 52.3 mm |
| Weight | 0.87kg | |
| Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA (Optional DIN-Rail/Side Mounting) | |
| Unibody Chassis | Yes | |
| Fanless Design | Yes | |
| Jumper-less Design | Yes | |
| Cable-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 20A | |
| Operating System | Windows | Windows® 10 |
| Linux | Supports by project | |
| Environment | Operating Temperature | -40°C to 70°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27 | |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64 | |
| MTBF | 632,353 Hours | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC/EN 62368-1 | |
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| DA-1100-N42-R10 | Intel® Pentium® Processor N4200 Affordable Fanless Embedded Computer |
| DA-1100-N33-R10 | Intel® Celeron® Processor N3350 Affordable Fanless Embedded Computer |
| √ DA-1100 Affordable Fanless Embedded Computer | √ DVI-I to VGA Adapter x 1 |
| √ Thermal Pad (for CPU Thermal Block) x 1 | √ Screw Pack x 1 |
| √ Power Terminal Block Connector x 1 | √ Wall Mounting Kit x 1 |
| √ Remote Power On/Off Terminal Block Connector x 1 |
| Model No. | Description |
|---|---|
| CMI-COM102/UB0403 | CMI Module with 2x RS232/422/485 / 1x Universal Bracket with 2x DB9 Cutout for DA Series |
| CMI-DIO100/UB0415 | CMI Module with 8x Optical Isolated DIO (4 in/4 out) / 1xUniversal Bracket with DIO Cutout for DA Series |
| CMI-DP101/UB0406 | CMI Module with 1x Display Port / 1x Universal Bracket with DP Cutout for DA Series |
| CMI-DVI101/UB0407 | CMI Module with 1x DVI-D Connector / 1x Universal Bracket with DVI-D Cutout for DA Series |
| CMI-LPPS102/UB0409 | CMI Module with 1x LPT Port, 1x PS/2 / 1x Universal Bracket with PS/2, LPT Cutout for DA Series |
| CMI-VGA101/UB0416 | CMI Module with 1x VGA Port / 1x Universal Bracket with VGA Cutout for DA Series |
| CMI-HD01/UB0408 | CMI Module with 1x HDMI Port / 1x Universal Bracket with HDMI Cutout for DA Series |
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| MEC-LAN-M102-15/UB0411 | Mini-PCIe Module with 2x LAN Ports, 2x 15cm cable / 1x Universal Bracket with 2x RJ45 Cutout for DA Series |
| SIDE02 | Side Mount Kit for DA Series, with KMRH-K175 for DIN-Rail option |
| DINRAIL-R10 | Diamond series DIN-RAIL Mount Kit |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C), level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
