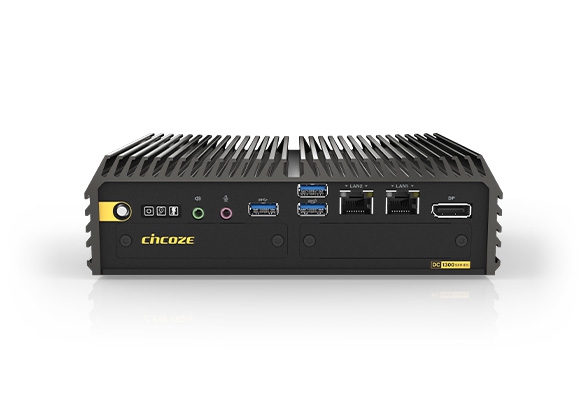

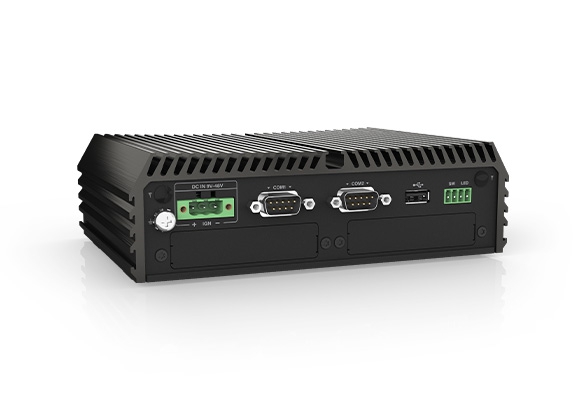

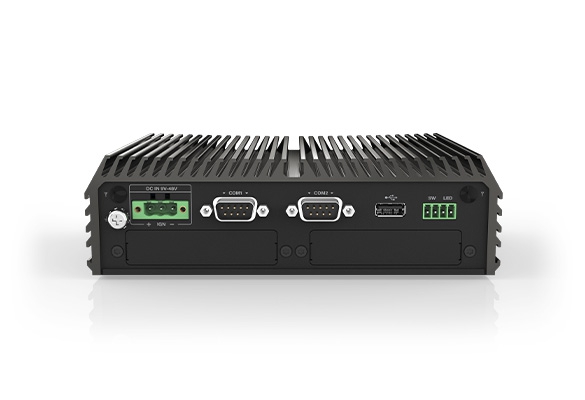

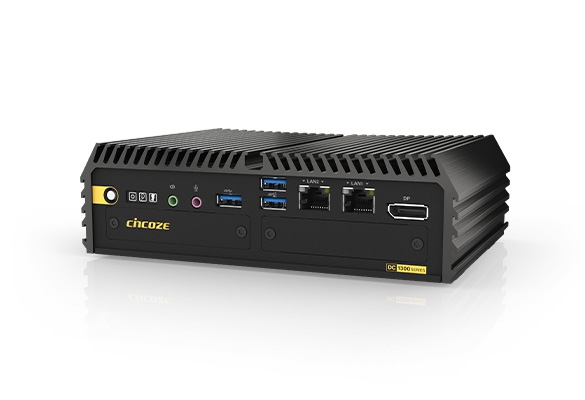

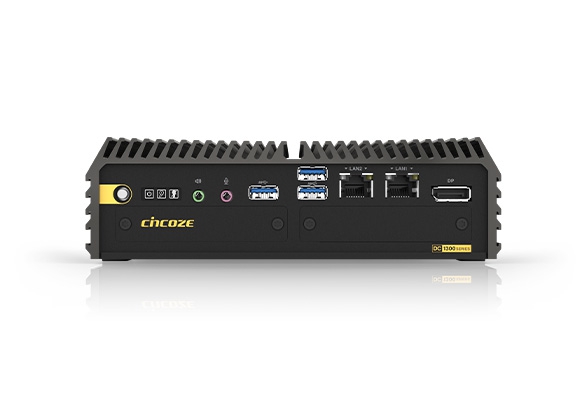

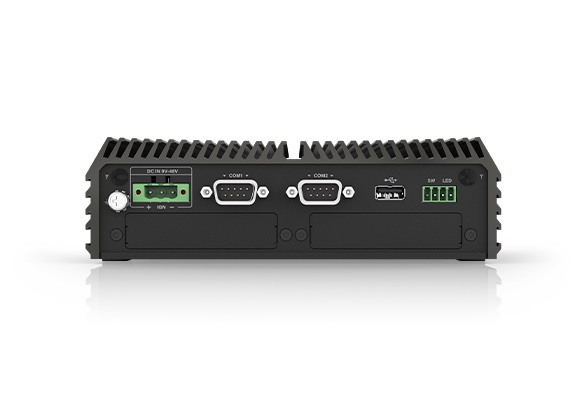

DC-1300
Intel® Alder Lake-N Processor Entry Performance and Compact Rugged Embedded Computer
PRODUCTS FEATURES
- Onboard Intel® Alder Lake-N Processor N97 and Core™ i3-N305 Processor
- 1 x DDR5 SO-DIMM Sockets, Supports up to 4800MHz 16GB Memory
- 1x M.2 Key B Type 3052/3042 Socket for 5G Module Expansion
- 1x M.2 key B Type 2242 Socket for I/O Module Expansion
- CMI Technology for Optional I/O Module Expansions
- CFM Technology for Power Ignition Sensing Function
CERTIFICATIONS
OVERVIEW
The DC-1300 is the entry-level option in the DIAMOND product line specially designed for basic industrial applications. It supports an Intel® Core™ i3 or N97 (Alder Lake-N) processor and maximum expansion flexibility in a compact design, providing a robust and reliable solution for space-constrained industrial automation applications.

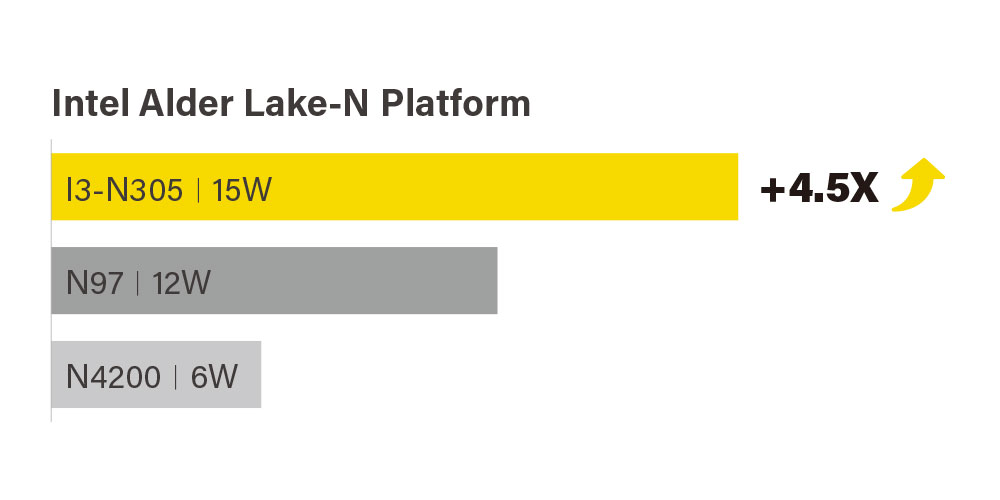

4.5X performance
——
The Intel® Core™ i3-N305 processor (Alder Lake-N) option boasts 4.5 times the computing performance of the previous generation model, and features a DDR5 memory slot and multiple storage options (2.5" HDD/SSD, Half-Slim SSD, M.2 SSD, etc.) to flexibly meet various application needs.

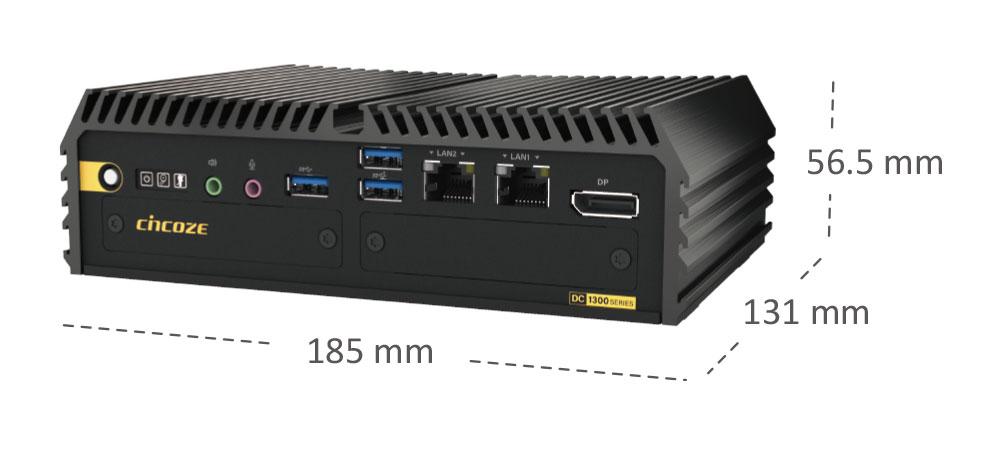

Compact design for flexible installation
——
The compact size of only 185 x 131 x 56.5 mm is suitable for space-constrained installs and it supports various installation methods, including wall mount, side mount and DIN-Rail.
Complete wireless solution
——
A full range of wireless transmission options, including GSM, GNSS and Wi-Fi, are supported through the built-in SIM card slot, M.2 Key B slot, or M.2 Key E slot (using an adapter to convert from M.2 Key B).

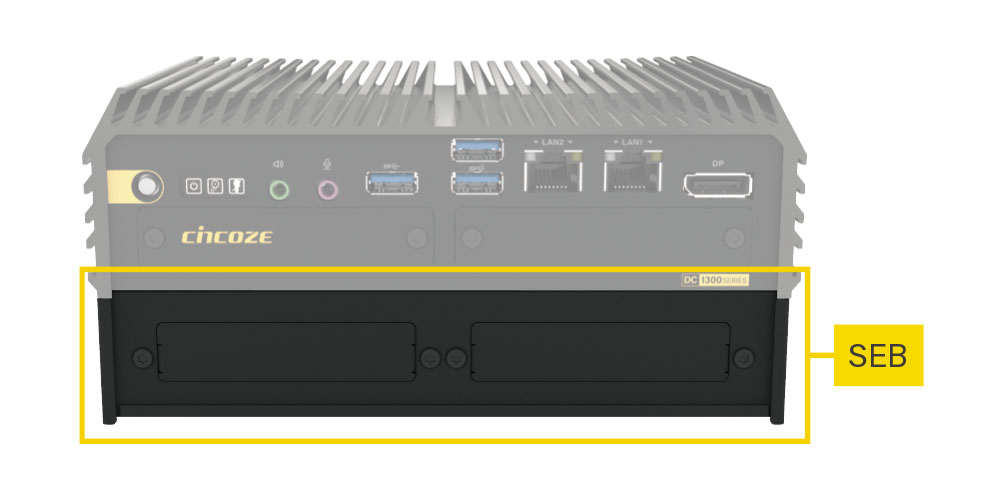

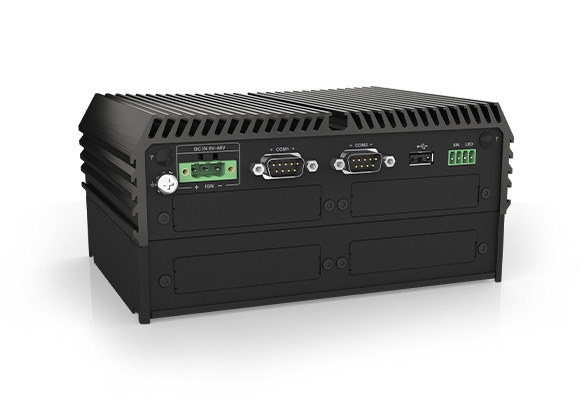

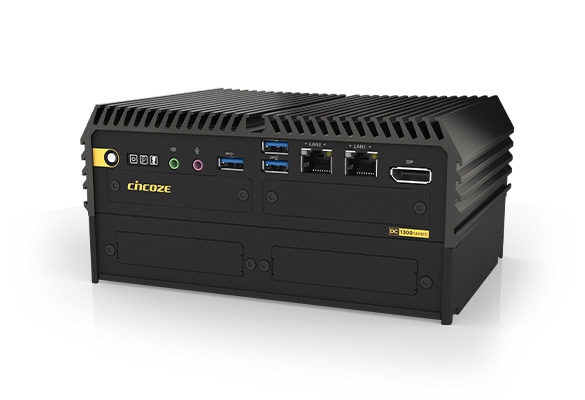

Rich expandability
——
The new stackable expansion box (SEB) adds support for more I/O, CANbus, and Fieldbus modules via the DC-1300's dual M.2 B Key slots, while CMI/CFM technology enables extra I/O ( COM, DIO, display), and IGN functions.
International certification
——
Industrial-grade protection supports wide temperatures (-40 to 70°C) and wide voltages (9-48 VDC), and passes the EMC standard for industrial environments (IEC 61000-6-2/61000-6-4). US military standard (MIL-STD-810H) ensure reliable operation across various application scenarios.
Video
SPECIFICATION
| Model Name | DC-1300 | |
|---|---|---|
| System | Processor | • Onboard Intel® Alder Lake-N Series Processor: |
| Memory | • 1x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 16GB | |
| BIOS | • AMI | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics |
| Maximum Display Output | • Supports Two Independent Display (Onboard 1x DisplayPort + Optional CMI 1x Display) | |
| DP | • 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 2x 2.5GbE LAN, RJ45 - GbE1: Intel® I225 - GbE2: Intel® I225 |
| USB | • 2 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 3.2 Gen1x1 (5Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | |
| COM | • 2x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 | |
| Storage | SSD/HDD | • 1x 2.5" SATA HDD/SSD or 1x Half-Slim SSD (SATA 3.0) |
| M.2 SSD | • 1x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support SATA SSD (SATA3.0) | |
| Expansion | M.2 B Key Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1/ USB3.2 Gen2 x1 / SATA), Support 5G/Storage/Add-on Card Expansion • 1x M.2 Key B Type 2242 (PCIe Gen 3x1), Support Add-on Card Expansion |
| SIM Socket | • 1x Front Accessible Dual Nano SIM Socket | |
| CMI (Combined Multiple I/O) Interface | • 1x CMI Interface for optional Display or I/O Module Expansion • 1x CMI Interface for optional I/O Module Expansion | |
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion | |
| Other Function | Clear CMOS Switch | • 1x Clear CMOS Switch |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| Status LED Indicator | • Power LED, Storage LED, IGN LED | |
| Antenna Holes | • 2x Antenna Holes | |
| Power | Power Button | • 1x ATX Power On/Off Button |
| Power Mode Switch | • 1x AT/ATX Mode Switch | |
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | |
| Max. Power Consumption | • i3-N305 CPU: 49.4W • N97 CPU: 35.9W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing | |
| Inrush Current (Peak) | • i3-N305 CPU: 4.572 A@12V • N97 CPU: 4.475 A@12V | |
| Remote Power LED | • 1x Remote Power LED, 2-pin Terminal Block | |
| Physical | Dimension ( W x D x H ) | • 185 x 131 x 56.5 mm |
| Weight Information | • 1.5 Kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / Side / DIN-RAIL / VESA Mount | |
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the present level to recover | |
| Over Current Protection | • 15A | |
| MTBF | • 520,224 Hours - Database: Telcordia SR-332 Issue 3, Method 1, Case 3 | |
| Operating System | Microsoft® Windows® | • Windows®11, Windows®10 |
| Linux | • Ubuntu Desktop 22.04 LTS | |
| Environment | Operating Temperature | • 12W TDP Processor: -40°C to 70°C • 15W TDP Processor: -40°C to 60°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 70°C | |
| Relative Humidity | • 12W TDP Processor: 95% RH @ 70˚C (Non-condensing) • 15W TDP Processor: 95% RH @ 60˚C (Non-condensing) | |
| Shock | • MIL-STD-810H | |
| Vibration | • MIL-STD-810H | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Industrial Environment | • EMC - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019 | |
ORDERING INFORMATION
| Model No. | Description |
|---|---|
| DC-1300-i3-R10 | Intel® Core™ i3-N305 Entry Performance and Compact Rugged Embedded Computer |
| DC-1300-N97-R10 | Intel® Processor N97 Entry Performance and Compact Rugged Embedded Computer |
| DC-1300 Embedded Computer x1 | Power Terminal Block Connector x1 |
| CPU Thermal Pad x1 | Remote Power On/Off + Remote Power LED Connector x1 |
| Screw Pack x1 | M.2 Key B Type 3052 to 3042 Adapter Bracket x1 |
| Wall Mounting Kit x1 |
| Model No. | Description |
|---|---|
| SEB-DC01-R10 | Stackable Expansion Box with 4x Expansion Area for DC Series |
| Model No. | Description |
|---|---|
| CMI-VGA01 | CMI Module with 1x VGA Port |
| CMI-DVI01 | CMI Module with 1x DVI-D Connector |
| CMI-HD02 | CMI Module with 1x HDMI Port |
| CMI-DP03-R10 | CMI Module with 1x DisplayPort |
| CMI-COM03 | CMI Module with 2x RS232/422/485 Ports(Support 5V/12V), 2x DB9 Connector |
| CMI-DIO03 | CMI Module with 8x DIO (4in 4out) Ports, 1x 10 Pin Terminal Block |
| CFM-IGN02 | CFM Module with Power Ignition Sensing Function, Select 12V/24V |
| MEC-LAN-2002i | M.2 2242/2260/2280 2-port 10/100/1000 isolated Ethernet board (-40℃~+85℃), 2x RJ45 Connector |
| MEC-LAN-2002i-S | M.2 2242/2260/2280 2-port 10/100/1000 isolated Ethernet board (0℃~+70℃), 2x RJ45 Connector |
| MEC-USB-2002 | M.2 2242/2260/2280 2-port USB 3.2 board (0℃~+70℃), 2x USB Type A Connector |
| MEC-USB-2002C | M.2 2242/2260/2280 2-port USB 3.2 board (0℃~+70℃), 2x USB Type C Connector |
| MEC-CAN-2812i | M.2 2242/2260/2280 (B+M key) 2x isolated CAN bus 2.0B board (-40℃~+85℃), 2x DB9 Connector |
| MEC-CAN-2814i | M.2 2242/2260/2280 (B+M key) quad isolated CAN bus 2.0B board (-40℃~+85℃), 4x DB9 Connector |
| UB1103 | Universal Bracket with 2x DB9 Cutout for CMI-COM & MEC-CAN Expansion |
| UB1106-R10 | Universal Bracket with 1x DP Cutout for CMI-DP Expansion |
| UB1107 | Universal Bracket with 1x DVI Cutout for CMI-DVI Expansion |
| UB1108 | Universal Bracket with 1x HDMI Cutout for CMI-HDMI Expansion |
| UB1111 | Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion |
| UB1114-R10 | Universal Bracket with 2x USB Type A Cutout for MEC-USB Expansion |
| UB1115 | Universal Bracket with 1x 10 Pin Terminal Block Cutout for CMI-DIO Expansion |
| UB1116 | Universal Bracket with 1x DB9 Cutout for CMI-VGA Expansion |
| UB1131-R10 | Universal Bracket with 2x Antenna Cutout |
| UB1133-R10 | Universal Bracket with 2x USB Type C Cutout for MEC-USB Expansion |
| AC-BE01-R10 | M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card |
| SIDE03 | Side Mount Kit for DC Series, with KMRH-K175 for DIN-Rail Mount |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| VESA-DC | DC series VESA Mount Kit |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
