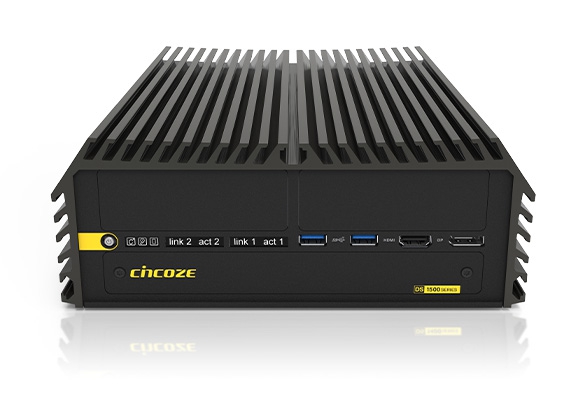

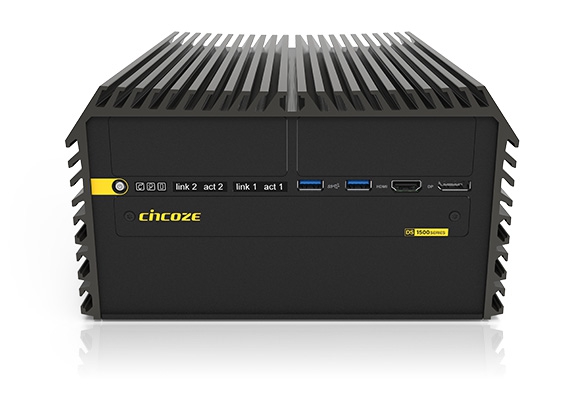

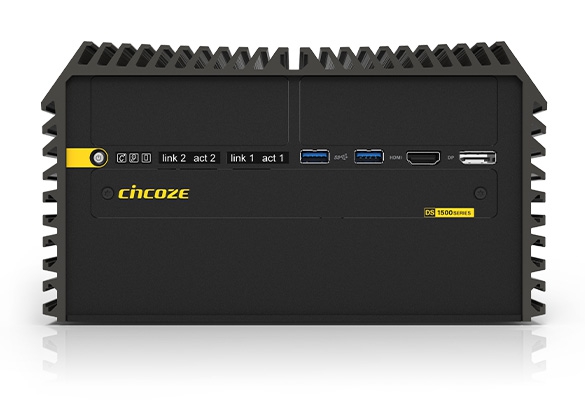

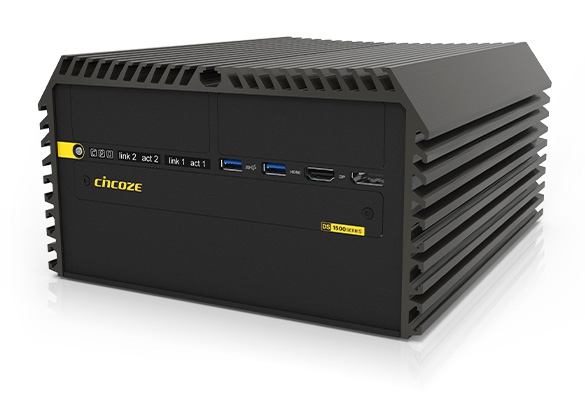

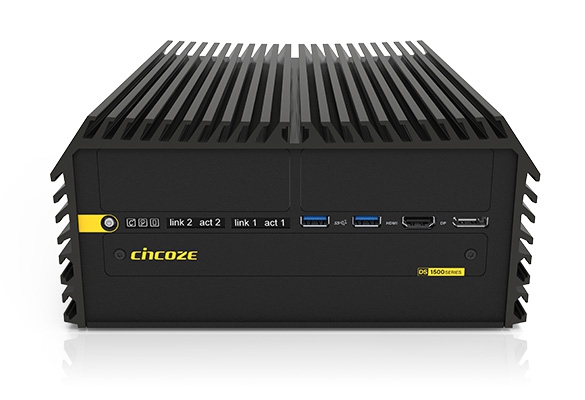

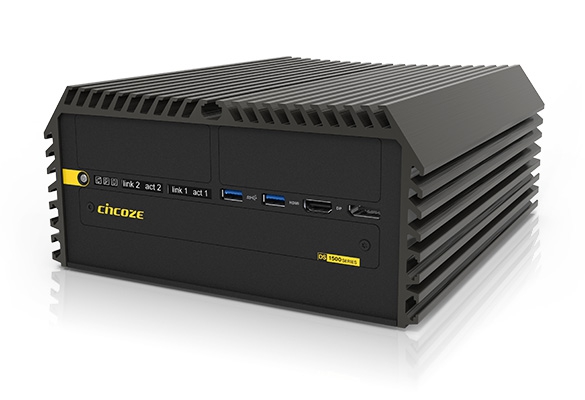

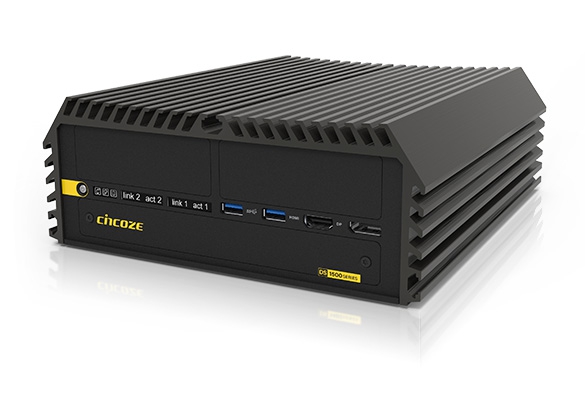

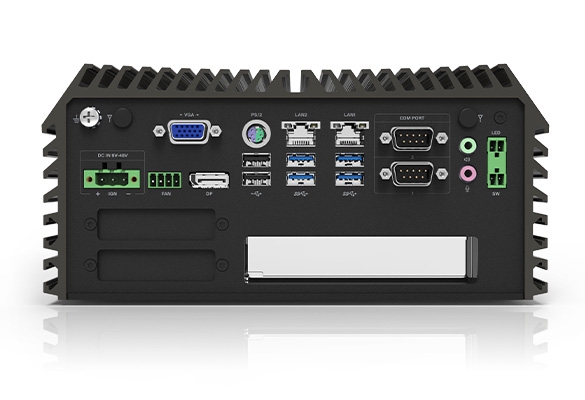

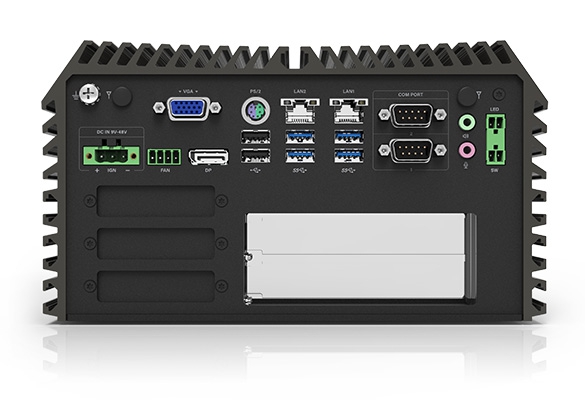

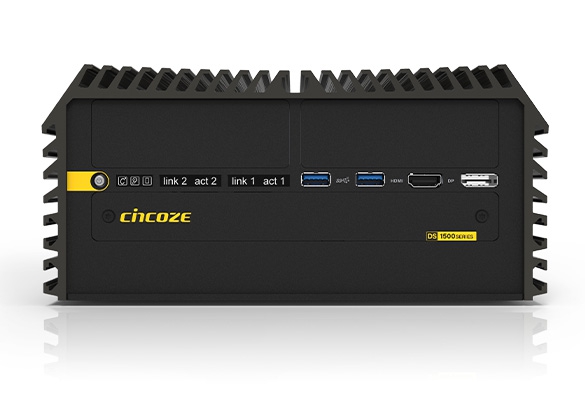

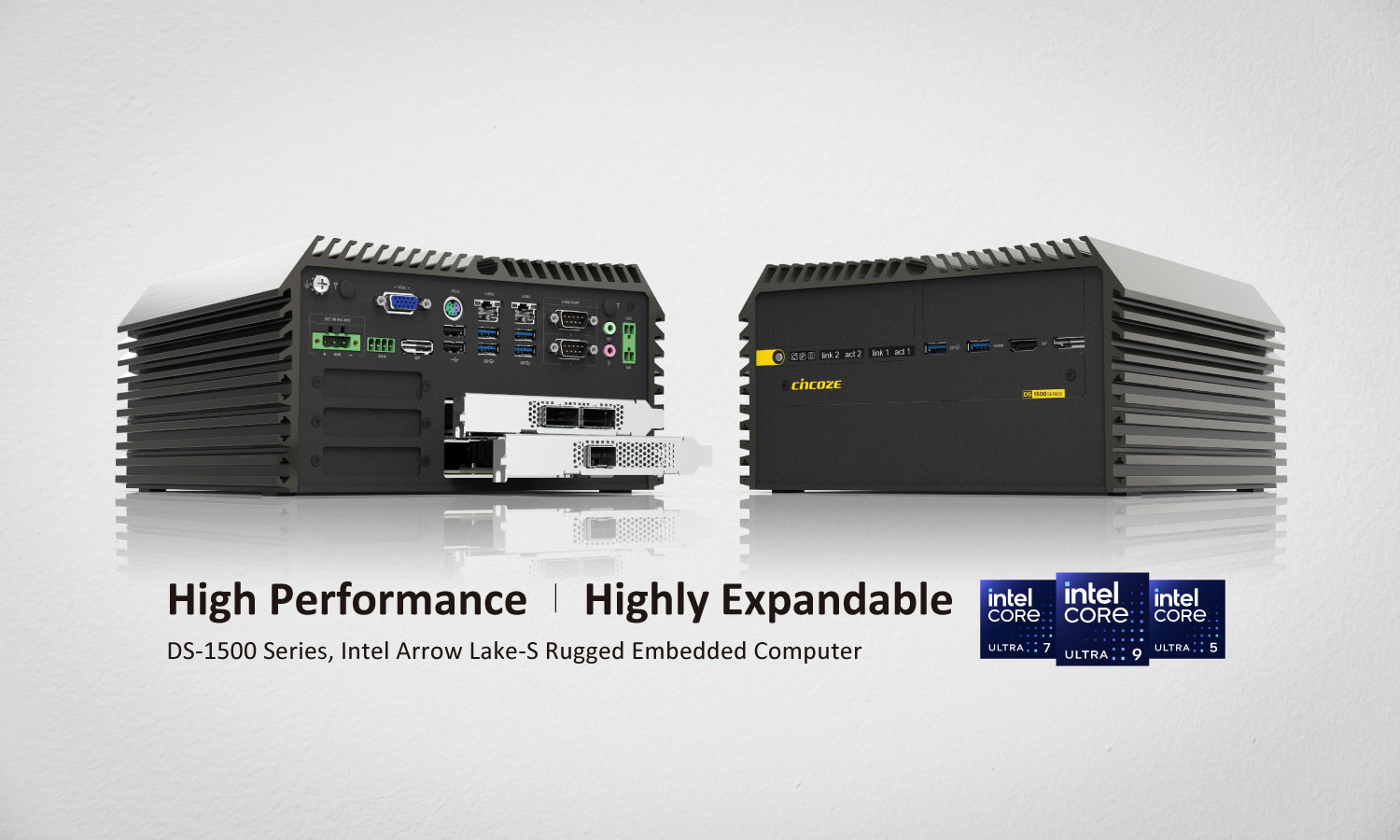

DS-1500 Series
Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer, Supporting up to 2x PCI/PCIe Expansion Cards
PRODUCTS FEATURES
- Intel® Arrow Lake-S Core™ Ultra 200S Series (Max 65 W TDP)
- 2x DDR5 SODIMM/CSODIMM Sockets, Up to 6400MHz, 96GB
- 2x PCI/PCIe Expansion Slots, Up to 130W Expansion
- Optional CMI Modules for I/O Expansion
- Optional CFM Modules for Hardware TPM, Ignition Sensing & PoE
- Wide Operating Temperature -40°C to 60°C
CERTIFICATIONS
OVERVIEW
The DS-1500 series is a high-performance, expandable, rugged embedded computer, supporting modular I/O expansion and up to two PCI/PCIe slots. It has international certifications for stable and reliable performance in harsh environments, making it perfect for smart manufacturing, rail, and more.
Product Category >>>> Rugged Embedded Fanless PC

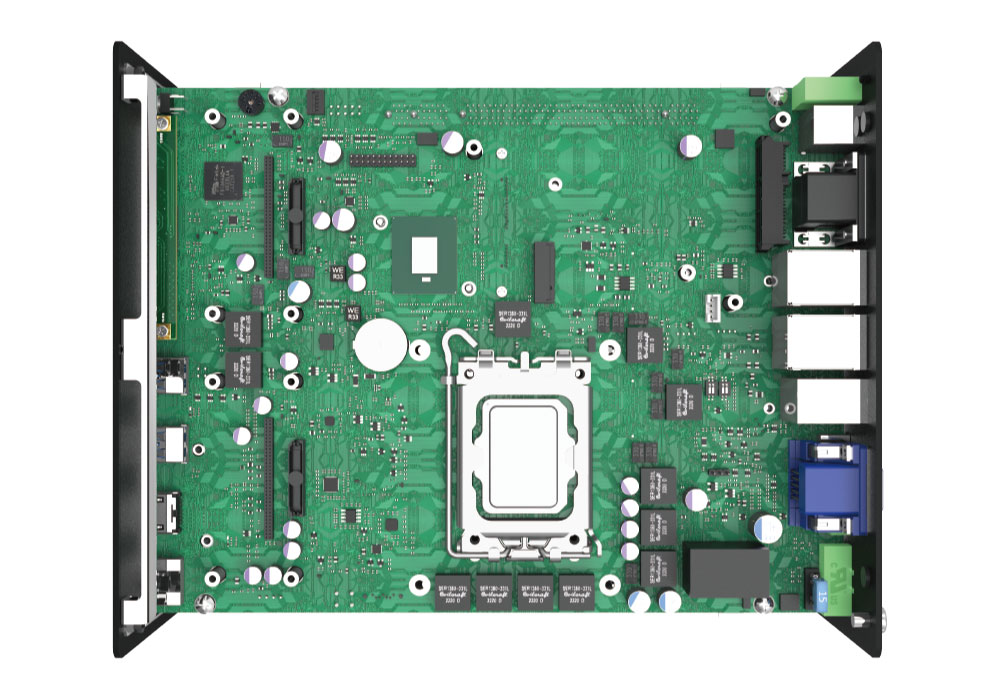

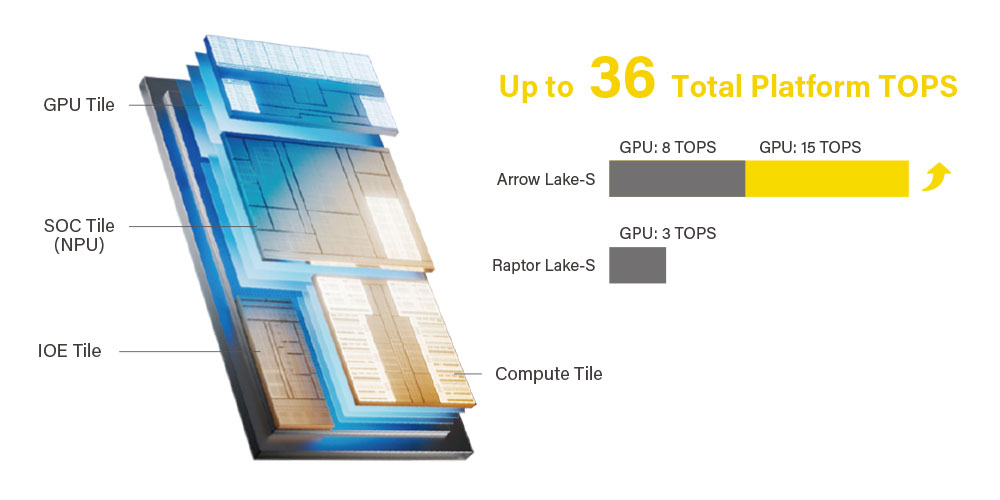

Accelerated AI Capabilities
——
Supports Intel® Core™ Ultra 200S Series processors with integrated CPU, GPU, and NPU, delivering up to 36 TOPS of AI performance — 3.5x higher than the previous generation — making it an ideal choice for Edge AI applications.

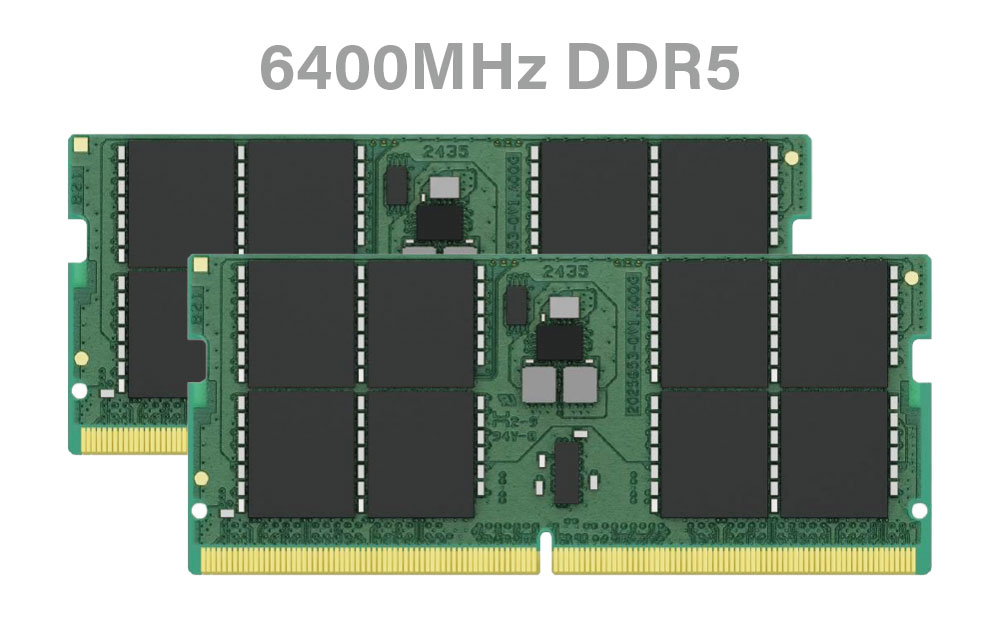

6400 MHz DDR5 CSODIMM
——
Two DDR5 CSODIMM slots support up to 96GB of 6400 MHz memory with ECC (Error Correction Code) technology for superior stability and reliability in industrial applications.

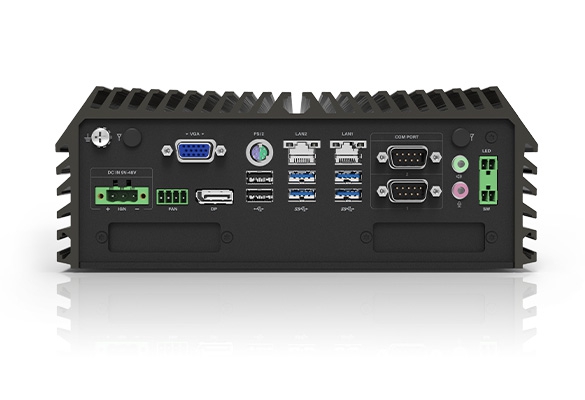

Rich and Expandable I/O
——
Native I/O and modular I/O expansion, providing high-speed transmission (10 GbE LAN, USB 3.2), industrial I/O (COM, DIO, PS/2), display outputs, and M.2 Key B/M/E slots for wireless communication modules or NVMe SSDs.
PCI/PCIe with
Patented PCIe Card Retainer
——
Supports up to 2x PCI/PCIe expansion slots (DS-1502) for I/O, image capture, data acquisition, and motion control cards, or a single 130W GPU card (111 × 235 mm). The patented adjustable card retainer secures expansion cards in high-vibration environments, ensuring long-term stable operation.

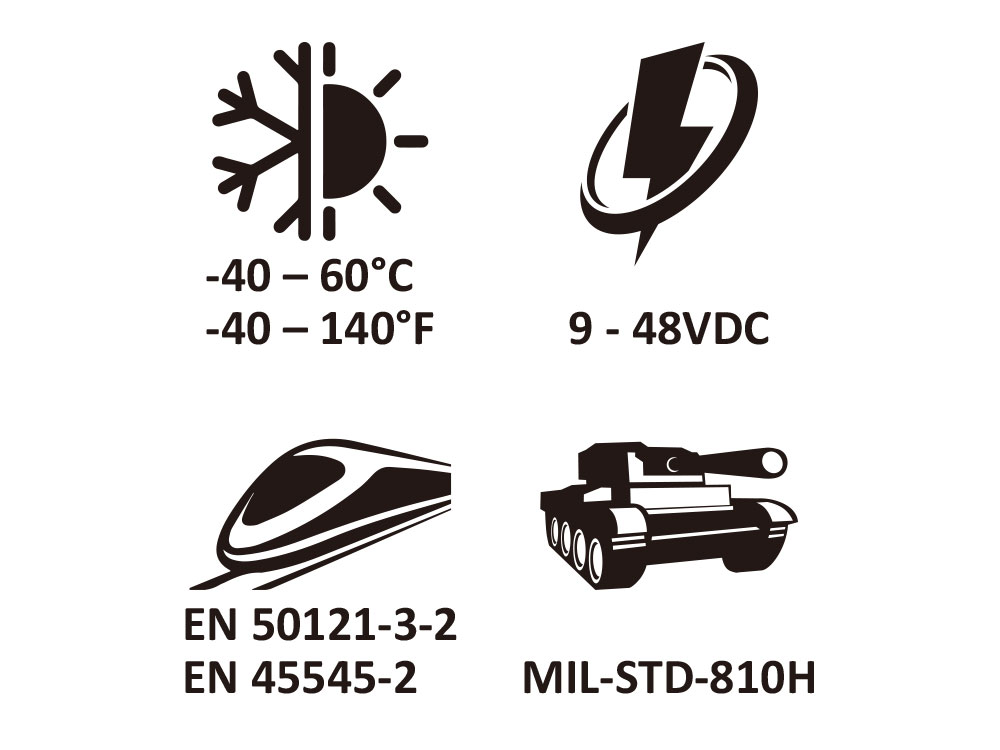

Rugged and Reliable
——
Industrial-grade protections include wide temperature (-40°C to 60°C) and wide voltage (9 - 48 VDC) support; overvoltage, overcurrent, and ESD protection. Meets US military shock and vibration standard (MIL-STD-810H), as well as rail EMC (EN 50121-3-2) and fire protection (EN 45545-2) standards.
SPECIFICATION
| Model Name | DS-1500 | DS-1501 | DS-1502 | |
|---|---|---|---|---|
| System | Processor | • Arrow Lake-S Ultra 200S Series CPU: | ||
| Chipset | • Intel W880 Chipset | |||
| Memory | • 2x DDR5 SODIMM/CSODIMM Socket, Support Un-buffered and ECC Type - Ultra 9 / 7: Supports Up to 6400MHz, 96GB - Ultra 5: Supports Up to 5600MHz, 96GB | |||
| BIOS | • AMI BIOS | |||
| Graphics | Graphics Engine | • Integrated Intel® Xe LPG Graphics | ||
| Maximum Display Output | • Supports Quad Independent Display | |||
| VGA | • 1x VGA Connector : 1920 x 1200@60Hz | |||
| DP | • 2x DP Connector : 4096 x 2304@60Hz - Support cable switch HDMI 4096 x 2160@30Hz * Verified maximum resolution: 3840 x 2160@60Hz | |||
| HDMI | • 1x HDMI Connector : 4096 x 2160@30Hz * Verified maximum resolution: 3840 x 2160@30Hz | |||
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio | ||
| Line-out | • 1 x Line-out, Phone Jack 3.5mm | |||
| Mic-in | • 1 x Mic-in, Phone Jack 3.5mm | |||
| I/O | LAN | • 1x 2.5 GbE LAN, RJ45 - GbE1: Intel® I225 • 1x GbE LAN, RJ45 - GbE2: Intel® I219 | ||
| COM | • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |||
| USB | • 2x 10Gbps USB 3.2 Gen2x1, Type A • 4x 5Gbps USB 3.2 Gen1x1, Type A • 2x 480Mbps USB 2.0, Type A | |||
| PS/2 | • 1 x PS/2, 6 Pin Mini-DIN Female Connector | |||
| Storage / Expansion | 2.5" SSD / HDD | • 1x 2.5" Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) • 1x 2.5" Internal SATA HDD/SSD Bay ( SATA 3.0 ) | ||
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2x1 / SATA), Support 5G / GNSS / Storage / Add-on Card Expansion • 2x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / SATA), Support GNSS / Storage / Add-on Card Expansion | |||
| M.2 Key M Socket | • 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA), Support Storage / Add-on Card Expansion | |||
| PCI Express | • 1 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm * Supports GPU card up to 75W | • 2 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm * Supports GPU card up to 130W | ||
| SIM | • 2x SIM Socket | |||
| CMI (Combined Multiple I/O) Socket | • 2x High Speed CMI Interface for optional CMI Module Expansion • 2x Low Speed CMI Interface for optional CMI Module Expansion | |||
| CFM (Control Function Module) Socket | • 1x CFM IGN Interface for optional CFM-IGN Module Expansion • 1x CFM-TPM Interface for optional CFM-TPM Module Expansion | |||
| Other Function | RAID | • Support RAID 0/1/5/10 | ||
| External FAN Connector | • 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) | |||
| Power Ignition Sensing | • Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) | |||
| TPM | • Support Discrete TPM2.0 (with Optional CFM Module) | |||
| Clear CMOS Switch | • 1x Clear CMOS Switch | |||
| Reset Button | • 1x Reset Button | |||
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |||
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |||
| Antenna Holes | • 2 | |||
| Power | Power Button | • 1 x ATX Power On/Off Button | ||
| Power Mode Switch | • 1 x AT/ATX Mode Switch | |||
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |||
| Remote Power On/Off | • 1 x Remote Power On/Off, 2-pin Terminal Block | |||
| Remote Power LED | • 1 x Remote Power LED, 2-pin Terminal Block | |||
| Max. Power Consumption | • 35W CPU: 163W • 65W CPU: 262.8W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing | |||
| Inrush Current (Peak) | • 35W CPU: 5.812 A@24V • 65W CPU: 5.983 A@24V | |||
| Physical | Dimension ( W x D x H ) | • 227x261x88 mm | • 227x261x108 mm | • 227x261x128 mm |
| Weight Information | • 4.9 KG | • 5.3 KG | • 5.7 KG | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |||
| Mounting | • Wall Mount | |||
| Physical Design | • Fanless Design • Cableess Design • Jumper-less Design • Unibody Design | |||
| Reliability & Protection | Reverse Power Input Protection | • Yes | ||
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |||
| Over Current Protection | • 15A | |||
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |||
| MTBF | • 307,224 - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |||
| Operating System | Windows | • Windows®11, Windows®10 | ||
| Linux | • Ubuntu 24.04 | |||
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 60°C (-40℉ to 140℉) • 65W TDP Processor: TBC - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 | ||
| Storage Temperature | • -40°C to 85°C (-40℉ to 185℉) | |||
| Relative Humidity | • 95%@60°C (non-Condensing) | |||
| Shock | • MIL-STD-810H | |||
| Vibration | • MIL-STD-810H | |||
| EMC | • CE, UKCA, FCC, ICES-003 Class A | |||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |||
| Railway | • EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 | |||
| Fire Protection | • EN 45545-2 | |||
ORDERING INFORMATION
| Model No. | Description |
|---|---|
| DS-1500-R10 | Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer |
| DS-1501-R10 | Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer, Supporting 1x PCI/PCIe Expansion Card |
| DS-1502-R10 | Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer, Supporting 2x PCI/PCIe Expansion Cards |
| DS-1500 Series Embedded System x 1 | Heatsink Pack x 1 |
| Wall Mounting Kit x 1 | Screw Pack x 1 |
| Power Terminal Block Connector x 1 | Remote Function Terminal Block Connector x 2 |
| Fan Terminal Block Connector x 1 | M.2 Key B Type 3052 to 3042 Adapter Bracket x 3 |
| Model No. | Description |
|---|---|
| CMI-LAN01-R12 | CMI Module with 4x RJ45 Intel I210 GbE LAN Ports |
| CMI-M12LAN01-R12 | CMI Module with 4x M12 Intel I210 GbE LAN Ports |
| CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
| CMI-10GLAN03-R10 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port |
| CMI-COM02 | CMI Module with 4x RS232/422/485 Serial Ports |
| CMI-ICOM01 | CMI Module with 4x Electrical Isolated RS232/422/485 Serial Ports |
| CMI-DIO02 | CMI Module with 16x Optical Isolated DIO (8 in/8 out) |
| CFM-PoE03 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
| CFM-TPM01-R10 | CFM Module with Hardware TPM 2.0 |
| RC-E16-01 | Riser Card with 1 x PCIex16 Slot |
| RC-PI-01 | Riser Card with 1 x PCI Slot |
| RC-E8E8-R10 | Riser Card with 2 x PCIex8 Slots |
| RC-E16E1-01 | Riser Card with 1x PCIex16, 1x PCIex1 slots, supports GPU card up to 75W |
| RC-E16E1-02-R10 | Riser Card with 1x PCIex16, 1x PCIex1 slots, and auxiliary power connector, supports GPU card up to 130W |
| RC-E16PI-01 | Riser Card with 1x PCIex16 and 1x PCI Slots (PCIe x16 Slot Supports Single Deck Add-on Card) |
| RC-PIPI-01 | Riser Card with 2x PCI Slots |
| AC-BE01-R10 | M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card |
| UB1004 | Universal Bracket with 4x DB9 Cutout |
| UB1010 | Universal Bracket with 4x M12 Cutout |
| UB1012 | Universal Bracket with 4x RJ45 Cutout |
| UB1018 | Universal Bracket with DIO Cutout |
| UB1028 | Universal Bracket with 2x RJ45 Cutout |
| UB1030-R10 | Universal Bracket with 4x M12 X-Coded Cutout |
| UB0303 | 2x Universal Bracket each with 1x DB9 Cutout |
| UB0311 | Universal Bracket with 2x RJ45 Cutout |
| UB0331-R10 | Universal Bracket with 2x Antenna Hole |
| FAN-EX101 | External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan |
| FAN-UB100 | Internal Exhaust Fan with 4pin Connector |
| FAN-UB101 | Internal Intake Fan with 4pin Connector |
| MEC-LAN-2002i-S | M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board (0℃~+70℃), 2x RJ45 Connector, Cervoz |
| MEC-LAN-2002i | M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board (-40℃~+85℃), 2x RJ45 Connector, Cervoz |
| MEC-LAN-2602i | M.2 2280 (B+M key) 2-port 2.5GbE isolated Ethernet board(-40℃~+85℃), 2x RJ45 Connector, Cervoz |
| MEC-COM-2012 | M.2 2242/2260/2280 (B+M key) 2-port RS-232 serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz |
| MEC-COM-2032i | M.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz |
| MEC-CAN-2812i | M.2 2242/2260/2280 (B+M key) dual isolated CAN bus 2.0B board (-40℃~+85℃), 2x DB9 Connector, Cervoz |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug and Tubes, Level VI |
| RSD-200D-24 | Railway Single Output DC-DC Converter 200W / DC 24V |
| Power Cable | 1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube |
