Cincoze High-Performance & PCIe Expandable Industrial Computer (DS-1500 Series)
Cincoze Rugged Computing — DIAMOND product line, DS-1500 series industrial computers are our highest performance models with PCIe expansion. The series has excellent processing performance, diverse expansion options, patented product design, multiple industrial-grade protections, and various international certifications. The series is the ideal solution for high-end applications, such as industrial automation, smart manufacturing, transportation, and edge AI computing in harsh industrial environments.
High Performance
Intel Arrow Lake-S up to 65W, 24 cores (8P + 16E), and 24 threads. Up to 96GB of 6400 MHz DDR5 SODIMM/CSODIMM with ECC error correction technology. The ultimate combination for high-performance applications.
PCI/PCIe Expansion
Maximum of two PCI/PCIe expansion cards (DS-1502) up to 111mm x 235mm and 130W. Supports the majority of expansion cards on the market.
High-speed Transmission and I/O Function Expansion
Supports 10GbE LAN and 10Gbps USB 3.2 Gen2x1. Modular expansion design with options for LAN, M12 LAN, COM, DIO, PoE, IGN, TPM security module, and other functions. Meets high-speed communications and diversified application needs of various industrial sites.
Multiple Certifications Rugged and Reliable
Wide temperature range (-40 - 60°C) and wide voltage (9 - 48 VDC) support. Complies with the US military shock and vibration standard MIL-STD-810H. It has passed the railway standards for EMC (EN 50121-3-2) and fire protection (EN 45545-2).
Why choose Cincoze industrial computers?
User-oriented design elements to eliminate pain points

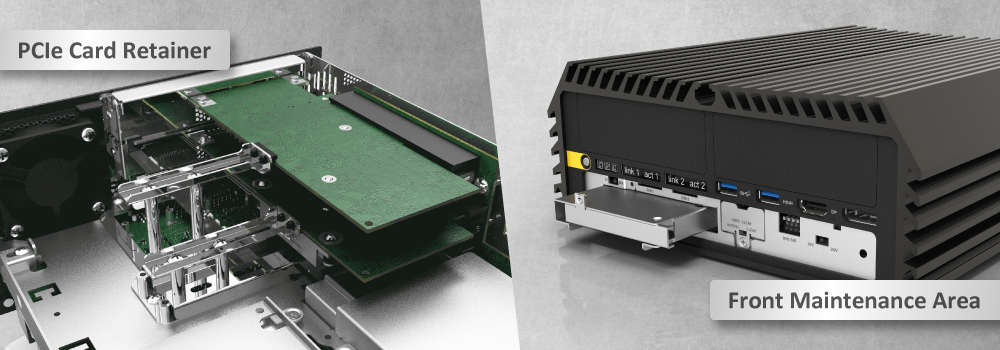

To counter the effects of vibrations and the harsh environment at industrial sites, the DS-1500 Series features a patented PCIe card retainer (patent number: I773359). It can be flexibly adjusted and securely locked to fit the size of the PCI/PCIe expansion card, ensuring stability during long-term operation. The reset, clear CMOS, AT/ATX power switch, and SIM card slot are all centrally located on the front panel, simplifying operation and maintenance and making daily use more intuitive and efficient.

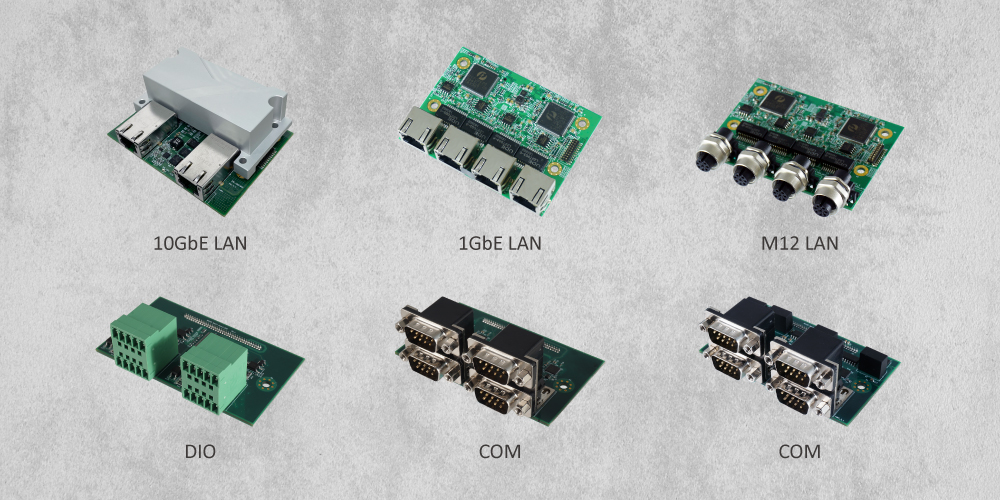

Flexible modular expansion to accommodate various configurations
With Cincoze's unique modular design, users can quickly configure system functions based on actual application requirements at the initial purchase stage, showing high flexibility and deployment convenience. When new I/O or functions are needed as tasks change, they can be easily added through modular design, avoiding complex redesign and high costs.

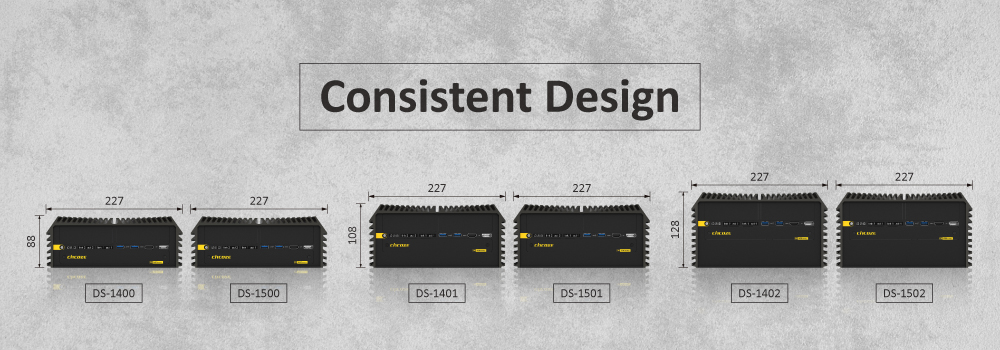

Series continuity to reduce upgrade costs
The DS-1500 series maintains consistent specifications in form factor, dimensions, and mounting hole. When upgrading to a new generation, users can utilize the existing mechanism and installation design without incurring additional redesign or manufacturing costs. The modules are highly compatible, enabling seamless plug-and-play upgrades that reduce conversion costs and maximize investment returns.
Cincoze High-Performance & PCIe Expandable Industrial Computer
| Model |  DS-1500 |  DS-1501 |  DS-1502 |
| PCI/PCIe Expansion Slot | -- | 1 | 2 |
| CPU | Intel® Arrow Lake-S Core™ Ultra 200S Series (Max 65 W TDP) | ||
| Chipset | Intel W880 Chipset | ||
| Memory | 2x DDR5 SODIMM/CSODIMM Sockets, Up to 6400MHz, 96GB | ||
| High-speed I/O | 1x 2.5GbE LAN, 1x 1GbE LAN, 2x 10Gbps USB 3.2 Gen2x1, 4x 5Gpbs USB 3.2 Gen1x1, 2x 480 Mbps USB 2.0 | ||
| Expansion Socket | 1x M.2 Key M, 3x M.2 Key B, 2x SIM Socket | ||
| Modular Expansion | I/O: 1GbE LAN, 2.5GbE LAN, 10GbE LAN, M12 1GbE LAN, DIO, COM | ||
| Function: Power over Ethernet (PoE), Power Ignition Sensing (IGN), Trusted Platform Module (TPM) | |||
