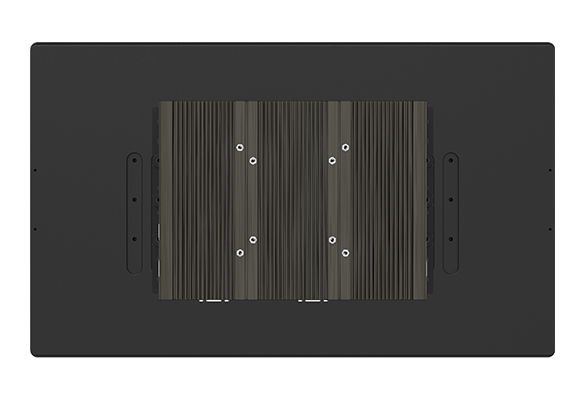

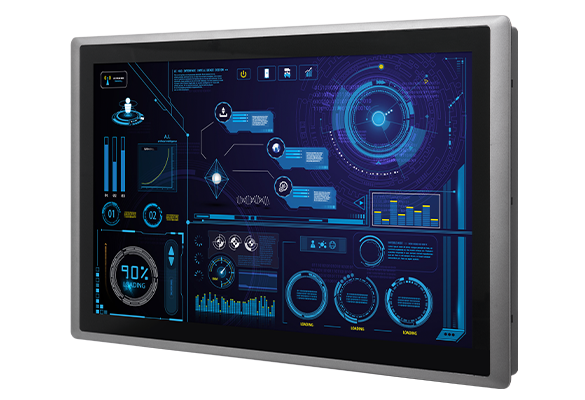

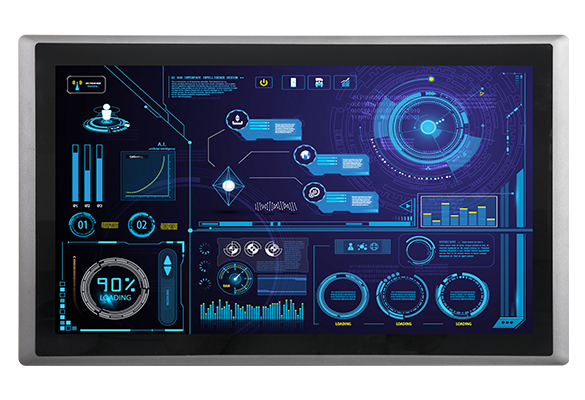

CV-W121 / P2302 Series
21.5" TFT Full HD 16:9 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Embedded Computer
PRODUCTS FEATURES
- 21.5" TFT Full HD 16:9 LCD with Resistive 5-wire Touch / Project Capacitive Touch / Glass Only
- Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
- 2 x DDR5 SO-DIMM Socket, Supports up to 5600MHz 64GB Memory
- Quad Independent Display (CDS / HDMI / DP / VGA)
- 1x M.2 Key E Type 2230 Socket for Wireless / Bluetooth Module Expansion
- 1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
- 1x M.2 Key B Type 3042 Socket for Storage/Add-on Card Expansion
- Designed with Aluminum Die-cast Front Bezel
- Front Panel IP65 Compliant
OVERVIEW
The CV-100/P2302 series are high-performance modular industrial panel PCs supporting the latest Intel® Core Ultra processors (Meteor Lake-PS) across 20 model variations with flexible expansion capabilities. The series features rich built-in I/O interfaces and supports a variety of expansion slots, including M.2 Key B and Key E, PCI/PCIe (P2302E only), and CFM and MEC modular expansion (P2302E only) for adding wireless communication, NVMe storage, and I/O functions as needed. The rugged design makes the CV-100/P2302 series suitable for diverse application fields such as equipment HMI and production process visualization.
Product Category >>>> Modular Panel PC & Industrial Monitor
Improved performance x
Power-Saving x AI Boost
——
The CV-100/P2302 series supports Intel® 4 Core Ultra i7/i5/i3 U Series (Meteor Lake-PS) processors with up to 12 cores and 15W low power consumption, providing 1.8 times the performance of the previous model. The new built-in Intel NPU delivers faster and more efficient AI acceleration capabilities for high-volume image processing and AI recognition.
High Flexibility , unlimited Applications
——
The CV-100/P2302 series offers outstanding flexibility, supporting Core Ultra U-series LGA CPUs for customizable performance. It features M.2 Key B/E slots for 5G, Wi-Fi, Bluetooth, NVMe SSDs, and I/O expansion. The CV-100/P2302E further supports PCI/PCIe slots for expansion cards (up to 75W, 111 × 169 mm), enabling diverse applications.
CDS technology
——
Our exclusive CDS (Convertible Display System) technology enables easy maintenance in the field and simplifies future upgrades. Replacing the display or improving system performance only requires replacing a single component, significantly saving upgrade costs.
Complete range of sizes
——
The CV-100/P2302 series has a diverse product portfolio, ranging from screen size (12” – 24”), display ratio (4:3 / 5:4 / 16:9) to touch methods (projected capacitive and single-point resistive), selectable according to application needs.
Rugged, safe, and more reliable
——
The CV-100/P2302 series has multiple industrial-grade protections for applications in harsh industrial environments such as field-side HMI or production process visualization. Industrial-grade protections include wide temperature design, wide voltage design, and waterproof and dustproof IP65 front panel.
Video
SPECIFICATION
CV-W121 Series
| Model Name | CV-W121R | CV-W121C | CV-W121G | |
|---|---|---|---|---|
| Display | LCD Size | 21.5” (16:9) | ||
| Max. Resolution | 1920 x 1080 | |||
| Brightness (cd/m2) | 300 | |||
| Contrast Ratio | 5000 : 1 | |||
| LCD Color | 16.7M | |||
| Pixel Pitch (mm) | 0.24825 (H) x 0.24825 (V) | |||
| Viewing Angle (H-V) | 178 / 178 | |||
| Backlight LED Life Time | 50,000 hrs (LED Backlight) | |||
| Touch Screen | Touchscreen Type | Resistive 5-wire | Projected Capacitive | Glass Screen |
| Physical | Dimension (W x D x H) | 550 x 330.5 x 63.2mm | ||
| Weight Information | 5.56 kg | |||
| Mechanical Construction | Die-Casting Flat Surface | |||
| Power | Power Consumption | 24.85W (Max.) | 24.8W (Max.) | 24.35W (Max.) |
| Environment | Front Panel Protection | IP 65 Compliant | ||
| Operating Temperature | 0°C to 60°C (with Industrial Grade peripherals; Ambient with air flow) | |||
| Storage Temperature | -20°C to 60°C | |||
| Relative Humidity | 80% RH @ 50°C (non-Condensing) | |||
| EMC | CE, UKCA, FCC, ICES-003 Class A | |||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |||
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |||
P2302 Series
| Model Name | P2302 | P2302E | |
|---|---|---|---|
| System | Processor | • Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor - Intel® Core™ Ultra 7 Processor 165UL 12 Cores Up to 4.9 GHz, TDP 15W - Intel® Core™ Ultra 7 Processor 155UL 12 Cores Up to 4.8 GHz, TDP 15W - Intel® Core™ Ultra 5 Processor 135UL 12 Cores Up to 4.4 GHz, TDP 15W - Intel® Core™ Ultra 5 Processor 125UL 12 Cores Up to 4.3 GHz, TDP 15W - Intel® Core™ Ultra 3 Processor 105UL 8 Cores Up to 4.2 GHz, TDP 15W | |
| Memory | • 2x DDR5 5600 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64 GB | ||
| BIOS | • AMI BIOS | ||
| Graphics | Graphics Engine | • Intel® Graphics | |
| Maximum Display Output | • Supports Quad Independent Display | ||
| CDS | • 1x CDS Connector (1920 x 1080 @60Hz) | ||
| DP | • 1x DisplayPort Connector (4096 x 2304@60Hz) * Verified maximum resolution: 3840x2160@ 60Hz | ||
| HDMI | • 1x HDMI Connector (3840 x 2160 @30Hz) | ||
| VGA | • 1x VGA Connector (1920 x 1080 @60Hz) | ||
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio | |
| Line-out | • 1x Line-out, Phone Jack 3.5mm | ||
| Mic-in | • 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | • 2x 2.5GbE LAN, RJ45 - GbE1: Intel® I225 - GbE2: Intel® I225 | |
| COM | • 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | ||
| USB | • 2 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 3.2 Gen1x1 (5Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | ||
| DIO | • 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block | ||
| Storage | SSD/HDD | • 2x 2.5" SATA HDD/SSD Bay (SATA 3.0) | |
| M.2 SSD | • 1x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support PCIe Gen 4x2 NVMe SSD • 1x M.2 SSD Shared by M.2 Key B Type 3042 Socket, Support PCIe Gen 3x2 NVMe SSD | ||
| RAID | • RAID 0/1 | ||
| Expansion | M.2 Key E Socket | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Bluetooth Module Expansion | |
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2 x1 / USB2.0), Support 5G/Storage/Add-on Card Expansion • 1x M.2 Key B Type 3042 (PCIe Gen 3x2), Support Storage/Add-on Card Expansion | ||
| PCI Express | -- | • 1x PCI or 1x PCIe Gen3 x4 Expansion slot (with Optional Riser Card) • Supports maximum dimensions of add-on card (H x L) : 111 x 169mm | |
| SIM Socket | • 1 x Front Accessible SIM Socket | ||
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion | ||
| CDS (Convertible Display System) Interface | • 1x CDS Interface for Convertible Display Module | ||
| Other Function | Clear CMOS Switch | • 1x Clear CMOS Switch | |
| Reset Button | • 1x Reset Button | ||
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | ||
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | ||
| OSD Button | • LCD On/Off, Brightness Up, Brightness Down | ||
| Internal Speaker | • AMP 2W + 2W | ||
| Status LED Indicator | • Power LED, Storage LED | ||
| Antenna Holes | • 6x Antenna Holes | ||
| Power | Power Button | • 1x ATX Power On/Off Button | |
| Power Mode Switch | • 1x AT/ATX Mode Switch | ||
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | ||
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | ||
| Max. Power Consumption | • Intel Core™ Ultra 7 Processor 165UL: 79.7W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing | ||
| Inrush Current (Peak) | • Intel Core™ Ultra 7 Processor 165UL: 5.010 A@24V | ||
| Operating Stystem | Windows | • Windows®11, Windows®10 | |
| Linux | • Ubuntu Desktop 24.04 LTS | ||
| Physical | Dimension ( W x D x H ) | • 254.5 x 190 x 49.5 mm | • 254.5 x 190 x 69 mm |
| Weight Information | • 2.16kg | • 2.26kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | • Wall / VESA / CDS / DIN Rail | ||
| Physical Design | • Fanless Design • Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input Protection | • Yes | |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | ||
| Over Current Protection | • 15A | ||
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| MTBF | • TBC Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | ||
| Environment | Operating Temperature | • -40°C to 65°C * PassMark BurnIn Test: 100% CPU, 2D/3D Graphics (withoutthermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 | |
| Storage Temperature | • -40°C to 65°C | ||
| Relative Humidity | • 95%RH @ 65°C (non-Condensing) | ||
| Shock | • Operating, 50 Grms (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
| EMC | • CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | ||
| Industrial Environment | • EMC - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019 | ||
ORDERING INFORMATION
| Model No. | Description |
|---|---|
| CV-W121R-R10/P2302-R10 | 21.5" TFT Full HD 16:9 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Slim Embedded Computer and Resistive 5-wire Touch |
| CV-W121R-R10/P2302E-R10 | 21.5" TFT Full HD 16:9 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Expandable Embedded Computer, Supporting 1x PCI/PCIe Expansion Card and Resistive 5-wire Touch |
| CV-W121C-R11/P2302-R10 | 21.5" TFT Full HD 16:9 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Slim Embedded Computer and Projected Capacitive Touch |
| CV-W121C-R11/P2302E-R10 | 21.5" TFT Full HD 16:9 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Expandable Embedded Computer, Supporting 1x PCI/PCIe Expansion Card and Projected Capacitive Touch |
| CV-W121G-R10/P2302-R10 | 21.5" TFT Full HD 16:9 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Slim Embedded Computer and without Touch |
| CV-W121G-R10/P2302E-R10 | 21.5" TFT Full HD 16:9 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Expandable Embedded Computer, Supporting 1x PCI/PCIe Expansion Card and without Touch |
| CV-W121R | CV-W121C | CV-W121G | P2302 | P2302E | |
|---|---|---|---|---|---|
| CV-W121R/P2302 | V | -- | -- | V | -- |
| CV-W121C/P2302 | -- | V | -- | V | -- |
| CV-W121G/P2302 | -- | -- | V | V | -- |
| CV-W121R/P2302E | V | -- | -- | -- | V |
| CV-W121C/P2302E | -- | V | -- | -- | V |
| CV-W121G/P2302E | -- | -- | V | -- | V |
| • CV-W121/P2302 Series Panel PC x1 | • PCI / PCIe Card Installation Kit x 1 (For P2302E Only) |
| • Power Terminal Block x1 | • Screws Pack x4 |
| • Remote Power On/Off Terminal Block Connector x1 | • Heatsink kit x1 |
| • DIO Terminal Block Connector x2 | • M.2 Key B Type 3052 to 3042 Adapter Bracket x1 |
| • Panel Mounting Kit x14 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable |
| CFM-PoE04 | CFM Module with PoE Control Function, Individual Port 25.5W(For P2302 Only) |
| CFM-PoE05 | CFM Module with PoE Control Function, Individual Port 25.5W(For P2302E Only) |
| MEC-LAN-2002i | M.2 2242/2260/2280 2-port 10/100/1000 Isolated Ethernet Board(-40°C~+85°C), 2x RJ45 Connector |
| MEC-LAN-2002i-S | M.2 2242/2260/2280 2-port 10/100/1000 Isolated Ethernet Board(-0°C~+70°C), 2x RJ45 Connector |
| MEC-USB-2002-SP | M.2 2242/2260/2280 2 port USB 3.2 board(-0°C~+70°C), w/ IDE 20P 90° Cable, 2x USB Type A Connector *Only one MEC-USB-2002-SP can be installed on the P2302E |
| MEC-USB-2002C | M.2 2242/2260/2280 2-port USB 3.2 Board(-0°C~+70°C), 2x USB Type C Connector |
| MEC-CAN-2812i | M.2 2242/2260/2280 (B+M Key) 2x Isolated CAN Bus 2.0B Board (-40°C~+85°C), 2x DB9 Connector |
| MEC-CAN-2814i | M.2 2242/2260/2280 (B+M Key) 4x Isolated CAN Bus 2.0B Board (-40°C~+85°C), 4x DB9 Connector |
| MEC-COM-2012 | M.2 2242/2260/2280 (B+M Key) 2-port RS-232 Serial Board (-40°C~+85°C), 2x DB9 Connector |
| MEC-COM-2032i | M.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40°C~+85°C), 2x DB9 Connector |
| RC-E4-02 | Riser Card with 1x PCIe x4 Slot (For P2302E Only) |
| RC-PI-02 | Riser Card with 1x PCI Slot (For P2302E Only) |
| UB1203 | Universal Bracket with 2x DB9 Cutout for MEC-COM & MEC-CAN Expansion |
| UB1211 | Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion |
| UB1233-R10 | Universal Bracket with 2x USB Type C Cutout for MEC-USB Expansion |
| UB1234-R10 | Universal Bracket with 2x USB Type A Cutout for MEC-USB (M.2 interface) Expansion |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES,GST360A24-CIN |
