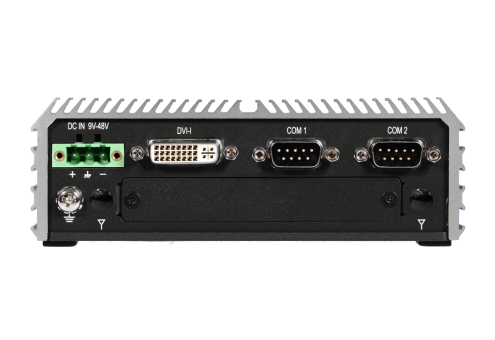

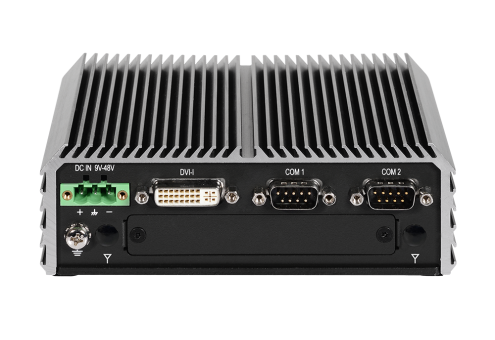

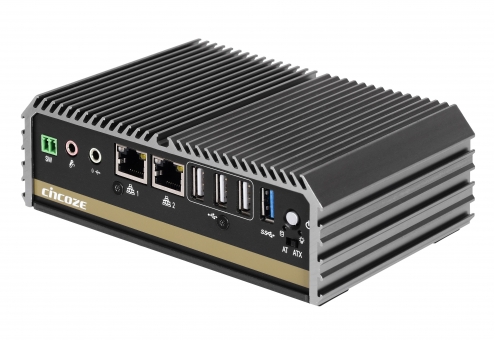

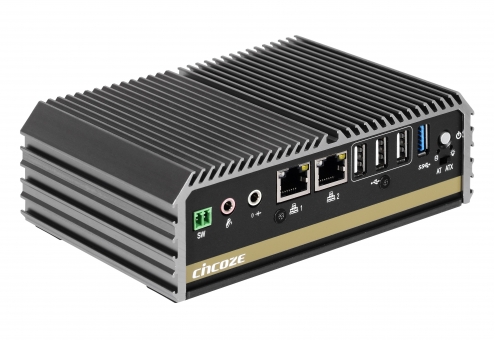

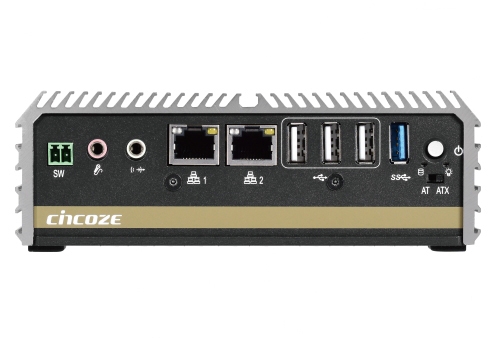

DA-1000
Intel® Atom™ or Celeron® Processor Power-efficient & Basic I/O Fanless PC
PRODUCTS FEATURES
- Onboard Intel® Atom™ or Celeron® Processors
- One DDR3L SO-DIMM Support DDR3L 1066MHz Up to 8G
- Dual Intel® I210 GbE LAN Ports, Support WoL, Teaming, Jumbo Frame, PXE
- Ultra Compact Size (150x105x56.02mm)
- Support Dual Display, Output from One DVI-I Port
- Support -25˚C~70˚C Extended Operating Temperature
- Support 9~48VDC Input, Support AT/ATX Power Mode
- CMI (Combined Multiple I/O) Interface for I/O Module Expandability
- Various Mounting Options (VESA, DIN-Rail, Side/Wall Mounting)
OVERVIEW
DA-1000 Series is an ultra-compact size fanless embedded computer powered by Intel® Atom™ or Celeron® Processors; it integrated HD graphics processor supporting dual display. This can bring economic advantages on budget and also fulfill the needs for industrial computing tasks. DA-1000 Series manages to pack a diverse array of I/O into its small form factor, with one DVI-I port, two RS-232/422/485 COM ports, dual Gbe LAN ports, four USB ports and one set of Mic-in and Line-out.
DA-1000 Series supports Combined Multiple I/O (CMI) interface and modules which are specially designed for flexible I/O expandability; it allows users to extend various I/Os according to their needs. CMI modules are including COMs, DIO, DisplayPort, DVI, LPT/PS2 or VGA. The rugged construction, wide operating temperature and high tolerance for shock and vibration enable DA-1000 Series to deploy in a harsh environment and for critical applications, and it is totally maintenance-free.
Product Category >>>> Rugged Embedded Fanless PC
DA-1000 Series supports Combined Multiple I/O (CMI) interface and modules which are specially designed for flexible I/O expandability; it allows users to extend various I/Os according to their needs. CMI modules are including COMs, DIO, DisplayPort, DVI, LPT/PS2 or VGA. The rugged construction, wide operating temperature and high tolerance for shock and vibration enable DA-1000 Series to deploy in a harsh environment and for critical applications, and it is totally maintenance-free.
Product Category >>>> Rugged Embedded Fanless PC
RESOURCES
SPECIFICATION
| Model Name | DA-1000 | |
|---|---|---|
| Processor System | CPU | • Intel® Atom™ Processor E3826 (1M Cache, Upto 1.46 GHz SoC, 7W TDP) • Intel® Atom™ Processor E3845 (2M Cache, Upto 1.91 GHz SoC, 10W TDP) • Intel® Celeron® Processor J1900 (2M Cache,Up to 2.42 GHz SoC, 10W TDP) |
| Frequency | Up to 1.46 GHz | |
| Core Number | 2 | |
| BIOS | AMI 64Mbit SPI | |
| Chipset | - | |
| Memory | Technology | DDR3L 1066/1333MHz (un-buffered and non-ECC) |
| Max. Capacity | 8 GB | |
| Socket | 1x 204-Pin SO-DIMM | |
| Display | Dual Display Supported | 1x DVI-I (1x DVI-D and 1x VGA with optional split cable) |
| Expansion | PCI | - |
| PCIe | - | |
| Mini PCIe | 2x Full-size Mini-PCIe | |
| SIM Socket | 1 | |
| Ethernet | Controller | 2x Intel® GbE1: Intel I210 GbE LAN Port. Support Wake-on-LAN, Jumbo Frame and PXE |
| PoE | - | |
| Speed | 10/100/1000 Mbps | |
| Audio | Codec | Realtek ALC888S |
| Connector | 1x Mic-in and 1x Line-out | |
| WatchDog Timer | Software Programmable Supports 256 Levels System Reset | |
| Storage | SSD / HDD | 1x 2.5" SATA HDD Bay (Optional 1x Half-Slim SSD, SATA 2.0) |
| mSATA | 1 (SATA 2.0, Shared by Mini-PCIe Socket) | |
| USB | ||
| I/O Ports | 1x 5Gbps USB 3.2 Gen1, Type A 3x 480Mbps USB 2.0, Type A | |
| COM Port | 2 (DB9, RS-232/RS-422/RS-485 with Auto Flow Control) | |
| Antenna Hole | 2 | |
| Power Switch | 1 | |
| AT/ATX Switch | 1 | |
| External Fan Connector | - | |
| Remote Power On/Off and Remote Power Reset | Yes | |
| Universal I/O Bracket | 1 | |
| Power Requirement | Power Type | AT / ATX |
| Power Supply Voltage | 9~48VDC | |
| Connector | 1x 3-pin Terminal Block 1x 2-pin Terminal Block Connector (For Remote Power On/Off) | |
| Power Adaptor | Optional AC/DC 12V/5A, 60W | |
| Power Consumption | Typical 8.3W, Max.15W | |
| Environment | Operating Temperature | Ambient with Air Flow: -25°C to 70°C (with Industrial Grade Peripherals) |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95% RH @ 40˚C (Non-condensing) | |
| Shock | 50 Grms (with SSD According to IEC 60068-2-27, Half Sine, 11ms Duration) | |
| Vibration | Random: 5 Grms (with SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | • CB62368-1, IEC/EN 62368-1 | |
| Physical | Dimension (WxDxH) | 150 x 105 x 52.3 mm |
| Weight | 0.86kg | |
| Construction | Aluminum Chassis with Fan-less Design | |
| Mounting | VESA/Wall Mounting (Optional DIN-Rail/Side Mounting) | |
| Operating System | Windows | • Windows® 10 • Windows® 8.1 • Windows® 7 |
All product specifications and information are subject without notice.
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| DA-1000-R10 | Intel® Atom™ E3826 Affordable Fanless Embedded Computer |
| DA-1000-E45-R10 | Intel® Atom™ E3845 Affordable Fanless Embedded Computer |
| DA-1000-J19-R10 | Intel® Celeron® J1900 Affordable Fanless Embedded Computer |
| √ DA-1000 Embedded System x 1 | √ DVI-I to VGA Adapter x 1 |
| √ Power Terminal Block Connector x 1 | √ Screw Pack x 1 (For HDD/Mini-PCIe/Wall & VESA Mounting) |
| √ Remote Power On/Off Terminal Block Connector x 1 | √ Wall Mount Kit x 1 |
| Model No. | Description |
|---|---|
| CMI-COM102/UB0403 | CMI Module with 2x RS232/422/485, 1x Universal Bracket (96 x 15 mm) |
| CMI-DIO100/UB0415 | CMI Module with 8x Optical Isolated DIO (4 in/4 out), 1x Universal Bracket (96 x 15 mm) |
| CMI-DP101/UB0406 | CMI Module with 1x DisplayPort, 1x Universal Bracket (96 x 15 mm) |
| CMI-DVI101/UB0407 | CMI Module with 1x DVI-D Connector, 1x Universal Bracket (96 x 15 mm) |
| CMI-LPPS102/UB0409 | CMI Module with 1x LPT Port, 1x PS/2, 1x Universal Bracket (96 x 15 mm) |
| CMI-VGA101/UB0416 | CMI Module with 1x VGA Port, 1x Universal Bracket (96 x 15 mm) |
| CMI-HD01/UB0408 | CMI Module with 1x HDMI Port for DA Series, 1x Universal Bracket with HDMI Cutout for DA Series |
| MEC-LAN-M102-15/UB0411 | Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket (96 x 15 mm) |
| SIDE02 | Side Mount Kit for DA Series, with KMRH-K175 for DIN-Rail option |
| DINRAIL-R10 | Diamond series DIN-RAIL Mount Kit |
| HBK01 | DA-1000 Half-Slim SSD Bracket with 6x Screws |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, with 3pin Terminal Block Plug 5.0mm Pitch with Tubes, Level VI |
