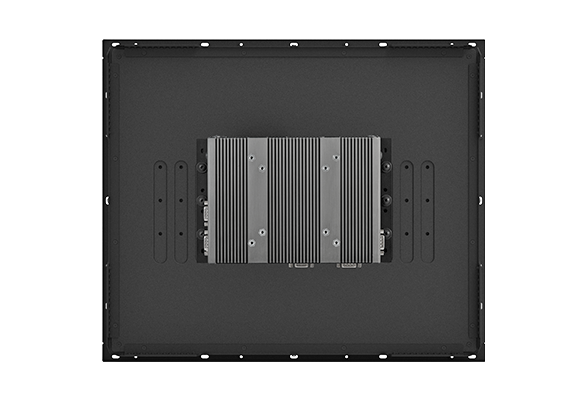

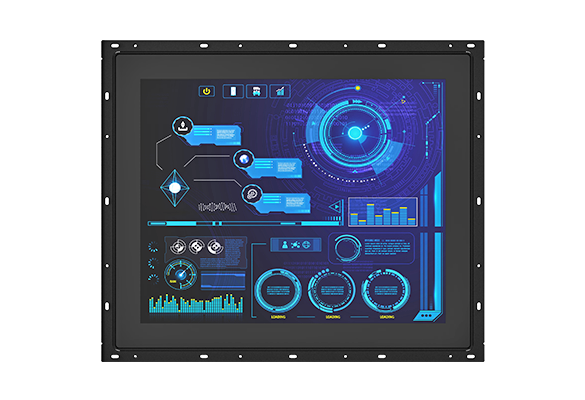

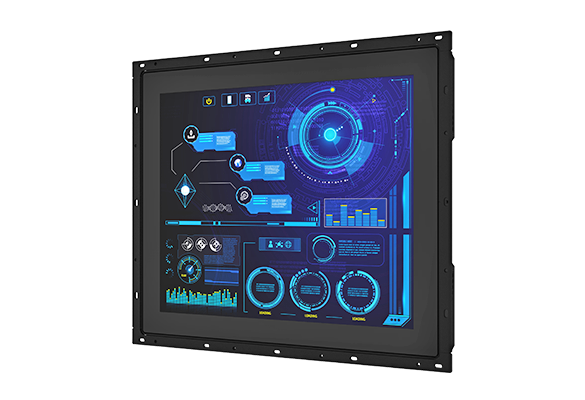

CO-119C / P1101 Series

19" TFT-LCD Open Frame Panel PC with Intel® Atom® / Pentium® Processor

PRODUCTS FEATURES

19" TFT-LCD with Projected Capacitive Touch
Onboard Intel® Atom® / Pentium® Processor
1x DDR3L SO-DIMM max. up to 8GB
Designed with Adjustable Mounting Bracket
Support Flat / Standard / VESA / Rack Mount
Front Panel IP65 Compliant
Wide Operating Temperature
Cincoze Patent CDS Technology Support

OVERVIEW
SPECIFICATION
ORDERING INFORMATION
DOWNLOADS

OVERVIEW

All new open frame panel pc - CO-100/P1101 Series Fits Any Machine Perfectly

Cincoze power efficient open frame modular panel PCs support Intel® Atom® and Pentium® processors, and multiple displays. Native I/O ports include LAN, USB, COM, and DIO, and the series supports CFM technology, offering expansion functions such as Power Ignition Sensing (IGN) to meet different application needs. The integrated structure, exclusive adjustable mounting bracket, and support for various mounting methods enable a perfect fit in cabinets of different materials and thicknesses. The robust design also meets the application needs of harsh industrial environments.

Product Category >>>> Modular Panel PC & Industrial Monitor

Power Efficient & Multi-Display

——

Rich I/O for Flexible Expansion

——

Native I/O ports include LAN, USB, COM, DIO, Mini-PCIe, and SIM slot, while the whole series supports CFM technology for additional expansion functions like Power Ignition Sensing (IGN) or Power over Ethernet (PoE) to meet different application needs.

Patented
CDS Technology

——

The patented CDS (Convertible Display System) technology makes maintenance easy and offers flexibility for future upgrades. To upgrade the panel size, replace the display module, or to upgrade the system performance, replace the computer module.

Patent No. M482908

Flexible Design
and Easy Installation

——

Exclusive adjustable mounting bracket with thickness adjustment setting and two panel-locking methods (panel or boss type) make modular panel PC easier and more convenient to integrate into industrial machinery.

Patent No.: D224544, D224545, I802427

Integrated Structure

——

As standard, the open frame modular panel pc can be deployed in equipment machines, but remove the mounting bracket and it becomes a standalone panel pc for use with a VESA mount or in a 19" rack.

Strong, Reliable and Durable

——

Meets the requirements for HMI applications in harsh industrial environments: IP65 waterproof and dustproof front panel, fanless, wide temperature, and wide voltage (9–48 VDC).

wide temperature support front IP65 dustproof and waterproof protection

Video

NEED HELP ?

info@cincoze.com

SPECIFICATION

CO-119C

Model Name		CO-119C
Display	LCD Size	• 19” (5:4)
	Max. Resolution	• 1280 x 1024
	Brightness (cd/m2)	• 350
	Contrast Ratio	• 1000 : 1
	LCD Color	• 16.7M
	Pixel Pitch (mm)	• 0.294 (H) x 0.294 (V)
	Viewing Angle (H-V)	• 170 / 160
	Backlight LED Life Time	• 50,000 hrs (LED Backlight)
Touch Screen	Touchscreen Type	• Projected Capacitive Touch
Physical	Dimension (W x D x H)	• 472.8 x 397.5 x 63mm
	Weight	• 6.91kg
	Construction	• One-piece and Slim Bezel Design
	Mounting Type	• Flat / Standard / VESA / Rack Mount
	Mounting Bracket	• Pre-installed Mounting Bracket with Adjustable Design (Support 11 different stages of adjustment)
Power	Power Consumption	• 21W (Max.)
Protection	Ingress Protection	• Front Panel IP65 Compliant * According to IEC60529
Environment	Operating Temperature	• 0°C - 50°C (with Industrial Grade peripherals; Ambient with air flow)
	Storage Temperature	• -20°C - 60°C
	Humidity	• 80% RH @ 50°C (non-condensing)
	EMC	• CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

P1101

Model Name		P1101
System	Processor	Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
System	Memory	• 1x DDR3L 1333/1600/1866 MHz SO-DIMM Socket, with up to 1600 MHz operation • Supports Un-buffered and Non-ECC Type, Up to 8GB
Graphics	Graphics Engine	Integrated Intel® HD Graphics 505
	Maximum Display Output	Supports Triple Independent Display
	CDS (Convertible Display System) Technology	1x Convertible Display System (CDS) Interface
	VGA	1x VGA (1920 x 1200 @60Hz)
	DP	1x DisplayPort (4K x 2K @60Hz)
Audio	Audio Codec	Realtek® ALC888, High Definition Audio
	Line-out	1x Line-out, Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210
	USB	4x USB 3.2 Gen1 (Type A)
	Serial Port	4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
	DIO	8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block
Storage	SSD/HDD	1x 2.5” HDD Drive Bay (SATA 3.0)
	SIM Socket	1 x SIM Socket
	mSATA	1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket)
Expansion	Mini PCI Express	2x Full-size Mini-PCIe Sockets
	CFM (Control Function Module) Interface	Optional CFM IGN Module for Power Ignition Function Optional CFM PoE Module for Power over Ethernet Function
	CDS (Convertible Display System) Technology	1x Convertible Display System (CDS) Interface
	Antenna Holes	4x Antenna Holes
Other Function	Instant Reboot	Support 0.2sec
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
	Internal Speaker	AMP 2W + 2W
	OSD Function	LCD On/Off, Brightness Up, Brightness Down
	Clear CMOS Switch	1x Clear CMOS Switch
	Reset Button	1x Reset Button
Power	Power Switch	1x Power Switch
	Power Mode Switch	1x AT/ATX Mode Switch
	Power Input	1x 3-pin Terminal Block Connector with Power Input 9~48VDC
	Power Adapter (Optional)	1x Optional AC/DC 12V/5A 60W or 24V/5A 120W
	Remote Power On/Off	1x Remote Power On/Off Connector, 2-pin Terminal Block
Physical	Dimension ( W x D x H )	204.5 x 149 x 41.5 mm
	Weight Information	1.49kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Physical Design	Fanless Design Jumper-less Design
	Mounting	Wall / VESA / CDS / DIN Mounting
Reliability & Protection	Reverse Power Input	Yes
	Over Voltage Protection	Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover
	Over Current Protection	15A
	CMOS Battery Backup	SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	Time: 294,617 hours
Operating Stystem	Microsoft® Windows®	Windows®10
Operating Stystem	Linux	Supports by project
Environment	Operating Temperature	Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals)
	Storage Temperature	-40°C to 85°C
	Relative humidity	95% RH @ 75˚C (Non-condensing)
	Shock	Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
	Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	LVD IEC/EN 62368-1

ORDERING INFORMATION

Available Models
Model No.	Product Description
CO-119C-R10/P1101-E50-R10	19" TFT-LCD SXGA 5:4 Open Frame Display Modular Panel PC with Intel Atom E3950 Quad Core Processor and P-Cap. Touch
CO-119C-R10/P1101-N42-R10	19" TFT-LCD SXGA 5:4 Open Frame Display Modular Panel PC with Intel Pentium N4200 Quad Core Processor and P-Cap. Touch

Model Configuration
	CO-119C	P1101-E50	P1101-N42
CO-119C/P1101-E50	V	V	--
CO-119C/P1101-N42	V	--	V

Package Checklist
• CO-119C/P1101 Series Panel PC x 1	• Power Terminal Block Connector (Female) x 1
• DIO Terminal Block Connector (Female) x 1	• Screw Pack x 1
• Thermal Pad (for CPU Thermal Block) x 1	• Remote Power On/Off Terminal Block Connector x 1

Optional Modules and Accessories
Model No.	Description
CFM-PoE02	CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN101	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
GST120A24-CIN	Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI

DOWNLOADS

Datasheet
Subject	Release Date	Download
CO-119C / P1101 Series Datasheet	2023/11/30	Download

Manual
Subject	Release Date	Download
CO-100 / P1101 Series User Manual	2024/10/24	Download

Driver
Subject	Release Date	Download
P1101 COM Driver (Windows 10 Version)	2018/08/16	Download
P1101 Audio Driver (Windows 10 Version)	2018/08/16	Download
P1101 Chipset Driver (Windows 10 Version)	2018/08/16	Download
P1101 Graphics Driver (Windows 10 Version)	2018/08/16	Download
P1101 LAN Driver (Windows 10 Version)	2018/08/16	Download
P1101 Serial I/O Driver (Windows 10 Version)	2018/08/16	Download
P1101 TXE Driver (Windows 10 Version)	2018/08/16	Download
P1101 Resistive Touch Driver (Windows 10 Version)	2023/07/28	Download
