Entry Performance Open Frame Panel PC (CO-100/P1000 Series)

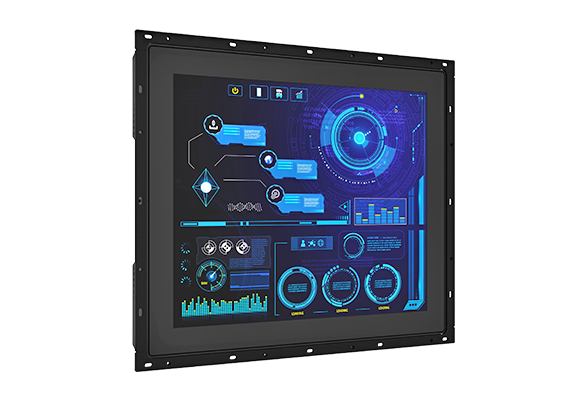

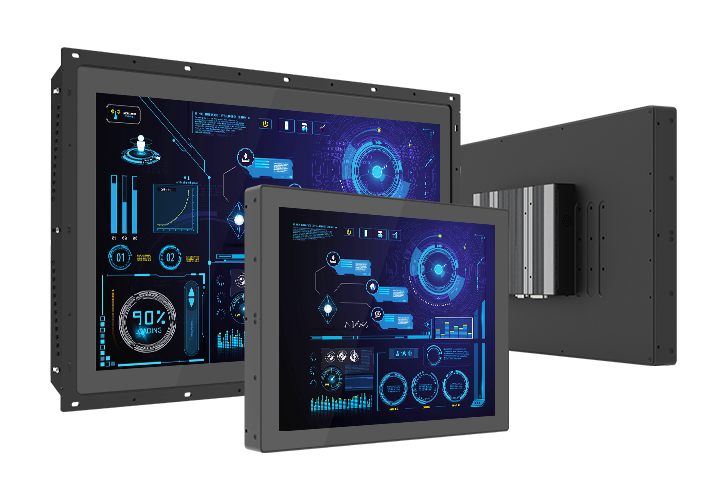

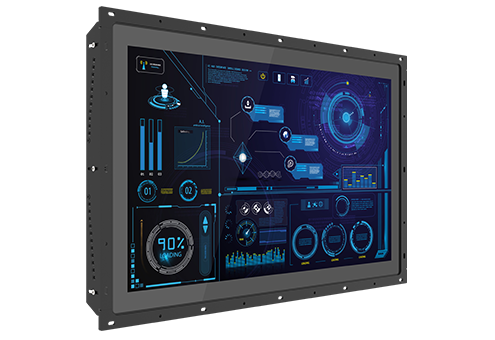

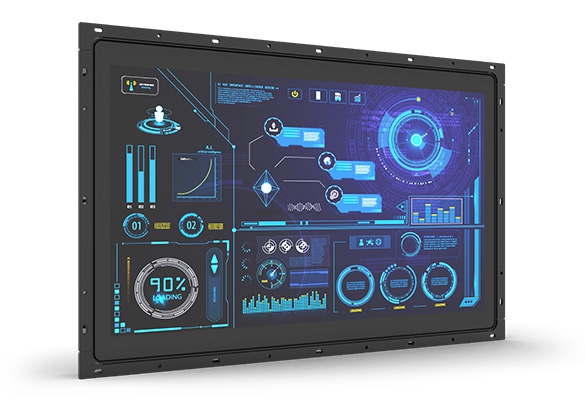

Cincoze power efficient open frame modular panel PCs (CO-100/P1000 series) support Intel® Atom® and Pentium® processors, and multiple displays. Native I/O ports include LAN, USB, COM, and DIO, and the series (CO-100/P1101 series only) supports CFM technology, offering expansion functions such as Power Ignition Sensing (IGN) and Power over Ethernet (PoE) to meet different application needs. The integrated structure, exclusive adjustable mounting bracket, and support for various mounting methods enable a perfect fit in cabinets of different materials and thicknesses. The robust design also meets the application needs of harsh industrial environments.| Product | Model Name | Display | CPU | I/O | Expansion |
|---|---|---|---|---|---|
 | CO-119C / P1301 Series | 19" TFT 1280x1024 (5:4) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CO-119C / P1201 Series | 19" TFT 1280x1024 (5:4) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CO-119C / P1101 Series | 19" TFT 1280x1024 (5:4) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
 | CO-119C / P1001 Series | 19" TFT 1280x1024 (5:4) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CO-W121C / P1301 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CO-W121C / P1201 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CO-W121C / P1101 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
 | CO-W121C / P1001 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
NEW  | CO-W124C / P1301 Series | 24" TFT 1920x1080 (16:9) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
NEW  | CO-W124C / P1201 Series | 24" TFT 1920x1080 (16:9) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
NEW  | CO-W124C / P1101 Series | 24" TFT 1920x1080 (16:9) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
NEW  | CO-W124C / P1001 Series | 24" TFT 1920x1080 (16:9) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
