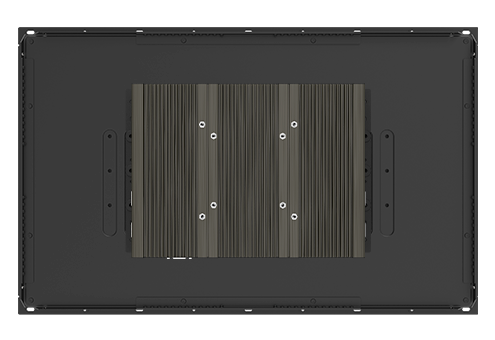

CO-W121C / P2202 Series
21.5" TFT-LCD Full HD 16:9 Open Frame Display Modular Panel PC with 12th Gen. Intel® Core™ Processor and Projected Capacitive Touch
- 21.5” TFT-LCD with Projected Capacitive Touch
- Onboard Intel® Alder Lake-P U-Series Core™ Processor
- 2 x DDR5 SO-DIMM Socket, Supports up to 4800MHz 64GB Memory
- Designed with Adjustable Mounting Bracket
- Quad Independent Display (CDS / HDMI / DP / VGA)
- 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
- Front Panel IP65 Compliant
Cincoze open-frame high-performance industrial panel PC (CO-100/P2202) is equipped with an Intel® Core™ U-series (Alder Lake-P) processor, rich I/O interfaces (1 GbE LAN, USB 3.2 Gen 2x1, COM, DIO, etc.), and flexible expansion. The biggest highlight is its adjustable mounting bracket design (Patent No.: D224544, D224545, I802427) that allows flexible adjustment and multi-stage locking to greatly improve the convenience of installation, effectively reducing the degree of customization required when integrating with equipment. It is purpose-built for equipment manufacturers.
Product Category >>>> Modular Panel PC & Industrial Monitor
Excellent Computing Performance
——
The CO-100/P2202 series is equipped with the 12th Gen Intel® Core™ i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 cores (2P+8E), and includes the built-in Intel® Iris Xe graphics to easily handle image classification inference performance in AI deep learning.
CDS Patented Technology
——
Cincoze Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.
Patent No. M482908Easy to Install
——
The exclusive adjustable mounting bracket (Patent No.: I802427) has thickness adjustment options and supports multiple locking methods (panel and boss types), providing a simpler and more convenient integration for industrial machines using flat mount and standard mount.
Patent No.: D224544, D224545, I802427
Integrated Structure
——
The flexible and reliable design of the open-frame architecture enables deployment in equipment machines, and after removing the mounting bracket can be installed directly using the VESA mount for standalone use, or installed in a 19” rack for display function.
Rugged, Safe, Reliable
——
The CO-100/P2202 series features a series of industrial-grade protections, such as a fanless design, wide operating temperature range, wide range DC power input (9 to 48VDC), and IP65 dustproof/water resistant front panel for field-side HMI applications in harsh industrial environments.
![[ Product Spotlight ] Cincoze Panel PC Solution Lineup](data/images/202407/1721099187139892399.jpg)
CO-W121C
| Model Name | CO-W121C | |
|---|---|---|
| Display | LCD Size | 21.5” (16:9) |
| Resolution | 1920 x 1080 | |
| Brightness | 300 cd/m2 | |
| Contrast Ratio | 5000 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch | 0.24825 (H) x 0.24825 (V) mm | |
| Viewing Angle | 178 (H) / 178 (V) | |
| Backlight LED Life Time | 50,000 hrs | |
| Touch Screen | Touchscreen Type | Projected Capacitive Touch |
| Physical | Dimension (W x D x H) | 550 x 343.7 x 63.3 |
| Weight | 7.16 kg | |
| Construction | One-piece and Slim Bezel Design | |
| Mounting Type | Flat / Standard / VESA / Rack Mount | |
| Mounting Bracket | Pre-installed Mounting Bracket with Adjustable Design ( Support 11 different stages of adjustment ) | |
| Power | Power Consumption | 24.8W (Max.) |
| Protection | Ingress Protection | Front Panel IP65 Compliant * According to IEC60529 |
| Environment | Operating Temperature | Ambient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals) |
| Storage Temperature | -20°C to 60°C | |
| Humidity | 80% RH @ 50°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
P2202 Series
| Model Name | P2202 | P2202E | |
|---|---|---|---|
| System | Processor | • Onboard 12th Generation Intel® Alder Lake-P U-Series CPU: - Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W - Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W | |
| Memory | • 2x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 64GB | ||
| BIOS | • AMI BIOS | ||
| Graphics | Graphics Engine | • Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE • Integrated Intel® UHD Graphics: Core™ i3-1215UE | |
| Maximum Display Output | • Supports Quad Independent Display | ||
| CDS | • 1x CDS Connector (1920 x 1080 @60Hz) | ||
| DP | • 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz | ||
| HDMI | • 1x HDMI Connector (3840 x 2160 @30Hz) | ||
| VGA | • 1x VGA Connector (1920 x 1200 @60Hz) | ||
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio | |
| Line-out | 1x Line-out, Phone Jack 3.5mm | ||
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | • 2x 1GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 | |
| COM | • 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | ||
| USB | • 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | ||
| DIO | • 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block | ||
| Storage | SSD/HDD | 2x 2.5” SATA HDD/SSD Bay (SATA3.0) | |
| RAID | Support RAID 0/1 | ||
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| PCI Express | -- | 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 169mm | |
| SIM Socket | • 1x SIM Socket | ||
| M.2 | • 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module | ||
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion | ||
| CDS (Convertible Display System) Interface | • 1x CDS Interface for Convertible Display Module | ||
| Other Function | Clear CMOS Switch | • 1x Clear CMOS Switch | |
| Reset Button | • 1x Reset Button | ||
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | ||
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | ||
| OSD Button | • LCD On/Off, Brightness Up, Brightness Down | ||
| Internal Speaker | • AMP 2W + 2W | ||
| Status LED Indicator | • Power LED, HDD LED | ||
| Power | Power Button | • 1x ATX Power On/Off Button | |
| Power Mode Switch | • 1x AT/ATX Mode Switch | ||
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | ||
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | ||
| Max. Power Consumption | • i5-1245UE CPU: 95.06W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing | ||
| Inrush Current (Peak) | • i5-1245UE CPU: 5.381 A @ 24V | ||
| Operating Stystem | Windows | • Windows®11, Windows®10 | |
| Linux | • Ubuntu Desktop 22.04 LTS | ||
| Physical | Dimension ( W x D x H ) | • 254.5 x 190 x 41.5 mm | • 254.5 x 190 x 61 mm |
| Weight Information | • 2.22 kg | • 2.74 kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | • Wall / VESA / CDS / DIN Rail | ||
| Physical Design | • Fanless Design • Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input Protection | • Yes | |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | ||
| Over Current Protection | • 15A | ||
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| MTBF | • 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | ||
| Environment | Operating Temperature | • -40°C to 70°C | |
| Storage Temperature | • -40°C to 70°C | ||
| Relative Humidity | • 95%RH @ 70°C (non-Condensing) | ||
| Shock | • Operating, 50 Grms (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV | ||
| Safety | • UL, cUL, CB, IEC/EN 62368-1 | ||
| Model No. | Product Description |
|---|---|
| CO-W121C-R10/P2202-i5-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch |
| CO-W121C-R10/P2202E-i5-R10 | 21.5“ TFT-LCD Full HD 16:9 Open Frame Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch |
| CO-W121C-R10/P2202-i3-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch |
| CO-W121C-R10/P2202E-i3-R10 | 21.5“ TFT-LCD Full HD 16:9 Open Frame Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch |
| CO-W121C | P2202 (i3/i5) | P2202E (i3/i5) | |
|---|---|---|---|
| CO-W121C/P2202 | V | V | -- |
| CO-W121C/P2202E | V | -- | V |
| • CO-W121C/P2202 Series Panel PC x1 | • Thermal Pad x1 |
| • Power Terminal Block x1 | • Screws Pack x5 |
| • Remote Power On/Off Terminal Block Connector x1 | • PCI / PCIe Card Installation Kit x 1 (For P2202E Only) |
| • DIO Terminal Block Connector x2 | • DIN Rail Mounting Kit x1 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable |
| CFM-PoE04 | CFM Module with PoE Control Function, Individual Port 25.5W (For P2202 Only) |
| CFM-PoE05 | CFM Module with PoE Control Function, Individual Port 25.5W (For P2202E Only) |
| RC-E4-02 | Riser Card with 1x PCIe x4 Slot (For P2202E Only) |
| RC-PI-02 | Riser Card with 1x PCI Slot (For P2202E Only) |
| MEC-COM-M212-TDB9 | Mini-PCIe Module with 2x RS-232 Ports, 1x Thin DB9 Cable (For P2202E Only) |
| MEC-COM-M334-TDB9 | Mini-PCIe Module with 4x RS-232/422/485 Ports, 2x Thin DB9 Cable (For P2202E Only) |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable (For P2202E Only) |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P2202E Only) |
| UB1203 | 1x Universal Bracket with 2x DB9 Cutout (For P2202E Only) |
| UB1211 | 1x Universal Bracket with 2x RJ45 Cutout (For P2202E Only) |
| UB1214 | 1x Universal Bracket with 2x USB Cutout (For P2202E Only) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN, wide temp (-30°C ~ +70°C), level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI (For P2202E Only) |
