CS-117 / P2102 Series

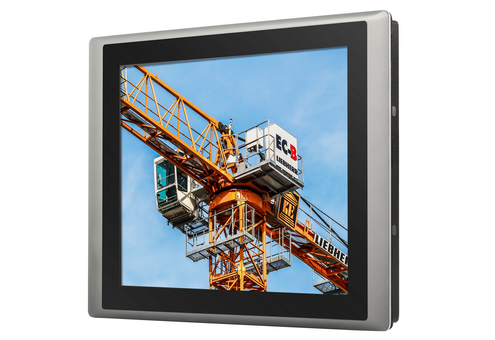

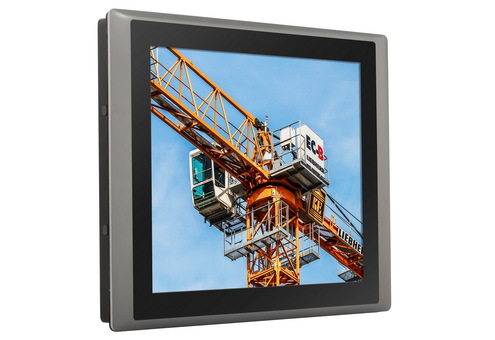

17" TFT-LCD Sunlight Readable and Modular Panel PC with 8th Gen. Intel® Core™ U Series Processor
PRODUCTS FEATURES
- 17" TFT-LCD with Ultra-high Brightness up to 1,500 nits and 1280 x 1024 (SXGA) Resolution
- Onboard 8th Generation Intel® Core™ U Series Processor
- 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
- Supports Triple Independent Display
- Integrated USB 3.2 Gen 2 supports up to 10Gbps
- M.2 E Key Socket for Wireless Module or Intel CRF Module
- Supports Ignition Sensing Function (IGN) (with optional CFM module)
- Supports 2x PoE+ Function (with optional CFM module)
- Wide Range Operating Temperature -20°C to 70°C
- Designed with Rugged Aluminum Die-casting Front Bezel
- True Flat IP65 Compliant Front Panel Protection
- Supports Panel / VESA / Rack Mounting
- 2x Universal Bracket (For P2102E only)
OVERVIEW
The CS-117/P2102 Series is a 17" TFT-LCD sunlight readable panel PC that offers sufficient screen brightness for better image quality in outdoor usage. The panel PC is powered by Intel® 8th generation Core™ U series processor that brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel® Core™ U series. To enable faster responsiveness and deal with multi tasks with ease, the CS-117/P2102 Series is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory.
With its slim design, the CS-117/P2102 Series offers extensive I/O to fulfill different connectivities and can easily fit into almost any space limited environment. For wireless connectivity, the CS-117/P2102 Series has 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to enable Wi-Fi, 3G, and LTE communication. Besides, the CS-117/P2102 Series supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CS-117/P2102 Series is appropriate for tough outdoor applications under direct sunlight.
Furthermore, the CS-117/P2102 Series supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.
Product Category >>>> Modular Panel PC & Industrial Monitor
With its slim design, the CS-117/P2102 Series offers extensive I/O to fulfill different connectivities and can easily fit into almost any space limited environment. For wireless connectivity, the CS-117/P2102 Series has 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to enable Wi-Fi, 3G, and LTE communication. Besides, the CS-117/P2102 Series supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CS-117/P2102 Series is appropriate for tough outdoor applications under direct sunlight.
Furthermore, the CS-117/P2102 Series supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.
Product Category >>>> Modular Panel PC & Industrial Monitor
SPECIFICATION
CS-117
Model Name | CS-117 | |
---|---|---|
Display | LCD Size | 17" (5:4) |
Max. Resolution | 1280 x 1024 (SXGA) | |
Brightness (cd/m2) | 1500 | |
Contrast Ratio | 800 : 1 | |
LCD Color | 16.7M | |
Pixel Pitch (mm) | 0.264 (H) x 0.264 (V) | |
Viewing Angle (H-V) | 160 / 140 | |
Backlight MTBF | 50,000 hrs (LED Backlight) | |
Touch Screen | Touchscreen Type | Projected Capacitive |
Physical | Dimension (W x D x H) | 450 x 350 x 63.2mm |
Weight Information | 5.64 kg | |
Mechanical Construction | Flat Rugged Aluminum Die-casting Bezel | |
Power | Power Consumption | 30.65W (Typ.) |
Environment | Front Panel Protection | IP 65 Compliant |
Operating Temperature | -20°C to 80°C (With Industrial Grade Peripherals; Ambient with air flow) | |
Storage Temperature | -30°C to 80°C | |
Relative Humidity | 90% RH @ 40°C (Non-condensing) | |
EMC | CE, UKCA, FCC, ICES-003 Class A | |
EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
Safety | UL, cUL, CB, IEC, EN 62368-1 |
P2102 Series
Model Name | P2102 | P2102E | |
---|---|---|---|
System | Processor | Onboard 8th Intel® Core™ U Processors (Whiskey Lake) • Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) • Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) • TDP: 15 W | |
Memory | 2x DDR4 2400 MHz 260-Pin SO-DIMM Socket Support Un-buffered and Non-ECC Type up to 64 GB | ||
Graphics | Graphics Engine | Integrated Intel® UHD Graphics 620 | |
Maximum Display Output | Supports Triple Independent Display | ||
CDS | 1x CDS Connector for Cincoze Display Module | ||
VGA | 1x VGA Connector(1920 x 1200 @60Hz) | ||
DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840 x2160 @ 60Hz | ||
Audio | Audio Codec | Realtek® ALC888, High Definition Audio | |
Line-out | 1x Line-out, Phone Jack 3.5mm | ||
Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219LM - GbE2: Intel® I210 | |
USB | 3x USB 3.2 Gen2 (Type A), 2x USB 2.0 (Type A) | ||
Serial Port | 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | ||
DIO | 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block | ||
Storage | SSD/HDD | 2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1 | |
Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Sockets | |
PCI Express | 1x PCI or 1x PCIe x4 Expansion slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L) : 111 x 169mm | ||
M.2 E Key Socket | 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module | ||
SIM Socket | 1 x Front Accessible SIM Socket | ||
Universal Bracket | 2x Universal I/O Bracket | ||
CFM (Control Function Module) Interface | 2x CFM Interface for optional IGN or PoE Module Expansion | ||
CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface | ||
Other Function | Clear CMOS Switch | 1 x Clear CMOS Switch | |
Instant Reboot | Support 0.2sec Instant Reboot technology | ||
Watchdog Timer | Software Programmable Supports 256 Levels System Reset | ||
Internal Speaker | AMP 2W + 2W | ||
OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
Reset Button | 1x Reset Button | ||
Power | Power Button | 1x ATX Power On/Off Switch | |
Power Mode Switch | 1x AT/ATX Mode Switch | ||
Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | ||
Power Adapter (Optional) | 1x Optional AC/DC 12V/5A, 60W or 24V/5A 120W | ||
Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | ||
Physical | Dimension ( W x D x H ) | 254.5 x 190 x 41.5 mm | 254.5 x 190 x 61 mm |
Weight Information | 2.2 kg | 2.7 kg | |
Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | ||
Mounting | Wall / VESA / CDS / DIN Rail | ||
Physical Design | Fanless Design Jumper-less Design | ||
Reliability & Protection | Reverse Power Input | Yes | |
Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | ||
Over Current Protection | 15A | ||
CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
MTBF | 231,243 hours | ||
Operating Stystem | Microsoft® Windows® | Windows®10 | |
Linux | Supports by project | ||
Environment | Operating Temperature | Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals) | |
Storage Temperature | -40°C to 70°C | ||
Relative humidity | 95% RH @ 70˚C (Non-condensing) | ||
Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ CV-W124 only, according to IEC60068-2-6) | |
EMC | CE, UKCA, FCC, ICES-003 Class A | ||
EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
Safety | UL, cUL, CB, IEC, EN62368-1 | ||
Fire Protection | EN 45545-2 |
ORDERING INFORMATION
Model No. | Product Description |
---|---|
CS-117C-R11/P2102-i5-R10 | 17" 1500nits TFT-LCD Sunlight Readable and Modular Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch |
CS-117C-R11/P2102E-i5-R10 | 17" 1500nits TFT-LCD Sunlight Readable, Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch |
CS-117C-R11/P2102-i3-R10 | 17" 1500nits TFT-LCD Sunlight Readable and Modular Panel PC with 8th Gen. Intel Core i3-8145UE Quad Core Processor and P-Cap. Touch |
CS-117C-R11/P2102E-i3-R10 | 17" 1500nits TFT-LCD Sunlight Readable, Modular and Expandable Panel PC with 8th Gen. Intel Core i3-8145UE Quad Core Processor and P-Cap. Touch |
CS-117C | P2102 (i3/i5) | P2102E (i3/i5) | |
---|---|---|---|
CS-117C/P2102 | V | V | -- |
CS-117C/P2102E | V | -- | V |
√ CS-117/P2102 Series Panel PC x 1 | √ Power Terminal Block Connector (Female) x 1 |
√ Panel Mounting Kit x 1 | √ Screw Pack x 5 |
√ Thermal Pad (for CPU Thermal Block) x 1 | √ Remote Power On/Off Terminal Block Connector x 1 |
√ DIO Terminal Block Connector (Female) x 2 |
Model No. | Description |
---|---|
MEC-COM-M212-DB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable (For P2102E Only) |
MEC-COM-M334-TDB9 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable (For P2102E Only) |
MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm (For P2102E Only) |
MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports (For P2102E Only) |
CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
CFM-PoE04 | PoE Control Function Module, Individual Port 25.5W (For P2102 only) |
CFM-PoE05 | PoE Control Function Module, Individual Port 25.5W (For P2102E only) |
RC-E4-02 | Riser Card with 1x PCIex4 Slot (For P2102E only) |
RC-PI-02 | Riser Card with 1x PCI Slot (For P2102E only) |
UB1203 | Universal Bracket with 2x DB9 Cutout (For P2102E only) |
UB1211 | Universal Bracket with 2x RJ45 Cutout (For P2102E only) |
UB1214 | Universal Bracket with 2x USB Cutout (For P2102E only) |
URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI |
GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
SL2-SL3 | US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M |
SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
