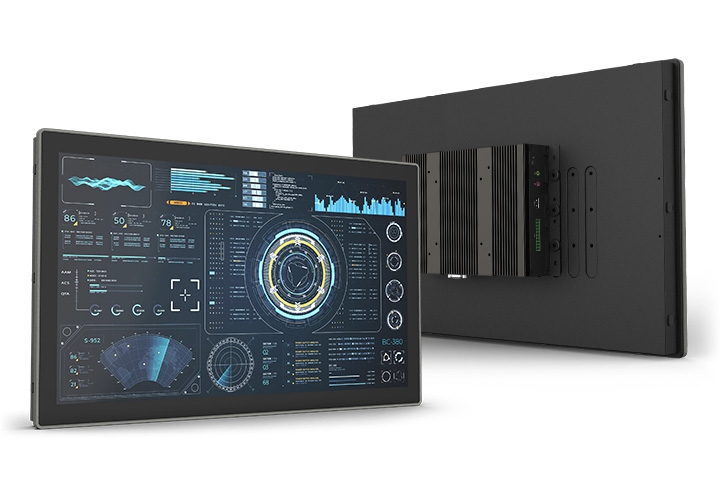

Entry Performance Slim Bezel Panel PC (CV-200/P1000 Series)
The CV-200 / P1000 Series entry-level slim-bezel industrial panel PCs are designed for basic HMI and industrial automation applications, offering an optimal balance of cost-effectiveness and a clean, modern appearance. The series is built on a reliable Intel industrial-grade platform and supports Full HD displays, a slim-bezel design, and projected capacitive (P-Cap) touch technology to deliver a smooth and intuitive HMI experience.Ideal for manufacturing lines, equipment control, and indoor industrial environments, the P1000 Series meets essential HMI display and control requirements, making it an excellent choice for entry-level industrial panel PC deployments.
| Product | Model Name | Display | CPU | I/O | Expansion |
|---|---|---|---|---|---|
NEW  | CV-221C / P1301 Series | 21.5” TFT 1920x1080 (16:9) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 1x USB 2.0 (480Mbps) 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
NEW  | CV-221C / P1201 Series | 21.5” TFT 1920x1080 (16:9) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 1x USB 2.0 (480Mbps) 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket 1x SIM Socket 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
NEW  | CV-221C / P1101 Series | 21.5” TFT 1920x1080 (16:9) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
NEW  | CV-221C / P1001 Series | 21.5” TFT 1920x1080 (16:9) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 1x USB 3.2 Gen1x1 (5Gbps) 3x USB 2.0 (480Mbps) 2x COM 8x DIO | 1x Mini-PCIe |
