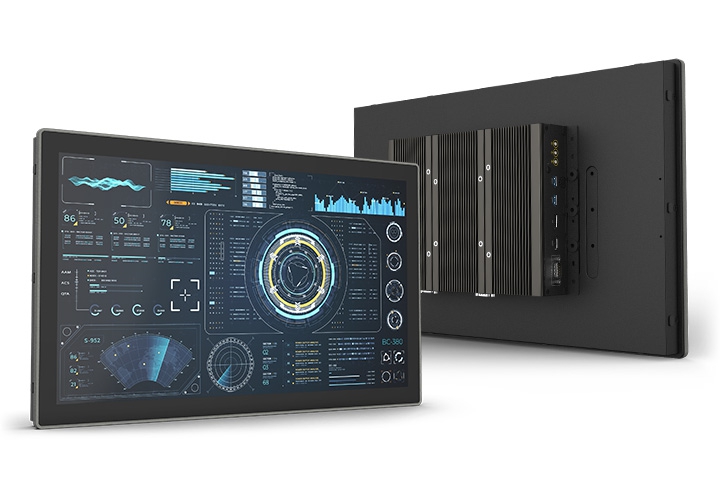

High Performance Slim Bezel Panel PC (CV-200/P2000 Series)
The CV-200 / P2000 Series high-performance slim-bezel industrial panel PCs are purpose-built for HMI applications in harsh industrial environments. Powered by Intel® Core™ U-series processors, they deliver excellent computing performance and enhanced graphics capability at just 15W low power consumption.The series features Full HD displays, an ultra-slim bezel design, and projected capacitive (P-Cap) touch technology, providing a clear and intuitive user interface. These panel PCs are ideally suited for manufacturing floors, automation equipment, and indoor industrial environments, offering system integrators and end users industrial-grade panel PC solutions that balance performance, durability, and deployment efficiency.
| Product | Model Name | Display | CPU | I/O | Expansion |
|---|---|---|---|---|---|
NEW  | CV-221C / P2302 Series | 21.5” TFT 1920x1080 (16:9) | Intel Meteor Lake PS Core Ultra 3/5/7 Processor | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 2 x USB 3.2 Gen2x1 (10Gbps) 1 x USB 3.2 Gen1x1 (5Gbps) 1 x USB 2.0 (480Mbps) 4x COM 16x DIO | 1x M.2 Key E Type 2230 Socket 1x M.2 Key B Type 3042/3052 Socket 1x M.2 Key B Type 3042 Socket |
NEW  | CV-221C / P2202 Series | 21.5” TFT 1920x1080 (16:9) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 1x USB 2.0 (480Mbps) 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
NEW  | CV-221C / P2102 Series | 21.5” TFT 1920x1080 (16:9) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 2x USB 2.0 (480Mbps) 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
NEW  | CV-221C / P2002 Series | 21.5” TFT 1920x1080 (16:9) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 1x USB 2.0 (480Mbps) 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
