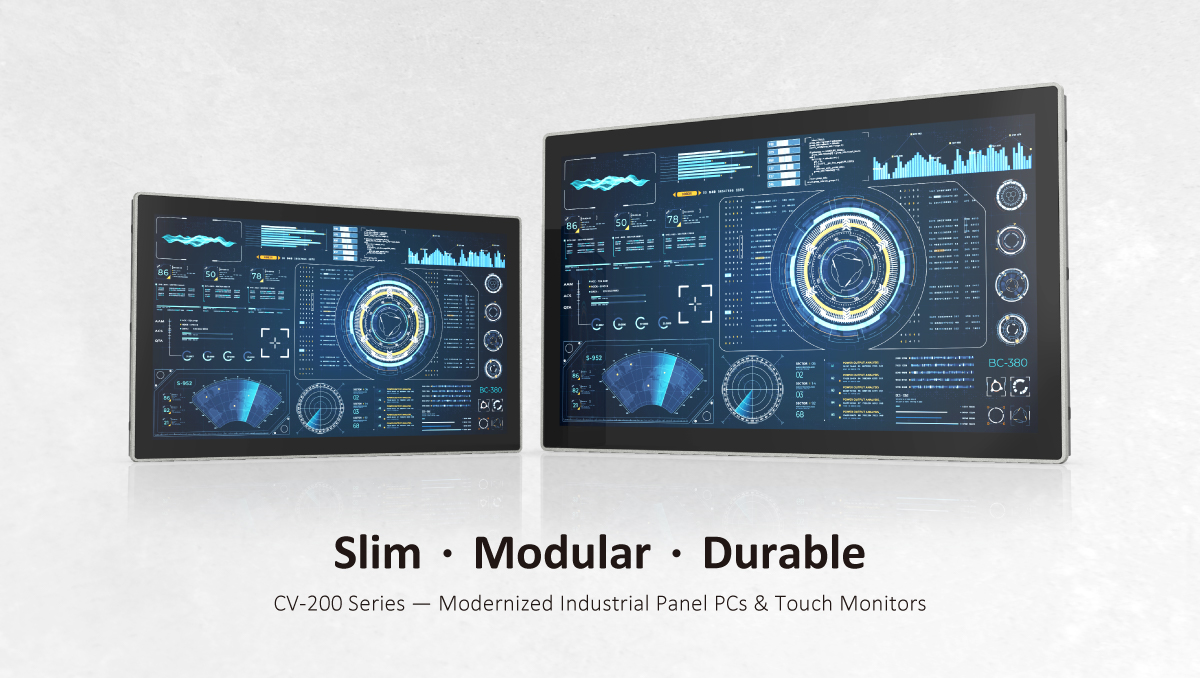

Cincoze Slim Bezel Industrial Panel PCs
Cincoze Display Computing - CRYSTAL product line of slim-bezel industrial panel PCs embodies the core design philosophy of "minimalist design, refined aesthetics, and industrial-grade reliability." Engineered for modern factory HMI operations and process-visualization applications, these devices deliver exceptional durability in harsh environments, an aesthetically pleasing integrated design, and a smooth, intuitive user experience.
Slim Bezel
A bezel width of less than 3 mm reduces design constraints on equipment integration, particularly for maintaining aesthetics when cabinet space is limited.
High-Resolution Display
Full HD screen with a 178° wide viewing angle design ensures maximum readability with clear, crisp images from any angle. Anti-glare (AG) coating maintains clarity even under high-brightness indoor lighting.
Industrial-Grade Durability
The front panel has an IP66 rating, an extended backlight lifespan of up to 50,000 hours, and a 7H-hardness Glass-Glass (GG) structure panel, ensuring robust and reliable operation during extended operation.
Extensive Configuration Options
Cincoze’s exclusive Convertible Display System (CDS) technology offers over 40 possible configurations by combining various performance levels and screen sizes ranging from 10" to 21.5" to fit any application requirement.
Why Choose Cincoze Slim-Bezel Industrial PCs?
Rapid Configuration with Rich Specifications
User-centric product design maximizes convenience. Proprietary modular technology allows rapid expansion of I/O interfaces and functionality based on requirements at the procurement stage. Diverse application-oriented features (DIO, PoE, IGN, etc.) accelerate deployment efficiency and reduce costs across a wide spectrum of requirements.
Rugged and Durable for Industrial Environments
Complies with the IEC 61000-6-4 industrial EMC standard and features electromagnetic interference immunity. The front panel is IP66-rated, protecting it from dust and high-pressure water jets. Features wet tracking capabilities so the device registers finger touches and inputs even when the operator’s fingers are wet or water splashes on the screen. These ensure error-free, high-performance operation in harsh industrial environments.
Minimizing Downtime Maintenance Costs
Through CDS (Convertible Display System) technology, industrial panel PCs are no longer confined to traditional designs. When performance upgrades or repairs are needed, rather than discarding the whole device, only the computing or display module needs to be replaced. Its plug-and-play design allows businesses to complete hardware upgrades with minimal maintenance costs and downtime.
Cincoze Slim-Bezel Industrial Panel PC Selection Guide
Select the computing performance based on your application, then choose screen specifications based on your requirements.
High Performance Computer Module
P2000 Series
- Intel® Meteor Lake-PS Core™
- Supports Up to DDR5 4800MHz 64GB Memory
- M.2 Key E Type 2230 Socket
- PCI/PCIe x4 Expansion Slot: Varies by Model
- Safety Standard: UL, cUL, CB, IEC, EN 62368-1
- EMC Standard: EN 61000-6-2/4
Power Efficient Computer Module
P1000 Series
- Intel® Alder Lake-N
- Supports up to DDR5 4800MHz 16GB Memory
- M.2 Key E Type 2230 Socket
- M.2 Key B Type 3042 / 3052 Socket
- Safety Standard: UL, cUL, CB, IEC, EN 62368-1
- EMC Standard: EN 61000-6-2/4

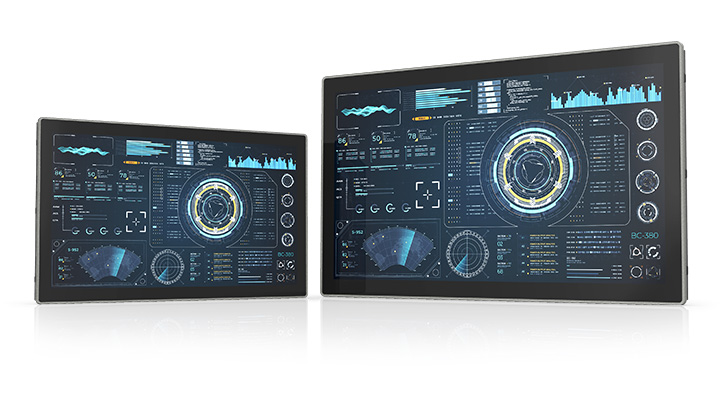

Slim Bezel Display Module
- 10" ~ 21.5"
- Full HD LCD (1920 x 1080)
- Wide Viewing Angle of 178°
- Aluminum Die-cast Front Frame
