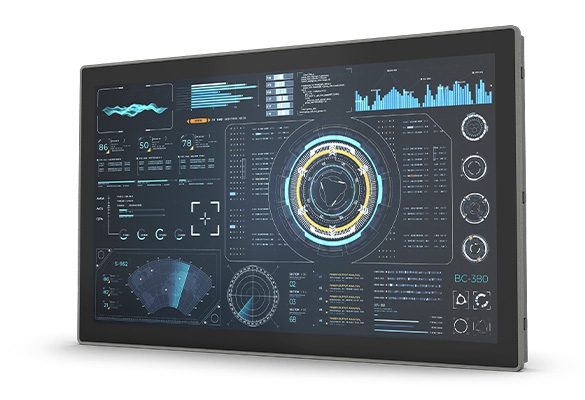

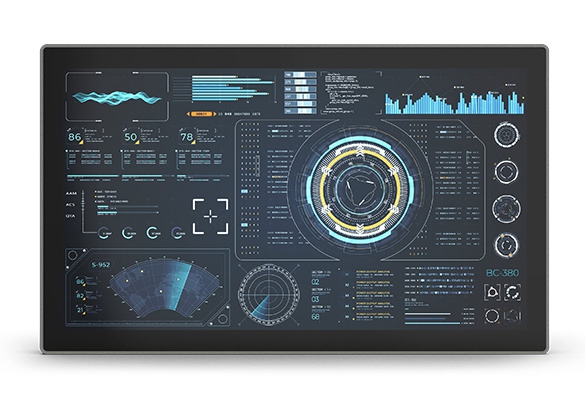

CV-221C / P1001 Series

21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Atom™ E3845 Quad-Core Embedded Computer, Projected Capacitive Touch, and AG Coating

PRODUCTS FEATURES
  • 21.5" Full HD LCD (1920 x 1080) with 16:9 Aspect Ratio
  • Projected Capacitive Touch with Anti-Glare Coating.
  • Wide Viewing Angle of 178°/178°
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 1x Full Size Mini-PCIe Expansion Socket
  • Designed with Rugged Aluminum Die-casting Front Bezel
  • Front Panel IP66 Compliant
ADD TO INQUIRY DATASHEET
OVERVIEW
Slim, Modular, Durable: CV-200/P1000 Series - Modernized Industrial Panel PCs

The CV-200 / P1001 series is an entry-level modular industrial panel PC, powered by Intel® Atom®/Pentium® processors with DDR3L memory. It delivers stable, low-power performance, making it ideal for industrial automation and basic HMI applications. Supporting Full HD resolution and available in sizes from 10” to 21.5”, its industrial-grade rugged design makes it well suited for deployment as HMIs in demanding industrial environments.

Product Category >>>> Modular Panel PC & Industrial Monitor



Entry-Level Industrial Computing

——

Equipped with Intel® Atom®/Pentium® processors, providing sufficient performance for basic HMI and control applications.


Entry-Level Industrial Computing
CDS Patented Technology



CDS Patented Technology

——

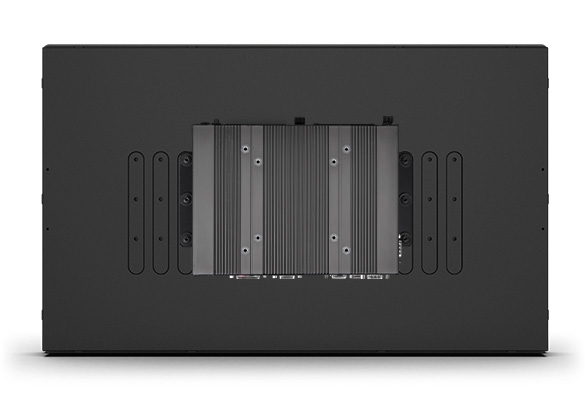

Cincoze Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.



Ultra-Slim Bezel

——

With an ultra-slim bezel of ≤ 3 mm (varies by display size), the CV-200 minimizes physical constraints for compact installations. It’s ideal for space-limited enclosures and applications requiring efficient integration with a streamlined appearance.


Ultra-Slim Bezel
Reliable Touch Performance



Reliable Touch Performance

——

All models support P-Cap touch, anti-glare (AG) coating, and wet tracking technology, ensuring stable operation and clear visibility even in humid environments or under bright indoor lighting.



Wide Temps, Safe, & More Reliable

——

To face harsh and rugged usage environments, the CV-200/P1001 series has a series of industrial-grade protections, including a wide operating temperature range, a wide range DC power input (9 to 48VDC), and a dustproof/water resistant IP66 front panel, which is beneficial for applications such as field-side HMI or production process visualization.

Wide Temps, Safe, & More Reliable
RESOURCES
Cincoze Launches New Slim Industrial Display Solutions for Enhanced HMI and Visualization
2026-01-22
Cincoze Launches New Slim Industrial Display Solutions for Enhanced HMI and Visualization
SPECIFICATION

CV-221C

Model NameCV-221C
DisplayLCD Size• 21.5” (16:9)
Max. Resolution• 1920x1080
Brightness (cd/m2)• 300
Contrast Ratio• 5000 : 1
LCD Color• 16.7M
Pixel Pitch (mm)• 0.24825 (H) x 0.24825 (V)
Viewing Angle (H-V)• 178 / 178
Backlight LED Life Time• 50,000 hrs (LED Backlight)
Touch ScreenTouch Type• Projected Capacitive
Anti-Glare• V
Wet Touch Tracking• V
PhysicalDimension ( W x D x H )• 522.4 x 318.3 x 63.4 mm
Weight Information• 5.28 kg
Mechanical Construction• Die-Casting Flat Surface
PowerPower Consumption• 24.8 W (Max.)
EnvironmentFront Panel Protection• IP 66 Compliant
Operating Temperature• 0°C - 60°C (32°F to 140°F)
  - With Industrial Grade peripherals; Ambient with air flow
Storage Temperature• -20°C - 60°C (-4°F to 140°F)
Relative Humidity• 90% RH @ 40°C (non-condensing)
EMC• CE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN 61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
(**Compliant with the standard when utilizing shielded cable.)
• EN/IEC 61000-4-8 PFMF: 50/60 Hz, 30A/m
• EN/IEC 61000-4-11 (50/60 Hz): Voltage dips duration up to 25/30 cycles; interruptions up to 250/300 cycles.
Industrial Environment• EMC:
  - EN/BS/IEC 61000-6-4: 2019 Class A
  - EN/BS/IEC 61000-6-2: 2019
Railway• EMC:  EN 50155: 2021 Clause 4.4.6, 13.4.9 (w/ M1101 only)
  - EN 50121-1 : 2017
  - EN 50121-3-2: 2016 + A1: 2019

P1001 Series

Model NameP1001P1001E
SystemProcessorOnboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz
Memory1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC)
Support up to 8 GB
BIOSAMI 64Mbit SPI BIOS
GraphicsCDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface
VGA1x VGA Connector (1920x1080@60Hz)
DP1x DisplayPort Connector (1920x1080@60Hz)
AudioLine-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I210
- GbE2: Intel® I210
USB1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A)
Serial Port2x RS-232/422/485 with Auto Flow Control Support, DB9
DIO8x Isolated Digital I/O (4in/4out)
StorageSSD/HDD1x 2.5” HDD/SSD Drive
SIM Socket1 x Front Accessible SIM Socket
CFast1 x Front Accessible CFast Socket
ExpansionMini PCI Express1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module
Universal Bracket 2x Universal I/O Brackets
Other FunctionWatchdog TimerSoftware Programmable Supports 256 Levels System Reset
Internal SpeakerAMP 2W + 2W
OSD FunctionLCD On/Off, Brightness Up, Brightness Down
Reset Button1x Reset Button
PowerPower Button1x ATX Power On/Off Switch
Power Mode Switch1x AT/ATX Mode Switch
Power Input1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional)1x Optional AC/DC 12V/5A, 60W
PhysicalDimension ( W x D x H )204.5 x 149 x 37.5 mm204.5 x 150 x 60 mm
Weight Information1.34kg1.54kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / CDS Mounting
Physical DesignFanless Design
Jumper-less Design
Reliability & ProtectionReverse Power InputYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection20A
Operating StystemMicrosoft® Windows®Windows® 10, Windows® 8, Windows® 7
Windows® Embedded 8 Standard, Windows® Embedded Standard 7
LinuxSupports by project
EnvironmentOperating TemperatureAmbient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals)
StorageTemperature-30°C to 85°C
Relative Humidity10%~95% (non-condensing)
ShockOperating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
VibrationOperating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-221C-R10/P1001-R1021.5" FHD 16:9 Slim Bezel Panel PC with Intel® Atom™ E3845 Quad-Core Embedded Computer, Projected Capacitive Touch, and AG Coating
CV-221C-R10/P1001E-R1021.5" FHD 16:9 Slim Bezel Panel PC with Intel® Atom™ E3845 Quad-Core Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating

Model Configuration
 CV-221CP1001P1001E
CV-221C/P1001VV--
CV-221C/P1001EV--V

Package Checklist
CV-221C/P1001 Series Panel PC x1Power Terminal Block Connector x 1
Panel Mounting Kit x 14HDD Screw Pack x 1
DIO Terminal Block Connector x 1Mini PCIe Screw Pack x 1

Optional Modules and Accessories
Model No.Description
MEC-COM-M212-DB9Mini-PCIe Module with 2x RS-232 Serial Ports, 1x DB9 Cable (for P1001E only)
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P1001E only)
MEC-USB-M102-30Mini-PCIe Module with 2x USB 3.0 Ports, 2x 30cm cable (for P1001E only)
UB03032x Universal Bracket each with 1x DB9 Cutout (for P1001E only)
UB0311Universal Bracket with 2x RJ45 Cutout (for P1001E only)
UB0314Universal Bracket with 2x USB Cutout (for P1001E only)
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
