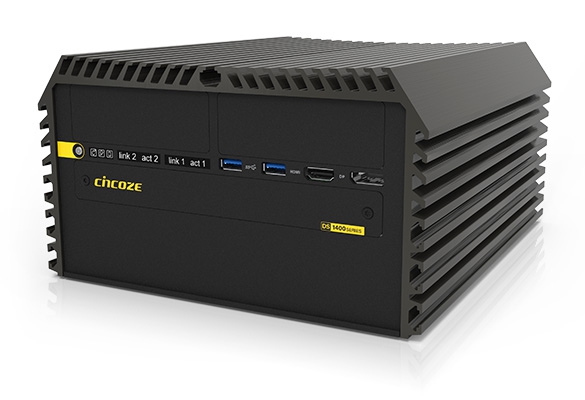

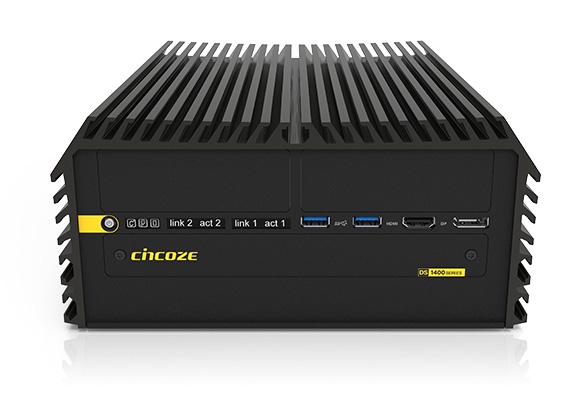

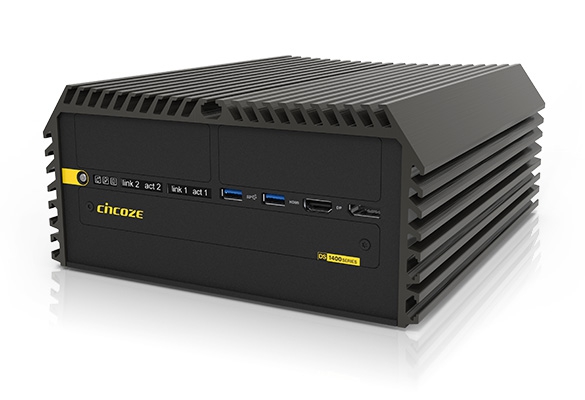

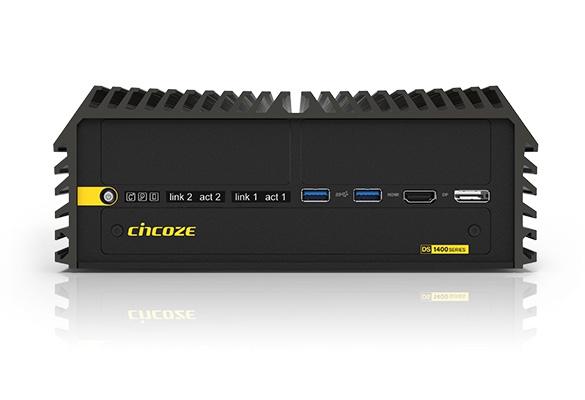

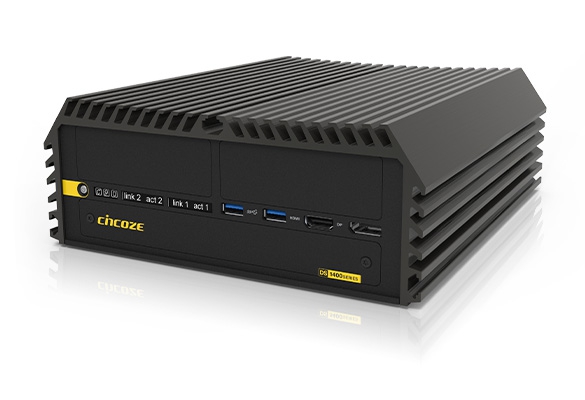

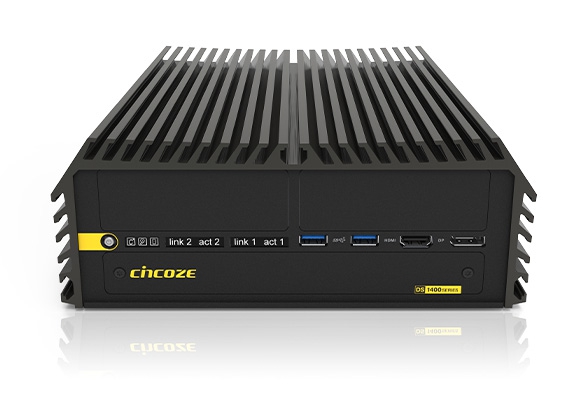

DS-1402
- Intel® 13./12. Generation Raptor Lake-S/Alder Lake-S Core™ i9/i7/i5/i3 Prozessoren (max. 65 W TDP)
- 2 x DDR5 SO-DIMM-Sockel, unterstützt ECC/nicht ECC-Speicher, bis zu 4800MHz, 64GB
- 2x GbE LAN und optional 2x 10GbE LAN
- 2x 2,5" SATA-Speicher, 3x mSATA-Sockel, 1x M.2 M-Key für NVMe SSD
- 2x PCI/PCIe-Erweiterungssteckplätze
- Optionale CMI-Module zur E/A-Erweiterung
- Optionale CFM-Module für Zündungserkennung und PoE
- Breite Betriebstemperatur -40°C bis 70°C
- MIL-STD-810G Militärstandard und EN50155 (nur EN 50121-3-2)
- Sicherheitsstandard: UL, cUL, CB, IEC, EN 62368-1
- Unterstützung für das Intel® OpenVINO™ Entwicklerkit
- Intel® ESDQ (Edge Software Device Qualification) zertifiziert: das Edge Insights for AMR Softwarepaket

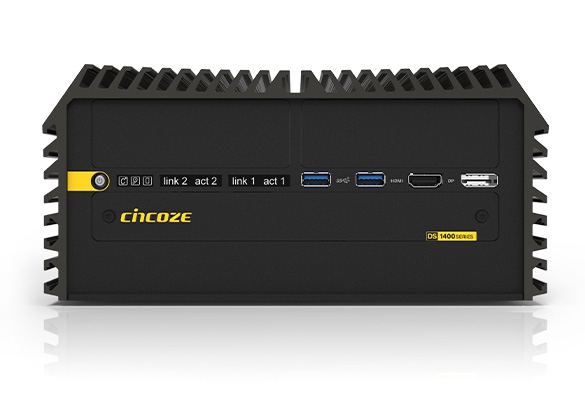

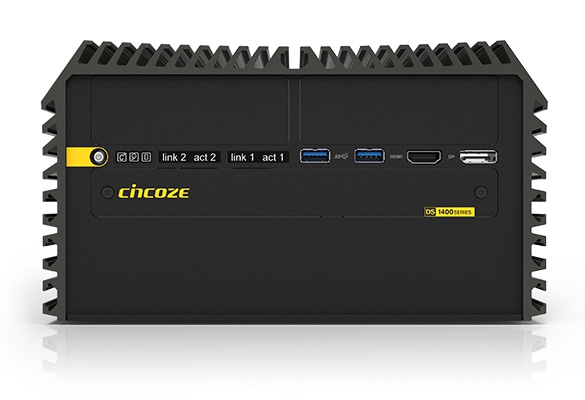

Der DS-1402 ist ein leistungsstarker, erweiterbarer und robuster Embedded-PC, der sich durch eine herausragende Leistung sowie durch umfangreiche industrielle E/A-Schnittstellen und robuste Funktionen auszeichnet. Um verschiedenen Anwendungsanforderungen gerecht zu werden, verfügt er über zwei PCI/PCIe-Erweiterungsmöglichkeiten und kann außerdem für die erforderlichen E/A und spezifischen Funktionen durch die einzigartigen CMI-, CFM- und MEC-Module von Cincoze flexibel erweitert werden. Darüber hinaus hat das DS-1402 mehrere internationale Zertifizierungen bestanden und gewährleistet eine stabile und zuverlässige Leistung in verschiedenen rauen Umgebungen. Es ist die ideale Wahl für Fertigungs- und Bahnanwendungen.
Produktkategorie >>>> Rugged Embedded Fanless PC
Schnelle Verarbeitung und Inferenz
——
Der DS-1402 unterstützt Intel® Core™ i9/i7/i5/i3 (Raptor Lake-S/Alder Lake-S) Prozessoren der 13./12. Generation, die auf dem Intel 7 Prozess basieren, mit bis zu 24 Kernen (8P + 16E) und 32 Threads, die mehr als das 1,35-fache der Geschwindigkeit der Comet Lake-S Plattform liefern. Die Intel® Xe-Architektur des UHD 770-Grafikchips steigert die GPU-Leistung bei der Bildklassifizierung auf das 2,8-fache der Geschwindigkeit von Comet Lake-S und bietet die für KI und Edge-Computing erforderliche Verarbeitungsleistung.
Industrielle E/A und
modulare Erweiterung
——

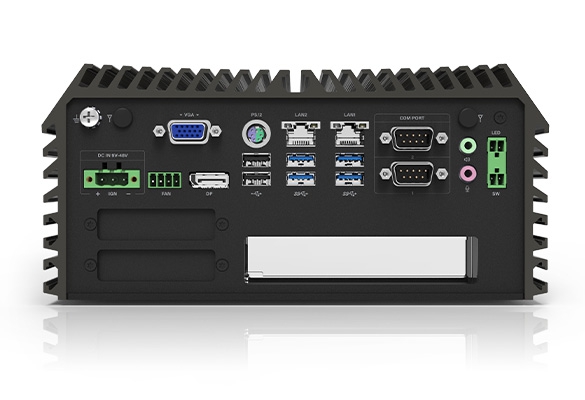

Der DS-1402 bietet eine breite Palette an industrietauglichen E/A, darunter bis zu 2x GbE LAN, 6x USB 3.2 und 2x USB 2.0, 2x RS232/422/485, 2x 2,5" SATA, 3x mSATA, 1x M.2 Key M für NVMe SSD, 2x SIM-Kartensteckplätze, 3x Mini-PCIe in voller Größe und vier unabhängige Displays (DisplayPort, HDMI, VGA). Er bietet außerdem eine modulare Erweiterung durch die CMI/CFM-Module von Cincoze, mit denen zusätzliche E/A oder andere Funktionen wie High-Speed 10GbE LAN, PoE und IGN (Power Ignition Sensing) hinzugefügt werden können.
PCI/PCIe-
Erweiterungskarten
——
Der DS-1402 verfügt über zwei PCI/PCIe-Erweiterungssteckplätze. Er unterstützt Erweiterungskarten bis maximal 110-W mit den Abmessungen 111 x 235 mm. Dieser flexible Steckplatz ermöglicht die Integration von E/A-, GPU-, Bilderfassungs-, Datenerfassungs- und Bewegungssteuerungskarten, um spezifische Anwendungsanforderungen zu erfüllen.
Verstellbare
PCIe-Kartenhalterung
——
Eine patentierte, einstellbare PCIe-Kartenhalterung kann Add-on-Karten sicher befestigen. Dieses einzigartige Design verhindert, dass sich die Karten aufgrund von Vibrationen lösen, und gewährleistet so den stabilen Betrieb des Systems.
Patent Nr. I773359Robust und zuverlässig
——
Der DS-1402 ist robust gebaut, was sich in seinem industrietauglichen Schutzdesign und den Industriezertifizierungen in verschiedenen Bereichen widerspiegelt. Neben Merkmalen wie einem weiten Temperaturbereich (-40 bis 70 °C), einem weiten Spannungseingang (9 bis 48 VDC), Überspannungs-, Überstrom- und ESD-Schutz erfüllt er auch die US-Militärnorm MIL-STD-810G für Schock und Vibration. Die Produktsicherheit und -zuverlässigkeit wird außerdem durch die international anerkannte Sicherheitszertifizierung UL 62368-1 gewährleistet. Für mehr Sicherheit im Bahnverkehr erfüllt das Gerät auch die EMV-Norm EN 50121-3-2 in EN 50155.
Model Name | DS-1402 | |
---|---|---|
System | Processor | • 13th Generation Intel® Raptor Lake-S Series CPU: • 12th Generation Intel® Alder Lake-S Series CPU: |
Chipset | • Intel R680E Chipset | |
Memory | • 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB | |
BIOS | • AMI BIOS | |
Graphics | Graphics Engine | • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 • Integrated Intel® UHD Graphics 730: Core™ i3 • Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
Maximum Display Output | • Supports Quad Independent Display | |
VGA | • 1x VGA Connector : 1920 x 1080 @ 60Hz | |
DP | • 2x DP Connector : 4096 x 2304 @ 60Hz * Verified maximum DP resolution: 3840x2160 @ 60Hz | |
HDMI | • 1x HDMI Connector : 4096x2160 @ 30Hz * Verified maximum resolution: 3840x2160 @ 30Hz | |
Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
Line-out | • 1 x Line-out, Phone Jack 3.5mm | |
Mic-in | • 1 x Mic-in, Phone Jack 3.5mm | |

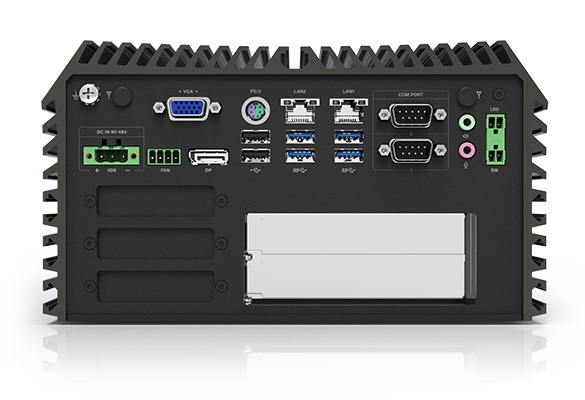

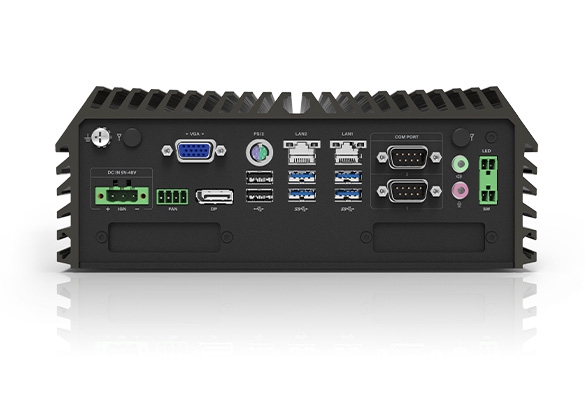

I/O | LAN | • 2 x GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 |
COM | • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
USB | • 2 x USB 3.2 Gen2x1 (10Gbps), Type A • 4 x USB 3.2 Gen1x1 (5Gbps), Type A • 2 x USB 2.0 (480Mbps), Type A | |
PS/2 | • 1 x PS/2, 6 Pin Mini-DIN Female Connector | |
Storage | SSD/HDD | • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) • 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 ) |
mSATA | • 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) | |
M.2 SSD | • 1x M.2 Key M Type 2280 Socket, Support PCIe Gen3 x4 NVMe SSD or SATA SSD ( SATA 3.0 ) | |
RAID | • Support RAID 0/1/5/10 | |
Expansion | PCI Express | • 2 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm |
Mini PCI Express | • 3 x Full-size Mini-PCIe Socket | |
SIM Socket | • 2 x SIM Socket | |
CMI (Combined Multiple I/O) Interface | • 2 x High Speed CMI Interface for optional CMI Module Expansion • 2 x Low Speed CMI Interface for optional CMI Module Expansion | |
CFM (Control Function Module) Interface | • 1 x CFM IGN Interface for optional CFM-IGN Module Expansion | |
Other Function | External FAN Connector | • 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
Power Ignition Sensing | • Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) | |
Clear CMOS Switch | • 1 x Clear CMOS Switch | |
Reset Button | • 1 x Reset Button | |
Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
Power | Power Button | • 1 x ATX Power On/Off Button |
Power Mode Switch | • 1 x AT/ATX Mode Switch | |
Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
Remote Power On/Off | • 1 x Remote Power On/Off, 2-pin Terminal Block | |
Remote Power LED | • 1 x Remote Power LED, 2-pin Terminal Block | |
Physical | Dimension ( W x D x H ) | • 227 x 261 x 128 mm |
Weight Information | • 5.44 KG | |
Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
Mounting | • Wall | |
Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |
Reliability & Protection | Reverse Power Input Protection | • Yes |
Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
Over Current Protection | • 15A | |
CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
MTBF | • 371,274 Hours - Database: Telcordia SR-332 Issue 3, Method 1, Case 3 | |
Operating System | Windows | • Windows®11, Windows®10 |
Linux | • Ubuntu 22.04 | |
Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 50°C (With External Fan Kit) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
Storage Temperature | • -40°C to 85°C | |
Relative Humidity | • 95%RH @ 70°C (non-Condensing) | |
Shock | • MIL-STD-810G | |
Vibration | • MIL-STD-810G | |
EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) | |
EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
Safety | • UL, cUL, CB, IEC, EN 62368-1 |
Model No. | Description |
---|---|
DS-1402-R10 | 13/12th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 2x PCI/PCIe Expansion Slot |
√ DS-1402 Embedded System x1 | √ Heatsink Pack x1 |
√ Wall Mounting Kit x1 | √ Screw Pack x1 |
√ Power Terminal Block Connector x 1 | √ Remote Function Terminal Block Connector x 2 |
√ Fan Terminal Block Connector x 1 |
Model No. | Description |
---|---|
CMI-LAN01-R12 | CMI Module with 4x RJ45 Intel I210 GbE LAN Ports |
CMI-M12LAN01-R12 | CMI Module with 4x M12 Intel I210 GbE LAN Ports |
CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
CMI-10GLAN03-R10 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port |
CMI-COM02 | CMI Module with 4x RS232/422/485 Serial Ports |
CMI-ICOM01 | CMI Module with 4x Electrical Isolated RS-232 Serial Ports |
CMI-DIO02 | CMI Module with 16x Optical Isolated DIO (8 in/8 out) |
MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable |
MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable |
MEC-COM-M212-DB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable |
UB1010 | Universal Bracket with 4x M12 Cutout |
UB1012 | Universal Bracket with 4x RJ45 Cutout |
UB1018 | Universal Bracket with DIO Cutout |
UB1028 | Universal Bracket with 2x RJ45 Cutout |
UB1030-R10 | Universal Bracket with 4x M12 X-Coded Cutout |
UB0303 | 2x Universal Bracket each with 1x DB9 Cutout |
UB0311 | Universal Bracket with 2x RJ45 Cutout |
UB0314 | Universal Bracket with 2x USB Cutout |
CFM-PoE03 | CFM Module with PoE Control Function, Individual Port 25.5W |
CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
RC-E8E8-R10 | Riser Card with 2 x PCIex8 Slots |
RC-E16E1-01 | Riser Card with 1x PCIex16 and 1x PCIex1 Slots (PCIe x16 Slot Supports Dual Deck Add-on Card) |
RC-E16PI-01 | Riser Card with 1x PCIex16 and 1x PCI Slots (PCIe x16 Slot Supports Single Deck Add-on Card) |
RC-PIPI-01 | Riser Card with 2x PCI Slots |
FAN-EX101 | External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan |
FAN-UB100 | Exhaling fan with 4pin Connector, Universal Bracket |
FAN-UB101 | Inhaling fan with 4pin Connector, Universal Bracket |
GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
