產品介紹

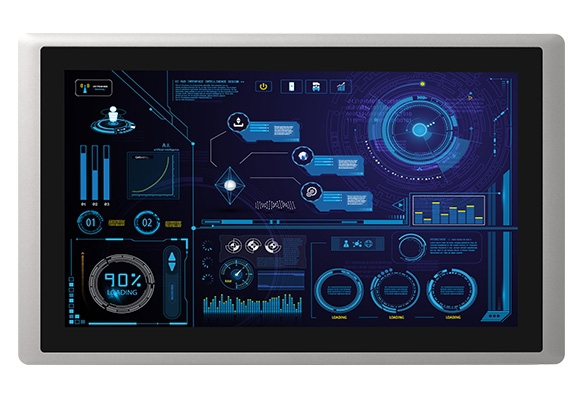

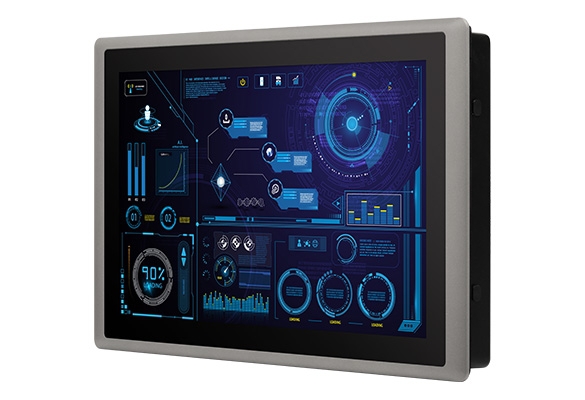

CV-W115FH 系列為 15.6 吋寬螢幕 LCD 顯示模組，具備電阻式五線 / 投射式電容觸控螢幕。其解析度最高可達 1920 x 1080（FHD），亮度為 350 尼特。CV-W115FH 系列採用平面設計，且前面板具備 IP65 防塵防水等級。此外，前框以鋁合金壓鑄設計，提供堅固耐用的工業級可靠性。透過支援可轉換顯示系統（CDS）技術，CV-W115FH 系列可讓您輕鬆配置、升級與維護您的可轉換顯示系統。
>>>> Panel PC Technology
>>>> Panel PC Technology
詳細規格
CV-W115FH Series
| Model Name | CV-W115FHR | CV-W115FHC | |
|---|---|---|---|
| Display | LCD Size | • 15.6" (16:9) | |
| Max. Resolution | • 1920 x 1080 (Full HD) | ||
| Brightness (cd/m2) | • 350 | ||
| Contrast Ratio | • 800 : 1 | ||
| LCD Color | • 16.7M | ||
| Pixel Pitch (mm) | • 0.17925(H) x 0.17925 (W) | ||
| Viewing Angle (H-V) | • 178 / 178 | ||
| Backlight LED Life Time | • 50,000 hrs (LED Backlight) | ||
| Touch Screen | Touchscreen Type | • Resistive 5-wire | • Projected Capacitive |
| Physical | Dimension (W x D x H) | • 420 x 254 x 66.2 mm | |
| Weight Information | • 3.78kg | • 3.84kg | |
| Mechanical Construction | • Die-Casting Flat Surface | ||
| Power | Power Consumption | • 11.5W (Max.) | • 11.45W (Max.) |
| Environment | Front Panel Protection | • IP 65 Compliant | |
| Operating Temperature | • -20°C to 70°C (with Industrial Grade peripherals; Ambient with air flow) | ||
| Storage Temperature | • -40°C to 80°C | ||
| Relative Humidity | • 90% RH @ 39°C (Non-condensing) | ||
| EMC | • CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
| Safety | • UL, cUL, CB, IEC, EN 62368-1 | ||
訂購資訊
| Model No. | Product Description |
|---|---|
| CV-W115FHR-R10 | 15.6" TFT-LCD Full HD 16:9 Display Module with Resistive 5-wire Touch |
| CV-W115FHC-R10 | 15.6" TFT-LCD Full HD 16:9 Display Module with Projected Capacitive Touch |
| CV-W115FH Series Display Module x 1 | Panel Mounting Kit x 10 |
