DC-1300

Intel® Alder Lake-N 系列處理器 入門效能、緊湊型強固嵌入式電腦
產品特點
  • 內建 Intel® Alder Lake-N 處理器 N97 和 Core™ i3-N305 處理器
  • 1 個 DDR5 SO-DIMM 插槽,支援最高 4800MHz 16GB 記憶體
  • 1 個 M.2 Key B Type 3052/3042 插槽,用於 5G 模組擴充
  • 1 個 M.2 Key B Type 2242 插槽,用於 I/O 模組擴充
  • 支援 CMI 技術,用於選配 I/O 模組擴充
  • 支援 CFM 技術,用於電源點火感應功能
產品認證
  • EN 61000-6-2
  • EN 61000-6-4
  • MIL-STD-810H
產品介紹

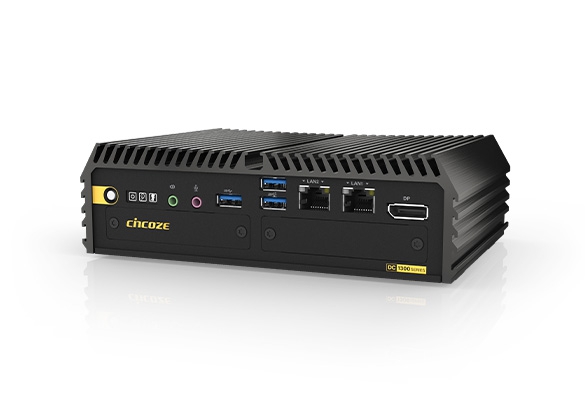

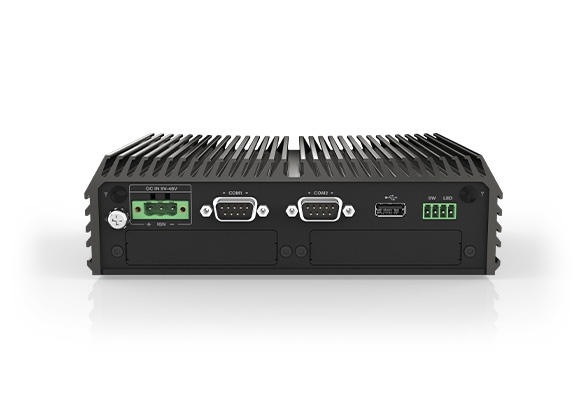

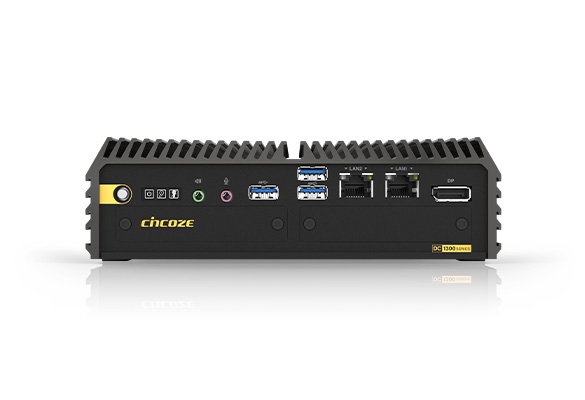

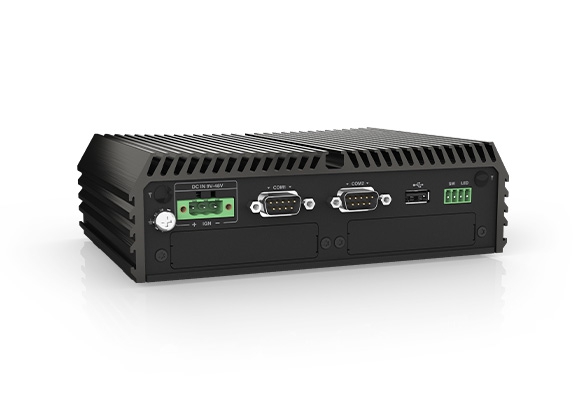

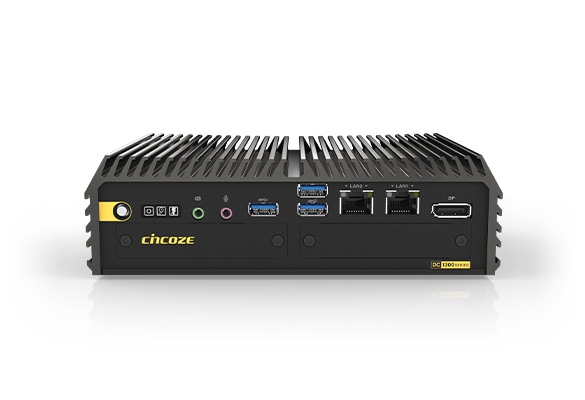

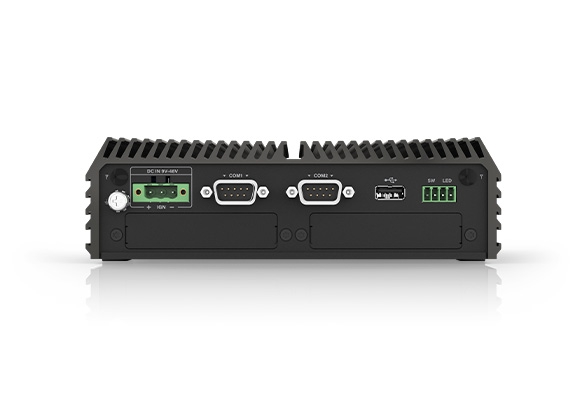

DC-1300

DC-1300 是 DIAMOND 產品線中專為基礎工業應用所打造的入門產品,可搭載 Intel® Alder Lake-N 平台 Core™ i3 / N97 處理器,在緊湊設計中將擴充性發揮到極致,為安裝空間受限的工業自動化應用提供強固且可靠的解決方案。




4.5X 效能躍升

——

最高可搭載 Alder Lake-N 平台的 Intel® Core™ i3-N305 處理器,運算效能較前代機種提升達 4.5 倍。除了配備一個 DDR5 記憶體插槽,並支援多種儲存選項 (2.5" HDD/SSD、Half-Slim SSD 及 M.2 SSD等),可靈活滿足各種應用需求。

4.5X 效能躍升

緊湊設計 靈活安裝


緊湊設計 靈活安裝

——

DC-1300 體積緊湊,僅 185 x 131 x 56.5 mm,適合安裝在空間受限的環境,並支援多種安裝方式,包括壁掛(Wall Mount)、側掛(Side Mount)及 DIN-Rail 安裝。




完整的 無線傳輸方案

——

提供全方位的無線傳輸選項,包括 GSM、GNSS 和 Wi-Fi,可透過內建的 SIM 卡插槽、M.2 Key B 插槽,或透過轉接卡將 M.2 Key B 轉換為 Key E 來實現。



完整的無線傳輸方案


豐富的擴充性


豐富的 擴充性

——

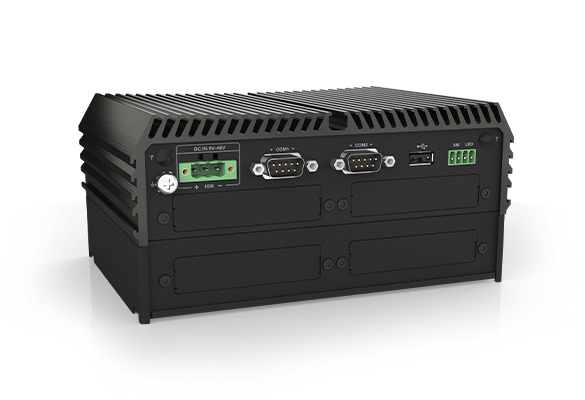

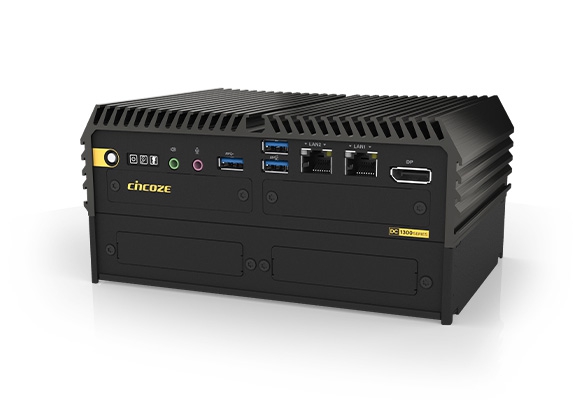

除了透過獨家 CMI/CFM 模組靈活擴充 COM、DIO、顯示接口與 IGN 功能外,全新推出的可堆疊擴充盒 (SEB, Stackable Expansion Box) 有效利用 DC-1300 內建的雙 M.2 B-Key 插槽,支援市售的 I/O、CANbus 和 Fieldbus 模組,進一步拓展應用可能性。




國際 認證

——

DC-1300 採用工業級防護設計,支援寬溫 (-40 至 70°C) 及寬壓 (9-48 VDC),並通過工業環境 EMC 標準 (IEC 61000-6-2/61000-6-4)、美國軍規耐衝擊震動標準 (MIL-STD-810H),確保在各式應用場景的可靠運作。

國際認證

影片
詳細規格
Model NameDC-1300
SystemProcessor

• Onboard Intel® Alder Lake-N Series Processor:
  - Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W
  - Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W

Memory• 1x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 16GB
BIOS• AMI
GraphicsGraphics Engine• Integrated Intel® UHD Graphics
Maximum Display Output• Supports Two Independent Display
  (Onboard 1x DisplayPort + Optional CMI 1x Display)
DP• 1x DisplayPort Connector (4096 x 2304 @60Hz)
  * Verified maximum resolution: 3840 x 2160 @ 60Hz
AudioAudio Codec• Realtek® ALC888, High Definition Audio
Line-out• 1x Line-out, Phone Jack 3.5mm
Mic-in• 1x Mic-in, Phone Jack 3.5mm
I/OLAN• 2x 2.5GbE LAN, RJ45
  - GbE1: Intel® I225
  - GbE2: Intel® I225
USB• 2 x USB 3.2 Gen2x1 (10Gbps), Type A
• 1 x USB 3.2 Gen1x1 (5Gbps), Type A
• 1 x USB 2.0 (480Mbps), Type A
COM• 2x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
StorageSSD/HDD• 1x 2.5" SATA HDD/SSD or 1x Half-Slim SSD (SATA 3.0)
M.2 SSD• 1x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support SATA SSD (SATA3.0)
ExpansionM.2 B Key Socket• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1/ USB3.2 Gen2 x1 / SATA), Support 5G/Storage/Add-on Card Expansion
• 1x M.2 Key B Type 2242 (PCIe Gen 3x1), Support Add-on Card Expansion
SIM Socket• 1x Front Accessible Dual Nano SIM Socket
CMI (Combined Multiple I/O) Interface• 1x CMI Interface for optional Display or I/O Module Expansion
• 1x CMI Interface for optional I/O Module Expansion
CFM (Control Function Module) Interface• 1x CFM Interface for optional IGN Module Expansion
Other FunctionClear CMOS Switch• 1x Clear CMOS Switch
Reset Button• 1x Reset Button
Instant Reboot• Support 0.2sec Instant Reboot Technology
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
Status LED Indicator• Power LED, Storage LED, IGN LED
Antenna Holes• 2x Antenna Holes
PowerPower Button• 1x ATX Power On/Off Button
Power Mode Switch• 1x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1x Remote Power On/Off, 2-pin Terminal Block
Max. Power Consumption• i3-N305 CPU: 49.4W
• N97 CPU: 35.9W
  - Test conducted with CPU, 1x RAM, and 1x storage
  - 100% load during burn-in testing
Inrush Current (Peak)• i3-N305 CPU: 4.572 A@12V
• N97 CPU: 4.475 A@12V
Remote Power LED• 1x Remote Power LED, 2-pin Terminal Block
PhysicalDimension ( W x D x H )• 185 x 131 x 56.5 mm
Weight Information• 1.5 Kg
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall / Side / DIN-RAIL / VESA Mount
Physical Design• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input• Yes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection• 15A
MTBF• 520,224 Hours
  - Database: Telcordia SR-332 Issue 3, Method 1, Case 3
Operating SystemMicrosoft® Windows®• Windows®11, Windows®10
Linux• Ubuntu Desktop 22.04 LTS
EnvironmentOperating Temperature• 12W TDP Processor: -40°C to 70°C
• 15W TDP Processor: -40°C to 60°C
  * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
  * With extended temperature peripherals and 1.2 m/s ambient airflow
  * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 70°C
Relative Humidity• 12W TDP Processor: 95% RH @ 70˚C (Non-condensing)
• 15W TDP Processor: 95% RH @ 60˚C (Non-condensing)
Shock• MIL-STD-810H
Vibration• MIL-STD-810H
EMC• CE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
  (**Compliant with the standard when utilizing shielded ethernet cable.)
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Industrial Environment• EMC
  - EN/BS/IEC 61000-6-4: 2019 Class A
  - EN/BS/IEC 61000-6-2: 2019
訂購資訊
Available Model
Model No.Description
DC-1300-i3-R10Intel® Core™ i3-N305 Entry Performance and Compact Rugged Embedded Computer
DC-1300-N97-R10Intel® Processor N97 Entry Performance and Compact Rugged Embedded Computer

Package Checklist
DC-1300 Embedded Computer x1Power Terminal Block Connector x1
CPU Thermal Pad  x1Remote Power On/Off  + Remote Power LED Connector x1
Screw Pack x1M.2 Key B Type 3052 to 3042 Adapter Bracket x1
Wall Mounting Kit x1

Optional Stackable Expansion Box
Model No.Description
SEB-DC01-R10Stackable Expansion Box with 4x Expansion Area for DC Series

Optional Modules and Accessories
Model No.Description
CMI-VGA01CMI Module with 1x VGA Port
CMI-DVI01CMI Module with 1x DVI-D Connector
CMI-HD02CMI Module with 1x HDMI Port
CMI-DP03-R10CMI Module with 1x DisplayPort
CMI-COM03CMI Module with 2x RS232/422/485 Ports(Support 5V/12V), 2x DB9 Connector
CMI-DIO03CMI Module with 8x DIO (4in 4out) Ports, 1x 10 Pin Terminal Block
CFM-IGN02CFM Module with Power Ignition Sensing Function, Select 12V/24V
MEC-LAN-2002iM.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board(-40℃~+85℃), 2x RJ45 Connector
MEC-LAN-2002i-SM.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board(0℃~+70℃),  2x RJ45 Connector
MEC-USB-2002M.2 2242/2260/2280 (B+M key) 2-port USB 3.2 board(0℃~+70℃),  2x USB Type A Connector
MEC-USB-2002CM.2 2242/2260/2280 (B+M key) 2-port USB 3.2 board(0℃~+70℃),  2x USB Type C Connector
MEC-COM-2012M.2 2242/2260/2280 (B+M key) 2-port RS-232 serial board (-40℃~+85℃), 2x DB9 Connector
MEC-COM-2032iM.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40℃~+85℃), 2x DB9 Connector
MEC-CAN-2812iM.2 2242/2260/2280 (B+M key) dual isolated CAN bus 2.0B board (-40℃~+85℃), 2x DB9 Connector
MEC-CAN-2814iM.2 2242/2260/2280 (B+M key) quad isolated CAN bus 2.0B board (-40℃~+85℃), 4x DB9 Connector
UB1103Universal Bracket with 2x DB9 Cutout for CMI-COM, MEC-COM & MEC-CAN Expansion
UB1106-R10Universal Bracket with 1x DP Cutout for CMI-DP Expansion
UB1107Universal Bracket with 1x DVI Cutout for CMI-DVI Expansion
UB1108Universal Bracket with 1x HDMI Cutout for CMI-HDMI Expansion
UB1111Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion
UB1115Universal Bracket with 1x 10 Pin Terminal Block Cutout for CMI-DIO Expansion
UB1116Universal Bracket with 1x VGA Cutout for CMI-VGA Expansion
UB1131-R10Universal Bracket with 2x Antenna Cutout
UB1133-R10Universal Bracket with 2x USB Type C Cutout for MEC-USB Expansion
UB1134-R10Universal Bracket with 2x USB Type A Cutout for MEC-USB (M.2 interface) Expansion
AC-BE01-R10M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card
SIDE03 Side Mount Kit for DC Series, with KMRH-K175 for DIN-Rail Mount
DIN01DIN-RAIL Mount Kit, KMRH-K175
VESA-DCDC series VESA Mount Kit
GST60A12-CIN1Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
