產品介紹

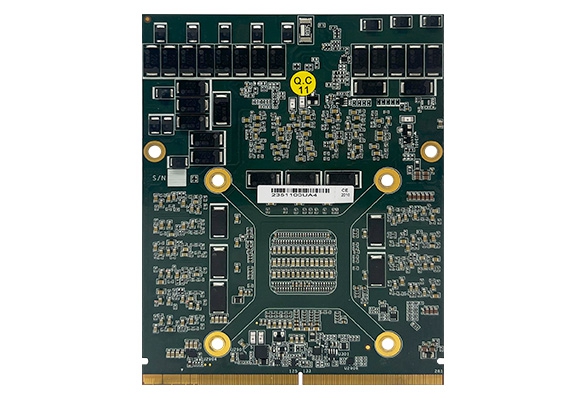

MXM-A4500 是一款採用 NVIDIA RTX™ GPU 的高性能嵌入式 MXM 模組，基於先進的 Ampere 架構採用 MXM 3.1 Type B 的規格。擁有 5888 個 CUDA® 運算核心、46 個 RT 核心、184 個 Tensor 核心以及 16GB GDDR6 的記憶體。支援高達 17.66 TFLOPS peak FP32 算力，特別適合需求邊緣運算和機器視覺的應用。
詳細規格
| GPU | NVIDIA RTX™ A4500 GA104-955 GPU |
|---|---|
| Memory | 16GB GDDR6 memory, 256-bit (Bandwidth: 512 GB/s) |
| CUDA Cores | 5888 CUDA cores, 17.66 TFLOPS peak FP32 performance |
| Tensor Cores | 184 Tensor Cores |
| RT Cores | 46 RT Cores |
| Compute API | CUDA Compute 8.0 and above, OpenCL™ 1.2 |
| Graphics API | DirectX® 12, OpenGL 4.6 |
| Display Outputs | 4x DisplayPort 1.4 digital video outputs, 4K at 120Hz or 8K at 60Hz |
| Interface | MXM 3.1, PCI Express Gen4 x16 support |
| Dimensions | 82 (W) x 105 (D) x 4.8 (H) mm |
| Form Factor | Standard MXM 3.1 Type B |
| Power Consumption | 80W |
| OS Support | Windows 11, Windows 10 & Linux support by project |
訂購資訊
| Model No. | Description |
|---|---|
| MXM-A4500-R10 | NVIDIA Embedded RTX A4500 MXM Type B, 16G, 80W Kit with Heatsink and Thermal Pad |
| NVIDIA RTX™ Embedded A4500 GPU Card x 1 | GPU Heatsink x 1 |
| GPU Thermal Pad Kit x 1 | Screw Pack x 1 |
| Model No. | Description |
|---|---|
| MXM-HSKB-01 | MXM Type B Heatsink Kit for MXM-A4500 |
* The MXM module kit includes a heat sink and thermal pads. The MXM Heat Sink Kit is intended for cases where an additional standalone heat sink and thermal pads are required.
