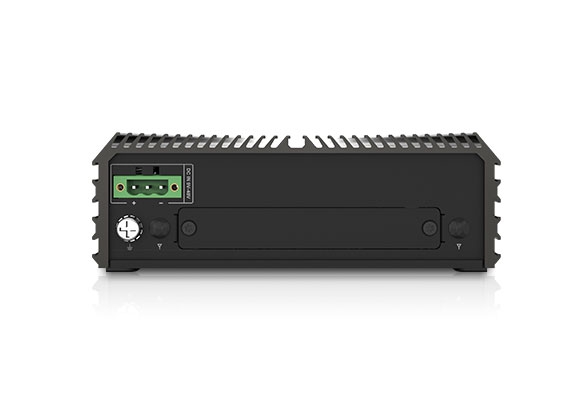

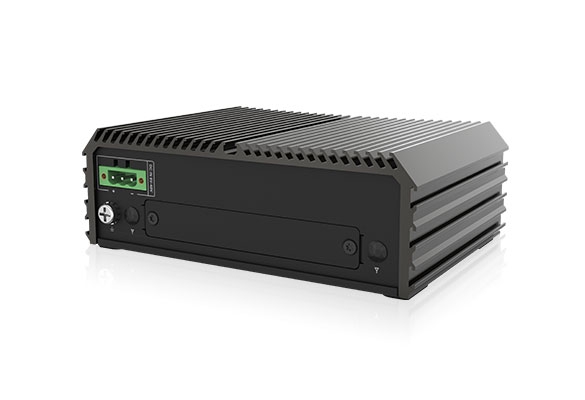

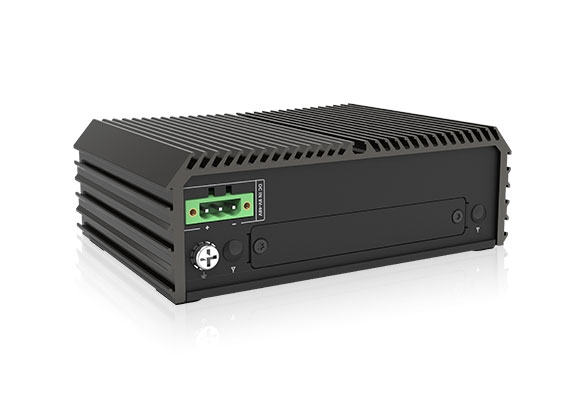

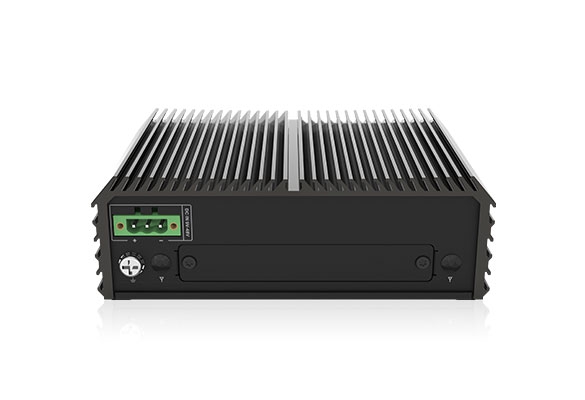

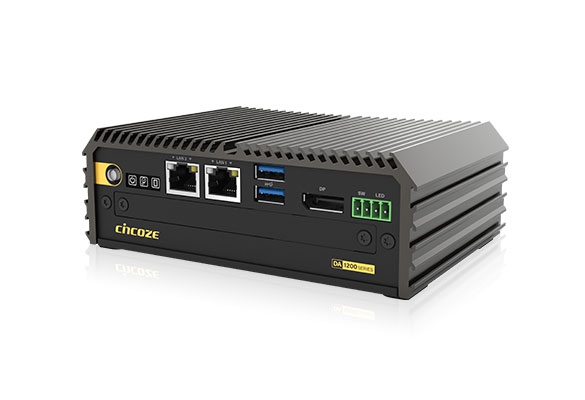

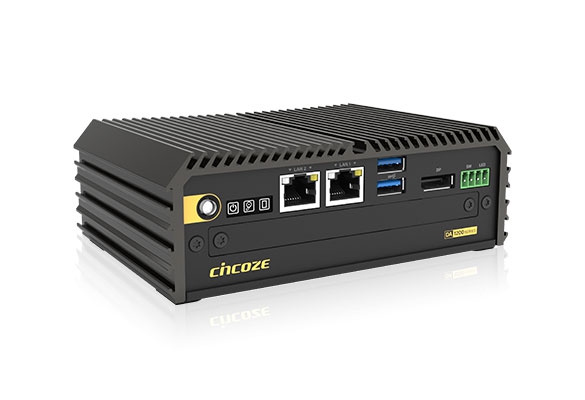

DA-1200
Intel Alder Lake-N Processor N97 Rugged Embedded Computer
產品特點
- Onboard Intel ® Alder Lake-N Processor N97
- Ultra Compact Size (150 x 105 x 52.3 mm)
- 1 x DDR5 SO-DIMM Sockets, Supports Up to 4800MHZ, 16GB
- 1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
- 1 x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
- Optional CMI modules for I/O expansion
- Wide Operating Temperature -40°C to 70°C
- Safety Standard: UL, cUL, CB, IEC, EN 62368-1
產品認證
產品介紹
手掌大小的 DA-1200 ，搭載 Intel® N97 處理器（Alder Lake-N 平台），是 DIAMOND 產品線中體積最小且最具價格競爭優勢的機種。DA-1200 承襲德承一貫的強固特性，通過或符合許多國際認證標準，如：工業環境下的 EMC 標準（IEC 61000-6-2 和 IEC 61000-6-4）、美國軍規衝擊震動標準 MIL-STD-810H。特別推薦給智能製造、智慧物流、工廠自動化所需的 IoT Gateway應用。
僅 手掌大小
——
DA-1200 尺寸為 150 x 105 x 52.3 mm，僅有一個手掌大。
高 性價比
——
DA-1200 配備 Intel® 7 製程技術的 N97 處理器，並支援 16GB DDR5 記憶體。其整體效能和極具競爭力的價格，充分展現高性價比的優勢。
易於 維護
——

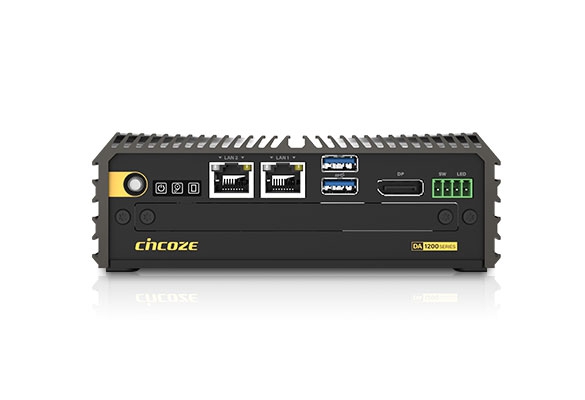

為了方便客戶快速設定及調整，將關鍵設定按鈕，包括 Reset Switch、Clear CMOS Switch、AT / ATX Mode Switch 以及 SIM 卡插槽，全部集中配置於前側維護區域。
模組化的 擴充設計
——
配備 2x M.2 Key B 插槽，也可透過 M.2 Key B Adapter Card 轉為 Key E 插槽（選配），全面覆蓋無線傳輸需求 ( 5G、Wi-Fi 和 GNSS 等 )。而儲存方面則可提供 2.5” SSD / Half-slim SSD / M.2 SSD 多樣選擇，更具彈性。
多樣的 安裝方式
——
DA-1200 支援多種安裝方式，包括 Wall Mount（壁掛式） 、Side Mount（側掛式） 和 DIN-RAIL（軌道型），滿足各種不同方式的安裝應用。
影片
RESOURCES
![[ 產品聚焦 ] Cincoze 邊緣計算解決方案](data/images/202405/1715829798946097306.jpg)
詳細規格
| Model Name | DA-1200 | |
|---|---|---|
| System | Processor | • Onboard Intel® Alder Lake-N Processor N97 Quad Core, up to 3.6 GHz |
| Memory | • 1x DDR5 SO-DIMM Socket • Supports DDR5 4800MHz Memory Up to 16GB (un-buffered and non-ECC) | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics |
| Maximum Display Output | • Supports Two Independent Display (Onboard 1x DisplayPort + Optional CMI 1x Display) | |
| DP | • 1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications) * Verified maximum resolution: 3840 x 2160 @60Hz | |
| I/O | LAN | • 2x 2.5GbE LAN, RJ45 - GbE1: Intel® I225 - GbE2: Intel® I225 |
| USB | • 2x 10Gbps USB 3.2 Gen2 x1, Type A | |
| Storage | SSD/HDD | • 1x 2.5" SATA HDD/SSD or 1x Half-Slim SSD (SATA 3.0) |
| M.2 SSD | • 1 x M.2 SSD shared by M.2 Key B Type 3052 Socket, Support SATA SSD (SATA 3.0) • 1 x M.2 SSD shared by M.2 Key B Type 2242 Socket, Support NVMe SSD (PCIe Gen 3x2) | |
| Expansion | M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1/ USB3.2 Gen2 x1 / SATA), Support 5G/Storage/Add-on Card Expansion • 1x M.2 Key B Type 2242 (PCIe Gen 3x2), Support Storage/Add-on Card Expansion |
| SIM | • 1x Front Accessible SIM Socket | |
| CMI (Combined Multiple I/O) Interface | • 1x CMI Interface for optional CMI Module Expansion | |
| Other Function | Clear CMOS Switch | • 1x Clear CMOS Switch |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| Antenna | • 2x Antenna Holes | |
| Power | Power Button | • 1x ATX Power On/Off Button |
| Power Mode Switch | • 1x AT/ATX Mode Switch | |
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1x Remote Power LED, 2-pin Terminal Block | |
| Max. Power Consumption | • N97 CPU: 47.04W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing | |
| Inrush Current (Peak) | • N97 CPU: 4.356 A@12V | |
| Physical | Dimension ( W x D x H ) | • 150 x 105 x 52.3 mm |
| Weight Information | • 0.81 kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / Side / DIN-RAIL / VESA Mount | |
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input Protection | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | • 15A | |
| MTBF | • 614,831 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Operating System | Windows | • Windows® 11, Windows® 10 |
| Linux | • Ubuntu Desktop 22.04 LTS | |
| Environment | Operating Temperature | • -40°C to 70°C PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 70°C | |
| Relative Humidity | • 95% RH @ 70°C (Non-condensing) | |
| Shock | • MIL-STD-810H | |
| Vibration | • MIL-STD-810H | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN61000-6-4, EN61000-6-2 (24VDC Input Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
訂購資訊
| Model No. | Product Description |
|---|---|
| DA-1200-N97-R10 | Intel Alder Lake-N Processor N97 Rugged Embedded Computer |
| DA-1200 Embedded System x1 | Wall Mounting Kit x1 |
| Thermal Pad (for CPU Thermal Block) x 1 | Power Terminal Block Connector x 1 |
| Screw Pack x 1 | Remote Function Terminal Block Connector x 1 |
| M.2 Key B Type 3052 to 3042 Adapter Bracket x1 |
| Model No. | Description |
|---|---|
| SEB-DA01-R10 | Stackable Expansion Box with 2x Expansion Area for DA Series |
| Model No. | Description |
|---|---|
| CMI-DP101 | CMI Module with 1x DisplayPort |
| CMI-HD01 | CMI Module with 1x HDMI Port |
| CMI-DVI101 | CMI Module with 1x DVI-D Connector |
| CMI-VGA101 | CMI Module with 1x VGA Port |
| CMI-LPPS102 | CMI Module with 1x LPT Port, 1x PS/2 Port |
| CMI-COM102 | CMI Module with 2x RS232/422/485 Ports(Support 5V/12V), 2x DB9 Connector |
| CMI-DIO100 | CMI Module with 8x DIO (4in 4out) Ports, 1x 10 Pin Terminal Block |
| UB0403 | Universal Bracket with 2x DB9 Cutout for CMI-COM & MEC-CAN Expansion |
| UB0415 | Universal Bracket with 1x 10 Pin Terminal Block Cutout for CMI-DIO Expansion |
| UB0409 | Universal Bracket with 1x LPT, 1x PS/2 Cutout for CMI-LPPS Expansion |
| UB0406 | Universal Bracket with 1x DP Cutout for CMI-DP Expansion |
| UB0407 | Universal Bracket with 1x DVI Cutout for CMI-DVI-D Expansion |
| UB0411 | Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion |
| UB0416 | Universal Bracket with 1x VGA Cutout for CMI-VGA Expansion |
| UB0408 | Universal Bracket with 1x HDMI Cutout for CMI-HDMI Expansion |
| UB0429-R10 | Universal Bracket with 2x Antenna Cutout |
| SIDE02 | Side Mount Kit for DA Series, with KMRH-K175 for DIN-Rail option |
| DINRAIL-R10 | Diamond series DIN-RAIL Mount Kit |
| AC-BE01-R10 | M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card |
| GST60A12-CIN-1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
