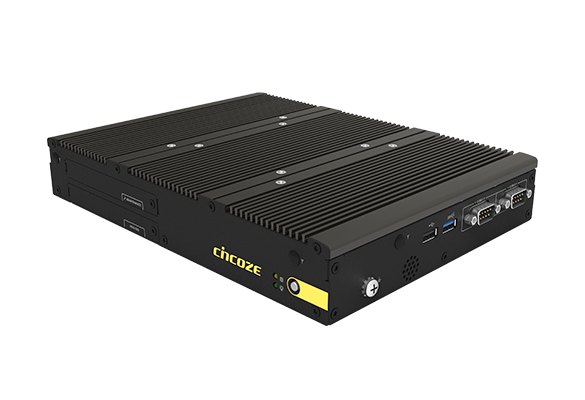

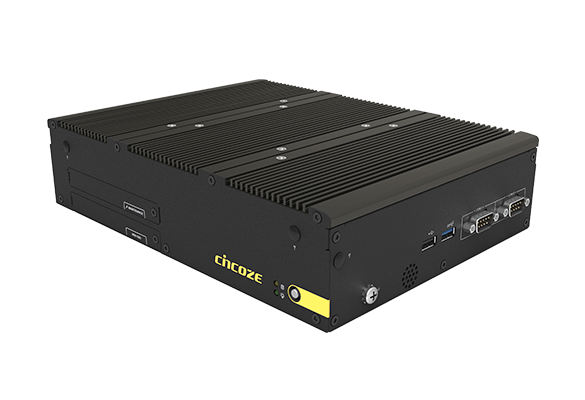

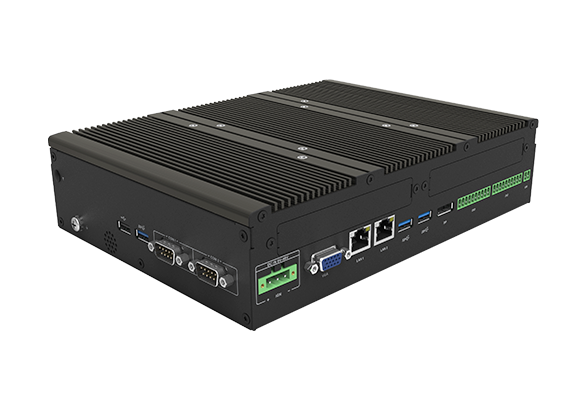

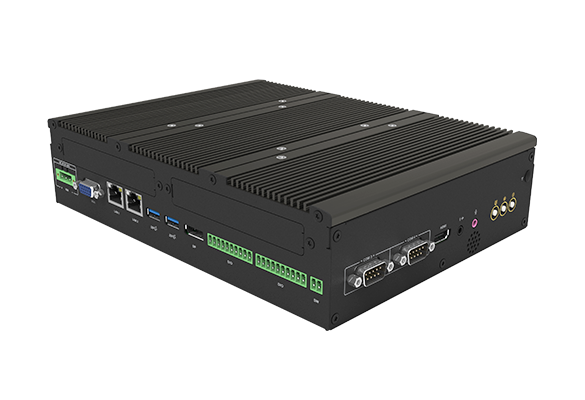

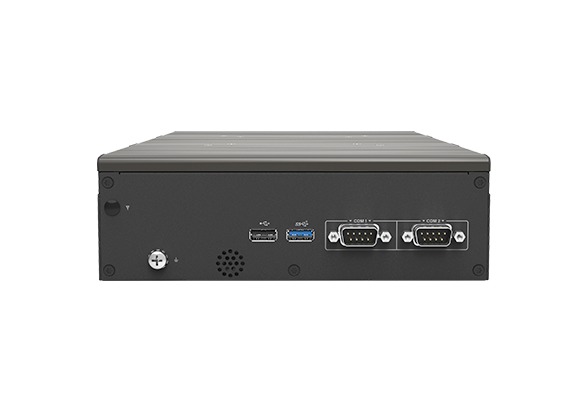

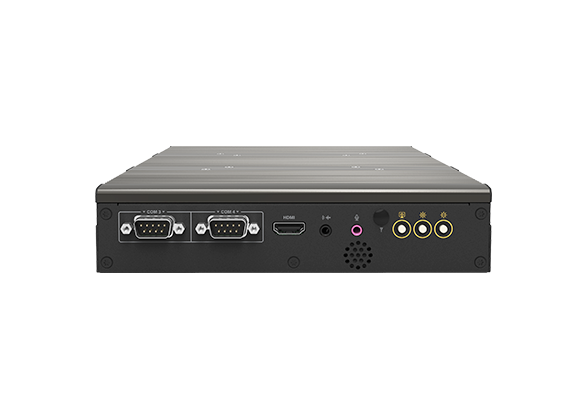

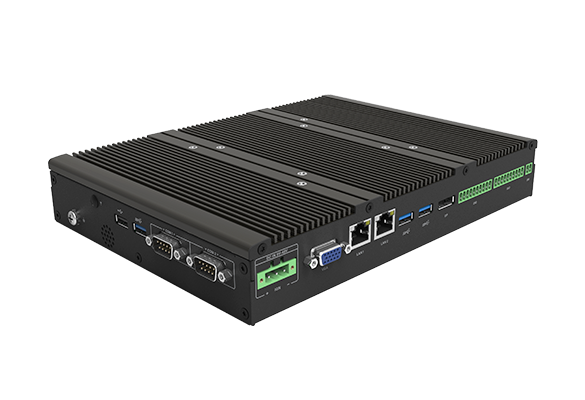

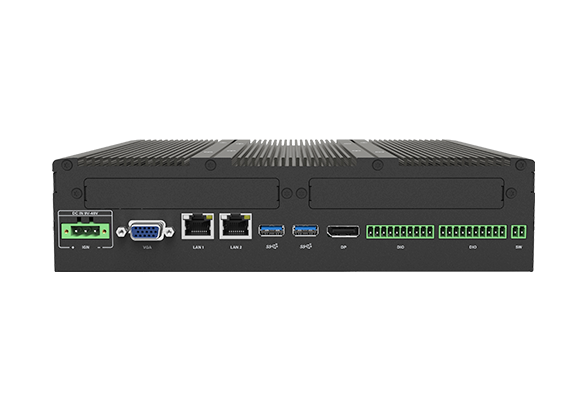

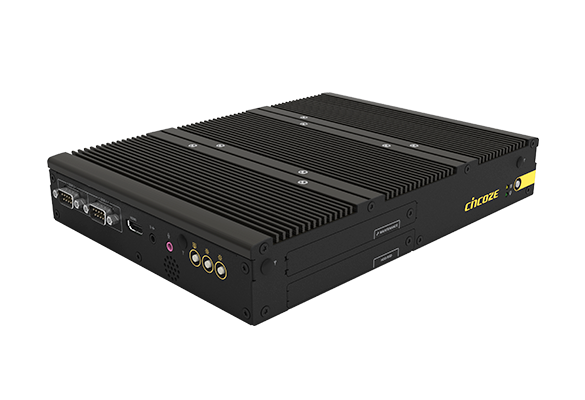

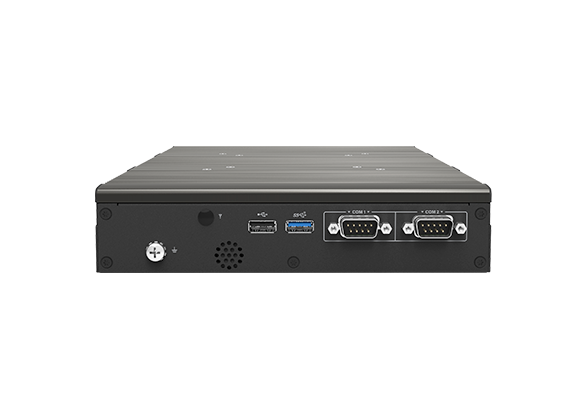

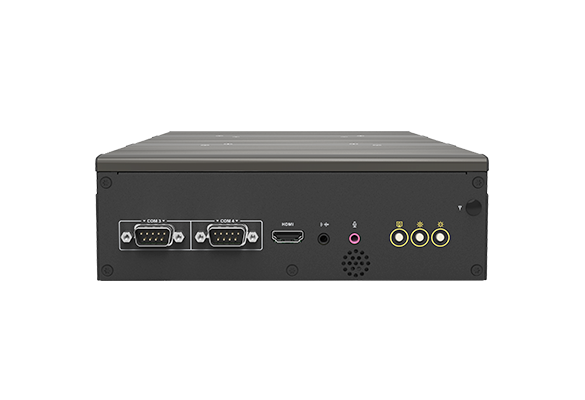

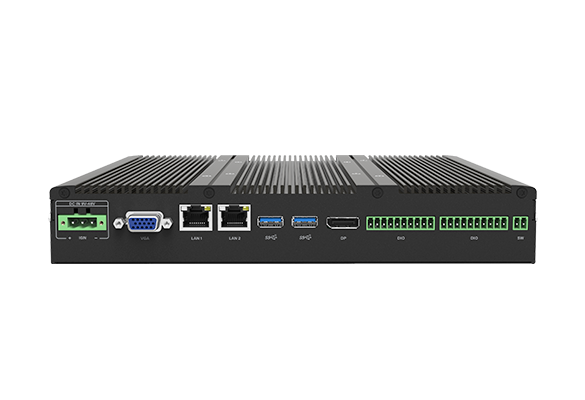

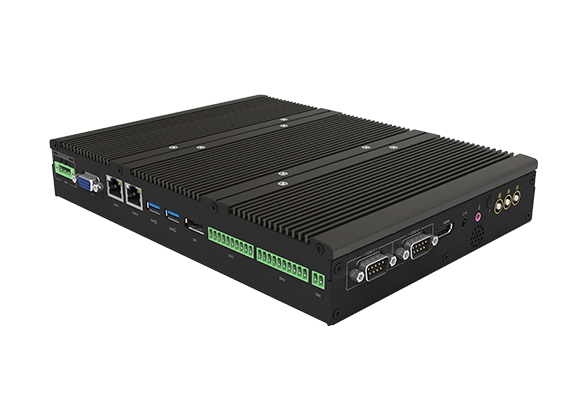

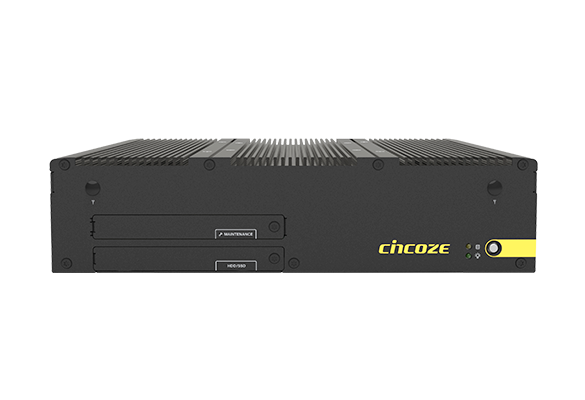

P2202 Series
- 內建 Intel® Alder Lake-P U 系列 Core™ 處理器
- 2 個 DDR5 SO-DIMM 插槽，最高支援 4800MHz 64GB 記憶體
- 四獨立顯示（CDS / HDMI / DP / VGA）
- 1 個 M.2 Key E Type 2230 插槽，適用於 Storage/Wireless/Bluetooth/Intel CNVi Module Expansion
- 支援 Cincoze 專利 CDS 技術（專利號 M482908）
- CFM 技術用於電源點火感應和 PoE 功能
- 廣泛的工作溫度範圍：-40°C 到 70°C (-40°F to 158°F)
P2202 系列是一款針對工業物聯網邊緣運算而設計的超薄型、高效能嵌入式電腦。擁有高效能靈活的擴充性是特點之一，除原生豐富的 I/O 接口外，也具備 Mini PCIe、M.2 Key E Type 2230 擴充性且部分機種可提供 PCIe 擴充槽。機身厚度最薄僅 41.5 mm，適合狹小空間的安裝。
搭載最新平台 (Alder Lake-P) 是 P2202 系列最大賣點，除了可單機使用外，透過獨家的 CDS 專利技術，可自由搭配不同特性的螢幕模組 (Display Module) 組成為工業平板電腦 (Industrial Panel PC)、高亮度平板電腦 (Sunlight Readable Panel PC) 或是開放式架構平板電腦 (Open Frame Panel PC)，滿足多元化的顯示運算需求。
Product Category >>>> Modular Panel PC & Industrial Monitor
優異效能 強化 AI 與多工運行
——
P2202 系列搭載 Intel® 7 製程的第 12 代 Core™ i5/i3 U 系列（Alder Lake-P）處理器，除了 15W 低功耗的優勢外，還具有最高 10 核心 (2P+8E) 的出色效能。內建的 Intel Iris Xe 顯示晶片，可輕鬆駕馭 AI 深度學習中重要的圖像推論的需求 (Image Classification Inference Performance)。
薄型機身 克服受限環境
——
P2202 系列具有超薄緊湊的設計，尺寸為 254.5 x 190 x 41.5 mm (Model: P2202)。超薄機身可靈活安裝在各式狹小的應用環境，如設備機台、控制機箱或 AMR 等，適合智慧工廠中生產數據蒐集處理或是移動式設備等應用。
一機雙用
(One Computer / Two Purposes)
——
P2202 系列不但是一台嵌入式電腦，還能透過德承專利 CDS (Convertible Display System) 技術，搭配顯示螢幕模組 (CV-100 系列)、陽光下可視模組 (CS-100 系列)、開放式架構顯示螢幕模組 (CO-100 系列) 組成不同特性的平板電腦。
Patent No. M482908
彈性擴充 滿足多種應用
——
Mini PCIe、M.2 key E 插槽可支援多樣的無線傳輸需求 (WIFI、4G、GNSS、Bluetooth)，為移動式設備提供全方位的數據傳輸選擇。而 PCIex4 的插槽 (Model: P2202E only) 則可安裝 75W 的附加卡 (I/O 擴充卡、影像擷取卡等) ，P2202 系列以其多樣的擴充性滿足不同的應用需求。
工業級 EMC 保護
——
為強化安裝在設備機櫃及移動裝置中的穩定性，P2202 系列的耐震能力通過不同振動與衝擊的可靠度測試，如隨機振動 (5G)、正弦振動 (1G) 與耐衝擊 (50G) 外，並符合嚴苛的工業環境的 EMC 檢測標準 (EN61000-6-4 及 EN61000-6-2)，呈現高規格的工業等級防護。
![[ 產品聚焦 ] Cincoze 工業平板電腦解決方案](data/images/202407/1721098630791648051.jpg)
P2202 Series
| Model Name | P2202 | P2202E | |
|---|---|---|---|
| System | Processor | • Onboard 12th Generation Intel® Alder Lake-P U-Series CPU: - Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W - Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W | |
| Memory | • 2x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 64GB | ||
| BIOS | • AMI BIOS | ||
| Graphics | Graphics Engine | • Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE • Integrated Intel® UHD Graphics: Core™ i3-1215UE | |
| Maximum Display Output | • Supports Quad Independent Display | ||
| CDS | • 1x CDS Connector (1920 x 1080 @60Hz) | ||
| DP | • 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz | ||
| HDMI | • 1x HDMI Connector (3840 x 2160 @30Hz) | ||
| VGA | • 1x VGA Connector (1920 x 1200 @60Hz) | ||
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio | |
| Line-out | 1x Line-out, Phone Jack 3.5mm | ||
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | • 2x 1GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 | |
| COM | • 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | ||
| USB | • 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | ||
| DIO | • 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block | ||
| Storage | SSD/HDD | 2x 2.5” SATA HDD/SSD Bay (SATA3.0) | |
| RAID | Support RAID 0/1 | ||
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| PCI Express | -- | 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 169mm | |
| SIM Socket | • 1x SIM Socket | ||
| M.2 | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Storage/Wireless/Bluetooth/Intel CNVi Module Expansion | ||
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion | ||
| CDS (Convertible Display System) Interface | • 1x CDS Interface for Convertible Display Module | ||
| Other Function | Clear CMOS Switch | • 1x Clear CMOS Switch | |
| Reset Button | • 1x Reset Button | ||
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | ||
| OSD Button | • LCD On/Off, Brightness Up, Brightness Down | ||
| Internal Speaker | • AMP 2W + 2W | ||
| Status LED Indicator | • Power LED, HDD LED | ||
| Power | Power Button | • 1x ATX Power On/Off Button | |
| Power Mode Switch | • 1x AT/ATX Mode Switch | ||
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | ||
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | ||
| Max. Power Consumption | • i5-1245UE CPU: 95.06W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing | ||
| Inrush Current (Peak) | • i5-1245UE CPU: 5.381 A @ 24V | ||
| Operating Stystem | Windows | • Windows®11, Windows®10 | |
| Linux | • Ubuntu Desktop 22.04 LTS | ||
| Physical | Dimension ( W x D x H ) | • 254.5 x 190 x 41.5 mm | • 254.5 x 190 x 61 mm |
| Weight Information | • 2.22 kg | • 2.74 kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | • Wall / VESA / CDS / DIN Rail | ||
| Physical Design | • Fanless Design • Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input Protection | • Yes | |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | ||
| Over Current Protection | • 15A | ||
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| MTBF | • 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | ||
| Environment | Operating Temperature | • -40°C to 70°C (-40°F to 158°F) | |
| Storage Temperature | • -40°C to 85°C (-40°F to 185°F) | ||
| Relative Humidity | • 95%RH @ 70°C (non-Condensing) | ||
| Shock | • Operating, 50 Grms (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV | ||
| Safety | • UL, cUL, CB, IEC/EN 62368-1 | ||
| Model No. | Product Description |
|---|---|
| P2202-i5-R10 | 12th Gen. Intel® Core™ i5-1245UE Slim Embedded Computer with CDS Technology |
| P2202E-i5-R10 | 12th Gen. Intel® Core™ i5-1245UE Expandable Embedded Computer with CDS Technology |
| P2202-i3-R10 | 12th Gen. Intel® Core™ i3-1215UE Slim Embedded Computer with CDS Technology |
| P2202E-i3-R10 | 12th Gen. Intel® Core™ i3-1215UE Expandable Embedded Computer with CDS Technology |
| • P2202 Series Embedded Computer x1 | • Thermal Pad x1 |
| • Power Terminal Block x1 | • Screws Pack x5 |
| • Remote Power On/Off Terminal Block Connector x1 | • Wall Mounting Kit x1 |
| • DIO Terminal Block Connector x2 | • DIN Rail Mounting Kit x1 |
| • PCI / PCIe Card Installation Kit x 1 (For P2202E Only) |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable |
| CFM-PoE04 | CFM Module with PoE Control Function, Individual Port 25.5W (For P2202 Only) |
| CFM-PoE05 | CFM Module with PoE Control Function, Individual Port 25.5W (For P2202E Only) |
| RC-E4-02 | Riser Card with 1x PCIe x4 Slot (For P2202E Only) |
| RC-PI-02 | Riser Card with 1x PCI Slot (For P2202E Only) |
| MEC-COM-M212-TDB9 | Mini-PCIe Module with 2x RS-232 Ports, 1x Thin DB9 Cable (For P2202E Only) |
| MEC-COM-M334-TDB9 | Mini-PCIe Module with 4x RS-232/422/485 Ports, 2x Thin DB9 Cable (For P2202E Only) |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable (For P2202E Only) |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P2202E Only) |
| UB1203 | 1x Universal Bracket with 2x DB9 Cutout (For P2202E Only) |
| UB1211 | 1x Universal Bracket with 2x RJ45 Cutout (For P2202E Only) |
| UB1214 | 1x Universal Bracket with 2x USB Cutout (For P2202E Only) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI (For P2202E Only) |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
