產品介紹

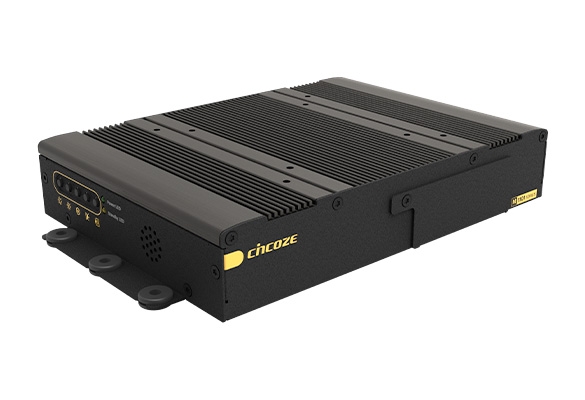

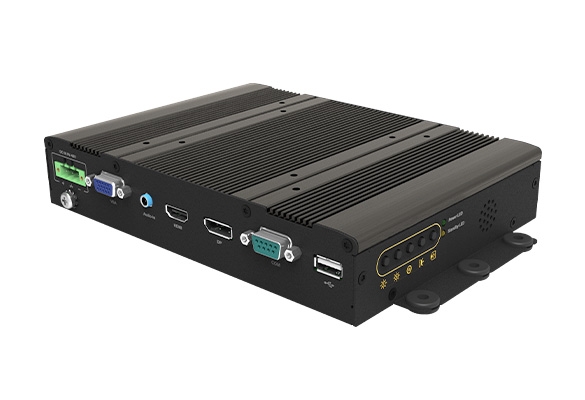

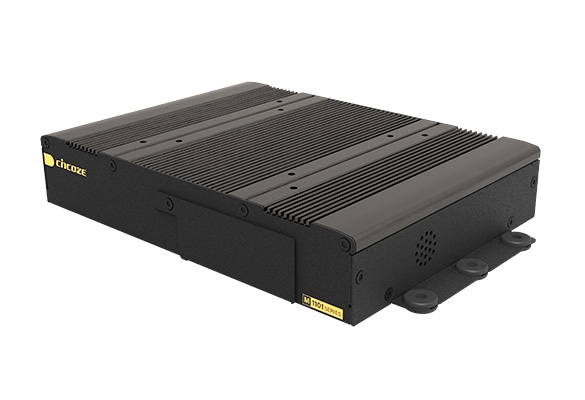

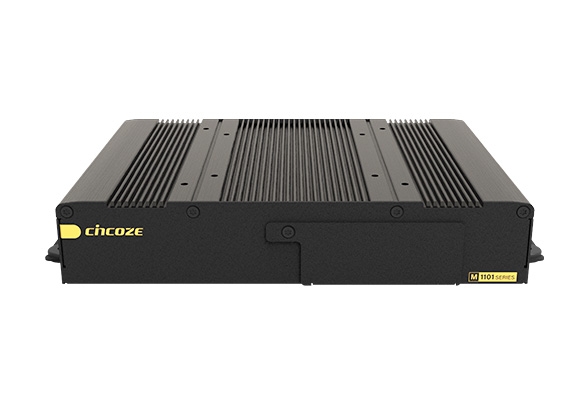

身為具備 CDS (Convertible Display System) 專利技術的顯示器模組 (Monitor Module) ，M1101 能夠與 CDS 的螢幕模組 (Display Module) 搭配組合成不同特性的觸控顯示器，提供多面向的選擇，如嚴苛環境適用的工業觸控顯示器、適合戶外高亮度的陽光下可視觸控顯示器以及能完美整合於設備機台的開放式架構觸控顯示器等。此外，M1101 可支援數位和類比信號輸入接口，包括 HDMI、DisplayPort 和 VGA。且具備多語言 OSD 螢幕選單功能，並提供 1x USB 和 1x COM 的輸入接口以支援電阻或電容式的觸控功能。
Product Category >>>> Modular Panel PC & Industrial Monitor
3 款特性螢幕 可搭配
——
M1101 具備獨家 CDS 專利技術，能夠與螢幕模組搭配成為三種不同特性顯示器 : 工業觸控顯示器、陽光下可視觸控顯示器，以及開放式架構的觸控顯示器
Patent No. M482908
3 種顯示輸入 可選擇
——
M1101 具備了三種顯示輸入選擇，包含數位信號的 HDMI 與 Display Port 以及類比信號輸入的 VGA，以滿足工業現場端的顯示需求
3 大國際標準 可安心
——
M1101 通過三大高規格的國際認證，如工業級 EMC 保護 (EN 61000-6-2/4) 、耐震動衝擊保護 (EN 60068-2) 以及高規格安全性 UL / c-UL 62368-1 安全性，為穩定性與安全性做最嚴格的把關
詳細規格
M1101
| Model Name | M1101 | |
|---|---|---|

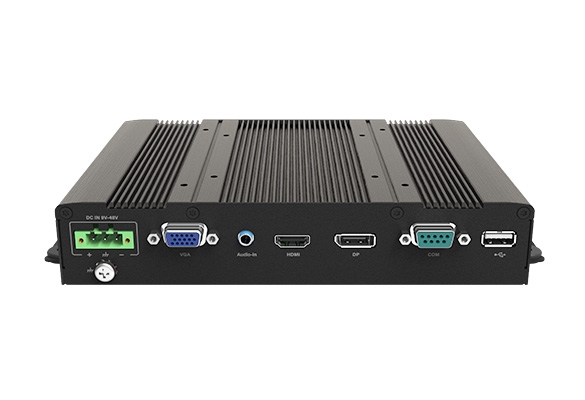

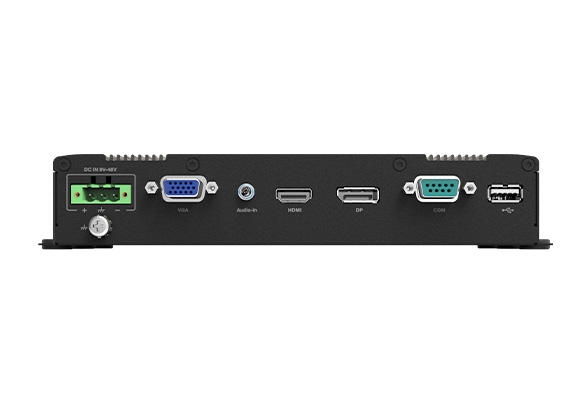

| Graphics | HDMI-in | 1x HDMI Connector (1920 x 1080 @60Hz) |
| DP-in | 1x DisplayPort Connector (1920 x 1080 @60Hz) | |
| VGA-in | 1x VGA Connector (1920 x 1080 @60Hz) | |
| Audio | Audio input | 1x Audio Line in, Phone Jack 3.5mm |
| I/O | COM | 1x RS-232, DB9 |
| USB | 1x 480Mbps USB 2.0, Type A | |

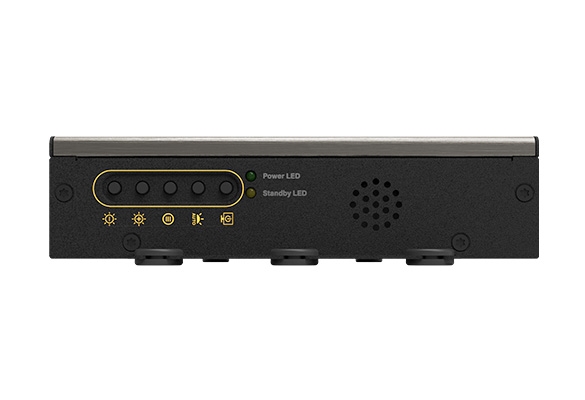

| Other Function | OSD Button | Menu, Auto, LCD On/Off, Brightness Up, Brightness Down |

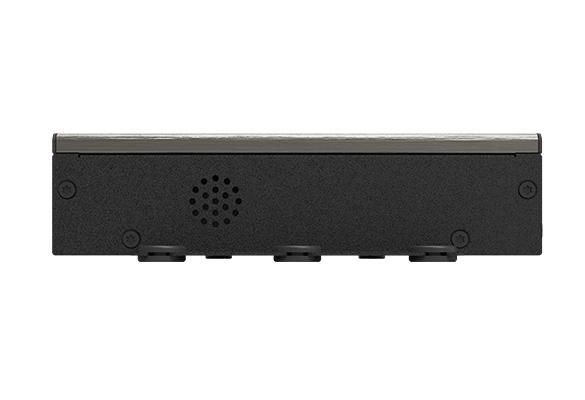

| Internal Speaker | AMP 2W + 2W | |
| Status LED Indicator | Power LED, Standby LED | |
| Power | Power Input | 9 - 48VDC, 3-pin Terminal Block |
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 38.5 mm |
| Weight Information | 1.2 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | VESA / CDS Mounting | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| MTBF | 1,217,359 hrs - Database: Telcordia SR-332 Issue 3, Method 1, Case 3 | |
| Environment | Operating Temperature | -20°C to 70°C * Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -20°C to 75°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 15 Grms (according to IEC60068-2-27) | |
| Vibration | • Operating, 1.5 Grms, 5-500 Hz, 3 Axes (according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (according to IEC60068-2-6) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
訂購資訊
| Model No. | Product Description |
|---|---|
| M1101-R10 | Monitor Module with 1x DisplayPort, 1x HDMI, 1x VGA |
| √ M1101 Monitor Module x1 | √ Power Terminal Block Connector x1 |
| √ USB cable x1 | √ Screw Pack x1 |
| √ VGA cable x1 |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
