DS-1001
EOL Model
產品特點
- Support 4th Gen. Intel® Core™ i3 / i5 / i7 Desktop Processor (LGA1150)
- Support Intel® Q87 Chipset
- 2x DDR3 / DDR3L SO-DIMM Max. up to 16GB
- Three Independent Display from 1x DVI-I and 2x DisplayPort
- 2x Intel® GbE Port, Support Wake-on-LAN and PXE
- 4x USB 3.0 and 4x USB 2.0
- 6x RS232/422/485 Port with 5V/12V Power
- 4x Isolated DI, 4x Isolated DO
- 2x 2.5” SATA SSD/HDD Bay
- 2x mSATA (1x Shared by Mini-PCIe Socket)
- 1x CFast Card and 1x SIM Card Socket
- 9~48VDC Power Input, Support AT/ATX Mode
- 2x Mini-PCIe Slot for Wi-Fi / GSM / I/O Expansion
- 1x PCI or 1x PCIe x16 Expansion
- Power Ignition
- Compliant with EN50155 for Rail Transportation Applications

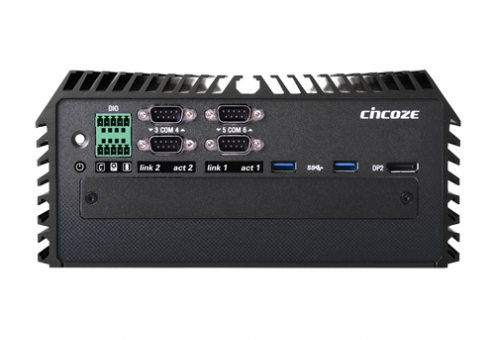

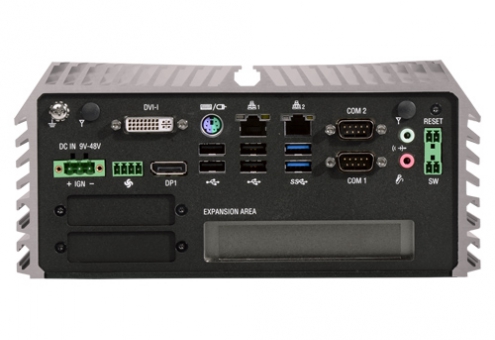

產品介紹

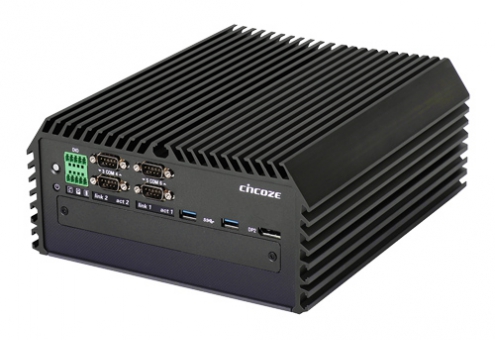

DS-1000 series is a fanless embedded system integrated with 4th generation Intel® Core™ i3 / i5 / i7 LGA1150 socket type processor, Intel® Q87 express chipset, rich I/O, and supports wide range (9~48V) DC power input. The front access designed provides fast change capability of hard drive, CMOS battery, CFast card and SIM card.
With flexible installation of internal or external fan, mounting kit, and various interface expansion modules makes DS-1000 series a functional system meets versatile requirements and different usages. In addition, DS-1000 series is a ruggedized and safety system features completely cable-less designed, special heat dissipation, anti-vibration, build in voltage protection, reliable DC power input, reverse power protection, and industrial components selection.
Combining superior performance and innovative mechanical design, DS-1000 series is an ideal choice for industrial applications.
詳細規格
Model Name | DS-1001-E | DS-1001-P | |
Processor System | CPU | Intel® 4th Generation: G1820TE / i3-4330TE / i5-4570TE / i7-4770TE Supported | |
Frequency | 2.2 GHz / 2.4 GHz / 2.7 GHz / 2.3 GHz | ||
Core Number | 2 / 2 / 2 / 4 | ||
BIOS | AMI 128Mbit SPI | ||
Chipset | Intel® Q87 | ||
Memory | Technology | DDR3 / DDR3L 1333MHz / 1600MHz (un-buffered and non-ECC) | |
Max. Capacity | 16 GB | ||
Socket | 2x 204-Pin SO-DIMM | ||
Display | VGA | Yes (w/ Optional Split Cable) | |
DDI (HDMI/DVI/DisplayPort) | 1x DVI 2x DisplayPort | ||
Multiple Display | Triple | ||
Expansion | PCI | - | 1 |
PCIe | 1 (PCIe x16) | - | |
Mini PCIe | 2x Full-size Mini PCIe | 2x Full-size Mini PCIe | |
Ethernet | Controller | GbE1: Intel® 82583V, GbE2: Intel® i217LM, Support Wake-on-LAN and PXE | |
PoE | - | ||
Speed | 10/100/1000 Mbps | ||
Audio | Codec | Realtek ALC888S | |
Connector | 1x Mic-in, 1x Speak-out | ||
WatchDog Timer | Software Programmable Supports 1~255 sec. System Reset | ||
Storage | SSD / HDD | 2x 2.5" SATA SSD/HDD Bay | |
mSATA | 2x mSATA (1x Shared by Mini-PCIe Socket) | ||
CompactFlash/CFast | 1x CFast | ||
SIM Socket | 1 | ||
I/O Ports | USB 3.0 | 4 | |
USB 2.0 | 4 | ||
DIO | 4 in/4 out | ||
COM Port | 6x RS-232/422/485 | ||
PS/2 | 1x KB/MS | ||
Antenna Hole | 2 | ||
Power Switch | 1 | ||
AT/ATX Switch | 1 | ||
External Fan Connector | Yes | ||
Remote Power On/Off and Remote Power Reset | Yes | ||
Universal I/O Bracket | 2 | ||
Power | Power Type | AT, ATX | |
Power Supply Voltage | 9~48VDC | ||
Connector | 3-pin Terminal Block | ||
Power Adaptor | Optional AC/DC 24V/5A, 120W | ||
Environment | Operating Temperature | Ambient with air flow: -10°C to 60°C (with Industrial Grade Peripherals) | |
Storage Temperature | -20°C to 80°C | ||
Relative Humidity | 10%~95% (non-condensing) | ||
Physical | Dimension (WxDxH, mm) | 227 x 261 x 106 mm | |
Weight | 5.22 kg | ||
Construction | Extruded Aluminum with Heavy Duty Metal | ||
Mounting | Wall | ||
Operating System | Microsoft® Windows® | • Windows® 8 • Windows® Embedded 8 Standard • Windows® 7 • Windows® Embedded Standard 7 | |
Certification | Safety Certifications | • CE • EN 50155 • FCC Class A • EN 50121-3-2 |
訂購資訊
Available Models
Package Checklist
Optional Accessories
Model No. | Product Description |
DS-1001-P | 4th Gen. Intel® Core™ i3 / i5 / i7 Superior Performance Fanless Computer Integrate Q87 Chipset and 1x PCI Expansion |
DS-1001-E | 4th Gen. Intel® Core™ i3 / i5 / i7 Superior Performance Fanless Computer Integrate Q87 Chipset and 1x PCIe x16 Expansion |
Package Checklist
DS-1001 |
√ DS-1001 Embedded System x 1 |
√ Utility DVD Driver x 1 |
√ DIO Terminal Block Connector x 2 |
√ Power Terminal Block Connector x 1 |
√ Remote Power Terminal Block Connector x 2 |
√ External Fan Terminal Block Connector x 1 |
√ DVI-I to VGA Adapter x 1 |
√ Screw Pack x 1 |
√ Wall Mount Kit x 1 |
√ Heat Sink Kit x 1 |
Optional Accessories
Model No. | Description |
GS120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch |
SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M |
SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M |
QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M |
59381560000E | MINI-DIN(M) (PS/2 KB+MS) TO MINI-DIN(F) (PS/2 KB)+MINI-DIN(F) (PS/2 MS) L:10CM |
N0307-140507-01 | DVI-I(M) TO DVI-D(F) + VGA(F) Cable, L=200mm |
