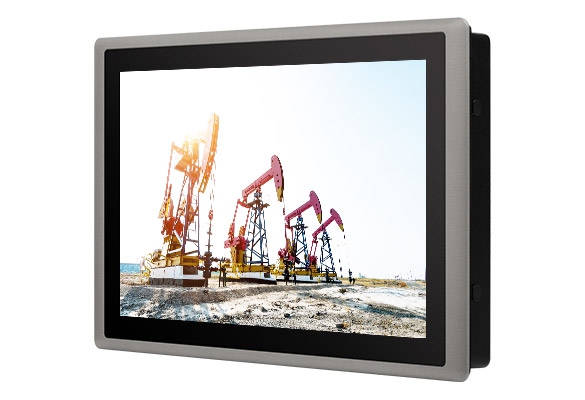

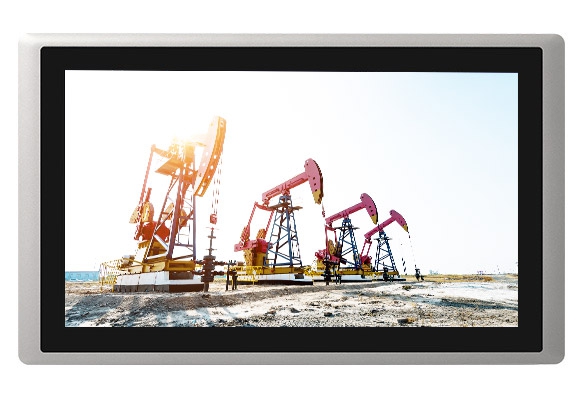

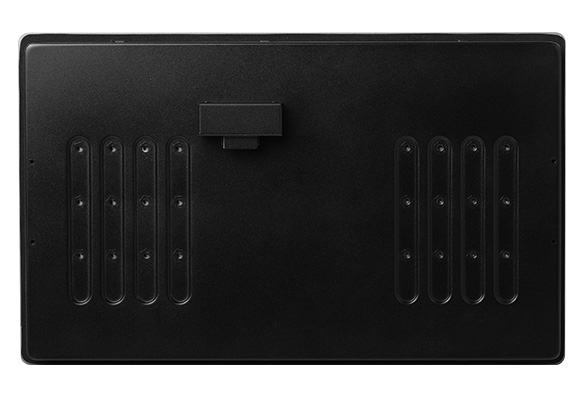

CS-W115FH

15.6" TFT-LCD Sunlight Readable Display Module with Projected Capacitive Touch

PRODUCTS FEATURES
  • 15.6" TFT-LCD with Projected Capacitive Touch
  • Ultra High Brightness up to 1,200 nits and 1920x1080 (Full HD) Resolution
  • Wide Range Operating Temperature
  • True Flat IP65 Front Panel Protection
  • Flat Rugged Aluminum Die-casting Bezel
  • Convertible Display System (CDS) Technology Supported
  • Safety: UL, cUL, CB, IEC, EN 62368-1
OVERVIEW

CS-W115FH is 15.6“ wide screen TFT-LCD display module with projected capacitive touch screen. It offers resolution up to 1920 x 1080 (Full HD) and 1,200 nits brightness. CS-W115FH features flat surface and IP65 dust/waterproof front panel. In addition, designed with Rugged Aluminum Die-casting Front Bezel, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CS-W115FH allows you to configure, upgrade and maintain your Convertible Display System easily.

>>>> Panel PC Technology

SPECIFICATION

CS-W115FH

Model NameCS-W115FH
DisplayLCD Size• 15.6" (16:9)
Max. Resolution• 1920 x 1080 (Full HD)
Brightness (cd/m2)• 1,200
Contrast Ratio• 800 : 1
LCD Color• 16.7M
Pixel Pitch (mm)• 0.17925 (H) x 0.17925 (V)
Viewing Angle (H-V)• 178 / 178
Backlight LED Life Time• 50,000 hrs (LED Backlight)
Touch ScreenTouch Type• Projected Capacitive
PhysicalDimension (W x D x H)• 420 x 254 x 66.2 mm
Weight Information• 3.58 kg
Mechanical Construction• Flat Rugged Aluminum Die-casting Bezel
PowerPower Consumption• 25W (Max.)
EnvironmentFront Panel Protection• IP 65 Compliant
Operating Temperature• -20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow)
Storage Temperature• -40°C to 80°C
Relative Humidity• 90% RH @ 39°C (non-condensing)
EMC• CE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety• UL, cUL, CB, IEC, EN 62368-1
ORDERING INFORMATION
Available Models
Model No.Product Description
CS-W115FHC-R2015.6" TFT-LCD 1200 nits Full HD 16:9 Display Module with Projective Capacitive Touch

Package Checklist
CS-W115FH Display Module x 1Panel Mounting Kit x 10

DOWNLOADS
Datasheet
SubjectRelease DateDownload
CS-W115FH Datasheet2025/02/27Download
Manual
SubjectRelease DateDownload
CS-100 Series User Manual2025/04/30Download
