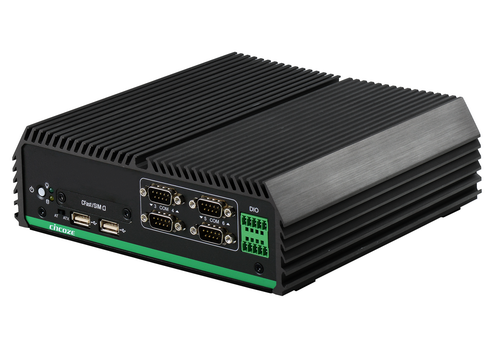

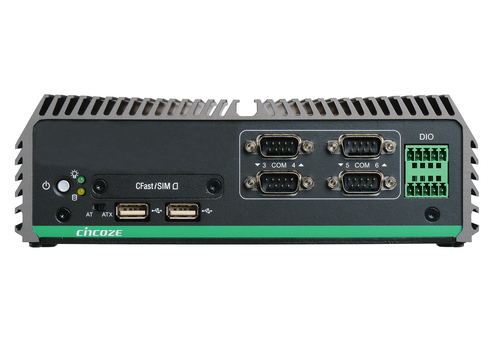

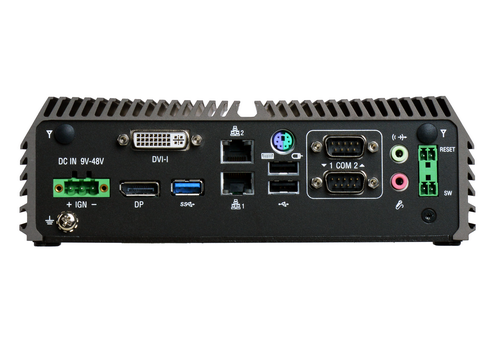

DE-1000
Intel® Atom™ E3845 Quad Core Power Efficient Fanless Computer
PRODUCTS FEATURES
- Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
- 2x DDR3L SO-DIMM Max. up to 8GB
- Dual Independent Display from 1x DVI-I and 1x DisplayPort
- 2x Intel® GbE Port, Support Wake-on-LAN and PXE
- 1x USB 3.0 and 4x USB 2.0
- 6x RS232/422/485 Port with 5V/12V Power
- 4x Isolated DI, 4x Isolated DO
- 2x 2.5” SATA SSD/HDD Bay
- 1x mSATA (Shared by Mini-PCIe Socket)
- 1x CFast Card and 1x SIM Card Socket
- 9~48VDC Power Input, Support AT/ATX Mode
- 2x Mini-PCIe Slot for Wi-Fi, GSM, or I/O Expansion
- Power Ignition Control
- EN50121-3-2 Certified/ EN62368-1
OVERVIEW
DE-1000 Series Fanless Embedded PC supports Intel® Bay Trail platform, integrated with Intel® Atom™ E3845 Quad Core 1.91 GHz processor. Delivering the excellent quad-core processing power at only 10 watts power consumption, DE-1000 series is definitely an ideal solution for ultimate computing performance, energy efficiency, and superior reliability.
Designed with rich I/O, high flexibility and easy expansion capabilities, DE-1000 series is ideal for diverse industrial applications. It offers multiple I/O extension modules, including up to 2x PCI or 2x PCIe x1 slot for flexible integration of a variety of add-on cards; 2x mini-PCIe slot for GSM and WLAN wireless communication; it also supports three storage expansions: 2.5” SATA HDD, CFast and SIM card.
Supporting power ignition function, DE-1000 series can meet various applications, such as: surveillance, in-vehicle, and industrial automation applications, etc.
DE-1000 series supports wide temperature range from -25°C to 70°C, wide range (9~48V) DC power input, power protection, cable free and one-piece housing design, as well as compliant with EN50121-3-2 certification for rail transportation applications; it is designed to ensure stable operation in robust and harsh environments.
Product Category >>>> Rugged Embedded Fanless PC
Designed with rich I/O, high flexibility and easy expansion capabilities, DE-1000 series is ideal for diverse industrial applications. It offers multiple I/O extension modules, including up to 2x PCI or 2x PCIe x1 slot for flexible integration of a variety of add-on cards; 2x mini-PCIe slot for GSM and WLAN wireless communication; it also supports three storage expansions: 2.5” SATA HDD, CFast and SIM card.
Supporting power ignition function, DE-1000 series can meet various applications, such as: surveillance, in-vehicle, and industrial automation applications, etc.
DE-1000 series supports wide temperature range from -25°C to 70°C, wide range (9~48V) DC power input, power protection, cable free and one-piece housing design, as well as compliant with EN50121-3-2 certification for rail transportation applications; it is designed to ensure stable operation in robust and harsh environments.
Product Category >>>> Rugged Embedded Fanless PC
RESOURCES
SPECIFICATION
| Model Name | DE-1000 | |
|---|---|---|
| Processor System | CPU | Intel® Atom™ E3845 |
| Frequency | 1.91 GHz | |
| Core Number | 4 | |
| BIOS | AMI 64Mbit SPI | |
| Chipset | - | |
| Memory | Technology | DDR3L 1066 / 1333MHz (un-buffered and non-ECC) |
| Max. Capacity | 8 GB | |
| Socket | 2x 204-Pin SO-DIMM | |
| Display | VGA | Yes (with optional split cable) |
| DDI (HDMI/DVI/DisplayPort) | 1x DVI-I 1x DisplayPort Connector (2560 x 1600) | |
| Multiple Display | Support Dual Display | |
| Expansion | PCI | - |
| PCIe | - | |
| Mini PCIe | 2x Full-size Mini PCIe | |
| Ethernet | Controller | GbE1: Intel® i210 GbE2: Intel® i210 Support Wake-on-LAN and PXE |
| PoE | - | |
| Speed | 10/100/1000 Mbps | |
| Audio | Codec | Realtek ALC888S |
| Connector | 1x Mic-in, 1x Line-out | |
| WatchDog Timer | Software Programmable Supports 256 Levels System Reset | |
| Storage | SSD / HDD | 2x 2.5" SATA HDD Bay |
| mSATA | 1x mSATA (shared by Mini-PCIe socket) | |
| CompactFlash/CFast | 1x CFast | |
| SIM Socket | 1 | |
| I/O Ports | USB | 1x 5Gbps USB 3.2 Gen1, Type A 4x 480Mbps USB 2.0, Type A |
| DIO | 4 in/4 out | |
| COM Port | 6x RS-232/422/485 | |
| PS/2 | 1x KB/MS | |
| Antenna Hole | 2 | |
| Power Switch | 1 | |
| AT/ATX Switch | 1 | |
| External Fan Connector | - | |
| Remote Power On/Off and Remote Power Reset | Yes | |
| Universal I/O Bracket | - | |
| Power | Power Type | AT, ATX |
| Power Supply Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adaptor | Optional AC/DC 12V/5A, 60W | |
| Environment | Operating Temperature | Ambient with air flow: -25°C to 70°C (with Industrial Grade Peripherals) |
| Storage Temperature | -30°C to 85°C | |
| Relative Humidity | 10%~95% (non-condensing) | |
| Physical | Dimension (WxDxH) | 203 x 200 x 65 mm |
| Weight | 2.84 kg | |
| Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall Mounting (Optional Side / VESA / DIN-Rail Mounting) | |
| Operating System | Microsoft® Windows® | • Windows® 10 • Windows® 8 • Windows® Embedded 8 Standard • Windows® 7 • Windows® Embedded Standard 7 |
| Linux® | Supports By Project | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | LVD IEC/EN 62368-1 | |
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| DE-1000 | Intel® Atom™ E3845 Quad Core Power Efficient Fanless Computer |
| √ DE-1000 Embedded System x 1 |
| √ DIO Terminal Block Connector x 2 |
| √ Power Terminal Block Connector x 1 |
| √ Remote Power Terminal Block Connector x 2 |
| √ DVI-I to VGA Adapter x 1 |
| √ Screw Pack x 1 |
| √ Wall Mount Kit x 1 |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, Level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M |
| VESA-DE | DE series VESA Mount Kit |
| SIDE-DE | DE series SIDE Mount Kit |
| DINRAIL | Diamond series DIN-RAIL Mount Kit |
