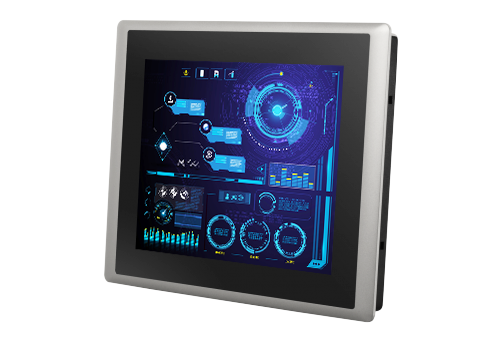

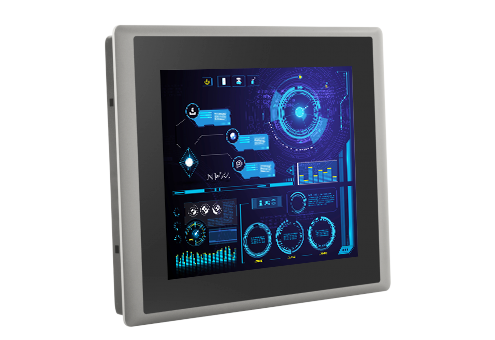

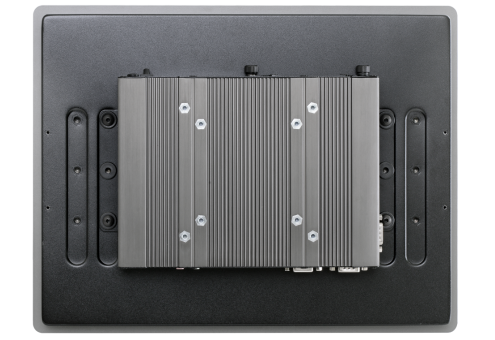

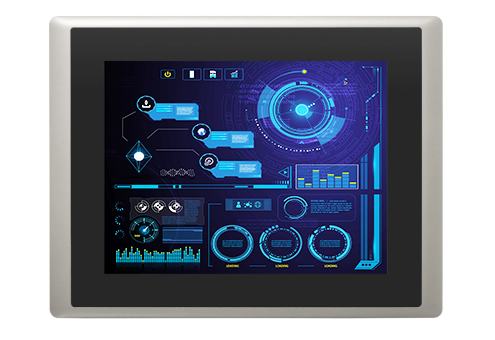

CV-112H / P1001E
12.1" TFT XGA 4:3 Touch Panel PC with Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort and 2x Universal I/O Bracket
PRODUCTS FEATURES
- 12.1" TFT XGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
- Designed with Aluminum Die-Casting Front Frame
- Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
- 1x DDR3L SO-DIMM max. up to 8GB
- 1x 2.5” SATA HDD Bay, 1x CFast Card and 1x SIM Card Socket
- 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
- 1x Mini-PCIe Expansion Socket
- 2x Universal I/O Brackets
- IP65 Compliant Front Panel
- Supports Panel / VESA / Rack Mounting
- Convertible Display System (CDS) Supported
- Built-in Two 2W Internal Speakers
OVERVIEW
The 12.1" all-in-one panel PC offers LED backlight LCD with resolution up to 1024x768 (XGA) and 500 nits brightness. CV-112H/P1001E features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-casting front frame with rugged body structure that can be able to apply in industrial applications. CV-112H/P1001E supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-112H/P1001E carries single touch function with resistive 5-wire touch screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-112H/P1001E offers extensive I/O including 4x USB, 2x RS-232/422/485, 1x VGA, 1x DisplayPort, 4x DI / 4x DO and 2x Universal I/O Bracket.
CV-112H/P1001E supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, they are 3 types of storage devices including 2.5" SATA HDD,CFast and SIM card. The accessible design of these storage devices allow quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-112H/P1001E can be deployed and powered for various industrial applications.
CV-112H/P1001E supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, they are 3 types of storage devices including 2.5" SATA HDD,CFast and SIM card. The accessible design of these storage devices allow quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-112H/P1001E can be deployed and powered for various industrial applications.
RESOURCES
SPECIFICATION
| Model Name | CV-112H/P1001E | ||
|---|---|---|---|
| Model No. | CV-112HR/P1001E | CV-112HC/P1001E | |
| Display | LCD Size | 12.1" (4:3) | |
| Max. Resolution | 1024 x 768 | ||
| Brightness (cd/m2) | 500 | ||
| Contrast Ratio | 700 : 1 | ||
| LCD Color | 16.2M | ||
| Pixel Pitch (mm) | 0.24 (H) x 0.24 (V) | ||
| Viewing Angle (H-V) | 160 / 160 | ||
| Backlight MTBF | 30000 hrs (LED Backlignt) | ||
| Touch | Resistive 5-wire | V | - |
| Projected Capacitive | - | V | |
| Processor System | CPU | Intel Atom E3845 | |
| Core Number | 4 | ||
| Frequency | 1.91 GHz | ||
| Cache | 2 MB | ||
| Watts | 10W | ||
| Memory | Transfer Rate | DDR3L 1066/ 1333MHz (un-buffered and non-ECC) | |
| Max. Capacity | 8 GB | ||
| Socket | 1x 204-Pin SODIMM | ||
| Graphics | Chipset | Intel® HD Graphics | |
| Dual Display | VGA + DP VGA + CDS DP + CDS | ||
| Audio | Interface | Realtek ALC888-GR, High Definition Audio | |
| I/O Interface | VGA | 1x DB-15 connector, CH7517, Up to 1920x1080@60Hz | |
| DP | 1x DP connector, Up to 1920x1080@60Hz+R27R27:R45 | ||
| LAN | 2x 10/100/1000 Mbps, RJ45 - GbE1: Intel I210 - GbE2: Intel I210 Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE | ||
| POE+ | - | ||
| Serial Port | 2x RS-232/422/485, DB9 Support 5V/12V | ||
| USB 3.0 | 1x USB 3.0, Type-A | ||
| USB 2.0 | 3x USB 2.0, Type-A | ||
| DIO | 4 in/4 out | ||
| Line-Out | 1x Phone Jack 3.5mm | ||
| Mic-In | 1x Phone Jack 3.5mm | ||
| Power on/off switch | V | ||
| Reset Button | V | ||
| AT/ATX Switch | V | ||
| Remote Power On/Off Connector | - | ||
| External FAN Connector | - | ||
| Storage | SSD/HDD | 1x Internal SATA port for 2.5” HDD/SSD | |
| mSATA | - | ||
| CFast | 1 | ||
| Expansion | PCI | - | |
| PCIe | - | ||
| CFM Interface (Control Function Module) | - | ||
| Mini PCI Express | 1x Full-size Mini PCIe | ||
| Universal I/O Bracket | 2 | ||
| SIM Socket | 1(internal) | ||
| Antenna Holes | 2 | ||
| Other Function | CDS Function | V | |
| OSD Function | LCD On/Off, Brightness Up/Down (With Display Module) | ||
| Power Ignition Sensing | - | ||
| Internal Speaker | AMP 2W + 2W | ||
| Super Cap | - | ||
| Instant Reboot | V | ||
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | ||
| Power Requirement | Power Type | AT/ATX | |
| Power Input Voltage | 9~48VDC | ||
| Connector | 3-pin Terminal Block | ||
| Power Adaptor | Optional AC/DC 12V/5A, 60W | ||
| Physical | Dimension (WxHxD) | 345 x 265.3 x 88.35 mm | |
| Weight Information | 4.7 kg | ||
| Construction Front Panel | Die-cast Flat Surface | ||
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | ||
| Fanless Design | V | ||
| Cable-less Design | - | ||
| Jumper-less Design | - | ||
| Protection | Reverse Power Input Protection | V | |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | ||
| Over Current Protection | 20A | ||
| ESD Protection | +/-8kV (air), +/-4kV (contact) | ||
| Operating Stystem | Windows | Windows® 10 Windows® 8.1 Windows® 7 | |
| Linux | Linux® Kernel 3.X | ||
| Environment | Operating Temperature | Ambient with air flow: -20°C to 70°C (with Industrial Grade Peripherals) | |
| StorageTemperature | -30°C to 80°C | ||
| Relative Humidity | 80% RH @ 40°C (Non-Condensing) | ||
| IP Level | IP 65 Compliant Front Panel | ||
| EMC | CE/ FCC Class A | ||
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| CV-112HR/P1001E | 12.1" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort and 2x Universal I/O Bracket |
| CV-112HC/P1001E | 12.1" TFT XGA 4:3 Panel PC with Projected Capacitive Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort and 2x Universal I/O Bracket |
| √ CV-112/P1001E Panel PC x 1 |
| √ Panel Mounting Kit x 1 |
| √ Utility DVD Driver x 1 |
| √ DIO Terminal Block Connector x 1 |
| √ Power Terminal Block Connector x 1 |
| √ HDD Screw Pack x 1 |
| √ Mini PCIe Screw Pack x 1 |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
