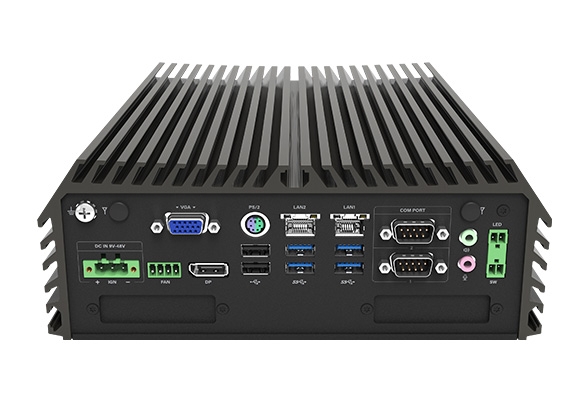

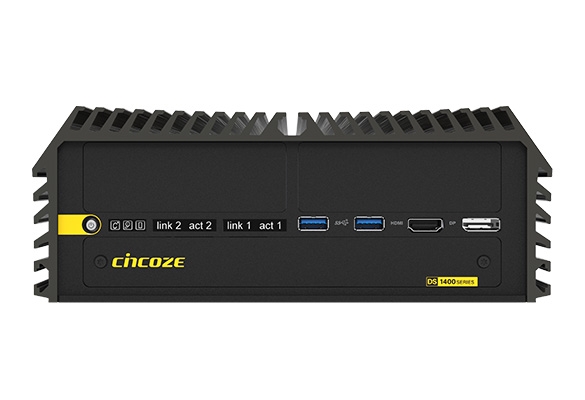

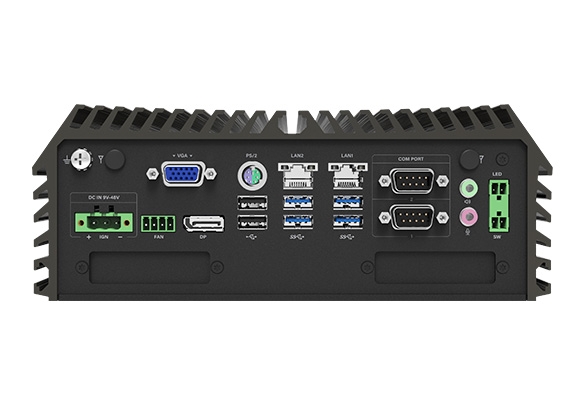

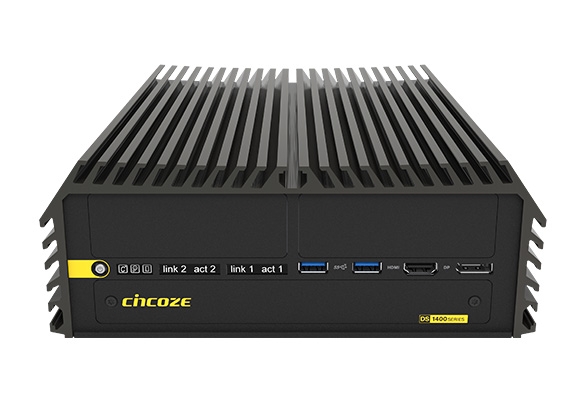

DS-1400
13/12th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer
- Intel® 13/12th Gen Raptor Lake-S/Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
- 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHz, 64GB
- 2x GbE LAN and optional 2x 10GbE LAN
- 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
- Optional CMI modules for I/O expansion
- Optional CFM modules for ignition sensing & PoE
- Wide operating temperature -40°C to 70°C
- MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
- Safety Standard: UL, cUL, CB, IEC, EN 62368-1
- Support Intel® OpenVINO™ Dev Kit
- Intel® ESDQ (Edge Software Device Qualification) Certified: the Edge Insights for AMR software package
The DS-1400 is a high-performance, expandable, and rugged embedded computer, boasting outstanding performance as well as rich industrial I/O interfaces and robust functionalities. To meet various application needs, it can flexibly expand the required I/O and specific functions through Cincoze's unique CMI, CFM, and MEC expansion modules. Moreover, the DS-1400 has passed multiple international certifications, ensuring stable and reliable performance in diverse harsh environments. It is an ideal choice for manufacturing and railway applications.
Product Category >>>> Rugged Embedded Fanless PC
Rapid Processing and Inference
——
The DS-1400 supports 13/12th gen Intel® Core™ i9/i7/i5/i3 (Raptor Lake-S/Alder Lake-S) processors based on the Intel 7 process, with up to 24 cores (8P + 16E) and 32 threads, delivering more than 1.35x the speed of Comet Lake-S platform. The Intel® Xe architecture of the UHD 770 graphics chip boosts GPU image classification inference performance to 2.8x the speed of Comet Lake-S, providing the processing performance needed for AI and edge computing.
High-speed, Safe Memory
——
Two DDR5 SO-DIMM slots support up to 64GB of 4800MHz memory and include ECC (Error Correction Code) technology, giving the extra stability and reliability needed for industrial automation applications.
Industrial I/O and
Modular Expansion
——
The DS-1400 offers a vast array of industrial-focused I/O including up to 2x GbE LAN, 6x USB 3.2, and 2x USB 2.0, 2x RS232/422/485, 2x 2.5" SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM card slots, 3x full-size Mini-PCIe and quad independent displays (DisplayPort, HDMI, VGA). It also features modular expansion through Cincoze’s CMI/CFM modules, adding additional I/O or other functionality such as high-speed 10GbE LAN, PoE, and IGN (power ignition sensing).
Robust and Reliable
——
The DS-1400 is built tough, reflected in its industrial-grade protection design and industry certifications in different fields. In addition to features such as wide temperature (-40 - 70°C), wide voltage input (9 - 48 VDC), overvoltage, overcurrent, and ESD protection, it also complies with the US military shock vibration standard MIL-STD-810G. Product safety and reliability are further ensured with internationally recognized UL 62368-1 safety certification. For more secure railway computing, it also passes the EMC EN 50121-3-2 standard in EN 50155.
Model Name | DS-1400 | |
---|---|---|
System | Processor | • 13th Generation Intel® Raptor Lake-S Series CPU: • 12th Generation Intel® Alder Lake-S Series CPU: |
Chipset | • Intel R680E Chipset | |
Memory | • 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB | |
BIOS | • AMI BIOS | |
Graphics | Graphics Engine | • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 • Integrated Intel® UHD Graphics 730: Core™ i3 • Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
Maximum Display Output | • Supports Quad Independent Display | |
VGA | • 1x VGA Connector : 1920 x 1080 @ 60Hz | |
DP | • 2x DP Connector : 4096 x 2304 @ 60Hz * Verified maximum DP resolution: 3840x2160 @ 60Hz | |
HDMI | • 1x HDMI Connector : 4096x2160 @ 30Hz * Verified maximum resolution: 3840x2160 @ 30Hz | |
Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
Line-out | • 1 x Line-out, Phone Jack 3.5mm | |
Mic-in | • 1 x Mic-in, Phone Jack 3.5mm | |
I/O | LAN | • 2 x GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 |
COM | • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
USB | • 2 x USB 3.2 Gen2x1 (10Gbps), Type A • 4 x USB 3.2 Gen1x1 (5Gbps), Type A • 2 x USB 2.0 (480Mbps), Type A | |
PS/2 | • 1 x PS/2, 6 Pin Mini-DIN Female Connector | |
Storage | SSD/HDD | • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) • 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 ) |
mSATA | • 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) | |
M.2 SSD | • 1x M.2 Key M Type 2280 Socket, Support PCIe Gen3 x4 NVMe SSD or SATA SSD ( SATA 3.0 ) | |
RAID | • Support RAID 0/1/5/10 | |
Expansion | Mini PCI Express | • 3 x Full-size Mini-PCIe Socket |
SIM Socket | • 2 x SIM Socket | |
CMI (Combined Multiple I/O) Interface | • 2 x High Speed CMI Interface for optional CMI Module Expansion • 2 x Low Speed CMI Interface for optional CMI Module Expansion | |
CFM (Control Function Module) Interface | • 1 x CFM IGN Interface for optional CFM-IGN Module Expansion | |
Other Function | External FAN Connector | • 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
Power Ignition Sensing | • Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) | |
Clear CMOS Switch | • 1 x Clear CMOS Switch | |
Reset Button | • 1 x Reset Button | |
Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
Power | Power Button | • 1 x ATX Power On/Off Button |
Power Mode Switch | • 1 x AT/ATX Mode Switch | |
Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
Remote Power On/Off | • 1 x Remote Power On/Off, 2-pin Terminal Block | |
Remote Power LED | • 1 x Remote Power LED, 2-pin Terminal Block | |
Physical | Dimension ( W x D x H ) | • 227 x 261 x 88 mm |
Weight Information | • 4.5 KG | |
Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
Mounting | • Wall | |
Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |
Reliability & Protection | Reverse Power Input Protection | • Yes |
Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
Over Current Protection | • 15A | |
CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
MTBF | • 371,274 Hours - Database: Telcordia SR-332 Issue 3, Method 1, Case 3 | |
Operating System | Windows | • Windows®11, Windows®10 |
Linux | • Ubuntu 22.04 | |
Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 50°C (With External Fan Kit) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
Storage Temperature | • -40°C to 85°C | |
Relative Humidity | • 95%RH @ 70°C (non-Condensing) | |
Shock | • MIL-STD-810G | |
Vibration | • MIL-STD-810G | |
EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) | |
EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
Safety | • UL, cUL, CB, IEC, EN 62368-1 |
Model No. | Description |
---|---|
DS-1400-R10 | 13/12th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer |
√ DS-1400 Embedded System x1 | √ Heatsink Pack x1 |
√ Wall Mounting Kit x1 | √ Screw Pack x1 |
√ Power Terminal Block Connector x 1 | √ Remote Function Terminal Block Connector x 2 |
√ Fan Terminal Block Connector x 1 |
Model No. | Description |
---|---|
CMI-LAN01-R12 | CMI Module with 4x RJ45 Intel I210 GbE LAN Ports |
CMI-M12LAN01-R12 | CMI Module with 4x M12 Intel I210 GbE LAN Ports |
CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
CMI-10GLAN03-R10 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port |
CMI-COM02 | CMI Module with 4x RS232/422/485 Serial Ports |
CMI-ICOM01 | CMI Module with 4x Electrical Isolated RS-232 Serial Ports |
CMI-DIO02 | CMI Module with 16x Optical Isolated DIO (8 in/8 out) |
MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable |
MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable |
MEC-COM-M212-DB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable |
UB1010 | Universal Bracket with 4x M12 Cutout |
UB1012 | Universal Bracket with 4x RJ45 Cutout |
UB1018 | Universal Bracket with DIO Cutout |
UB1028 | Universal Bracket with 2x RJ45 Cutout |
UB1030-R10 | Universal Bracket with 4x M12 X-Coded Cutout |
UB0303 | 2x Universal Bracket each with 1x DB9 Cutout |
UB0311 | Universal Bracket with 2x RJ45 Cutout |
UB0314 | Universal Bracket with 2x USB Cutout |
CFM-PoE03 | CFM Module with PoE Control Function, Individual Port 25.5W |
CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
FAN-EX101 | External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan |
GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
