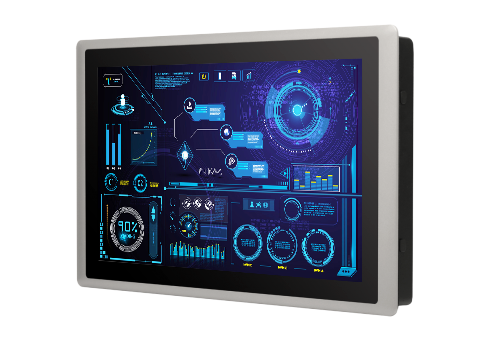

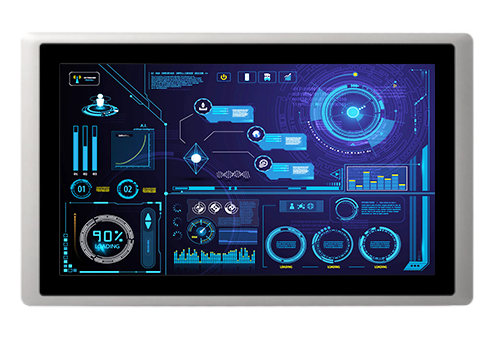

CV-W115 / M1001
15.6" TFT WXGA 16:9 Monitor with Touch (Projected Capacitive / Resistive 5-wire), 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
PRODUCTS FEATURES
- 15.6" TFT WXGA 16:9 LCD with Resistive 5-wire / Projected Capacitive Touch

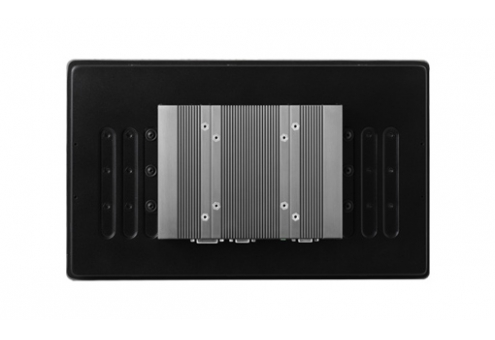

- Designed with Aluminum Die-Casting Front Frame
- 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
- IP 65 Compliant Front Panel
- Supports Panel / VESA / Rack Mounting
- Convertible Display System (CDS) Supported
- Built-in Two 5W Internal Speakers
OVERVIEW
The 15.6" (16:9) touch monitor with resistive 5-wire / projected capacitive touch screen offers resolution up to 1366x768 (WXGA) and 400 nits brightness. CV-W115/M1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. CV-W115/M1001 supports Convertible Display System (CDS) which allows to configure, upgrade and maintain your touch monitor easily.
CV-W115/M1001 supports both digital and analog signal input via three types of display interface: VGA, DVI-Dand Display-Port. Touch screen can be connected with USB port and 1x COM port. It has OSD function for adjusting the viewing options of display.
With support to wide range power input from 9~48VDC, CV-W115/M1001 is designed as an ideal solution forindustrial application.
CV-W115/M1001 supports both digital and analog signal input via three types of display interface: VGA, DVI-Dand Display-Port. Touch screen can be connected with USB port and 1x COM port. It has OSD function for adjusting the viewing options of display.
With support to wide range power input from 9~48VDC, CV-W115/M1001 is designed as an ideal solution forindustrial application.
SPECIFICATION
| Model Name | CV-W115/M1001 | |||
| Model No. | CV-W115R/M1001 | CV-W115C/M1001 | ||
| Display | LCD Size | 15.6" (16:9) | ||
| Max. Resolution | 1366 X 768 | |||
| Brightness (cd/m2) | 400 | |||
| Contrast Ratio | 500 : 1 | |||
| LCD Color | 16.2M | |||
| Pixel Pitch (mm) | 0.252 (H) x 0.252 (V) | |||
| Viewing Angle (H-V) | 170 / 160 | |||
| Backlight MTBF | 50000 hrs (LED Backlignt) | |||
| Touch | Resistive 5-wire | V | - | |
| Projected Capacitive | - | V | ||
| System | A/D Board | Novatek NT68856UFG | ||
| VGA Input | 1 | |||
| DVI-D Input | 1 | |||
| DisplayPort Input | 1 | |||
| USB 2.0 Input | 1 | |||
| 1 | ||||
| Audio Input | ||||
| COM Input | 1 | |||
| Power Switch | 1 | |||
| Other Features | Audio | AMP 5W + 5W (Internal Speaker) | ||
| OSD Function | LCD On/Off, Auto, Menu, Up and Down Multi-language OSD | |||
| Power | Power Requirement | 9~48VDC | ||
| Connector | 3-pin Terminal Block | |||
| Power Adaptor | Optional AC/DC 12V/5A, 60W | |||
| Physical | Dimension (WxHxD) | 420 x 254 x 76 mm | ||
| Weight Information | 5.37 kg | |||
| Construction Front Panel | Die-cast Flat Surface | |||
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |||
| Fanless Design | V | |||
| Operating System | Windows | Windows 10 Windows 8.1 Windows 7 | ||
| Liunx | Kernel 3.x | |||
| Environment | Operating Temperature | Ambient with air flow: 0°C to 60°C (with Industrial Grade Peripherals) | ||
| Storage Temperature | -20°C to 60°C | |||
| Relative humidity | 80% RH @ 40°C (Non-Condensing) | |||
| IP Level | IP 65 Compliant Front Panel | |||
| EMC | CE/ FCC Class A | |||
ORDERING INFORMATION
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| CV-W115R/M1001 | 15.6" TFT WXGA 16:9 Monitor with Resistive 5-wire Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort |
| CV-W115C/M1001 | 15.6" TFT WXGA 16:9 Monitor with Projected Capacitive Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort |
Package Checklist
| CV-W115/M1001 |
| √ CV-W115/M1001 Touch Monitor x 1 |
| √ Panel Mounting Kit x 1 |
| √ Utility DVD Driver x 1 |
| √ Power Terminal Block Connector x 1 |
| √ USB Cable x 1 |
| √ VGA Cable x 1 |
| √ Screw Pack x 1 |
Optional Accessories
| Model No. | Description |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| DVI-D Cable | DVI-D male to DVI-D male Cable 1.8M |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
