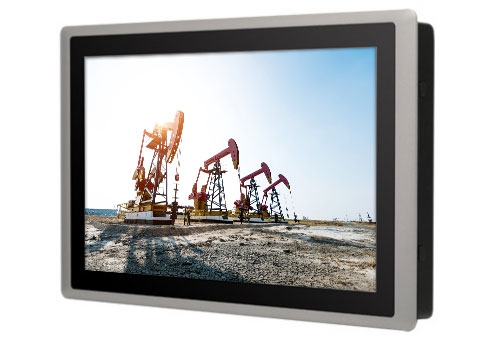

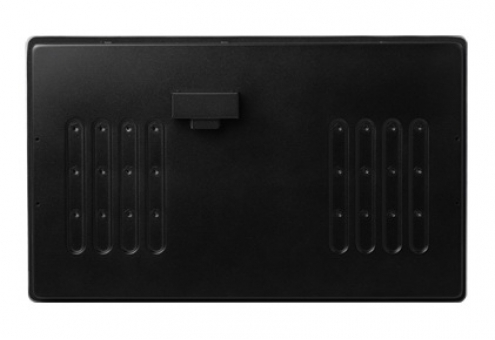

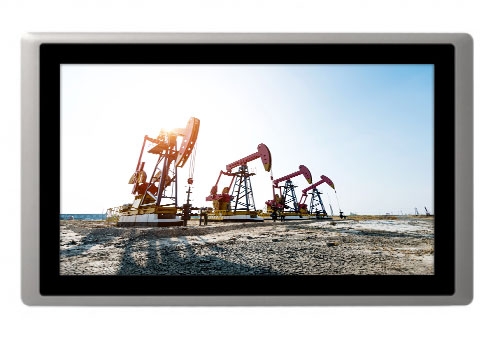

CS-W115FHC
15.6" TFT-LCD Sunlight Readable Display Module
PRODUCTS FEATURES
- 15.6” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1920x1080 (Full HD) Resolution
- Wide Range Operating Temperature -10°C to 70°C
- True Flat IP65 Front Panel Protection
- Rugged Aluminum Die-casting Bezel
- Convertible Display System (CDS) Technology Supported
OVERVIEW
CS-W115FHC Series is 15.6" TFT-LCD touch display module. It offers 1,500 nits ultra high brightness and 1920 x 1080 (Full HD) resolution, allowing viewers to see clear images even under any bright ambient light or direct sunlight environments. CS-W115FHC Series is a rugged and reliable display solution featuring wide range operating temperature -10°C to 70°C, a solid aluminum die-casting front bezel and true flat IP65 front panel protection. Supporting Convertible Display System (CDS) technology, CS-W115FHC Series allows you to configure, upgrade and maintain your display system according to your need.
>>>> Embedded Computers Technology
>>>> Embedded Computers Technology
RESOURCES
SPECIFICATION
| Model Name | CS-W115FHC | |
|---|---|---|
| Display | LCD Size | 15.6" (16:9) |
| Max. Resolution | 1920 x 1080 (Full HD) | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 700 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.17925 (H) x 0.17925 (V) | |
| Viewing Angle (H-V) | 160 / 140 | |
| Backlight MTBF | 50,000 hrs (LED Backlight) | |
| Touch | Resistive 5-wire | - |
| Projected Capacitive | V | |
| Physical | Dimension (WxHxD) | 420 x 254 x 66.2 mm |
| Weight | 4.00kg | |
| Front Panel Construction | Rugged Aluminum Die-casting Front Bezel | |
| Reliability & Protection | Front Panel Protection | IP65 Compliant |
| Environment | Operating Temperature | -10°C to 70°C |
| Storage Temperature | -20°C to 70°C | |
| Relative Humidity | 95%RH @ 39°C (non-condensing) | |
| EMC | CE, FCC, ICES-003 Class A | |
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| CS-W115FHC-R10 | 15.6" TFT-LCD 1500 nits Full HD 16:9 Display Module with Projected Capacitive Touch |
| √ CS-W115FHC Display Module x 1 |
| √ Panel Mounting Kit x 1 |
