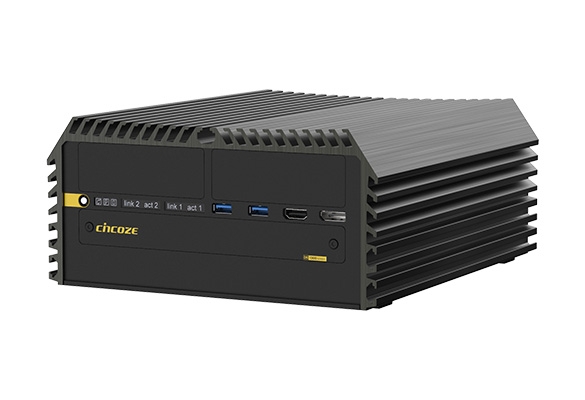

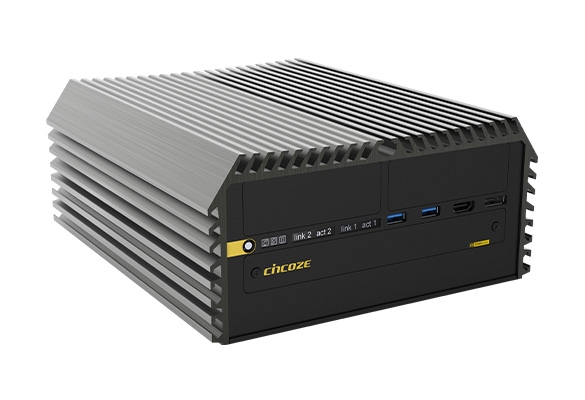

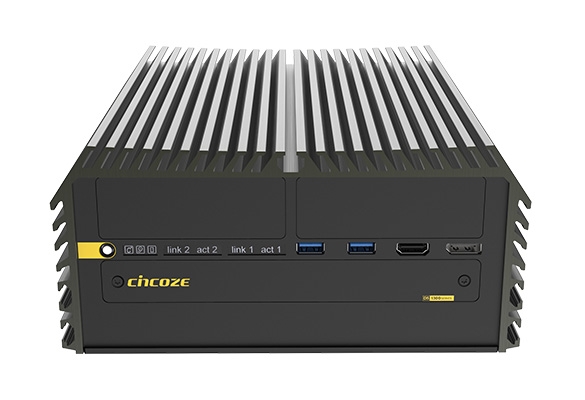

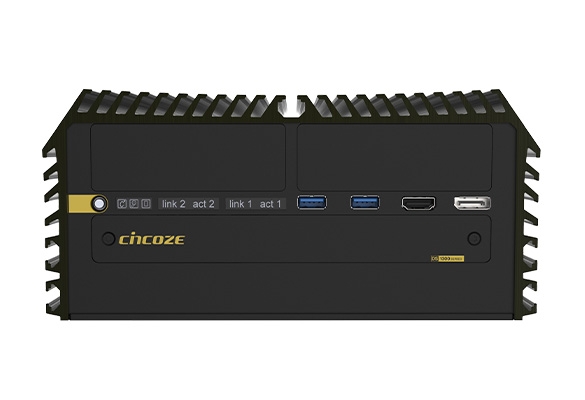

DS-1301

10th Generation Intel® Xeon/Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot

PRODUCTS FEATURES
  • 10-core 10th-gen Intel® Xeon® and Core™ i9/i7/i5/i3 CPU (max 80 W TDP)
  • 2x GbE LAN and optional 2x 10GbE LAN
  • 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
  • 1x PCI/PCIe expansion slot
  • 3x full-size Mini PCIe sockets, 2x SIM card slots
  • Optional CMI modules for I/O expansion
  • Optional CFM modules for ignition sensing & PoE
  • Wide operating temperature -40°C to 70°C
  • MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
OVERVIEW

The DS-1301 is a powerful embedded computer and brings unrivalled performance. It has versatile functionalities and rich industrial I/O. And most importantly, it has one PCI/PCIe expansion capability. Equipped with Cincoze’s CMI, CFM, MEC modular expansion, customization for additional I/O or other functionality to fulfill different applications couldn’t be easier. The DS-1301 meets the requirements of industrial environments and is certified with industry standards. It delivers ultimate and reliable performance for factory automation, industrial automation and rolling stock applications.


Product Category >>>> Rugged Embedded Fanless PC

10-Core, Up To 95 W CPU

10-Core,
Up To 80 W CPU

——

The DS-1300 series, powered by a workstation-grade 10th-gen Intel® Xeon® or Core™ i9/i7/i5/i3 CPU with up to 10-core architecture, provides superior processing performance. The DS-1300 supports Xeon® CPU up to 80 W TDP. It incorporates DDR4 2933/2666 MHz memory up to 64 GB, delivering unparalleled performance in a rugged, fanless system.


More Powerful & Faster
Multiplies Productivity

——

The DS-1300 series's 10th-gen CPU brings to 31% better integer multi-tasking for compute-intensive application performance than 9th-gen CPUs*. DDR4 2933 MHz memory further increases speed by 10%**. The processing platform delivers the performance required to consolidate multiple workloads for intelligent devices and applications.

* 31% increase for 10th-gen i9-10900E 65W vs 9th-gen i7-9700 65W CPU
** 10% increase for 2933 MHz of DS-1300 vs 2666 MHz of DS-1200.

More Powerful & Faster Multiplies Productivity

Industrial I/O and Modular Expansion

Industrial I/O and
Modular Expansion

——

The DS-1300 series offers a vast array of industrial-focused I/O including up to 2x GbE LAN, 6x USB 3.2, and 2x USB 2.0, 2x RS232/422/485, 2x 2.5" SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM card slots, 3x full-size Mini-PCIe and triple independent displays (DisplayPort, HDMI, VGA). It also features modular expansion through Cincoze’s CMI/CFM modules, adding additional I/O or other functionality such as high-speed 10GbE LAN, PoE, and ignition sensing.


PCI/PCIe
Add-on Cards

——

DS-1301 can accommodate one PCI/PCIe add-on card up to 111 mm x 235 mm. Flexible PCI/PCIe expansion allows the addition of I/O, GPU, image capture, data acquisition, and motion control cards for specific applications.

PCI/PCIe Add-on Cards

Adjustable PCIe Card Retainer

Adjustable
PCIe Card Retainer

——

The PCI/PCIe expansion slot includes an adjustable card retainer that firmly secures the PCI/PCIe add-on card. The retainer is a cool feature that provides the extra protection needed to prevent add-on cards from shaking loose in high-vibration environments like rolling stock.

Patent No. I773359

Rugged Reliability
Against Rigorous Environments

——

The DS-1300 series's fanless and cableless industrial-grade design can withstand rigorous environments. Its unique thermal design supports an extended operating temperature range from -40°C to 70°C. It has also passed stringent industry standards, including MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only) for rolling stock environments.

Rugged Reliability Against Rigorous Environments

Video
SPECIFICATION
Model NameDS-1301
SystemProcessorIIntel® Xeon® Series Processor ( 80W / 35W ):
• Intel® Xeon® W-1270E 8 Cores Up to 4.8 GHz, TDP 80W
• Intel® Xeon® W-1250E 6 Cores Up to 4.7 GHz, TDP 80W
• Intel® Xeon® W-1290TE 10 Cores Up to 4.5 GHz, TDP 35W
• Intel® Xeon® W-1270TE 8 Cores Up to 4.4 GHz, TDP 35W
• Intel® Xeon® W-1250TE 6 Cores Up to 3.8 GHz, TDP 35W
Intel® Core® Series Processor ( 65W / 35W ):
• Intel® Core™ i9-10900E 10 Cores Up to 4.7 GHz, TDP 65W
• Intel® Core™ i7-10700E 8 Cores Up to 4.5 GHz, TDP 65W
• Intel® Core™ i5-10500E 6 Cores Up to 4.2 GHz, TDP 65W
• Intel® Core™ i3-10100E 4 Cores Up to 3.8 GHz, TDP 65W
• Intel® Core™ i9-10900TE 10 Cores Up to 4.5 GHz, TDP 35W
• Intel® Core™ i7-10700TE 8 Cores Up to 4.5 GHz, TDP 35W
• Intel® Core™ i5-10500TE 6 Cores Up to 3.7 GHz, TDP 35W
• Intel® Core™ i3-10100TE 4 Cores Up to 3.6 GHz, TDP 35W
ChipsetIntel® W480E Chipset
Memory2x DDR4 2933/2666/2400 SO-DIMM Socket
* Xeon / i9 / i7 Processor Supports Up to 2933MHz
* i5 / i3 Processor Supports Up to 2666 MHz
Supports Un-buffered and Non-ECC Type Up to 64GB
BIOSAMI BIOS
GraphicsGraphics EngineIntegrated Intel® UHD-630 Graphics
Maximum Display OutputSupports Triple Independent Display
HDMI1 x HDMI Connector (4096 x 2160@30Hz)
DP2x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840x2160
VGA1 x VGA Connector (1920 x 1200 @60Hz)
AudioAudio CodecRealtek® ALC888, High Definition Audio
Line-out1 x Line-out, Phone Jack 3.5mm
Mic-in1 x Mic-in, Phone Jack 3.5mm

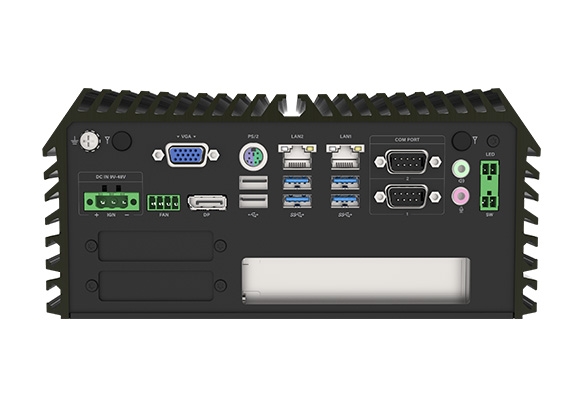

I/OLAN• 2 x GbE LAN, RJ45
- GbE1: Intel® I219
- GbE2: Intel® I210
COM2 x RS-232/422/485 with Auto Flow Control ( Supports 5V / 12V ), DB9
USB• 2 x 10Gbps USB 3.2 Gen2, Type A
• 4 x 5Gbps USB 3.2 Gen1, Type A
• 2 x 480Mbps USB 2.0, Type A
PS/21 x PS/2, 6 Pin Mini-DIN Female Connector
StorageSSD/HDD• 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
• 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 )
mSATA3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
M.2 SSD1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD ( SATA 3.0 )
RAIDSupport RAID 0/1/5/10
ExpansionPCI Express• 1 x PCI/PCIe Expansion Slot with Optional Riser Card
* Supports maximum dimensions of add-on card (H x L): 111 x 235 mm
Mini PCI Express3 x Full-size Mini-PCIe Socket
SIM Socket2 x SIM Socket
CMI (Combined Multiple I/O) Interface• 2 x High Speed CMI Interface for optional CMI Module Expansion
• 2 x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface1 x CFM IGN Interface for optional CFM-IGN Module Expansion
Other FunctionExternal FAN Connector1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition SensingSupport Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch1 x Clear CMOS Switch
Reset Button1 x Reset Button
Instant RebootSupport 0.2sec Instant Reboot Technology
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
PowerPower Button1 x ATX Power On/Off Button
Power Mode Switch1 x AT/ATX Mode Switch
Power Input9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED1 x Remote Power LED, 2-pin Terminal Block
Total Power Budget180W
PhysicalDimension ( W x D x H )227 x 261 x 108 mm
Weight Information5.04 KG
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall Mount
Physical Design• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input ProtectionYes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 371,393 Hours
- Database: Telcordia SR-332 Issue 3, Method 1, Case 3
Operating SystemWindowsWindows® 10
LinuxSupports by project
EnvironmentOperating Temperature

• 35W TDP Processor: -40°C to 70°C
• 58W – 65W TDP Processor: -40~50°C (With External Fan Kit)
• 80W TDP Processor: -40~40°C (With External Fan Kit)

* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

Storage Temperature-40°C to 85°C
Relative Humidity95%RH @ 70°C (non-Condensing)
Ingress ProtectionIP30 Compliant * According to IEC60529
ShockMIL-STD-810G
VibrationMIL-STD-810G
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyIEC/EN 62368-1
ORDERING INFORMATION
Available Models
Model No.Product Description
DS-1301-R1010th Generation Intel Xeon/Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot

Package Checklist
√ DS-1301 Embedded System x1√ Heatsink Pack x1
√ Wall Mount Kit x1√ Screw Pack x1
√ Remote Function Terminal Block Connector x 2√ Power Terminal Block Connector x1
√ Fan Terminal Block Connector x 1

Optional I/O Modules
Model No.Description
CMI-LAN01-R12/UB1012CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout
CMI-M12LAN01-R12/UB1010CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout
CMI-XM12LAN01-R10/UB1030-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout
CMI-10GLAN03-R10/UB1028CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout
CMI-COM02/UB1004CMI Module with 4x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout
CMI-ICOM01/UB1004CMI Module with 4x Isolated RS232 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout
CMI-DIO02/UB1018CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout
MEC-COM-M212-DB9/UB0303Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout
MEC-USB-M102-30/UB0314Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x30 cm cable, 1x Universal Bracket with 2x USB Cutout
MEC-LAN-M102-30/UB0311Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout

Optional Function Modules
Model No.Description
CFM-PoE03CFM Module with PoE Function, Individual Port 25.5W
CFM-IGN101CFM Module with Power Ignition Sensing Function, 12V/24V Selectable

Optional Riser Cards
Model No.Description
RC-E16-01Riser Card with 1 x PCIe x 16 Slot
RC-PI-01Riser Card with 1 x PCI Slot

Optional Accessories
Model No.Description
FAN-EX101External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
