DS-1200
9/8th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer
PRODUCTS FEATURES
- Supports 9/8th Gen Intel® Core™ / Pentium® / Celeron® Octa/Hexa Cores 35W/65W LGA 1151 Processors
- 2x DDR4 SO-DIMM Socket, Supports Up to 2666MHz, 64GB
- Triple Independent Displays: 1x DVI-I and 2x DP (4K Resolution)
- 1x M.2 2280 M Key Socket, Auto-detection for PCIex4 NVMe SSD or SATA Gen3 SSD
- 2x Front Accessible SIM Card Slots for Signal Redundancy
- 4x CMI Slots for Modular I/O Expansions
- 1x CFM Slot for Power Ignition Sensing Function
- Wide Operating Temperature (-40°C to 70°C )
- EN50121-3-2 Certified/ LVD EN62368-1
OVERVIEW

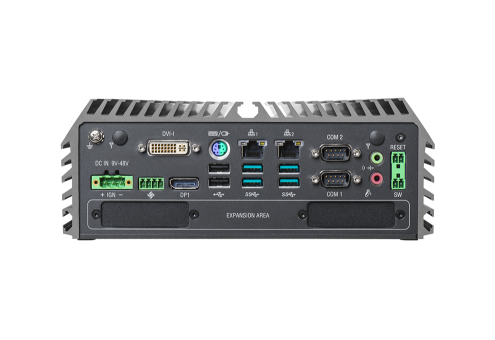

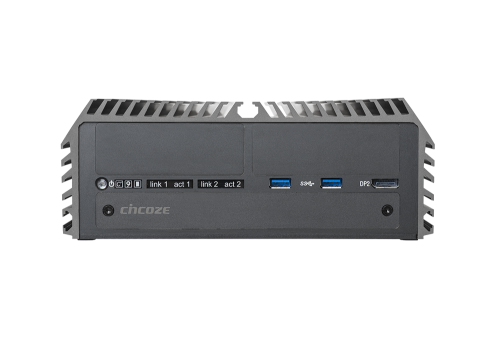

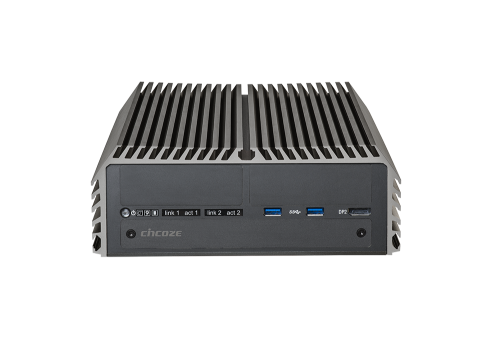

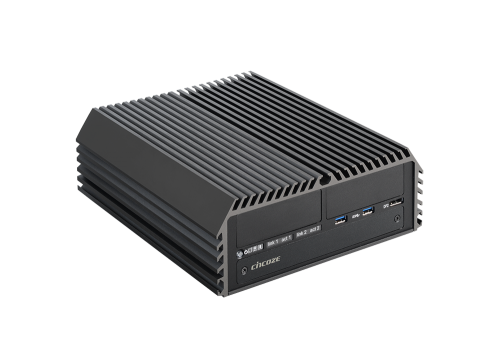

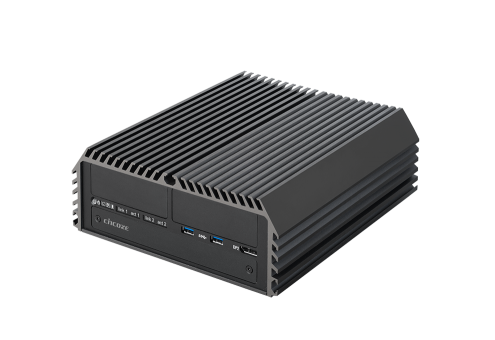

DS-1200 is a high-performance fanless embedded computer powered by 9/8th generation Intel® Core™ platform (Coffee Lake-R/S) and offers up to 8 cores to fulfill all kinds of high-end computing requirements. DS-1200 provides rich I/O, such as 1x PS/2, 1x Line-out, 1x Mic-in, 2x RS-232/422/485 ports, 2x Intel® GbE ports, 2x USB 3.1 (Gen2), 4x USB 3.0, 2x USB 2.0, and triple independent displays. As for memory and storage, DS-1200 can be equipped with up to 64 GB of DDR4-2666 SO-DIMM memory, 2x 2.5-inch SATA III hard drive, 3x mSATA SSD and 1x M.2 2280 NVMe SSD for high-performance storage requirement.

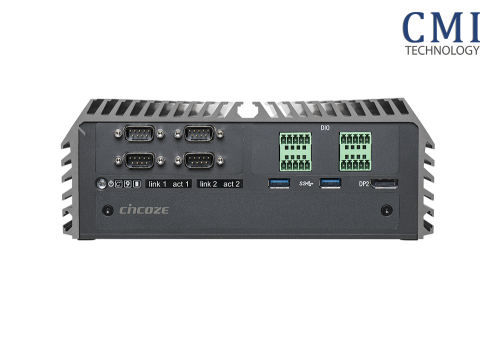

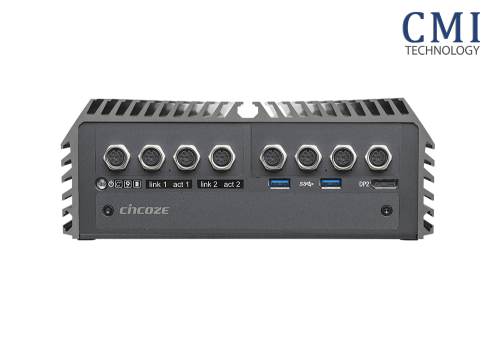

Based on Cincoze’ CMI & CFM Technology, it allows users to configure the system according to their specific needs by using a variety of ready-to-use modules. DS-1200 is truly a rugged computing system with features of wide operating temperature (-40°C to 70°C), wide range DC power input (from 9V to 48V), high tolerance of shock and vibration, high-standard industrial protections and SuperCap for battery maintenance-free operation. The system is suitable for high-end applications in a harsh environment, such as factory automation, machine vision, in-vehicle computing, and mobile surveillance.
Product Category >>>> Rugged Embedded Fanless PC
Based on Cincoze’ CMI & CFM Technology, it allows users to configure the system according to their specific needs by using a variety of ready-to-use modules. DS-1200 is truly a rugged computing system with features of wide operating temperature (-40°C to 70°C), wide range DC power input (from 9V to 48V), high tolerance of shock and vibration, high-standard industrial protections and SuperCap for battery maintenance-free operation. The system is suitable for high-end applications in a harsh environment, such as factory automation, machine vision, in-vehicle computing, and mobile surveillance.
Product Category >>>> Rugged Embedded Fanless PC
RESOURCES
SPECIFICATION
| Model Name | DS-1200 | |
|---|---|---|
| System | Processor | • 9th Generation Intel® Coffee Lake-R S Series CPU: - Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W - Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W - Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W - Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W - Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W - Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W • 8th Generation Intel® Coffee Lake S Series CPU: - Intel® Core™ i7-8700 6 Cores Up to 4.6 GHz - 12M Cache, TDP 65W - Intel® Core™ i5-8500 6 Cores Up to 4.1 GHz - 9M Cache, TDP 65W - Intel® Core™ i3-8100 4 Cores 3.6 GHz - 6M Cache, TDP 65W - Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz - 12M Cache, TDP 35W - Intel® Core™ i5-8500T 6 Cores Up to 3.5 GHz - 9M Cache, TDP 35W - Intel® Core™ i3-8100T 4 Cores 3.1 GHz - 6M Cache, TDP 35W - Intel® Pentium® G5400 2 Cores 3.7 GHz - 4M Cache, TDP 58W - Intel® Pentium® G5400T 2 Cores 3.1 GHz - 4M Cache, TDP 35W - Intel® Celeron® G4900 2 Cores 3.1 GHz - 2M Cache, TDP 54W - Intel® Celeron® G4900T 2 Cores 2.9 GHz - 2M Cache, TDP 35W |
| Chipset | Intel Q370 | |
| Memory | • 2x DDR4 2400/2666 MHz SO-DIMM Sockets • Supports Un-buffered and Non-ECC Type Up to 64 GB | |
| Graphics | • Integrated Intel® UHD Graphics 630: Core™ i7/i5/i3 • Integrated Intel® UHD Graphics 610: Pentium® /Celeron® • Supports Triple Independent Display (1x DVI-I, 2x DisplayPort) | |
| Audio | Realtek® ALC888, High Definition Audio | |
| BIOS | AMI 32MB SPI BIOS | |
| I/O Interface | DVI | 1x DVI-I (DVI-D: 1920 x 1200 @60Hz / VGA: 1920 x 1080 @60Hz) |
| DP | 2x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160 | |
| LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I219-LM Optional CMI Module - 4x RJ45 GbE LAN Module - 4x M12 GbE LAN Module | |
| PoE+ | Optional CMI & CFM Module - 4x PoE+, Individual port 25.5W, RJ45 Port - 4x PoE+, Individual port 25.5W, M12 Port | |
| COM | 2x RS-232/422/485, DB9 Optional CMI Module - 4x Isolated COM Module - 4x COM Module * Supports RS-232/422/485 with Auto Flow Control, 5V/12V, DB9 | |
| USB | 2x USB 3.2 Gen2 (TypeA) 4x USB 3.2 Gen1 (TypeA) 2x USB 2.0 (Type A) | |
| PS/2 Port | 1x PS/2, 6-pin mini-DIN Female Connector | |
| Isolated DIO | Optional CMI Module - 16x Optical Isolated DIO Module (8 in/8 out) | |
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Remote Reset Connector | 1x Remote Reset Connector, 2-pin Terminal Block | |
| External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block | |
| Storage | SSD/HDD | • 2x 2.5" SATA HDD/SSD bay (Gen3), 1x Internal, 1x Front Accessable • Supports RAID 0/1 |
| M.2 | 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3) | |
| mSATA | 3x mSATA (shared by Mini-PCIe socket) (Gen3), BIOS Selectable | |
| Expansion | CFM (Control Function Module) Interface | 1x CFM (Control Function Module) Interface |
| CMI (Combined Multiple I/O) Interface | 2x CMI (Combined Multiple I/O) High Speed Interface 2x CMI (Combined Multiple I/O) Low Speed Interface | |
| Mini PCI Express | ||
| 3x Full-size Mini-PCIe Socket | ||
| Universal I/O Bracket | 4x Universal I/O Bracket | |
| SIM Socket | 2x SIM Socket | |
| Antenna Holes | 2x Antenna Holes | |
| Other | Instant Reboot | Support 0.2sec |
| Super Cap | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adapter | Optional AC/DC Adapter - AC/DC 24V/5A, 120W - AC/DC 24V/9.2A, 220W | |
| Physical | Dimension (WxDxH) | 227 x 261 x 88 mm |
| Weight Information | 4.92 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall | |
| Unibody Design | Yes | |
| Fanless Design | Yes | |
| Jumper-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| Operating System | Windows | Windows® 10 |
| Linux | Supports by project | |
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 51~65W TDP Processor: -40°C to 45°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| MTBF | 396,565 Hours | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | LVD IEC/EN 62368-1 | |
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| DS-1200-R10 | 9/8th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer |
| √ DS-1200 Embedded System x 1 | √ Power Terminal Block Connector x 1 |
| √ Heat Sink Pack x 1 | √ Remote Power On/Off Terminal Block Connector x 1 |
| √ Screw Pack x 1 | √ Remote Power Reset Terminal Block Connector x 1 |
| √ Wall Mount Kit x1 | √ Fan Terminal Block Connector x 1 |
| √ DVI-I to VGA Adaptor |
| Model No. | Description |
|---|---|
| CFM-PoE03 | CFM Module with PoE Function, Individual Port 25.5W |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
| CMI-LAN01-R12/UB1012 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout |
| CMI-M12LAN01-R12/UB1010 | CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout |
| CMI-XM12LAN01-R10/UB1030-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout |
| CMI-DIO02/UB1018 | CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout |
| CMI-COM02/UB1004 | CMI Module with 4x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout |
| CMI-ICOM01/UB1004 | CMI Module with 4x Isolated RS232 Ports / 1x Universal Bracket with 4x DB9 Cutout |
| MEC-COM-M212-DB9/UB0303 | Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout |
| MEC-USB-M102-30/UB0314 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x30 cm cable, 1x Universal Bracket with 2x USB Cutout |
| MEC-LAN-M102-30/UB0311 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout |
| FAN-EX101 | External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan |
| PAH01 | Power Adapter Holder for GST120A24 |
| PAH02 | Power Adapter Holder for GST220A24 |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
