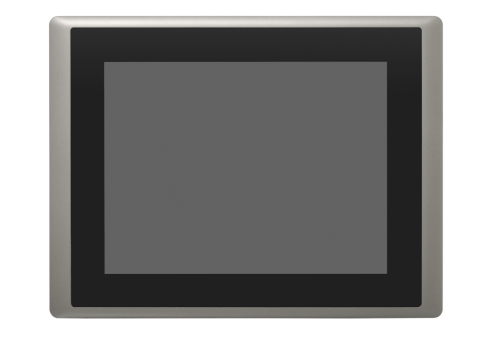

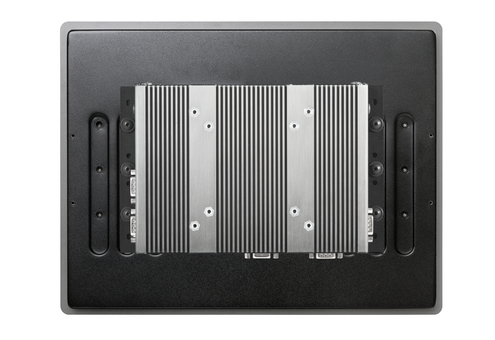

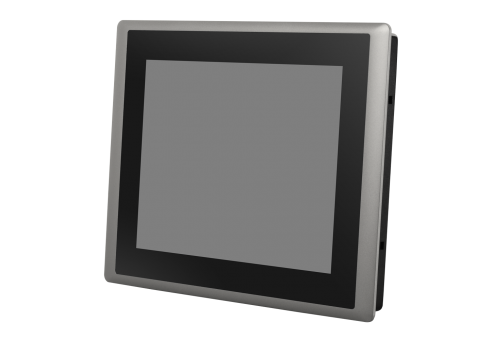

CV-112 / P1101
12.1" TFT-LCD Touch Panel PC with Intel® Atom® / Pentium® Processor
PRODUCTS FEATURES
- 12.1" TFT-LCD SVGA with Resistive 5-wire or P-Cap Touchscreen
- Onboard Intel® Atom® / Pentium® Processor
- Triple Independent Displays (via VGA and DisplayPort outputs)
- Rich I/O (2x GbE LAN, 4x USB 3.0, 4x COM, 8x Isolated DIO)
- 2x Full Size Mini-PCIe, 1x 2.5” SATA Drive Bay, 1x mSATA Socket
- Designed with Aluminum Die-casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports CDS Technology, Ignition Sensing and Power over Ethernet
- Supports Panel / VESA / Rack Mounting
OVERVIEW
CV-112/P1101 Series is a 12.1" TFT-LCD touch panel PC offering 450 nits high brightness and 800 x 600 (SVGA) resolution. The system is based on Intel® Atom® / Pentium® processor and supports triple independent displays (via VGA and DisplayPort outputs). CS-112/P1101 Series features extensive connectivity including 2x GbE, 4x USB 3.0, 4x COM, and 8x isolated DIO. It also offers 2x full size Mini-PCIe socket and 1x SIM socket for a variety of wireless data connections.
Through the ready-to-use CFM modules, users can easily add power ignition sensing and Power over Ethernet (PoE) functions for a variety of applications. CV-112/P1101 Series also supports Convertible Display System (CDS) technology. Comparing with regular standalone panel PCs, it is more flexible and reduces maintenance cost dramatically.
Featuring with rigorous industrial protections, wide range operating temperature, IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), CV-112/P1101 Series is appropriate for harsh environments and critical applications.
Through the ready-to-use CFM modules, users can easily add power ignition sensing and Power over Ethernet (PoE) functions for a variety of applications. CV-112/P1101 Series also supports Convertible Display System (CDS) technology. Comparing with regular standalone panel PCs, it is more flexible and reduces maintenance cost dramatically.
Featuring with rigorous industrial protections, wide range operating temperature, IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), CV-112/P1101 Series is appropriate for harsh environments and critical applications.
SPECIFICATION
Model Series | CV-112/P1101 | ||
Model Name | CV-112R/P1101 | CV-112C/P1101 | |
Display | LCD Size | 12.1" (4:3) | |
Max. Resolution | 800 x 600 | ||
Brightness (cd/m2) | 450 | ||
Contrast Ratio | 800 : 1 | ||
LCD Color | 262K | ||
Pixel Pitch (mm) | 0.3075 (H) x 0.3075 (V) | ||
Viewing Angle (H-V) | 160 / 140 | ||
Backlight MTBF | 50000 hrs (LED Backlight) | ||
Touch | Resistive 5-wire | V | - |
Projected Capacitive | - | V | |
System | Processor | • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz | |
Memory | • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Supports up to 8GB (un-buffered and non-ECC) | ||
Graphics | • Integrated Intel® HD Graphics 505 • Supports Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort) | ||
Audio | Realtek ALC888-GR | ||
I/O Interface | VGA | 1x VGA (1920 x 1200 @60Hz) | |
DP | 1x DisplayPort (4K x 2K @60Hz) | ||
LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210IT - GbE2: Intel® I210IT | ||
Serial Port | 4x RS-232/422/485, DB9 with Auto Flow Control (Supports 5V/12V), DB9 | ||
USB | 4x USB 3.0 (Type-A) | ||
Isolated DIO | 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block | ||
Line-Out | 1x Phone Jack 3.5mm | ||
Mic-In | 1x Phone Jack 3.5mm | ||
Power Button | 1x ATX Power On/Off Button | ||
Reset Button | 1x Rest Button | ||
AT/ATX Switch | 1x AT/ATX Mode Switch | ||
Clear CMOS Switch | 1x Clear CMOS Switch | ||
Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | ||
Storage | SSD/HDD | 1x 2.5” HDD/SSD Drive Bay (SATA 3.0) | |
mSATA | 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket) | ||
Expansion | PCI / PCIe | - | |
CFM (Control Function Module) Interface | - Optional CFM IGN Module for Power Ignition Function - Optional CFM PoE Module for Power over Ethernet Function | ||
CDS (Convertible Display System) Technology | 1x CDS Interface for Convertible Display Module | ||
Mini PCI Express | 2x Full-size Mini-PCIe Sockets | ||
SIM Socket | 1x SIM Socket | ||
Antenna Holes | 4x Antenna Holes | ||
Other Function | Instant Reboot | Support 0.2sec | |
Super Cap | SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
Internal Speaker | AMP 2W + 2W | ||
Watchdog Timer | Software Programmable Supports 256 Levels System Reset | ||
Power Requirement | Power Type | AT/ATX | |
Power Input Voltage | 9~48VDC | ||
Connector | 3-pin Terminal Block | ||
Power Adaptor | Optional AC/DC Adapter .AC/DC 12V/5A, 60W .AC/DC 24V/5A, 120W (Optional) | ||
Physical | Dimension (WxHxD) | 345 x 265.3 x 69.85 mm | |
Weight Information | 4.65 kg | ||
Front Panel Construction | Flat Rugged Aluminum Die-casting Bezel | ||
Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | ||
Fanless Design | Yes | ||
Protection | Reverse Power Input Protection | V | |
Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | ||
Over Current Protection | 15A | ||
ESD Protection | +/-8kV (air), +/-4kV (contact) | ||
Surge Protection | 3.84 kV (impedance 12 ohm 1.2/50us waveform) | ||
Operating System | Windows | Windows® 10 | |
Linux | Support by project | ||
Environment | Operating Temperature | -20°C to 70°C (with extended temperature peripherals; Ambient with air flow) | |
Storage Temperature | -30°C to 80°C | ||
Relative Humidity | 80% RH @ 40°C (Non-Condensing) | ||
Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
Vibration | Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
IP Level | IP 65 Compliant Front Panel | ||
EMC | CE/ FCC Class A |
ORDERING INFORMATION
Available Models
Package Checklist
Optional Accessories
Model No. | Product Description |
CV-112C-R10/P1101-E50-R10 | 12.1" TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch |
CV-112R-R10/P1101-E50-R10 | 12.1" TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and Resistive 5-wire Touch |
CV-112C-R10/P1101-N42-R10 | 12.1" TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and P-Cap. Touch |
CV-112R-R10/P1101-N42-R10 | 12.1" TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and Resistive 5-wire Touch |
Package Checklist
√ Panel PC x 1 | √ Power Terminal Block Connector x 1 |
√ Utility DVD Driver x 1 | √ Remote Power On/Off Terminal Block Connector x 1 |
√ Screw Pack x 1 | √ DIO Terminal Block Connector x 1 |
√ Panel Mounting Kit x 1 | √ Thermal Pad (for CPU Thermal Block) x 1 |
Optional Accessories
Model No. | Description |
CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
