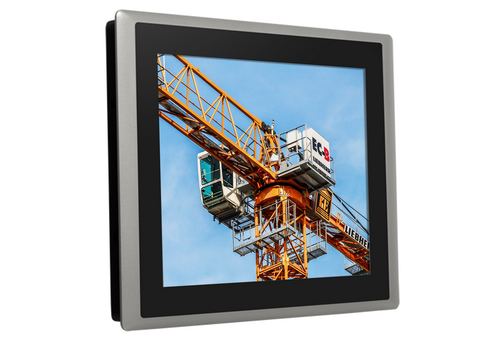

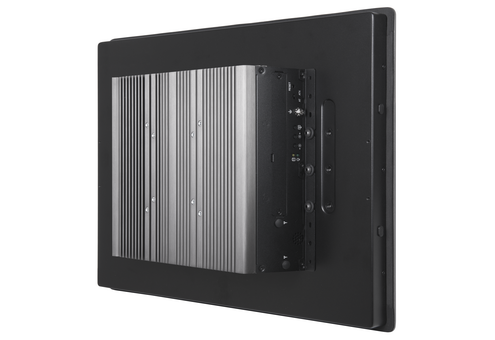

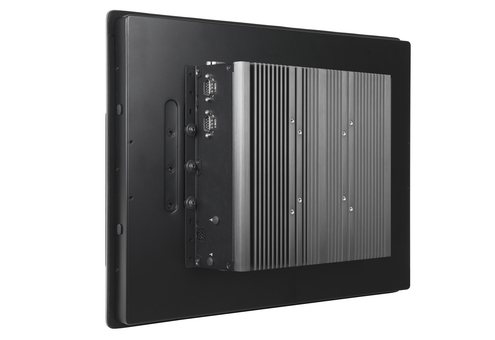

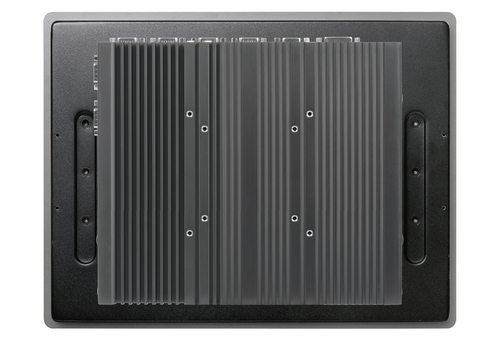

CS-112H / P2002E
12.1" TFT-LCD Sunlight Readable Touch Panel PC with 6th Gen. Intel® Core™ Processor
PRODUCTS FEATURES
- 12.1” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1024 x 768 (XGA) Resolution
- Onboard Intel® 6th Generation Core™ Processor U Series (15W)
- Supports 2x DDR4 SO-DIMM Socket, up to 32 GB
- Integrated Intel® HD Graphics 520, Triple Display Support
- 2x 2.5” SATA Drive Bay, 1x mSATA, and 1x CFast Socket
- Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
- 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
- Wide Range Operating Temperature -20°C to 70°C
- Designed with Aluminum Die-casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports Panel / VESA / Rack Mounting
- Convertible Display System (CDS) Technology Supported
OVERVIEW
CS-112H/P2000 is a 12.1" TFT-LCD sunlight readable touch panel PC offering 1,500 nits ultra high brightness and 1024 x 768 (XGA) resolution. The system is equipped with high-performance Intel® 6th generation Core™ U series processor and provides extensive I/O including 2x GbE, 5x USB, 6x RS232/422/485, 8x DI/8x DO, 1x VGA and 1x DVI-D. It also supports 2x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 3 types of storage devices including 2.5" SATA HDD (RAID 0/1), mSATA and CFast. The accessible design of these storage devices allows quick data access and easy maintenance.
CS-112H/P2000 supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime. For greater flexibility, CS-112H/P2000 has PCI/PCIe expandable version and PoE/power ignition functions by additional CFM (Control Function Module). Furthermore, CS-112H/P2000 is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.
CS-112H/P2000 supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime. For greater flexibility, CS-112H/P2000 has PCI/PCIe expandable version and PoE/power ignition functions by additional CFM (Control Function Module). Furthermore, CS-112H/P2000 is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.
RESOURCES
SPECIFICATION
| Model Name | CS-112H/P2002E | |
|---|---|---|
| Model No. | CS-112HC/P2002E | |
| Display | LCD Size | 12.1" (4:3) |
| Max. Resolution | 1024 x 768 | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 700 : 1 | |
| LCD Color | 16.2M | |
| Pixel Pitch (mm) | 0.24 (H) x 0.24 (V) | |
| Viewing Angle (H-V) | 160 / 150 | |
| Backlight MTBF | 30,000 hrs (LED Backlight) | |
| Touch | Resistive 5-wire | - |
| Projected Capacitive | V | |
| Processor System | Onboard 6th Intel® Core™ U processors (Skylake) - Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) - Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) - TDP: 15 W - BIOS: AMI 64Mbit SPI BIOS | |
| Memory | 2x DDR4 260-pin SO-DIMM socket, support up to 32 GB (2133MHz, un-buffered and non-ECC type) | |
| Graphics | Intel® HD Graphics 520 | |
| Triple display with 1x VGA, 1x DVI-D and 1x CDS interface | ||
| Audio | Realtek® ALC888-GR | |
| High Definition Audio | ||
| I/O Interface | 1x VGA (Up to 1920 x 1080 @ 60Hz), DB-15 | |
| 1x DVI-D (Up to 1920 x 1080 @ 60Hz) | ||
| 1x CDS Interface, Compact PCI Connector | ||
| 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 - GbE1: Intel I219LM - GbE2: Intel I210 | ||
| 2x PoE+ (with Optional CFM PoE Module) - Comply with IEEE 802.3at, Offers Up to 25.5W Per Port | ||
| 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 | ||
| 4x USB 3.0, Type-A | ||
| 1x USB 2.0, Type-A | ||
| 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block | ||
| 1x Line-out & 1x Mic-in, Phone Jack 3.5mm | ||
| 1x Power On/Off Switch | ||
| 1x Reset Button | ||
| 1x AT/ATX Switch | ||
| 1x Remote Power On/Off Connector, 2-Pin Terminal Block | ||
| 1x External FAN Connector, 4-Pin Terminal Block | ||
| Storage | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) | |
| 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) | ||
| 1x CFast Socket (Gen3) | ||
| Expansion | 1x CFM PoE interface | |
| 1x CFM IGN interface | ||
| 1x PCI or 1x PCIex4 Expansion slot Optional Riser Card: 1x PCI, 1x PCIx4 Support Maximum dimension of add-on card (H x L): 100mm x 200mm | ||
| 2x Full-size Mini-PCIe Socket | ||
| 1x Universal I/O Bracket | ||
| 1x SIM Socket | ||
| 4x Antenna Hole | ||
| Other Function | Support CDS Technology | |
| Support CFM Technology | ||
| Support Instant Reboot Technology (0.2 sec) | ||
| Support Power Ignition Sensing (IGN) | ||
| Support OSD Function (LCD On/Off, Brightness Up, Brightness Down for CDS Display Module) | ||
| Internal Speaker AMP 2W + 2W | ||
| SuperCap Integrated | ||
| Watchdog Timer: Software Programmable Supports 256 Levels System Reset | ||
| Power Requirement | Support AT/ATX Power Mode | |
| Power Input Voltage 9~48VDC | ||
| One 3-pin Terminal Block Connector | ||
| Power Adapter AC/DC 24V/5A 120W or 24V/9.2A 220W (Optional) | ||
| Physical | Dimension (WxHxD): 345 x 265.3 x 100 mm | |
| Weight: 6.34 kg | ||
| Front Panel Construction: Flat Rugged Aluminum Die-Casting Bezel | ||
| Support Panel / VESA / *Rack Mounting (*with optional mounting kit) | ||
| Fanless Design | ||
| Jumper-less Design | ||
| Protection | Reverse Power Input Protection | |
| Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | ||
| Over Current Protection: 15A | ||
| ESD Protection: +/-8kV (air), +/-4kV (contact) | ||
| Surge Protection: 2kV | ||
| Operating Stystem | Windows® 10 Windows® 8.1 Windows® 7 | |
| Environment | Operating Temperature: -20°C to 70°C (With extended temperature peripherals; Ambient with air flow According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) | |
| Storage Temperature: -20°C to 70°C | ||
| Relative Humidity: 80% RH @ 40°C (Non-condensing) | ||
| Shock: Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-64) | ||
| Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes | ||
| IP Level: IP65 Compliant Front Panel | ||
| EMC: CE, FCC Class A | ||
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| CS-112HC-R10/P2002E-i5-R10 | 12.1" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i5-6300U Processor, P-Cap. Touch and 1x Reserved Expansion Slot |
| CS-112HC-R10/P2002E-i5-E4-R10 | 12.1" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i5-6300U Processor, P-Cap. Touch and 1x PCIe x4 Expansion Slot |
| CS-112HC-R10/P2002E-i5-PI-R10 | 12.1" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i5-6300U Processor, P-Cap. Touch and 1x PCI Expansion Slot |
| CS-112HC-R10/P2002E-i3-R10 | 12.1" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i3-6100U Processor, P-Cap. Touch and 1x Reserved Expansion Slot |
| CS-112HC-R10/P2002E-i3-E4-R10 | 12.1" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i3-6100U Processor, P-Cap. Touch and 1x PCIe x4 Expansion Slot |
| CS-112HC-R10/P2002E-i3-PI-R10 | 12.1" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i3-6100U Processor, P-Cap. Touch and 1x PCI Expansion Slot |
| √Panel PC x 1 | √Panel Mounting Kit x 1 |
| √Utility DVD Driver x 1 | √Fan Terminal Block Connector x 1 |
| √Power Terminal Block Connector x 1 | √DIO Terminal Block Connector x 2 |
| √Screw Pack x 1 | √Power On/Off Terminal Block Connector x 1 |
| Model No. | Description |
|---|---|
| CFM-IGN100 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm) |
| CFM-PoE101 | PoE Control Function Module, Individual Port 25.5W (50 x 44 x 33 mm) (For CS-100/P2002E only) |
| MEC-COM-M212-0503 | Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets (154 x 17 mm) |
| MEC-COM-M334-0504 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports,1x Universal Bracket (154 x 17 mm) |
| MEC-FIR-M003-0501 | Mini-PCIe Module with 1x 1394A Port, 2x 1394B Ports, 1x Universal Bracket (154 x 17 mm) |
| MEC-LAN-M102-30/UB0511 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for P2000 Series |
| MEC-USB-M002-0514 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket (154 x 17 mm) |
| RC-E4-01 | Riser Card with 1x PCIex4 Slot (For CS-100/P2002E only) |
| RC-PI-01 | Riser Card with 1x PCI Slot (For CS-100/P2002E only) |
| Model No. | Description |
|---|---|
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
