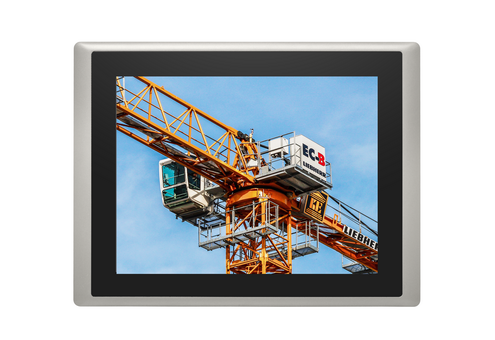

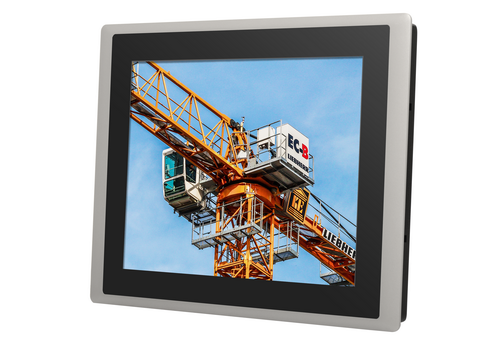

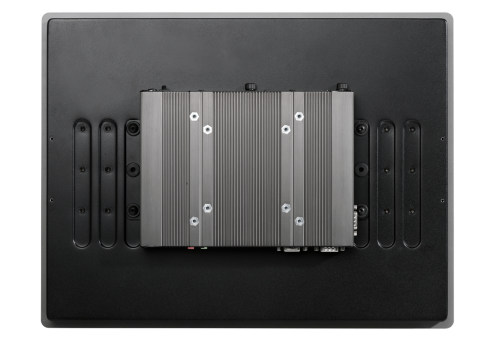

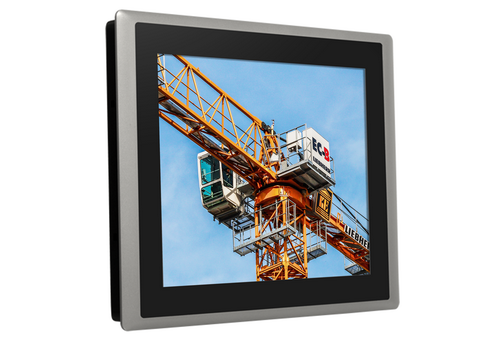

CS-115 / P1001E
15" TFT-LCD Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor
PRODUCTS FEATURES
- 15” TFT LCD with Ultra High Brightness up to 1,600 nits and 1024 x 768 (XGA) Resolution
- Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
- Supports 1x DDR3L SO-DIMM Socket, up to 8 GB
- 1x 2.5” SATA Drive Bay, 1x CFast Card and 1x SIM Card Socket
- 2x GbE LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
- 1x Mini-PCIe Expansion Socket for Wireless and I/O Expansion
- Wide Range Operating Temperature -20°C to 70°C
- Designed with Aluminum Die-casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports Panel / VESA / Rack Mounting
- Convertible Display System (CDS) Technology Supported
OVERVIEW
CS-115/P1000 Series is a 15" TFT-LCD sunlight readable touch panel PC offering 1,600 nits ultra high brightness and 1024 x 768 (XGA) resolution. The system is equipped with Intel® Atom® E3845 processor and provides extensive I/O including 2x GbE, 4x USB, 2x RS232/422/485, 4x DI/4x DO, 1x VGA and 1x DisplayPort. It also supports 1x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 2 types of storage devices including 2.5" SATA HDD and CFast. The accessible design of these storage devices allows quick data access and easy maintenance.
CS-115/P1000 Series supports Convertible Display System (CDS) technology. Comparing to regular standalon panel PCs, it can lower maintenance cost and reduce unplanned downtime.
Furthermore, CS-115/P1000 Series is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/water proof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.
CS-115/P1000 Series supports Convertible Display System (CDS) technology. Comparing to regular standalon panel PCs, it can lower maintenance cost and reduce unplanned downtime.
Furthermore, CS-115/P1000 Series is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/water proof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.
SPECIFICATION
Model Name | CS-115/P1001E | |
Model No. | CS-115C/P1001E | |
Display | LCD Size | 15" (4:3) |
Max. Resolution | 1024 x 768 | |
Brightness (cd/m2) | 1600 | |
Contrast Ratio | 800 : 1 | |
LCD Color | 16.2M | |
Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) | |
Viewing Angle (H-V) | 160 / 150 | |
Backlight MTBF | 50000 hrs (LED Backlignt) | |
Touch | Resistive 5-wire | - |
Projected Capacitive | V | |
Processor System | CPU | Intel Atom E3845 |
Core Number | 4 | |
Frequency | 1.91 GHz | |
Cache | 2 MB | |
Watts | 10W | |
Memory | Transfer Rate | DDR3L 1066/ 1333MHz (un-buffered and non-ECC) |
Max. Capacity | 8 GB | |
Socket | 1x 204-Pin SODIMM | |
Graphics | Chipset | Intel® HD Graphics |
Dual Display | VGA + DP VGA + CDS DP + CDS | |
Audio | Interface | Realtek ALC888-GR, High Definition Audio |
I/O Interface | VGA | 1x DB-15 connector, CH7517, Up to 1920x1080@60Hz |
DP | 1x DP connector, Up to 1920x1080@60Hz | |
LAN | 2x 10/100/1000 Mbps, RJ45 GbE1: Intel I210 GbE2: Intel I210 Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE | |
POE+ | - | |
Serial Port | 2x RS-232/422/485, DB9 Support 5V/12V | |
USB 3.0 | 1x USB 3.0, Type-A | |
USB 2.0 | 3x USB 2.0, Type-A | |
DIO | 4 in/4 out | |
Line-Out | 1x Phone Jack 3.5mm | |
Mic-In | 1x Phone Jack 3.5mm | |
Power on/off switch | V | |
Reset Button | V | |
AT/ATX Switch | V | |
Remote Power On/Off Connector | - | |
External FAN Connector | - | |
Storage | SSD/HDD | 1x Internal SATA port for 2.5” HDD/SSD |
mSATA | - | |
CFast | 1 | |
Expansion | PCI | - |
PCIe | - | |
CFM Interface (Control Function Module) | - | |
Mini PCI Express | 1x Full-size Mini PCIe | |
Universal I/O Bracket | 2 | |
SIM Socket | 1(internal) | |
Antenna Holes | 2 | |
Other Function | CDS Function | V |
OSD Function | LCD On/Off, Brightness Up/Down (With Display Module) | |
Power Ignition Sensing | - | |
Internal Speaker | AMP 2W + 2W | |
Super Cap | - | |
Instant Reboot | V | |
Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
Power Requirement | Power Type | AT/ATX |
Power Input Voltage | 9~48VDC | |
Connector | 3-pin Terminal Block | |
Power Adaptor | Optional AC/DC 12V/5A, 60W | |
Physical | Dimension (WxHxD) | 408 x 312.4 x 90.85 mm |
Weight Information | 5.9 kg | |
Construction Front Panel | Die-cast Flat Surface | |
Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |
Fanless Design | V | |
Cable-less Design | - | |
Jumper-less Design | - | |
Protection | Reverse Power Input Protection | V |
Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
Over Current Protection | 20A | |
ESD Protection | +/-8kV (air), +/-4kV (contact) | |
Operating Stystem | Windows | Windows® 10 Windows® 8.1 Windows® 7 |
Linux | Linux® Kernel 3.X | |
Environment | Operating Temperature | Ambient with air flow: -20°C to 70°C (with Industrial Grade Peripherals) |
StorageTemperature | -30°C to 80°C | |
Relative Humidity | 90% RH @ 40°C (Non-Condensing) | |
IP Level | IP 65 Compliant Front Panel | |
EMC | CE/ FCC Class A |
ORDERING INFORMATION
Available Models
Package Checklist
Optional Accessories
Optional Modules
Model No. | Product Description |
CS-115HC-R10/P1001E-R10 | 15" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor, P-Cap. Touch and 2x Universal I/O Bracket |
Package Checklist
√ Panel PC x 1 | √ Power Terminal Block Connector x 1 |
√ Panel Mounting Kit x 1 | √ HDD Screw Pack x 1 |
√ Utility DVD Driver x 1 | √ Mini PCIe Screw Pack x 1 |
√ DIO Terminal Block Connector x 1 |
Optional Accessories
Model No. | Description |
GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
Optional Modules
Model No. | Description |
MEC-COM-M212/UB0303 | Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets (65 x 16 mm) |
MEC-LAN-M002-R1/UB0311 | Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket (65 x 16 mm) |
MEC-USB-M002/UB0314 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket (65 x 16 mm) |
