CV-W121 / P1001E

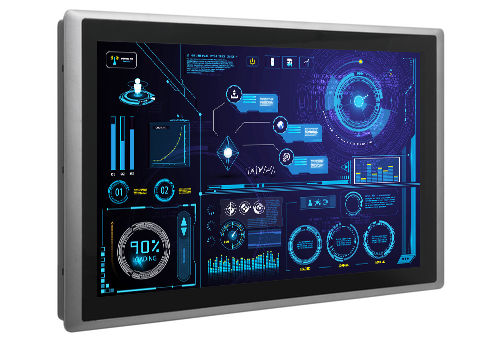

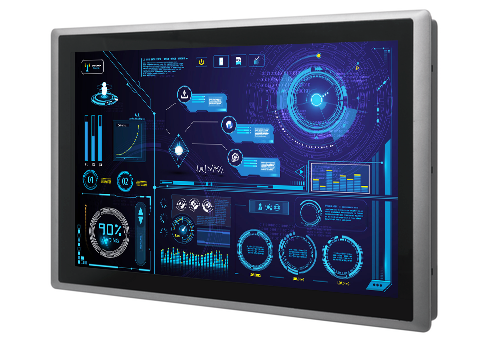

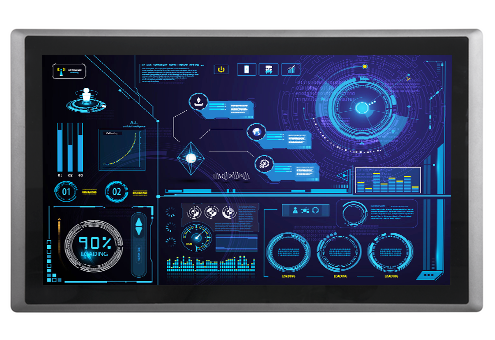

21.5" Intel® Atom E3845 Quad Core Processor Fanless Touch Panel PC with CDS Technology
PRODUCTS FEATURES
- 21.5" Full HD TFT-LCD with Resistive 5-wire Touch / Projected Capacitive Touch / Glass Only
- Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
- 1x DDR3L SO-DIMM Socket, Support Up to 8 GB
- Integrated Intel® HD Graphics Support Dual Display
- 1x 2.5” SATA HDD Bay, 1x CFast Socket and 1x SIM Card Socket
- IP65 Compliant Aluminum Die-Cast Front Frame
- 1x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
- Support CDS Technology for Easy Maintenance
- Rich I/O (2x GbE LAN, 2x COM, 4x USB, 8x Isolated DIO)
- Universal I/O Bracket Expandable Version Available (CV-W121/P1001E)
OVERVIEW
The 21.5" widescreen (16:9) all-in-one panel PC offers LED backlight LCD with resolution up to 1920 x 1080 (Full HD) and 300 nits brightness. CV-W121/P1000 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame with rugged body structure that can be able to apply in industrial applications. CV-W121/P1000 Series supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-W121/P1000 Series carries single touch function with resistive 5-wire touch screen, multi touch function with projected capacitive touch screen or glass screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-W121/P1000 Series offers extensive I/O including 4x USB, 2x RS-232/422/485, 1x VGA, 1x DisplayPort, 4x DI / 4xDO.
CV-W121/P1000 Series supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, they are 3 types of storage devices including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allow quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-W121/P1000 Series can be deployed and powered for various industrial applications.
CV-W121/P1000 Series supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, they are 3 types of storage devices including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allow quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-W121/P1000 Series can be deployed and powered for various industrial applications.
RESOURCES
SPECIFICATION
| Model Name | CV-W121/P1001E | |||
| Model No. | CV-W121R/P1001E | CV-W121C/P1001E | CV-W121G/P1001E | |
| Display | LCD Size | 21.5" (16:9) | ||
| Max. Resolution | 1920 x 1080 | |||
| Brightness (cd/m2) | 300 | |||
| Contrast Ratio | 5000 : 1 | |||
| LCD Color | 16.7M | |||
| Pixel Pitch (mm) | 0.24825 (H) x 0.24825 (V) | |||
| Viewing Angle (H-V) | 178 / 178 | |||
| Backlight MTBF | 50000 hrs (LED Backlignt) | |||
| Touch | Resistive 5-wire | V | - | - |
| Projected Capacitive | - | V | - | |
| Processor System | CPU | Intel Atom E3845 | ||
| Core Number | 4 | |||
| Frequency | 1.91 GHz | |||
| Cache | 2 MB | |||
| Watts | 10W | |||
| Memory | Transfer Rate | DDR3L 1066/ 1333MHz (un-buffered and non-ECC) | ||
| Max. Capacity | 8 GB | |||
| Socket | 1x 204-Pin SODIMM | |||
| Graphics | Chipset | Intel® HD Graphics | ||
| Dual Display | VGA + DP VGA + CDS DP + CDS | |||
| Audio | Interface | Realtek ALC888-GR, High Definition Audio | ||
| I/O Interface | VGA | 1x DB-15 connector, CH7517, Up to 1920x1080@60Hz | ||
| DP | 1x DP connector, Up to 1920x1080@60Hz | |||
| LAN | 2x 10/100/1000 Mbps, RJ45 - GbE1: Intel I210 - GbE2: Intel I210 Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE | |||
| POE+ | - | |||
| Serial Port | 2x RS-232/422/485, DB9 Support 5V/12V | |||
| USB 3.0 | 1x USB 3.0, Type-A | |||
| USB 2.0 | 3x USB 2.0, Type-A | |||
| DIO | 4 in/4 out | |||
| Line-Out | 1x Phone Jack 3.5mm | |||
| Mic-In | 1x Phone Jack 3.5mm | |||
| Power on/off switch | V | |||
| Reset Button | V | |||
| AT/ATX Switch | V | |||
| Remote Power On/Off Connector | - | |||
| External FAN Connector | - | |||
| Storage | SSD/HDD | 1x Internal SATA port for 2.5” HDD/SSD | ||
| mSATA | - | |||
| CFast | 1 | |||
| Expansion | PCI | - | ||
| PCIe | - | |||
| CFM Interface (Control Function Module) | - | |||
| Mini PCI Express | 1x Full-size Mini PCIe Socket for Wi-Fi / GSM / Expansion Module | |||
| Universal I/O Bracket | 2 | |||
| SIM Socket | 1(internal) | |||
| Antenna Holes | 2 | |||
| Other Function | CDS Function | V | ||
| OSD Function | LCD On/Off, Brightness Up/Down (With Display Module) | |||
| Power Ignition Sensing | - | |||
| Internal Speaker | AMP 2W + 2W | |||
| Super Cap | - | |||
| Instant Reboot | V | |||
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |||
| Power Requirement | Power Type | AT/ATX | ||
| Power Input Voltage | 9~48VDC | |||
| Connector | 3-pin Terminal Block | |||
| Power Adaptor | Optional AC/DC 12V/5A, 60W Power Adapter | |||
| Physical | Dimension (WxHxD) | 550 x 330.5 x 94.5 mm | ||
| Weight Information | 7.1 kg | |||
| Construction Front Panel | Die-cast Flat Surface | |||
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |||
| Fanless Design | V | |||
| Cable-less Design | - | |||
| Jumper-less Design | - | |||
| Protection | Reverse Power Input Protection | V | ||
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |||
| Over Current Protection | 20A | |||
| ESD Protection | +/-8kV (air), +/-4kV (contact) | |||
| Operating Stystem | Windows | Windows® 10 Windows® 8.1 Windows® 7 | ||
| Linux | Linux® Kernel 3.X | |||
| Environment | Operating Temperature | 0°C to 60°C (With extended temperature peripherals; Ambient with air flow According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) | ||
| StorageTemperature | -20°C to 60°C | |||
| Relative Humidity | 80% RH @ 40°C (Non-Condensing) | 80% RH @ 40°C (Non-Condensing) | 90% RH @ 40°C (Non-Condensing) | |
| IP Level | IP 65 Compliant Front Panel | |||
| EMC | CE, FCC Class A | |||
ORDERING INFORMATION
| Model No. | Product Description |
| CV-W121R/P1001E | 21.5" TFT Full HD 16:9 Panel PC with Resistive 5-wire Touch and Intel® Atom™ E3845 Quad Core PC Module, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 2x Universal Brackets |
| CV-W121C/P1001E | 21.5" TFT Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel® Atom™ E3845 Quad Core PC Module, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 2x Universal Brackets |
| CV-W121G/P1001E | 21.5" TFT Full HD 16:9 Panel PC without Touch and Intel® Atom™ E3845 Quad Core PC Module, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 2x Universal Brackets |
Package Checklist
| √Panel PC x 1 |
| √Utility DVD Driver x 1 |
| √Power Terminal Block Connector x 1 |
| √Screw Pack x 1 |
| √Panel Mounting Kit x 1 |
| √DIO Terminal Block Connector x 1 |
Optional Accessories
| Model No. | Description |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
