CV-112H / M1001

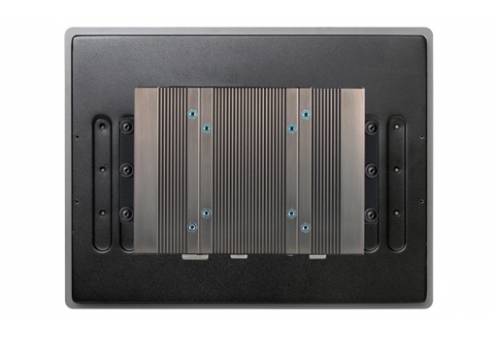

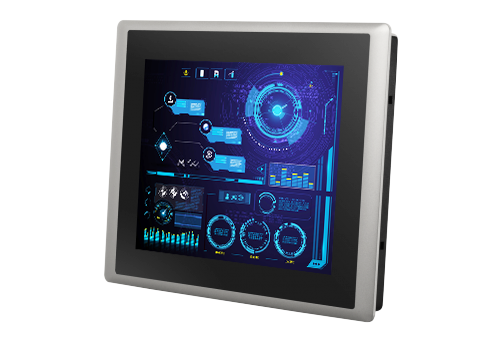

12.1" TFT XGA 4:3 Monitor with Touch (Resistive 5-wire / Projected Capacitive), 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
PRODUCTS FEATURES
- 12.1" TFT XGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
- Designed with Aluminum Die-Cast Front Frame
- 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
- IP 65 Compliant Front Panel
- Supports Panel / VESA / Rack Mounting
- Convertible Display System (CDS) Supported
- Built-in Two 5W Internal Speakers
OVERVIEW
The 12.1" touch monitor with resistive 5-wire / projected capacitive touch screen offers resolution up to 1024 x 768 (XGA) and 500 nits brightness. CV-112H/M1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. CV-112H/M1001 supports Convertible Display System (CDS) which allows to configure, upgrade and maintain your touch monitor easily.
CV-112H/M1001 supports both digital and analog signal input via three types of display interface: VGA, DVI-D and Display-Port. Touch screen can be connected with USB port and COM port. It has OSD function for adjusting the viewing options of display. With support to wide range power input from 9~48VDC, CV-112H/M1001 is designed as an ideal solution for industrial application.
CV-112H/M1001 supports both digital and analog signal input via three types of display interface: VGA, DVI-D and Display-Port. Touch screen can be connected with USB port and COM port. It has OSD function for adjusting the viewing options of display. With support to wide range power input from 9~48VDC, CV-112H/M1001 is designed as an ideal solution for industrial application.
SPECIFICATION
Model Name | CV-112H/M1001 | |||
Model No. | CV-112HR/M1001 | CV-112HC/M1001 | ||
Display | LCD Size | 12.1" (4:3) | ||
Max. Resolution | 1024 x 768 | |||
Brightness (cd/m2) | 500 | |||
Contrast Ratio | 700 : 1 | |||
LCD Color | 16.2M | |||
Pixel Pitch (mm) | 0.24 (H) x 0.24 (V) | |||
Viewing Angle (H-V) | 160 / 160 | |||
Backlight MTBF | 30000 hrs (LED Backlignt) | |||
Touch | Resistive 5-wire | V | - | |
Projected Capacitive | - | V | ||
System | A/D Board | Novatek NT68856UFG | ||
VGA Input | 1 | |||
DVI-D Input | 1 | |||
DisplayPort Input | 1 | |||
COM port | 1 | |||
USB 2.0 Input | 1 | |||
1 | ||||
Audio Input | ||||
Power Switch | 1 | |||
Other Features | Audio | AMP 5W + 5W (Internal Speaker) | ||
OSD Function | LCD On/Off, Auto, Menu, Up and Down Multi-language OSD | |||
Power | Power Requirement | 9~48VDC | ||
Connector | 3-pin Terminal Block | |||
Power Adaptor | Optional AC/DC 12V/5A, 60W | |||
Physical | Dimension (WxHxD) | 345 x 265.3 x 66.5 mm | ||
Weight Information | 4.28 kg | |||
Construction Front Panel | Die-cast Flat Surface | |||
Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |||
Fanless Design | V | |||
Operating System | Windows | Windows 10 Windows 8.1 Windows 7 | ||
Liunx | Kernel 3.x | |||
Environment | Operating Temperature | Ambient with air flow: -5°C to 60°C (with Industrial Grade Peripherals) | ||
Storage Temperature | -20°C to 75°C | |||
Relative humidity | 80% RH @ 40°C (Non-Condensing) | |||
IP Level | IP 65 Compliant Front Panel | |||
EMC | CE/ FCC Class A |
ORDERING INFORMATION
Available Models
Package Checklist
Optional Accessories
Model No. | Product Description |
CV-112HR/M1001 | 12.1" TFT SVGA 4:3 Monitor with Resistive 5-wire Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort |
CV-112HC/M1001 | 12.1" TFT SVGA 4:3 Monitor with Projected Capacitive Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort |
Package Checklist
CV-112/M1001 |
√ CV-112/M1001 Touch Monitor x 1 |
√ Panel Mounting Kit x 1 |
√ Utility DVD Driver x 1 |
√ Power Terminal Block Connector x 1 |
√ USB Cable x 1 |
√ VGA Cable x 1 |
√ Screw Pack x 1 |
Optional Accessories
Model No. | Description |
GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
DVI-D Cable | DVI-D male to DVI-D male Cable 1.8M |
SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
