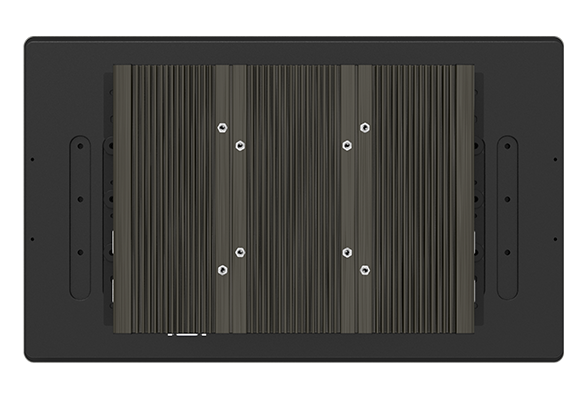

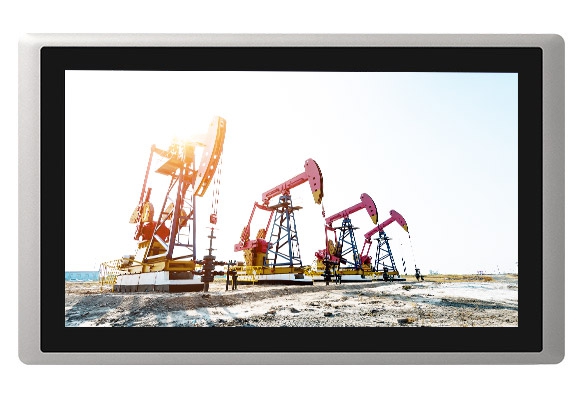

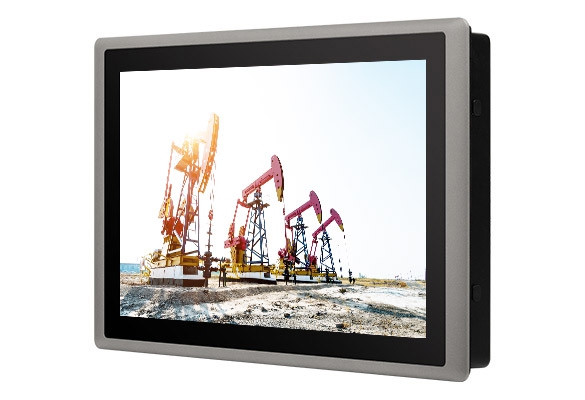

CS-W115FH / P2202 Series

15.6" TFT-LCD Full HD 16:9 Sunlight Readable Modular / Expandable Panel PC with 12th Gen. Intel® Core™ i5 / i3 Processor & Projected Capacitive Touch

PRODUCTS FEATURES

15.6" TFT-LCD 1920x1080 (Full HD) Resolution with Projected Capacitive Touch
Onboard Intel® Alder Lake-P U-Series Core™ Processor
2x DDR5 SO-DIMM Socket, Supports up to 4800MHz 64GB Memory
Ultra High Brightness up to 1,200 nits
Quad Independent Display (CDS / HDMI / DP / VGA)
1x M.2 Key E Type 2230 Socket for Storage/Wireless/Bluetooth/Intel CNVi Module Expansion
Designed with Aluminum Die-cast Front Bezel
Front Panel IP65 Compliant

OVERVIEW
SPECIFICATION
ORDERING INFORMATION
DOWNLOADS

OVERVIEW

High-Performance Sunlight Readable Panel PC (CS-100/P2000 Series)

The CS-100/P2202 series is a sunlight-readable high-performance panel PC that provides ultra-high brightness of up to 1,800 nits. It is equipped with an Intel® Core™ U-series (Alder Lake-P) processor that provides a complete selection of screen sizes, ratios, and brightnesses. Rich I/O, flexible expansion, rugged, easy on-site maintenance, and other features make the CS-100/P2202 series the best choice for outdoor kiosk or HMI applications.

Product Category >>>> Modular Panel PC & Industrial Monitor

Excellent Computing Performance

——

The CS-100/P2202 series is equipped with the 12th Gen Intel® Core™ i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 cores (2P+8E), and includes the built-in Intel® Iris Xe graphics to easily handle image classification inference performance in AI deep learning.

CDS Patented Technology

——

Cincoze Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.

Patent No. M482908

Complete Range of Sizes

——

The CS-100/P2202 series offers a variety of display options, with screen sizes from 12 to 24 inches, support for up to full HD resolution, high brightness up to 1,800 nits, and multi-point P-Cap touchscreen, which can be selected according to application needs.

Wide Temps, Safe, Reliable

——

In order to overcome the harsh outdoor environment and unpredictable climate, the CS-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range that beats the industry standard and an IP65 dustproof/water resistant front panel to ensure a high degree of product safety.

Video

NEED HELP ?

info@cincoze.com

SPECIFICATION

CS-W115FH

Model Name		CS-W115FH
Display	LCD Size	• 15.6" (16:9)
	Max. Resolution	• 1920 x 1080 (Full HD)
	Brightness (cd/m2)	• 1,200
	Contrast Ratio	• 800 : 1
	LCD Color	• 16.7M
	Pixel Pitch (mm)	• 0.17925 (H) x 0.17925 (V)
	Viewing Angle (H-V)	• 178 / 178
	Backlight LED Life Time	• 50,000 hrs (LED Backlight)
Touch Screen	Touch Type	• Projected Capacitive
Touch Screen	Wet Touch Tracking	V
Physical	Dimension (W x D x H)	• 420 x 254 x 66.2 mm
	Weight Information	• 3.58 kg
	Mechanical Construction	• Flat Rugged Aluminum Die-casting Bezel
Power	Power Consumption	• 25W (Max.)
Environment	Front Panel Protection	• IP 65 Compliant
	Operating Temperature	• -20°C to 70°C (-4°F to 158°F) (With Industrial Grade Peripherals; Ambient with air flow)
	Storage Temperature	• -40°C to 80°C (-40°F to 176°F)
	Relative Humidity	• 90% RH @ 40°C (non-condensing)
	EMC	• CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	• UL, cUL, CB, IEC, EN 62368-1

P2202 Series

Model Name		P2202	P2202E
System	Processor	• Onboard 12th Generation Intel® Alder Lake-P U-Series CPU: - Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W - Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W
	Memory	• 2x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 64GB
	BIOS	• AMI BIOS
Graphics	Graphics Engine	• Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE • Integrated Intel® UHD Graphics: Core™ i3-1215UE
	Maximum Display Output	• Supports Quad Independent Display
	CDS	• 1x CDS Connector (1920 x 1080 @60Hz)
	DP	• 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz
	HDMI	• 1x HDMI Connector (3840 x 2160 @30Hz)
	VGA	• 1x VGA Connector (1920 x 1200 @60Hz)
Audio	Audio Codec	Realtek® ALC888, High Definition Audio
	Line-out	1x Line-out, Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	• 2x 1GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210
	COM	• 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
	USB	• 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A
	DIO	• 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block
Storage	SSD/HDD	2x 2.5” SATA HDD/SSD Bay (SATA3.0)
Storage	RAID	Support RAID 0/1
Expansion	Mini PCI Express	2x Full-size Mini-PCIe Socket
	PCI Express	--	1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 169mm
	SIM Socket	• 1x SIM Socket
	M.2	• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Storage/Wireless/Bluetooth/Intel CNVi Module Expansion
	CFM (Control Function Module) Interface	• 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion
	CDS (Convertible Display System) Interface	• 1x CDS Interface for Convertible Display Module
Other Function	Clear CMOS Switch	• 1x Clear CMOS Switch
	Reset Button	• 1x Reset Button
	Watchdog Timer	• Software Programmable Supports 256 Levels System Reset
	OSD Button	• LCD On/Off, Brightness Up, Brightness Down
	Internal Speaker	• AMP 2W + 2W
	Status LED Indicator	• Power LED, HDD LED
Power	Power Button	• 1x ATX Power On/Off Button
	Power Mode Switch	• 1x AT/ATX Mode Switch
	Power Input	• 9 - 48VDC, 3-pin Terminal Block
	Remote Power On/Off	• 1x Remote Power On/Off, 2-pin Terminal Block
	Max. Power Consumption	• i5-1245UE CPU: 95.06W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing
	Inrush Current (Peak)	• i5-1245UE CPU: 5.381 A @ 24V
Operating Stystem	Windows	• Windows®11, Windows®10
Operating Stystem	Linux	• Ubuntu Desktop 22.04 LTS
Physical	Dimension ( W x D x H )	• 254.5 x 190 x 41.5 mm	• 254.5 x 190 x 61 mm
	Weight Information	• 2.22 kg	• 2.74 kg
	Mechanical Construction	• Extruded Aluminum with Heavy Duty Metal
	Mounting	• Wall / VESA / CDS / DIN Rail
	Physical Design	• Fanless Design • Jumper-less Design
Reliability & Protection	Reverse Power Input Protection	• Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	• 15A
	CMOS Battery Backup	• SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	• 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Environment	Operating Temperature	• -40°C to 70°C (-40°F to 158°F) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	• -40°C to 85°C (-40°F to 185°F)
	Relative Humidity	• 95%RH @ 70°C (non-Condensing)
	Shock	• Operating, 50 Grms (w/ SSD, according to IEC60068-2-27)
	Vibration	• Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
	EMC	• CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
	Safety	• UL, cUL, CB, IEC/EN 62368-1

ORDERING INFORMATION

Available Models
Model No.	Description
CS-W115FHC-R20/P2202-i5-R10	15.6" TFT-LCD 1200 nits Full HD Sunlight Readable Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch
CS-W115FHC-R20/P2202E-i5-R10	15.6" TFT-LCD 1200 nits Full HD Sunlight Readable Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch
CS-W115FHC-R20/P2202-i3-R10	15.6" TFT-LCD 1200 nits Full HD Sunlight Readable Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch
CS-W115FHC-R20/P2202E-i3-R10	15.6" TFT-LCD 1200 nits Full HD Sunlight Readable Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch

Model Configuration
	CS-W115FHC	P2202(i3/i5)	P2202E(i3/i5)
CS-W115FHC/P2202	V	V	--
CS-W115FHC/P2202E	V	--	V

Package Checklist
CS-W115FH/P2202 Series Panel PC x1	Thermal Pad x1
Power Terminal Block x1	Screw Pack x5
Remote Power On/Off Terminal Block Connector x1	Panel Mounting Kit x10
DIO Terminal Block Connector x2	DIN Rail Mounting Kit x1
PCI / PCIe Card Installation Kit x1 (For P2202E Only)

Optional Modules and Accessories
Model No.	Description
CFM-IGN101	CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable
CFM-PoE04	CFM Module with PoE Control Function, Individual Port 25.5W (For P2202 Only)
CFM-PoE05	CFM Module with PoE Control Function, Individual Port 25.5W (For P2202E Only)
RC-E4-02	Riser Card with 1x PCIe x4 Slot (For P2202E Only)
RC-PI-02	Riser Card with 1x PCI Slot (For P2202E Only)
MEC-COM-M212-TDB9	Mini-PCIe Module with 2x RS-232 Ports, 1x Thin DB9 Cable (For P2202E Only)
MEC-COM-M334-TDB9	Mini-PCIe Module with 4x RS-232/422/485 Ports, 2x Thin DB9 Cable (For P2202E Only)
MEC-USB-M102-30	Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable (For P2202E Only)
MEC-LAN-M102-30	Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P2202E Only)
UB1203	1x Universal Bracket with 2x DB9 Cutout (For P2202E Only)
UB1211	1x Universal Bracket with 2x RJ45 Cutout (For P2202E Only)
UB1214	1x Universal Bracket with 2x USB Cutout (For P2202E Only)
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST220A24-CIN	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI (For P2202E Only)
GST360A24-CIN	Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI

DOWNLOADS

Datasheet
Subject	Release Date	Download
CS-W115FH / P2202 Series Datasheet	2025/02/27	Download

Manual
Subject	Release Date	Download
CS-100 / P2202 Series User Manual	2025/10/08	Download

Driver
Subject	Release Date	Download
P2200 Series Driver - Audio	2023/11/30	Download
P2200 Series Driver - Chipset	2023/11/30	Download
P2200 Series Driver - COM Port	2023/11/30	Download
P2200 Series Driver - GNA	2023/11/30	Download
P2200 Series Driver - Graphic	2023/11/30	Download
P2200 Series Driver - LAN	2023/11/30	Download
P2200 Series Driver - Intel ME	2023/11/30	Download
P2200 Series Driver - RAID	2023/11/30	Download
