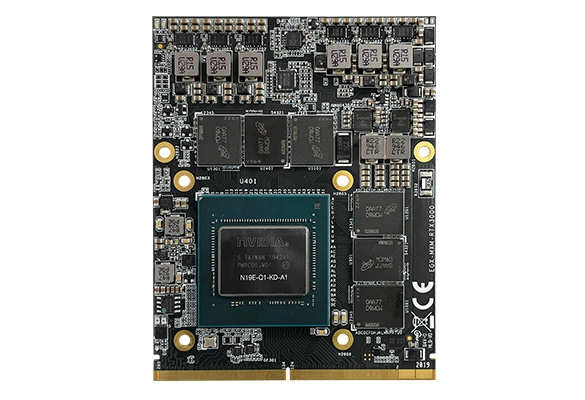

MXM-RTX3000
Nvidia Quadro Embedded RTX3000 MXM Kit with Heatsink and Thermal Pad
PRODUCTS FEATURES
- NVIDIA® Quadro® RTX3000 Embedded Graphics
- Standard MXM 3.1 Type B Form Factor (82 x 105 mm)
- 1920 NVIDIA® CUDA® Cores, 30 RT cores, and 240 Tensor Cores
- 5.3 TFLOPS Peak FP32 Performance
- 6GB GDDR6 Memory, 192-bit
- 5-year Availability
OVERVIEW
MXM-RTX3000 is an embedded MXM GPU module featuring NVIDIA® Quadro® GPU with advanced NVIDIA® Turing™ GPU technology in MXM 3.1 Type B form factor. It includes 1920 CUDA® cores, 30 RT cores and 240 Tensor cores, and supports 5.3 TFLOPS peak FP32 to bring high performance for edge computing and machine vision applications.
Product Category >>>> Embedded GPU Computer
Product Category >>>> Embedded GPU Computer
SPECIFICATION
| GPU | NVIDIA® Quadro® RTX3000 |
|---|---|
| Memory | 6GB GDDR6 memory, 192-bit (Bandwidth: 336 GB/s) |
| CUDA Cores | 1920 CUDA® cores, 5.3 TFLOPS Peak FP32 performance |
| Tensor Cores | 240 Tensor Cores |
| Compute API | CUDA Toolkit 8.0 and above, CUDA Compute version 6.1 and above, OpenCL™ 1.2 |
| Graphics API | DirectX® 12, OpenGL 4.6, Vulkan 1.0 API |
| Display Outputs | 4x DisplayPort 1.4b digital video outputs, 4K at 120Hz or 8K at 60Hz |
| Interface | MXM 3.1, PCI Express Gen3 x16 support |
| Dimensions | 82 (W) x 105 (D) x 4.8 (H) mm |
| Form Factor | Standard MXM 3.1 Type B |
| Power Consumption | 80W |
| OS Support | Windows 10, Linux support by project |
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| MXM-RTX3000-R10 | Nvidia Quadro Embedded RTX3000 MXM Kit with Heatsink and Thermal Pad |
| √ NVIDIA® Quadro® Embedded RTX3000 GPU card x 1 |
| √ GPU Heatsink x 1 |
| √ GPU Thermal Pad Kit x1 |
| √ Screw Pack x 1 |
