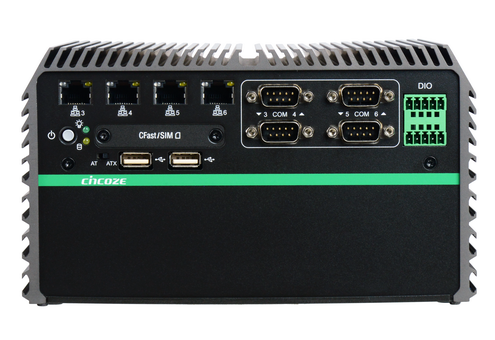

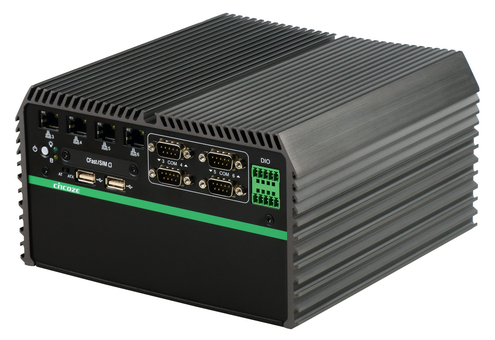

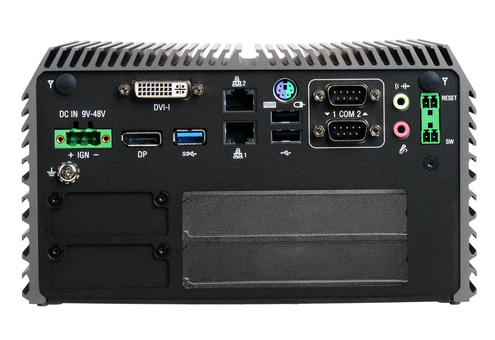

DE-1002P
Intel® Atom™ E3845 Quad Core Power Efficient Fanless Computer and 2x PCI/PCIex1 Expansion, 4x PoE and 2x LANs
PRODUCTS FEATURES
- Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
- 2x DDR3L SO-DIMM Max. up to 8GB
- Dual Independent Display from 1x DVI-I and 1x DisplayPort
- 4x PoE Port, 2x Intel® GbE Port, Support Wake-on-LAN and PXE
- 1x USB 3.0, 4x USB 2.0
- 6x RS232/422/485 Port with 5V/12V Power
- 4x Isolated DI, 4x Isolated DO
- 2x 2.5” SATA SSD/HDD Bay, 1x mSATA (Shared by Mini-PCIe Socket)
- 1x CFast Card and 1x SIM Card Socket
- 12~48VDC Power Input, Support AT/ATX Mode
- 2x Mini-PCIe Slot for Wi-Fi, GSM, or I/O Expansion
- 2x PCI or 2x PCIex1 Expansion
- Power Ignition Control
- Compliant with EN50155 for Rail Transportation Applications
OVERVIEW
DE-1000 Series Fanless Embedded PC supports Intel® Bay Trail platform, integrated with Intel® Atom™ E3845 Quad Core 1.91 GHz processor. Delivering the excellent quad-core processing power at only 10 watts power consumption, DE-1000 series is definitely an ideal solution for ultimate computing performance, energy efficiency, and superior reliability.
Designed with rich I/O, high flexibility and easy expansion capabilities, DE-1000 series is ideal for diverse industrial applications. It offers multiple I/O extension modules, including up to 2x PCI or 2x PCIe x1 slot for flexible integration of a variety of add-on cards; 2x mini-PCIe slot for GSM and WLAN wireless communication; it also supports three storage expansions: 2.5” SATA HDD, CFast and SIM card.
Supporting up to 6x LAN or 4x PoE versions, and power ignition function, DE-1000 series can meet various applications, such as: surveillance, in-vehicle, and industrial automation applications, etc.
DE-1000 series supports wide temperature range from -25°C to 70°C, wide range (9~48V) DC power input, power protection, cable free and one-piece housing design, as well as compliant with EN50155 certification for rail transportation applications; it is designed to ensure stable operation in robust and harsh environments.
Product Category >>>> Rugged Embedded Fanless PC
Product Category >>>> Rugged Embedded Fanless PC
SPECIFICATION
| Model Name | DE-1002P-EE | DE-1002P-PP | |
| Processor System | CPU | Intel® Atom™ E3845 | |
| Frequency | 1.91 GHz | ||
| Core Number | 4 | ||
| BIOS | AMI 64Mbit SPI | ||
| Chipset | - | ||
| Memory | Technology | DDR3L 1066 / 1333MHz (un-buffered and non-ECC) | |
| Max. Capacity | 8 GB | ||
| Socket | 2x 204-Pin SO-DIMM | ||
| Display | VGA | Yes (with optional split cable) | |
| DDI (HDMI/DVI/DisplayPort) | 1x DVI 1x DisplayPort | ||
| Multiple Display | Dual | ||
| Expansion | PCI | - | 2 |
| PCIe | 2 (PCIe x1) | - | |
| Mini PCIe | 2x Full-size Mini PCIe | 2x Full-size Mini PCIe | |
| Ethernet | Controller | GbE1: Intel® i210-IT GbE2: Intel® i210-IT Support Wake-on-LAN and PXE | |
| GbE3: Intel® 82583V GbE4: Intel® 82583V GbE5: Intel® 82583V GbE6: Intel® 82583V Support Wake-on-LAN | |||
| PoE | 4x 802.3af compliant PoE ports The Maximum DC power Delivery on Each PoE is 25W@DC 56V Input | ||
| Speed | 10/100/1000 Mbps | ||
| Audio | Codec | Realtek ALC888S | |
| Connector | 1x Mic-in, 1x Line-out | ||
| WatchDog Timer | Software Programmable Supports 256 Levels System Reset | ||
| Storage | SSD / HDD | 2x 2.5" SATA HDD Bay | |
| mSATA | 1x mSATA (shared by Mini-PCIe socket) | ||
| CompactFlash/CFast | 1x CFast | ||
| SIM Socket | 1 | ||
| I/O Ports | USB 3.0 | 1 | |
| USB 2.0 | 4 | ||
| DIO | 4 in/4 out | ||
| COM Port | 6x RS-232/422/485 | ||
| PS/2 | 1x KB/MS | ||
| Antenna Hole | 2 | ||
| Power Switch | 1 | ||
| AT/ATX Switch | 1 | ||
| External Fan Connector | - | ||
| Remote Power On/Off and Remote Power Reset | Yes | ||
| Universal I/O Bracket | 2 | ||
| Power | Power Type | AT, ATX | |
| Power Supply Voltage | 9~48VDC | ||
| Connector | 3-pin Terminal Block | ||
| Power Adaptor | Optional AC/DC 24V/5A, 120W | ||
| Environment | Operating Temperature | Ambient with air flow: -25°C to 70°C (with Industrial Grade Peripherals) | |
| Storage Temperature | -30°C to 85°C | ||
| Relative Humidity | 10%~95% (non-condensing) | ||
| Physical | Dimension (WxDxH) | 203 x 200 x 114.5 mm | |
| Weight | 3.66 kg | ||
| Construction | Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | Wall | ||
| Operating System | Microsoft® Windows® | • Windows® 10 • Windows® 8 • Windows® Embedded 8 Standard • Windows® 7 • Windows® Embedded Standard 7 | |
| Linux® | Supports By Project | ||
| Regulations | Safety Certifications | • CE • FCC Class A • EN 50155 • EN 50121-3-2 | |
ORDERING INFORMATION
Available Models
| Model No. | Product Description |
| DE-1002P-EE | Intel® Atom™ E3845 Quad Core Power Efficient Fanless Computer with 2x PCIe x1 Expansion, 4 PoE and 2x LAN |
| DE-1002P-PP | Intel® Atom™ E3845 Quad Core Power Efficient Fanless Computer with 2x PCI Expansion, 4 PoE and 2x LAN |
Package Checklist
DE-1002P |
| √ DE-1002P Embedded System x 1 |
| √ Utility DVD Driver x 1 |
| √ DIO Terminal Block Connector x 2 |
| √ Power Terminal Block Connector x 1 |
| √ Remote Power Terminal Block Connector x 2 |
| √ DVI-I to VGA Adapter x 1 |
| √ Screw Pack x 1 |
| √ Wall Mount Kit x 1 |
Optional Accessories
| Model No. | Description |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, Level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M |
| VESA-DE | DE series VESA Mount Kit |
| SIDE-DE | DE series SIDE Mount Kit |
| DINRAIL | Diamond series DIN-RAIL Mount Kit |
