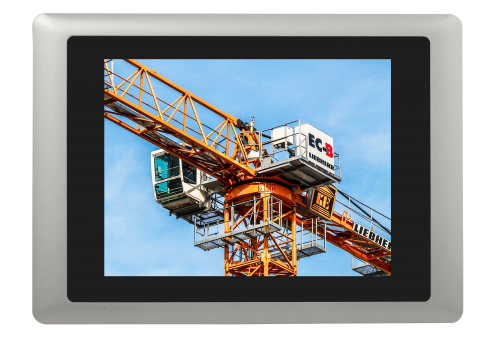

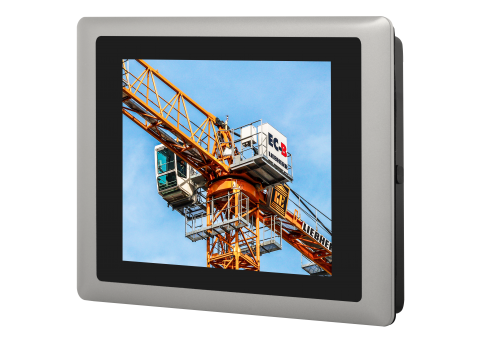

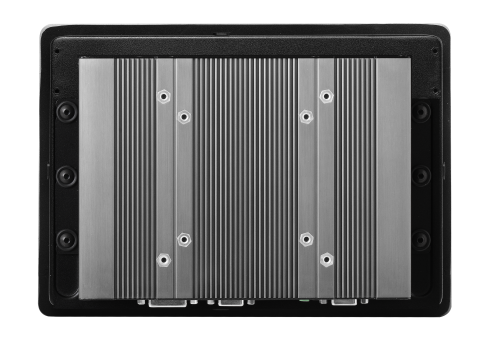

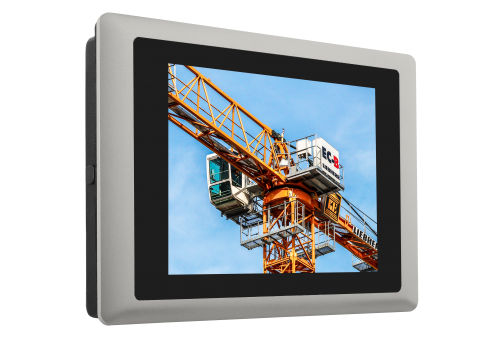

CS-108 / M1001

8.4" TFT-LCD Sunlight Readable Touch Monitor

PRODUCTS FEATURES
  • 8.4” TFT-LCD with Ultra High Brightness up to 1,600 nits and 800 x 600 (SVGA) Resolution
  • Signal Input: VGA, DVI-D and DisplayPort
  • Wide Range Operating Temperature -5°C to 60°C
  • Designed with Aluminum Die-casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
  • Wide Range Power Input 9~48VDC
  • Convertible Display System (CDS) Technology Supported
OVERVIEW
CS-108/M1001 Series is a 8.4” TFT-LCD sunlight readable touch monitor offering 1,600 nits ultra high brightness and 800 x 600 (SVGA) resolution. It supports both digital and analog signal input via three types of display interface, including VGA, DVI-D and DisplayPort. CS-108/M1001 Series supports Convertible Display System (CDS) technology which allows you to configure, upgrade and maintain your display system according to your need. In addition, it has OSD function for adjusting the viewing options of display.
Featuring wide range operating temperature (-5°C to 60°C), IP65 dust/
water proof front panel and wide range DC power input (9 to 48VDC), CS-108/M1001 Series is a rugged and reliable display solution for outdoor applications, such as heavy-duty lifting & moving equipment, e-toll collection system, car-sharing system and outdoor kiosk.
SPECIFICATION
Model NameCS-108/M1001
Model No.CS-108C/M1001
DisplayLCD Size8.4" (4:3)
Max. Resolution800 x 600
Brightness (cd/m2)1600
Contrast Ratio600 : 1
LCD Color16.2M
Pixel Pitch (mm)0.213 (H) x 0.213 (V)
Viewing Angle (H-V)160 / 140
Backlight MTBF50000 hrs (LED Backlignt)
TouchResistive 5-wire-
Projected CapacitiveV
PowerConnector3-pin Terminal Block
Power  Requirement9~48VDC
Power AdaptorOptional AC/DC 12V/5A, 60W
I/O PortVGA Input1
DVI-D Input1
DisplayPort Input1
Audio Input1
COM Input1
USB 2.0 Input1
AMP 5W + 5W (Internal Speaker)
Other FeaturesAudio
OSD FunctionLCD On/Off, Auto, Menu, Up and Down
Multi-language OSD
PhysicalDimension (WxHxD)262 x 186 x 66 mm
Weight Information2.70 kg
Construction Front PanelRugged Aluminum Die-casting Bezel
MountingPanel / VESA / *Rack Mounting (*with optional mounting kit)
EnvironmentOperating TemperatureAmbient with air flow: -5°C to 60°C
(with Industrial Grade Peripherals)
Storage Temperature-20°C to 70°C
Relative humidity85% RH @ 40°C (Non-Condensing)
ShockOperating, 15 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
VibrationOperating, 1.5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
IP LevelIP 65 Compliant Front Panel
EMCCE/ FCC Class A
Operating SystemWindowsWindows® 10
Windows® 8.1
Windows® 7
LiunxKernel 3.x
CertificationSafety Certifications• CE
• FCC Class A
ORDERING INFORMATION
Available Models
Model No.Product Description
CS-108C-R10/M1001-R128.4" TFT-LCD 1600 nits Sunlight Readable Touch Monitor with P-Cap. Touch

Package Checklist
CS-108/M1001
√ CS-108/M1001 Touch Monitor x 1
√ Panel Mounting Kit x 1
√ Utility DVD Driver x 1
√ Power Terminal Block Connector x 1
√ USB Cable x 1
√ VGA Cable x 1
√ Screw Pack x 1

Optional Accessories
Model No.Description
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
DVI-D CableDVI-D male to DVI-D male Cable 1.8M
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor

DOWNLOADS
Datasheet
SubjectRelease DateDownload
CS-108 / M1001 Datasheet2019/02/15Download
Manual
SubjectRelease DateDownload
CS-100 / M1000 Series Manual2022/03/03Download
