CS-117 / M1001

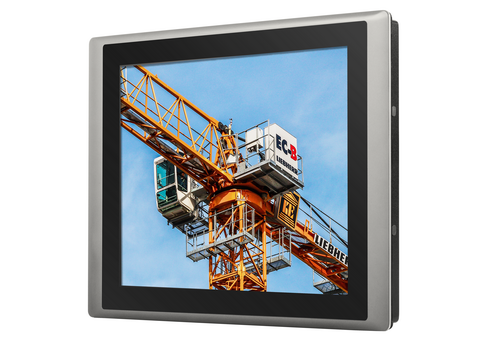

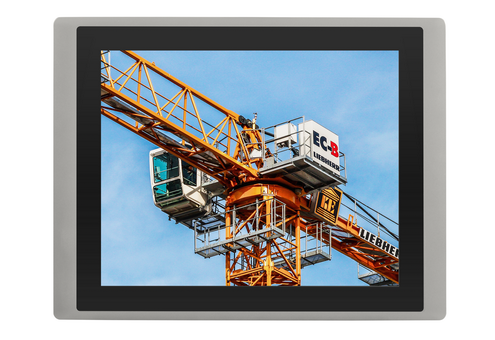

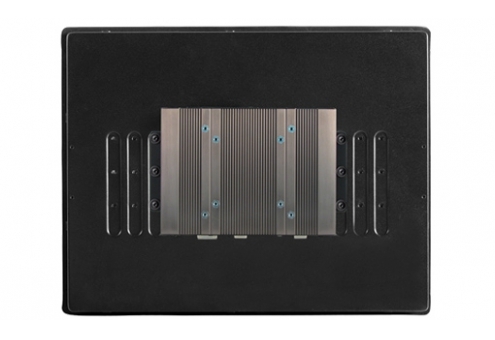

17" TFT-LCD Sunlight Readable Touch Monitor
PRODUCTS FEATURES
- 17” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1280 x 1024 (SXGA) Resolution
- Signal Input: VGA, DVI-D and DisplayPort
- Wide Range Operating Temperature -5°C to 60°C
- Designed with Aluminum Die-casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports Panel / VESA / Rack Mounting
- Wide Range Power Input 9~48VDC
- Convertible Display System (CDS) Technology Supported
OVERVIEW
CS-117/M1001 Series is a 17” TFT-LCD sunlight readable touch monitor offering 1,500 nits ultra high brightness and 1280 x 1024 (SXGA) resolution. It supports both digital and analog signal input via three types of display interface, including VGA, DVI-D and DisplayPort. CS-117/M1001 Series supports Convertible Display System (CDS) technology which allows you to configure, upgrade and maintain your display system according to your need. In addition, it has OSD function for adjusting the viewing options of display.
Featuring wide range operating temperature (-5°C to 60°C), IP65 dust/water proof front panel and wide range DC power input (9 to 48VDC), CS-117/M1001 Series is a rugged and reliable display solution for outdoor applications, such as heavy-duty lifting & moving equipment, e-toll collection system, car-sharing system and outdoor kiosk.
Featuring wide range operating temperature (-5°C to 60°C), IP65 dust/water proof front panel and wide range DC power input (9 to 48VDC), CS-117/M1001 Series is a rugged and reliable display solution for outdoor applications, such as heavy-duty lifting & moving equipment, e-toll collection system, car-sharing system and outdoor kiosk.
RESOURCES
SPECIFICATION
| Model Name | CS-117/M1001 | |
| Model No. | CS-117C/M1001 | |
| Display | LCD Size | 17" (5:4) |
| Max. Resolution | 1280 x 1024 | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 800 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.264 (H) x 0.264 (V) | |
| Viewing Angle (H-V) | 160 / 140 | |
| Backlight MTBF | 50000 hrs (LED Backlignt) | |
| Touch | Resistive 5-wire | - |
| Projected Capacitive | V | |
| Power | Connector | 3-pin Terminal Block |
| Power Requirement | 9~48VDC | |
| Power Adaptor | Optional AC/DC 12V/5A, 60W | |
| I/O Port | VGA Input | 1 |
| DVI-D Input | 1 | |
| DisplayPort Input | 1 | |
| Audio Input | 1 | |
| COM Input | 1 | |
| USB 2.0 Input | 1 | |
| AMP 5W + 5W (Internal Speaker) | ||
| Other Features | Audio | |
| OSD Function | LCD On/Off, Auto, Menu, Up and Down Multi-language OSD | |
| Physical | Dimension (WxHxD) | 450 x 350 x 73 mm |
| Weight Information | 6.76 kg | |
| Construction Front Panel | Rugged Aluminum Die-casting Bezel | |
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |
| Environment | Operating Temperature | Ambient with air flow: -5°C to 60°C (with Industrial Grade Peripherals) |
| Storage Temperature | -20°C to 70°C | |
| Relative humidity | 80% RH @ 40°C (Non-Condensing) | |
| Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| IP Level | IP 65 Compliant Front Panel | |
| EMC | CE/ FCC Class A | |
| Operating System | Windows | Windows® 10 Windows® 8.1 Windows® 7 |
| Liunx | Kernel 3.x | |
| Certification | Safety Certifications | • CE • FCC Class A |
ORDERING INFORMATION
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| CS-117C-R10/M1001-R12 | 17" TFT-LCD 1500 nits Sunlight Readable Touch Monitor with P-Cap. Touch |
Package Checklist
| CS-117/M1001 |
| √ CS-117/M1001 Touch Monitor x 1 |
| √ Panel Mounting Kit x 1 |
| √ Utility DVD Driver x 1 |
| √ Power Terminal Block Connector x 1 |
| √ USB Cable x 1 |
| √ VGA Cable x 1 |
| √ Screw Pack x 1 |
Optional Accessories
| Model No. | Description |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| DVI-D Cable | DVI-D male to DVI-D male Cable 1.8M |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
