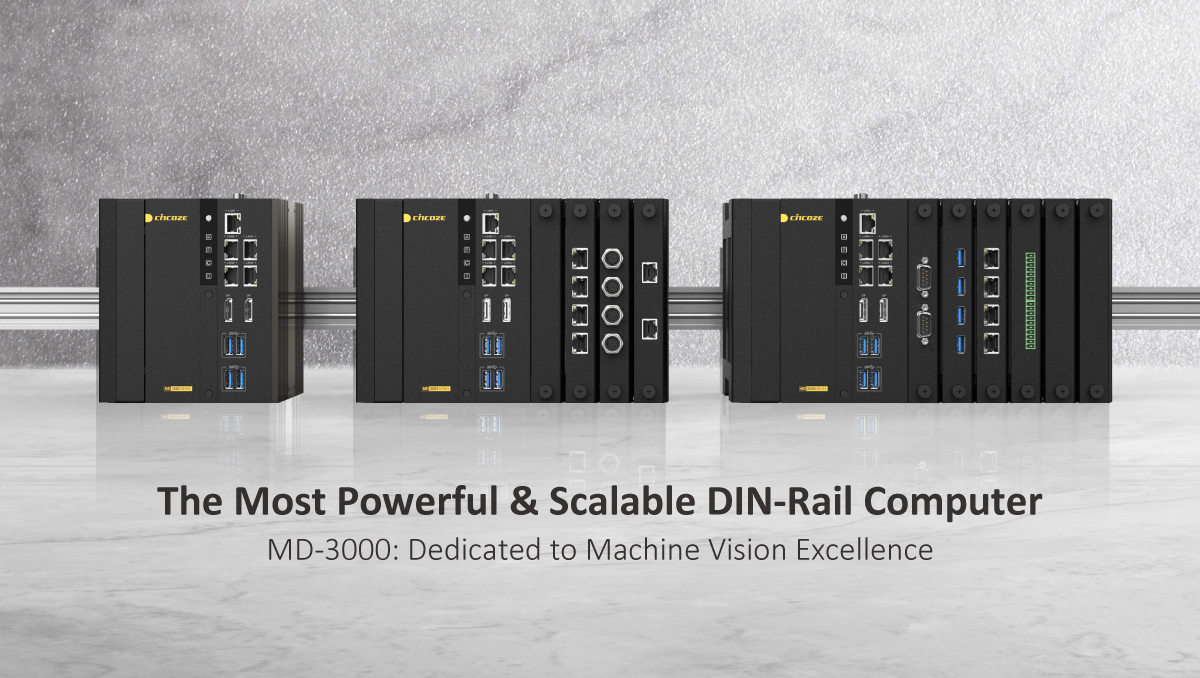

Cincoze High-Performance Scalable DIN-Rail Embedded Computer (MD-3000 Series)
The new Cincoze Machine Computing – MAGNET product line are DIN-Rail embedded computers designed for machine vision applications installed at the machine level. The MD-3000 series, the flagship model, offers high performance, a compact design, and robust modular expansion. The platform enhances computing efficiency and stability in smart manufacturing environments, supporting Edge AI machine vision applications, including vision-guided robotics, quality inspection, and precision measurement.
High-End Hardware Performance
Supports up to 14th Gen Intel® Core™ CPU (35–65W). Up to 96GB of 5600MHz DDR5 memory with ECC error correction support. Dual M.2 Key M slots for NVMe SSDs, meeting the demand for high-speed, large-capacity storage.
DIN-Rail Mounting
Standard DIN-Rail mounting combined with a front-facing operation interface is specially designed for the enclosures and cabinets of workstations and equipment, enabling easy deployment and maintenance.
Compact Form Factor
With a body height of only 150mm, its size is similar to a PLC, allowing for easy installation in space-constrained environments such as control cabinets and equipment boxes.
Flexible Expansion
Supports expansion with plug-and-play I/O, PoE, M.2, and 2.5-inch storage modules, providing flexible application upgrades or function additions.
Why choose Cincoze MD-3000 series?

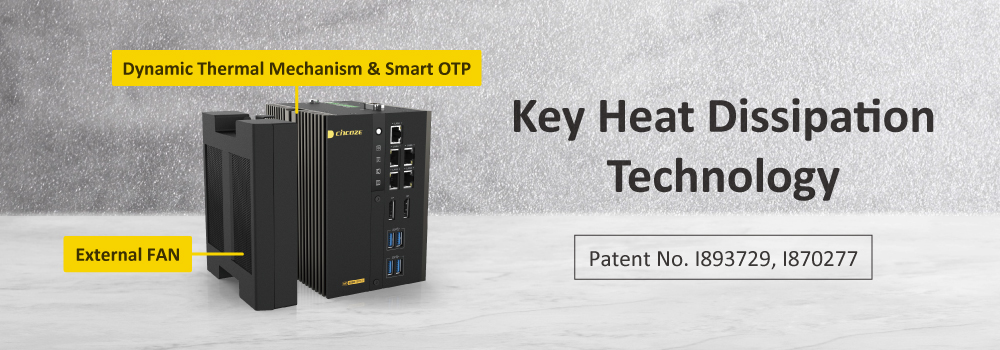

Supporting superior performance with patented technology
Two advanced heat dissipation designs maintain high computing performance. The patented Dynamic Thermal Mechanism improves thermal conductivity by ensuring close contact between the CPU heat sink and the top cover. External fans dissipate heat efficiently while preventing dust ingress. The patented Smart OTP (Over Temperature Protection) monitors fan status and adjusts operation to ensure continuous CPU performance. (Patents I893729, I870277)

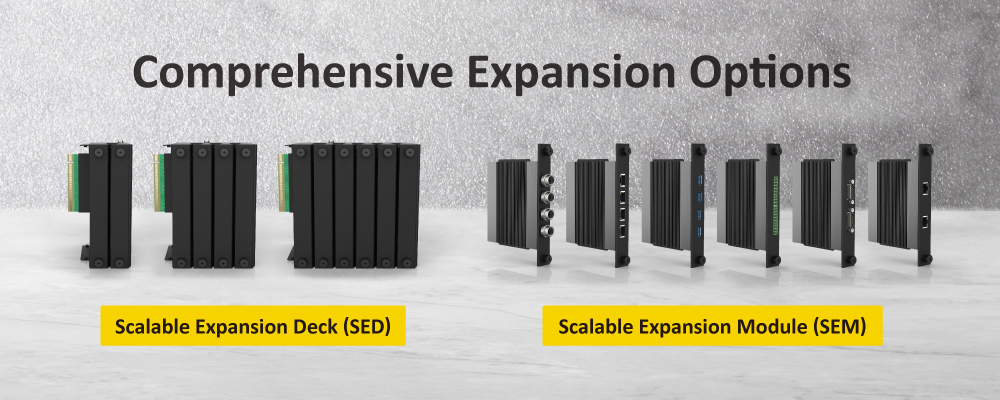

All-inclusive expansion options
The MD-3000 features a modular design with three main components: the computer, SED (Scalable Expansion Deck), and SEM (Scalable Expansion Module). Users can select a 2-, 4-, or 6-slot SED and choose from over ten SEMs, supporting various I/O interfaces, PoE, M.2 slots, and 2.5-inch storage devices.

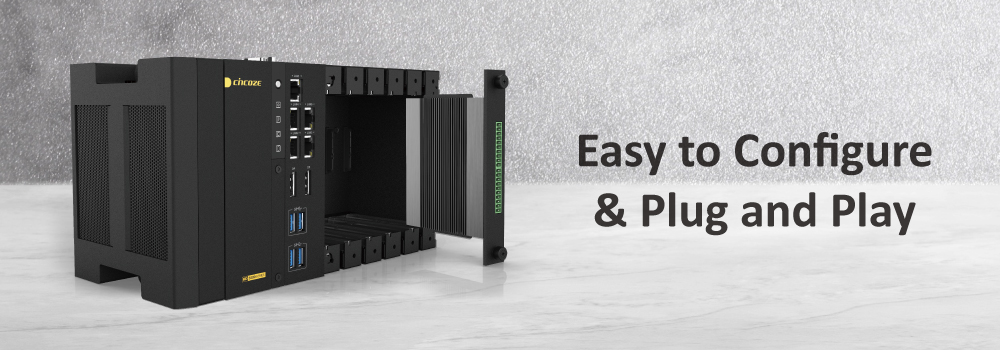

Quick installation, easy maintenance
The user-centric design emphasizes simplicity and speed. All SEMs include a guiding rail alignment design for quick, tool-free installation. These features simplify deployment and reduce maintenance time.

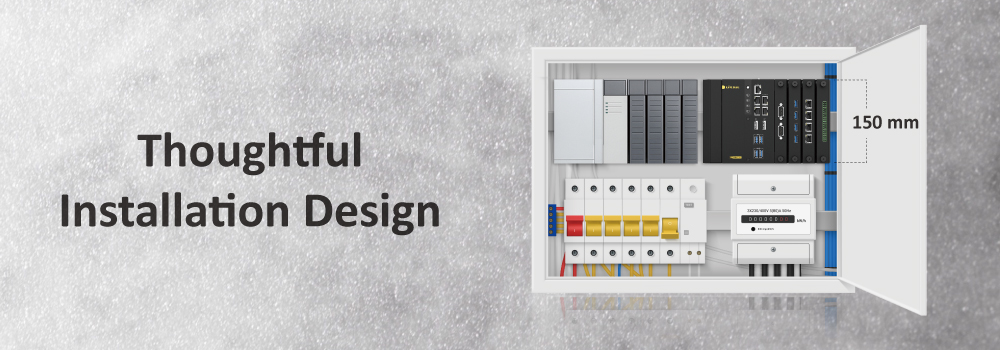

Ideal for enclosures and cabinets
The MD-3000’s compact design with a height of only 150mm addresses space constraints in enclosures and cabinets. Maintenance areas and interfaces are located on the front panel for easier access. The system meets industrial environment EMC standards (EN 61000-6-2 and 6-4), ensuring stable and reliable operation in complex industrial environments.
Cincoze High-Performance Scalable DIN-Rail Embedded Computer
| Model |  MD-3000 |  MD-3000+SED-201 |  MD-3000+SED-401 | MD-3000+SED-402 |  MD-3000+SED-601 | |
| CPU | 14/13/12th Gen Intel® Core™ processors (35–65W) | |||||
| Memory | 2x DDR5 SO-DIMM socket, up to 96GB 5600 MHz, ECC type | |||||
| SED | -- | 2-Slots | 4-Slots | 4-Slots | 6-Slots | |
| SEMs | I/O | -- | v | v | v | v |
| PoE | -- | v | v | v | v | |
| M.2 | -- | v | v | v | v | |
| M.2 storage | -- | -- | -- | v | v | |
