Produkt
- Leistungsstarke Open Frame Panel PCs (CO-100/P2000 Serie)
- Energiesparende Open Frame Panel PCs (CO-100/P1000 Serie)

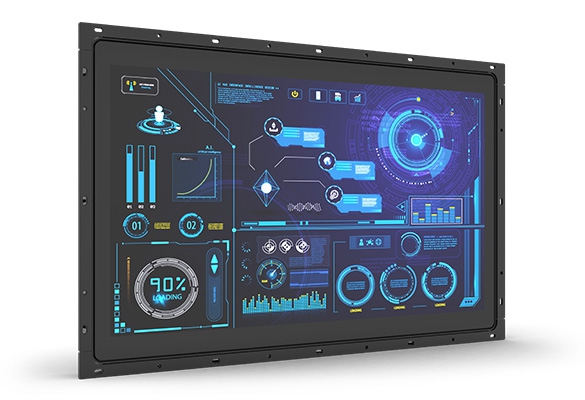

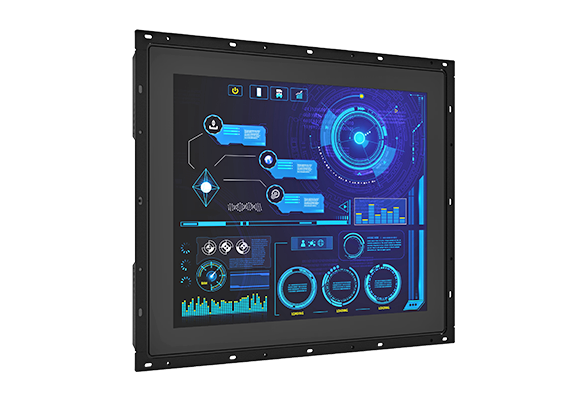

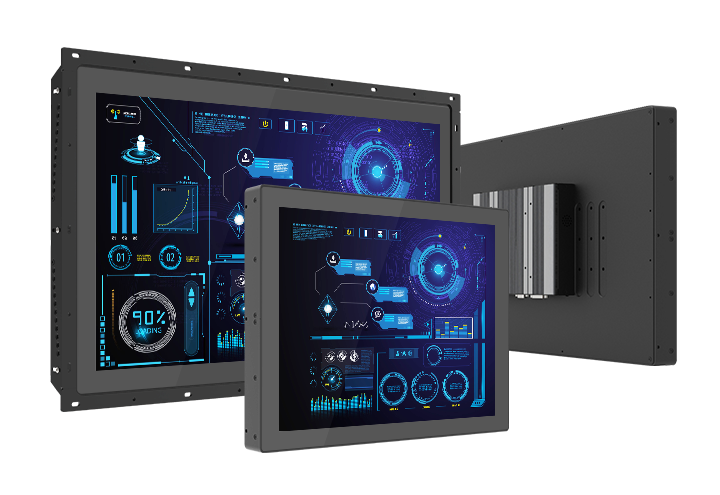

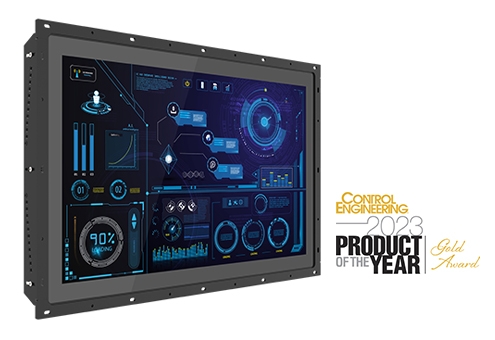

Leistungsstarke Open Frame Panel PCs (CO-100/P2000 Serie)
Die leistungsstarken modularen Open-Frame-Panel-PCs von Cincoze (Serie CO-100/P2000) verwenden Intel® Core U-Prozessoren, die leistungsstarke Datenverarbeitungs- und Grafikberechnungsfunktionen bei einem geringen Stromverbrauch von nur 15 W bieten. Die CO-100/P2000-Serie unterstützt die CFM-Technologie, die die Systemfunktionen je nach Bedarf erweitert, mit Optionen wie Power Ignition Sensing (IGN) und Power over Ethernet (PoE). Die Serie verfügt über mehrere Größen, Anzeigeformate (5:4 und 16:9) und Touchscreen-Optionen. Die integrierte Struktur, die exklusive, verstellbare Montagehalterung und die Unterstützung mehrerer Befestigungsmethoden ermöglichen eine perfekte Anpassung an Schränke aus unterschiedlichen Materialien und mit unterschiedlichen Stärken. Das robuste Design erfüllt auch die Anwendungsanforderungen in rauen Industrieumgebungen.Produkt | Modell Name | Display | CPU | I/O | Erweiterung |
---|---|---|---|---|---|
NEW ![]() | CO-119C / P2302 Series | 19" TFT 1280x1024 (5:4) | Intel Meteor Lake PS Core Ultra 3/5/7 Processor | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 2 x USB 3.2 Gen2x1 (10Gbps) 1 x USB 3.2 Gen1x1 (5Gbps) 1 x USB 2.0 (480Mbps) 4x COM 16x DIO | 1x M.2 Key E Type 2230 Socket 1x M.2 Key B Type 3042/3052 Socket 1x M.2 Key B Type 2242 Socket |
![]() | CO-119C / P2202 Series | 19" TFT 1280x1024 (5:4) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
![]() | CO-119C / P2102 Series | 19" TFT 1280x1024 (5:4) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
![]() | CO-119C / P2002 Series | 19" TFT 1280x1024 (5:4) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
NEW ![]() | CO-W121C / P2302 Series | 21.5" TFT 1920x1080 (16:9) | Intel Meteor Lake PS Core Ultra 3/5/7 Processor | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 2 x USB 3.2 Gen2x1 (10Gbps) 1 x USB 3.2 Gen1x1 (5Gbps) 1 x USB 2.0 (480Mbps) 4x COM 16x DIO | 1x M.2 Key E Type 2230 Socket 1x M.2 Key B Type 3042/3052 Socket 1x M.2 Key B Type 2242 Socket |
![]() | CO-W121C / P2202 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
![]() | CO-W121C / P2102 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
![]() | CO-W121C / P2002 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
NEW ![]() | CO-W124C / P2302 Series | 24" TFT 1920x1080 (16:9) | Intel Meteor Lake PS Core Ultra 3/5/7 Processor | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 2 x USB 3.2 Gen2x1 (10Gbps) 1 x USB 3.2 Gen1x1 (5Gbps) 1 x USB 2.0 (480Mbps) 4x COM 16x DIO | 1x M.2 Key E Type 2230 Socket 1x M.2 Key B Type 3042/3052 Socket 1x M.2 Key B Type 2242 Socket |
![]() | CO-W124C / P2202 Series | 24" TFT 1920x1080 (16:9) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
![]() | CO-W124C / P2102 Series | 24" TFT 1920x1080 (16:9) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
![]() | CO-W124C / P2002 Series | 24" TFT 1920x1080 (16:9) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
