DI-1100
Intel® 第八代 Core™ 系列處理器，高效且節能的強固型電腦
產品特點
- Intel® 第八代 Core™ Ui7/i5/i3 處理器 (TDP 15W)

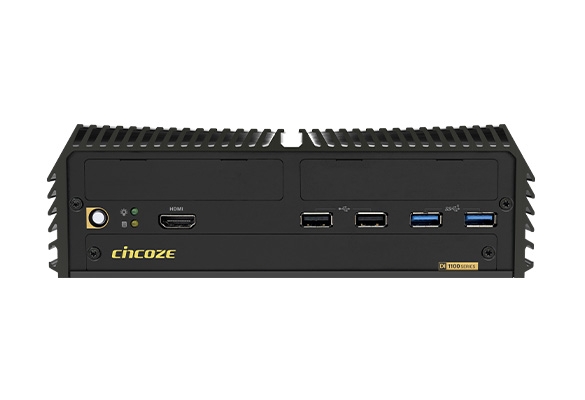

- 前維護區 1x 可熱插拔 2.5” HDD / SSD 托盤，可加速儲存硬碟快速抽取。支援 1x mSATA 插槽
- 2 x 全尺寸 Mini PCIe 插槽，增添多元擴充性
- 2 x 前置 SIM 卡插槽，確保行動數據傳輸不間斷
- I/O 擴充 CMI 模組 (選配) : 支援 2x 10 GbE LAN、M12 A-coded 及 X-coded 接頭
- 功能擴充的 CFM 模組 (選配) : 支援 power ignition sensing、4x PoE
- 寬工作溫度 -40°C 至 70°C
- 通過MIL-STD-810G、E-mark、EN50155（EN 50121-3-2 only）認證
產品介紹

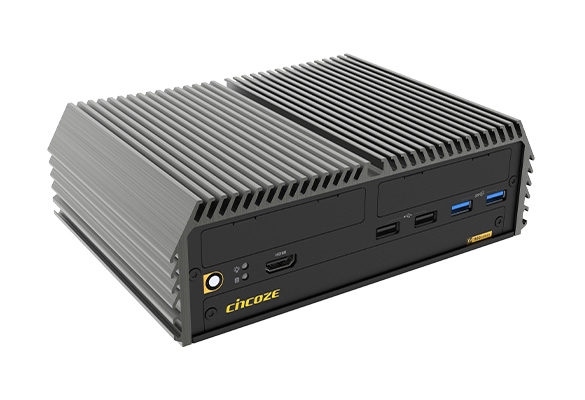

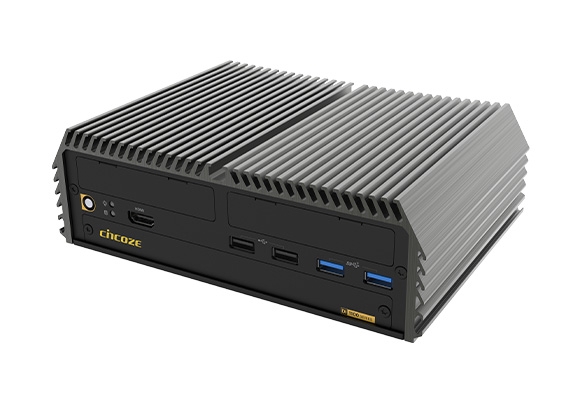

體積外型緊湊的 DI-1100 具備了高效能、豐富的 I/O 和擴充的靈活性。DI-1100 搭載第 8 代 Intel® Core™ U 系列處理器（Whiskey Lake），在提供卓越性能的同時也擁有 15W TDP 的低功耗優勢。在緊湊外型下蘊含豐富 I/O 介面和支援功能擴充選項，可滿足狹小空間中對高效能強固嵌入式電腦的需求，最適合工業自動化、倉儲物流、交通、安全監控以及物聯網等應用。
高效能、低功耗
——
DI-1100 採用第 8 代 Intel® Core™ U 系列 i7/i5/i3 處理器，其卓越的運算效能，輕鬆滿足對於圖形和運算的要求，面對物聯網時代各式週邊數據串聯匯整的應用也游刃有餘。僅 15W TDP的超低功耗，非常適合受電池容量限制的移動式設備。
小而緊湊
——
DI-1100 外形緊湊，尺寸僅 203 mm (W) x 142 mm (D) x 66.8 mm (H)，無論是安裝在移動設備（自動導引車AGV、自主移動機器人AMR）、封閉狹小的車內空間或是工廠端的小型機箱中都是非常理想的選擇。
豐富的工業 I/O 和功能
——

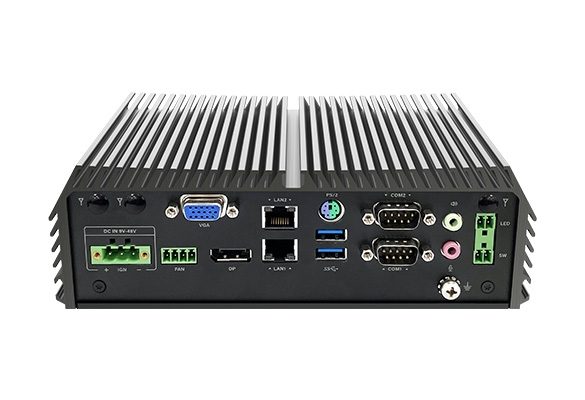

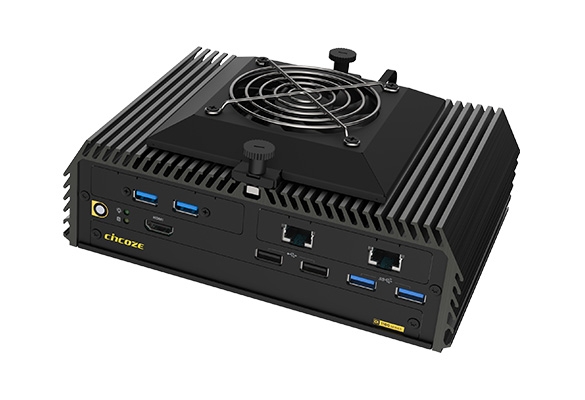

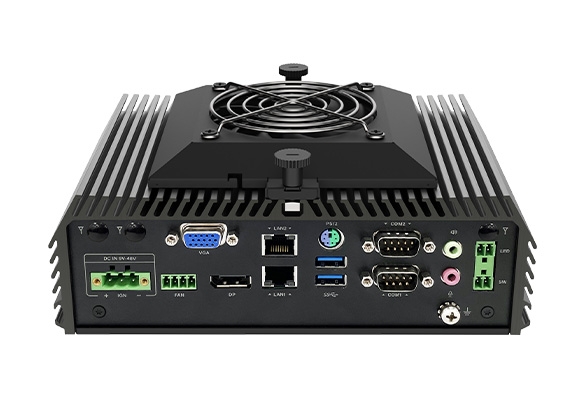

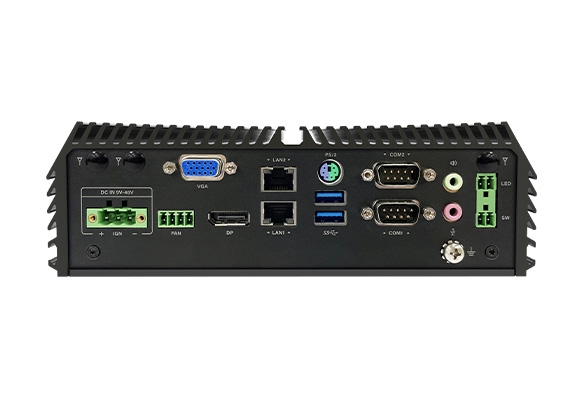

緊湊尺寸下具備豐富 I/O 和功能。原生端口包括：2x GbE LAN、4x USB 3.2、2x USB 2.0、2x RS232/422/485 埠，輕鬆連接各式高速或串列埠裝置。支援 2x 全尺寸 Mini PCIe 可擴充無線傳輸模組，以及 2x SIM 卡插槽以確保行動數據傳輸不間斷。精心設計的外部風扇，將有效排除由 PoE 供電的高功率相機所產生的熱量，確保卓越效能及穩定性。
特有的擴充能力
——
DI-1100 可藉由德承專屬 CMI 及 CFM 模組進行 I/O 及功能的擴充，系統整合商可靈活配置並快速實現功能部署。CMI 模組可擴充額外的 LAN、10GbLAN、M12（A- and X-coded）等各種 I/O端口，而 CFM 模組可增添 power ignition sensing 以及 PoE 功能。
多元靈活的安裝方式
——
DI-1100 支援多款安裝方式，包括壁掛 / 側掛 / DIN-rail / VESA 安裝。無論是現場端、機箱中還是設備內部，皆可快速進行安裝。
行業認證的強固設計
——
DI-1100 傳承一貫專為工業環境打造的強固設計。除寬溫（-40 - 70°C）、寬電壓（9 - 48 VDC）以及過電壓、過電流和靜電保護（ESD）等保護機制外，也符合美軍設備檢驗標準（MIL-STD-810G）並通過軌道交通市場 EN50155（EN 50121-3-2 only）規範、以及車載應用 E-mark 認證。
影片
RESOURCES
詳細規格
| Model Name | DI-1100 | |
|---|---|---|
| System | Processor | Onboard 8th Intel® Core™ U Processors (Whiskey Lake) • Intel® Core™ i7-8665UE Quad Core Processor (8M Cache, up to 4.4 GHz, 15W) • Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz, 15W) • Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz, 15W) |
| Memory | 1x DDR4 SO-DIMM Socket, Support Up to 2400MHz 32 GB ( Un-buffered and non-ECC) | |
| BIOS | AMI BIOS | |
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics 620 |
| Maximum Display Output | Supports Triple Independent Display | |
| HDMI | 1x HDMI Connector (4096 x 2304@60Hz) | |
| DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160 | |
| VGA | 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 2x GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 |
| COM | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 2x 10 Gbps USB 3.2 Gen2, Type A • 2x 5 Gbps USB 3.2 Gen1, Type A • 2x 480 Mbps USB 2.0, Type A | |
| PS/2 | 1x PS/2, 6 Pin Mini-DIN Female Connector | |
| Storage | SSD/HDD | 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA3.0 ) |
| mSATA | 1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket) | |
| RAID | Support RAID 0/1 | |
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Socket |
| SIM Socket | 2x SIM Socket | |
| CMI (Combined Multiple I/O) Interface | • 1x High Speed CMI Interface for optional CMI Module Expansion • 1x Low Speed CMI Interface for optional CMI Module Expansion | |
| CFM (Control Function Module) Interface | 1x CFM IGN Interface for optional CFM-IGN Module Expansion | |
| Other Function | External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Power Ignition Sensing | Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) | |
| Clear CMOS Switch | 1 x Clear CMOS Switch | |
| Reset Button | 1 x Reset Button | |
| Instant Reboot | Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Power | Power Button | 1 x ATX Power On/Off Button |
| Power Mode Switch | 1 x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1 x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | 1 x Remote Power LED, 2-pin Terminal Block | |
| Total Power Budget | 120W | |
| Physical | Dimension ( W x D x H ) | 203 x 142 x 66.8 mm |
| Weight Information | 1.74 KG | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / Side / DIN-RAIL / VESA Mount | |
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 513,628 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Operating System | Windows | Windows® 10 |
| Linux | Supports by project | |
| Environment | Operating Temperature | • 15W CPU: -40°C to 70°C • 15W CPU + 61.6W PoE + FAN: -40°C to 70°C |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | MIL-STD-810G | |
| Vibration | MIL-STD-810G | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-mark | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | IEC/EN 62368-1 | |
訂購資訊
| Model No. | Product Description |
|---|---|
| DI-1100-i3-R10 | 8th Generation Intel Core i3-8145UE High Performance, Compact and Modular Rugged Embedded Computer |
| DI-1100-i5-R10 | 8th Generation Intel Core i5-8365UE High Performance, Compact and Modular Rugged Embedded Computer |
| DI-1100-i7-R10 | 8th Generation Intel Core i7-8665UE High Performance, Compact and Modular Rugged Embedded Computer |
| √ DI-1100 Embedded System x1 | √ Heatsink Pack x1 |
| √ Wall Mount Kit x1 | √ Screw Pack x1 |
| √ Remote Function Terminal Block Connector x 2 | √ Power Terminal Block Connector x1 |
| √ Fan Terminal Block Connector x 1 |
| Model No. | Description |
|---|---|
| CMI-LAN01-R12 / UB1512-R10 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout |
| CMI-M12LAN01-R12 / UB1510-R10 | CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN Ports/ 1x Universal Bracket with 4x M12 Cutout |
| CMI-XM12LAN01-R10 / UB1510-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports/ 1x Universal Bracket with 4x M12 Cutout |
| CMI-10GLAN04-R10 / UB1528-R10 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout |
| CMI-COM05-R10 / UB1503-R10 | CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout |
| CMI-DIO05-R10 / UB1518-R10 | CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout |
| MEC-LAN-M102-30 / UB1511-R10 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout |
| MEC-COM-M212-TDB9 / UB1503-R10 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout |
| Model No. | Description |
|---|---|
| CFM-PoE06-R10 | CFM Module with PoE Function, Individual Port 25.5W |
| CFM-IGN102 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
| Model No. | Description |
|---|---|
| DINRAIL-R10 | Diamond series DIN-RAIL Mount Kit |
| SIDE01 | SIDE Mount Kit |
| FAN-EX103 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan (*External fan must be installed when using CFM-PoE module) |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
