可擴展型高效節能 (DE系列)

可擴展型高效節能 (DE系列)

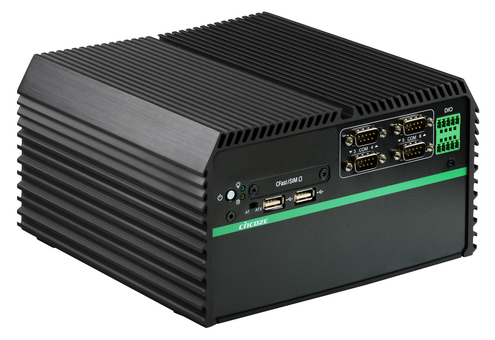

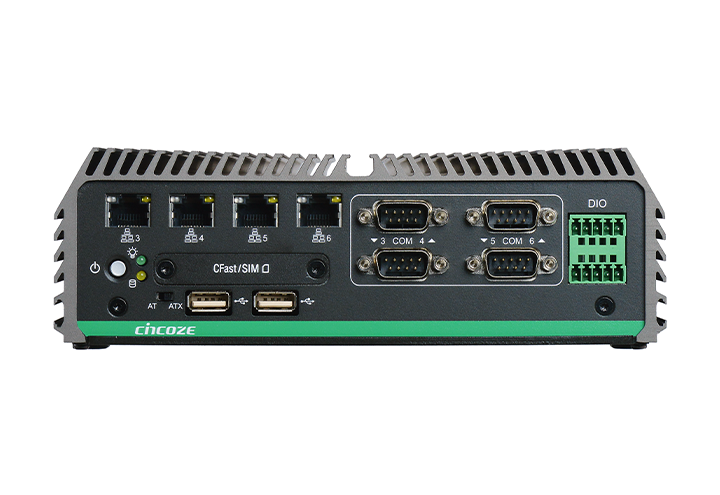

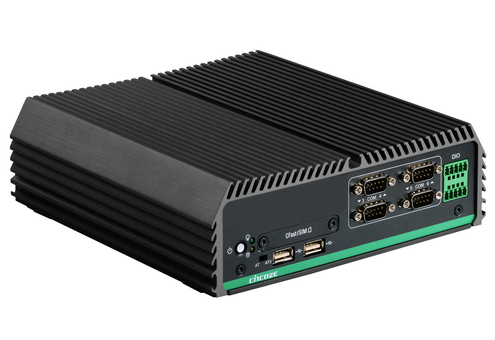

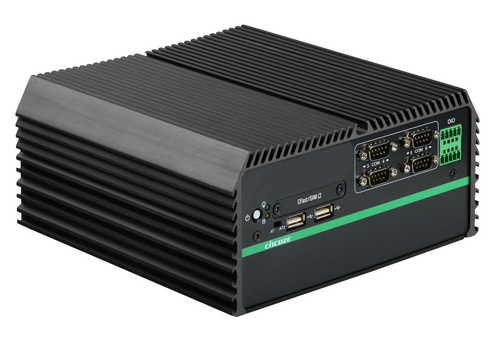

DE-1000 Series Fanless Embedded PC supports Intel® Bay Trail platform, integrated with Intel® Atom™ E3845 Quad Core 1.91 GHz processor. Delivering the excellent quad-core processing power at only 10 watts power consumption, DE-1000 series is definitely an ideal solution for ultimate computing performance, energy efficiency, and superior reliability. Supporting up to 6x LAN or 4x PoE versions, and power ignition function, DE-1000 series meets various applications, such as surveillance, in-vehicle, factory automation and machine automation.

•  Onboard Intel® Atom™ E3845 Processor
•  Wide Operating Temperature (From -25°C to 70°C)
•  Various Expansion Interface: PCI / PCIe / Mini-PCIe Expansion Available
•  Support Dual Display
•  Multi LAN / PoE Version Available
•  IGN (Power Ignition Sensing) Supported
•  Power over Serial Functionalities
•  EN50155 Certified
ProductModel NameCPUI/OExpansion
DE-1000DE-1000Intel® Atom™ E38452x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DE-1000LDE-1000LIntel® Atom™ E38456x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DE-1000PDE-1000PIntel® Atom™ E38454x PoE, 2x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DE-1001DE-1001Intel® Atom™ E38456x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI/ PCIe Slot
DE-1001LDE-1001LIntel® Atom™ E38456x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI/ PCIe Slot
DE-1001PDE-1001PIntel® Atom™ E38454x PoE, 2x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI/ PCIe Slot
DE-1002DE-1002Intel® Atom™ E38452x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI/ PCIe Slot
DE-1002LDE-1002LIntel® Atom™ E38456x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI/ PCIe Slot
DE-1002PDE-1002PIntel® Atom™ E38454x PoE, 2x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI/ PCIe Slot
