High Performace & Expandable Series

High Performace & Expandable Series

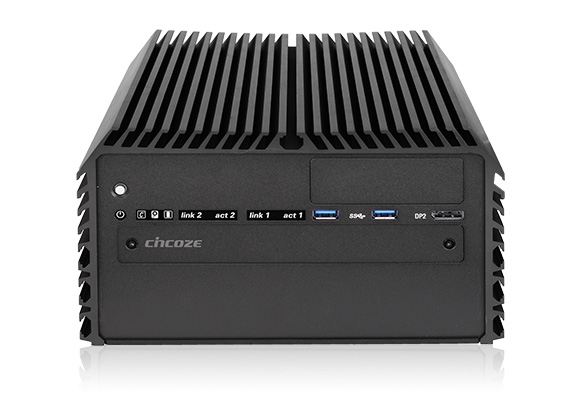

Cincoze DS-1100 Series is a high-performance fanless embedded computer powered by 6th generation Intel® Core™ platform (Skylake-S) supporting a wide range of desktop CPUs (socket-type, LGA1151), and accommodates two DDR4 sockets up to 32 GB which allows DS-1100 Series to fulfill all kinds of high-end computing requirements.

  • Supports 6th-Gen Intel® Core™ i3 / i5 / i7 Socket-type CPU (LGA1151)
  • 2x DDR4 SO-DIMM Socket, 2,133MHz, Supports Up to 32 GB
  • Triple Independent Display (DVI-I, DP, DP/HDMI)
  • 2x 2.5" SATA HDD/SSD bay (Gen3), Supports RAID 0/1
  • 2x CMI Interfaces with 6 Types of Optional Modules for I/O Expansion
  • 1x CFM Interface for Adding Optional Power Ignition Sensing (IGN) Module
  • Supports 3x Full-size Mini-PCIe Slot for Wireless & I/O Expansion
  • Wide Operating Temperature (-40°C to 70°C)
  • EN50155 / EN50121-3-2 Certified for Railway Application

ProductModel NameCPUChipsetI/OExpansion
DS-1100DS-11006th Gen. Intel® Core i3 / i5 / i7Intel® Q1702xLAN, 6xUSB, 2xCOM, 1xDVI-i, 1xDisplayPort, 1xDisplayPort/HDMI1x CFM Interface, 2x CMI Interfaces, 3x Full-size Mini-PCIe Sockets, 2x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes
DS-1101DS-11016th Gen. Intel® Core i3 / i5 / i7Intel® Q1702xLAN, 6xUSB, 2xCOM, 1xDVI-i, 1xDisplayPort, 1xDisplayPort/HDMI1x CFM Interface, 2x CMI Interfaces, 1xPCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 2x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes
DS-1102DS-11026th Gen. Intel® Core i3 / i5 / i7Intel® Q1702xLAN, 6xUSB, 2xCOM, 1xDVI-i, 1xDisplayPort, 1xDisplayPort/HDMI1x CFM Interface, 2x CMI Interfaces, 2xPCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 2x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes
DS-1000DS-10004th Gen. Intel® Core i3 / i5 / i7Intel® Q872x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DS-1000LDS-1000L4th Gen. Intel® Core i3 / i5 / i7Intel® Q876x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DS-1000PDS-1000P4th Gen. Intel® Core i3 / i5 / i7Intel® Q874x PoE, 2x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DS-1001DS-10014th Gen. Intel® Core i3 / i5 / i7Intel® Q872x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI / PCIe Slot
DS-1001LDS-1001L4th Gen. Intel® Core i3 / i5 / i7Intel® Q876x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI / PCIe Slot
DS-1001PDS-1001P4th Gen. Intel® Core i3 / i5 / i7Intel® Q874x PoE, 2x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI / PCIe Slot
DS-1002DS-10024th Gen. Intel® Core i3 / i5 / i7Intel® Q872x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI / PCIe Slot
DS-1002LDS-1002L4th Gen. Intel® Core i3 / i5 / i7Intel® Q876x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI / PCIe Slot
DS-1002PDS-1002P4th Gen. Intel® Core i3 / i5 / i7Intel® Q874x PoE, 2x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI / PCIe Slot
