Affordable Series

Affordable Series

Cost Effective Fanless Embedded Computer

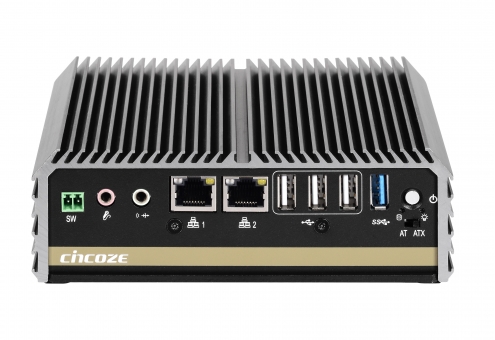

DA-1000 series is an ultra-compact size fanless embedded computer basing on Intel® Atom E3826 platform; it has 1.46GHz and integrated HD graphics processor. This can bring economic advantages on budget and also fulfill the needs for industrial computing tasks. The DA-1000 manages to pack a diverse array of I/O into its small form factor, with one DVI-I port, two RS-232/422/485 COM ports, dual Gb LAN ports, four USB ports and one set of Mic-in and Line-out.
DA-1000 supports Cincoze Multiple IO (CMI) interface and modules which are especially designed for flexible I/O expandability; it allows users to extend various I/Os according to their needs. CMI modules are including COMs, DIO, DisplayPort, DVI, LPT/PS2 or VGA. The rugged construction, wide temperature operating and high tolerance for shock and vibration enables DA-1000 to be easily employed for harsh environments.


• Intel® Atom Processor
• Compact Size Design
• Special Heat Dissipation
• Support Multi Display
• Completely Cable-Less Design
• Support 9~48VDC Input, Support AT/ATX Power Mode
• Anti-Vibration and Industrial Components Selection
• Wide Operating Temperature (Supports up to -25°C to 70°C)
• CMI (Cincoze Multiple IO) Interface for I/O Module Expandability
• Various Mounting Options (VESA, DIN-Rail, Side/Wall Mounting)


ProductModel NameCPUChipsetI/OExpansion
DA-1000DA-1000Intel® Atom™ E3826SoC1x DVI-I, 2x GbE LAN, 2x COM, 1x USB3.0, 3x USB2.0, 1x Mic-in, 1x Line-out, 1x Universal I/O Bracket2x Full-size Mini-PCIe, 1x SIM Socket (Internal), 1x CMI (Cincoze Multiple IO) Interface
DA-1000CDA-1000CIntel® Atom™ E3826SoC1x DVI-I, 2x GbE LAN, 4x COM, 1x USB3.0, 3x USB2.0, 1x Mic-in, 1x Line-out, 1x Universal I/O Bracket2x Full-size Mini-PCIe, 1x SIM Socket (Internal), 1x CMI (Cincoze Multiple IO) Interface
DA-1000DDA-1000DIntel® Atom™ E3826SoC1x DVI-I, 2x GbE LAN, 4x DIs, 4x DOs, 2x COM, 1x USB3.0, 3x USB2.0, 1x Mic-in, 1x Line-out, 1x Universal I/O Bracket2x Full-size Mini-PCIe, 1x SIM Socket (Internal), 1x CMI (Cincoze Multiple IO) Interface
DA-1000DPDA-1000DPIntel® Atom™ E3826SoC1x DVI-I, 1x DisplayPort, 2x GbE LAN, 2x COM, 1x USB3.0, 3x USB2.0, 1x Mic-in, 1x Line-out, 1x Universal I/O Bracket2x Full-size Mini-PCIe, 1x SIM Socket (Internal), 1x CMI (Cincoze Multiple IO) Interface
DA-1000DVDA-1000DVIntel® Atom™ E3826SoC1x DVI-I, 1x DVI-D, 2x GbE LAN, 2x COM, 1x USB3.0, 3x USB2.0, 1x Mic-in, 1x Line-out, 1x Universal I/O Bracket2x Full-size Mini-PCIe, 1x SIM Socket (Internal), 1x CMI (Cincoze Multiple IO) Interface
DA-1000LPPSDA-1000LPPSIntel® Atom™ E3826SoC1x DVI-I, 2x GbE LAN, 2x COM, 1x LPT, 1x PS/2, 1x USB3.0, 3x USB2.0, 1x Mic-in, 1x Line-out, 1x Universal I/O Bracket2x Full-size Mini-PCIe, 1x SIM Socket (Internal), 1x CMI (Cincoze Multiple IO) Interface
DA-1000VDA-1000VIntel® Atom™ E3826SoC1x DVI-I, 1x VGA, 2x GbE LAN, 2x COM, 1x USB3.0, 3x USB2.0, 1x Mic-in, 1x Line-out, 1x Universal I/O Bracket2x Full-size Mini-PCIe, 1x SIM Socket (Internal), 1x CMI (Cincoze Multiple IO) Interface
