緊湊型高性能 (DI系列)

緊湊型高性能 (DI系列)

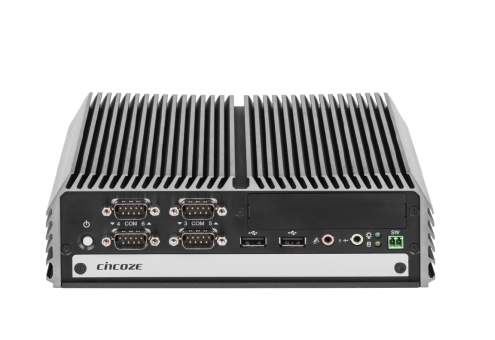

Cincoze's new member, DI-1000 series, stands for “Diamond Intelligent” and it is the first series which is designed for “high performance and compact” within Cincoze’s product portfolio. The unique design of DI-1000 series makes it ideal for harsh, space-limited and performance required application such as factory automation, machine vision, in-vehicle computing and mobile surveillance.

  • Onboard 6th Generation Intel® Core™ Mobile Processor (BGA Type)
  • 1x DDR4 SO-DIMM Socket, 2133MHz, Supports Up to 16 GB
  • Triple Independent Display (DVI-I, DisplayPort)
  • Compact Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
  • 1x Hot-swappable 2.5” SATA HDD/SSD Bay and 1x Internal 2.5” SATA HDD/SSD Bay, Supports RAID 0/1
  • Rich I/O Including DVI, DP, 2x GbE LAN, 6x COM, 6x USB, 8x Optical Isolated DIO
  • Supports Cincoze CMI Technology for LAN, PoE & M12 Connector Expansion
  • Supports Cincoze CFM Technology for Power Ignition Sensing (IGN) Function Expansion
  • Cincoze MEC Module Kits for Various I/O Expansion
  • 2x Full-size Mini-PCIe Slots for Wireless and I/O Expansion
  • Wide Operating Temperature (-40°C to 70°C)
  • EN50155 Certified for Railway Application
  • E-Mark (E13, No. 10R-0514273) Certified for In-vehicle Application
ProductModel NameCPUChipsetI/OExpansion
DI-1000-i5DI-1000-i5Intel® Core™ i5-6300U ProcessorSoC1x DVI-I, 1x DisplayPort, 2x GbE LAN, 6x COM, 4x USB 3.0, 2x USB 2.0, 1x PS/2, 8x Optical Isolated DIO1x CFM Interface, 1x CMI Interface, 2x Full-size Mini-PCIe Sockets, 1x SIM Socket
DI-1000-i3DI-1000-i3Intel® Core™ i3-6100U ProcessorSoC1x DVI-I, 1x DisplayPort, 2x GbE LAN, 6x COM, 4x USB 3.0, 2x USB 2.0, 1x PS/2, 8x Optical Isolated DIO1x CFM Interface, 1x CMI Interface, 2x Full-size Mini-PCIe Sockets, 1x SIM Socket
