CS-W115FHC / P1101

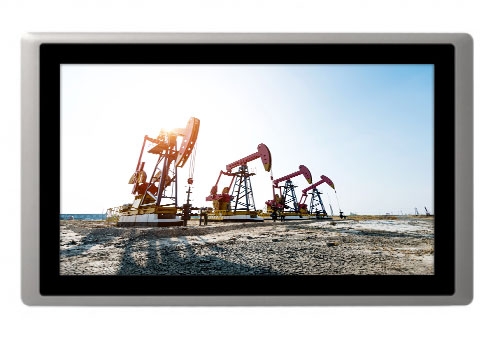

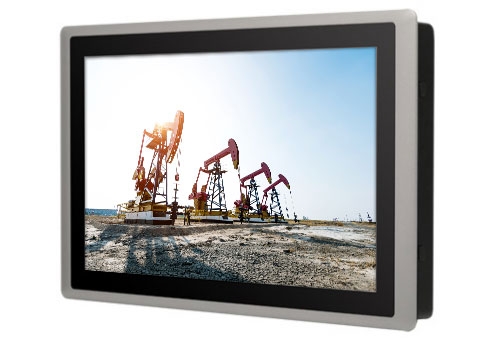

15.6" TFT-LCD Sunlight Readable Touch Panel PC with Intel® Atom® / Pentium® Processor
PRODUCTS FEATURES
- 15.6” TFT-LCD with Ultra High Brightness up to 1,500 nits
- Onboard Intel® Atom® / Pentium® Processor
- Triple Independent Displays (via VGA and DisplayPort outputs)

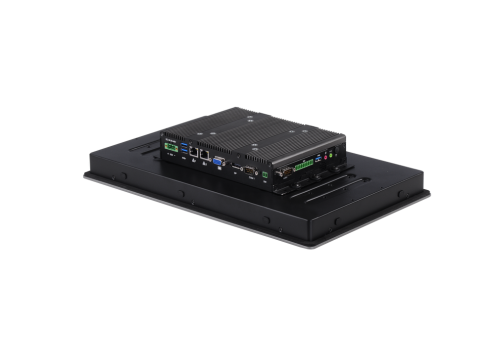

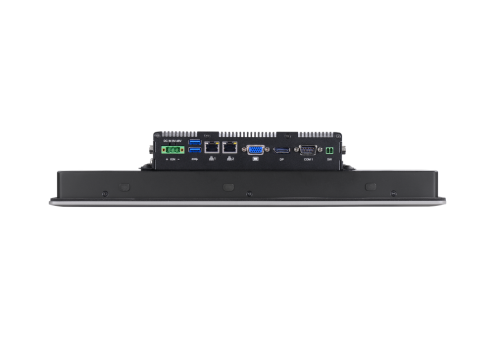

- Rich I/O (2x GbE LAN, 4x USB 3.0, 4x COM, 8x Isolated DIO)
- 2x Full Size Mini-PCIe, 1x 2.5” SATA Drive Bay, 1x mSATA Socket
- Wide Range Operating Temperature -10°C to 70°C
- Designed with Aluminum Die-casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports CDS Technology, Ignition Sensing and Power over Ethernet
- Supports Panel / VESA / Rack Mounting
OVERVIEW
CS-W115FHC/P1101 Series is a 15.6" TFT-LCD sunlight readable touch panel PC offering 1,500 nits ultra high brightness and 1920 x 1080 resolution. The system is based on Intel® Atom® / Pentium® processor and supports triple independent displays (via VGA and DisplayPort outputs). CS-W115FHC/P1101 Series features extensive connectivity including 2x GbE, 4x USB 3.0, 4x COM, and 8x isolated DIO. It also offers 2x full size Mini-PCIe socket and 1x SIM socket for a variety of wireless data connections. Through the ready-to-use CFM modules, users can easily add power ignition sensing and Power over Ethernet (PoE) functions for a variety of applications.
CS-W115FHC/P1101 Series also supports Convertible Display System (CDS) technology. Comparing with regular standalone panel PCs, it is more flexible and reduces maintenance cost dramatically. Featuring with rigorous industrial protections, wide range operating temperature (-10°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), CS-W115FHC/P1101 Series is appropriate for harsh environments and critical applications.
CS-W115FHC/P1101 Series also supports Convertible Display System (CDS) technology. Comparing with regular standalone panel PCs, it is more flexible and reduces maintenance cost dramatically. Featuring with rigorous industrial protections, wide range operating temperature (-10°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), CS-W115FHC/P1101 Series is appropriate for harsh environments and critical applications.
RESOURCES
SPECIFICATION
| Model Name | CS-W115FHC / P1101 | |
|---|---|---|
| Display | LCD Size | 15.6” (16:9) |
| Max. Resolution | 1920x1080 (Full HD) | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 700 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.17925 (H) x 0.17925 (V) | |
| Viewing Angle (H-V) | 160 / 140 | |
| Backlight MTBF | 50000 hrs (LED Backlignt) | |
| Touch | Resistive 5-wire | - |
| Projected Capacitive | V | |
| System | Processor | • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz |
| Memory | • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Supports up to 8GB (un-buered and non-ECC) | |
| Graphics | Graphics Engine | Integrated Intel® HD Graphics 505 |
| Maximum Display Output | Supports Triple Independent Display (via VGA and DisplayPort outputs) | |
| Audio | Audio Codec | Realtek ALC888-GR |
| Line-out | 1x Speaker-out Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| External I/O Interface | VGA | 1x VGA (1920 x 1200 @60Hz) |
| DP | 1x DisplayPort (4K x 2K @60Hz) | |
| LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 | |
| USB | 4x USB 3.0 (Type A) | |
| COM | 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| CDS | Supports Convertible Display System (CDS) Technology | |
| DIO | DIO | 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block |
| Storage | SSD/HDD | 1x 2.5” HDD/SSD Drive Bay (SATA 3.0) |
| mSATA | 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket) | |
| Expansion | M.2 Express | 1x M.2 2230 E Key for Socket Wireless Module, Supports Intel CRF Module |
| Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| SIM Socket | 1x SIM Socket | |
| CFM (Control Function Module) Interface | Supports Control Function Module (CFM) Technology - Optional CFM IGN Module for Power Ignition Function - Optional CFM PoE Module for Power over Ethernet Function | |
| Other Function | Internal Speaker | AMP 2W + 2W |
| Power Ignition Sensing | 1x Ignition DIP Switch (12V/24V, need to work with CFM module) | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Rest Button | 1x Reset Button | |
| Instant Reboot | Supports Instant Reboot Technology (0.2 sec) | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | |
| Power | Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Power Adapter (Optional) | AC/DC 12V/5A 60W or AC/DC 24V/5A 120W | |
| Physical | Dimension (WxHxD) | 420 x 254 x 79.35mm |
| Weight Information | 5.49 Kg | |
| Front Panel Construction | Flat Rugged Aluminum Die-casting Bezel | |
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |
| Physical Design | Fanless Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| Surge Protection | 2 kV | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| ESD Protection | +/-8kV (air), +/-4kV (contact) | |
| Operating System | Windows | Windows® 10 |
| Linux | Support by Project | |
| Environment | Operating Temperature | -10°C to 70°C (with Extended Temperature Peripherals; Ambient with Air Flow) |
| Storage Temperature | -20°C to 70°C | |
| Relative Humidity | 95% RH @ 39°C (Non-Condensing) | |
| Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | CE, FCC, ICES-003 Class A | |
| IP Level | IP65 Compliant Front Panel | |
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| CS-W115FHC-R10/P1101-E50-R10 | 15.6" TFT-LCD 16:9 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch |
| CS-W115FHC-R10/P1101-N42-R10 | 15.6" TFT-LCD 16:9 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and P-Cap. Touch |
| √ CS-W115FHC/P1101 Panel PC x 1 | √ DIO Terminal Block Connector x 1 |
| √ Thermal Pad (for CPU Thermal Block) x 1 | √ Utility Driver DVD x 1 |
| √ Power Terminal Block Connector x 1 | √ Screws Pack x 1 |
| √ Remote Power On/Off Terminal Block Connector x 1 | √ Panel Mounting Kit x 1 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
