PRODUCTS
High Performance & Compact (DX Series)｜Fanless PC

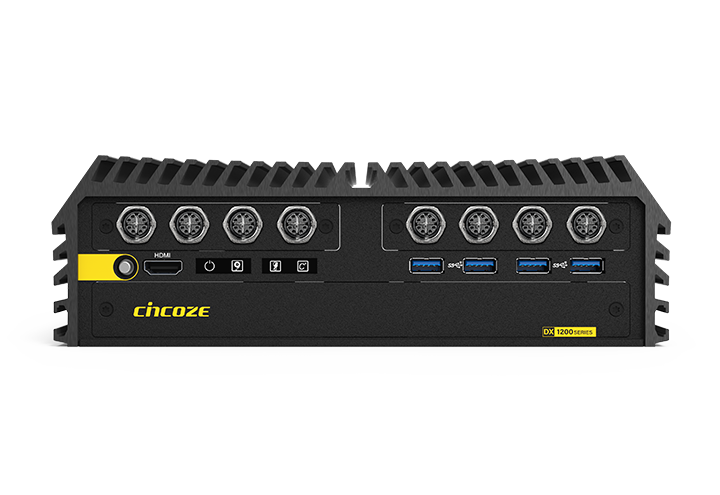

Cincoze’s first rugged embedded workstation, DX Series, stands for "Diamond Extreme" and it is an extreme performance and compact workstation powered by Intel Xeon and core processors. This can bring outstanding system performance for high-end applications and a wide range of processors for selection. DX series is the most compact workstation with highly modular design, it supports flexible modular I/O expansion, 2x front accessible HDD trays, and unlimited combinations for space-limited requirements. #Fanless PC| Product | Model Name | CPU | Chipset | I/O | Expansion |
|---|---|---|---|---|---|

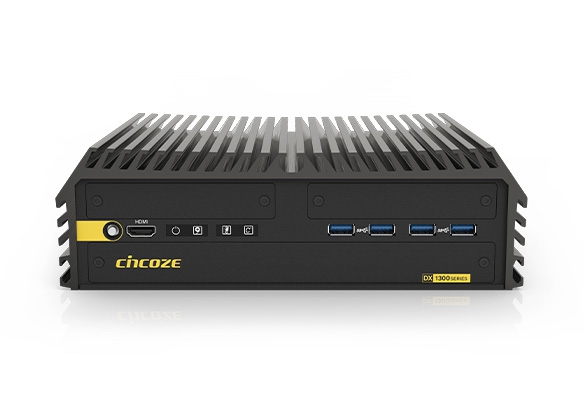

NEW  | DX-1300 | Intel® Arrow Lake-S Core™ Ultra 200S Series (Max 65 W TDP) | Intel® W880 | 2x 2.5 GbE LAN 4x USB 3.2 Gen2x1 (10Gbps) 4x USB 3.2 Gen1x1 (5Gbps) 4x COM 1x HDMI 2x DisplayPort 1x VGA | 1 x M.2 Key B Type 3042/3052 Socket 1 x M.2 Key B Type 2242 Socket 1 x M.2 Key E Type 2230 Socket 1 x SIM Socket 3 x CMI Interface 1 x CFM IGN Interface 1 x CFM TPM Interface |

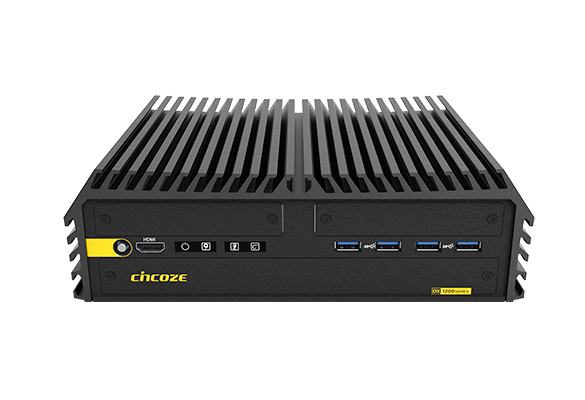

 | DX-1200 | Supports 14/13/12th Generation Intel® Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S Series CPU | Intel R680E | 1x DVI-I 1x DisplayPort 1x HDMI 2x 1GbE LAN 4x COM 4x USB 3.2 Gen2x1 (10Gbps) 4x USB 3.2 Gen1x1 (5Gbps) | 1x CFM Interface 3x CMI Interface 2x Full-size Mini-PCIe Sockets 1x SIM Socket 1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module |
 | DX-1100 | Supports 9/8th Generation Intel® Xeon® / Core™ LGA1151 Socket Type Processors | Intel C246 | 1x DVI-I 1x DisplayPort 1x HDMI 2x GbE LAN 4x COM 2x USB 3.2 Gen2x1 (10Gbps) 6x USB 3.2 Gen1x1 (5Gbps) | 1x CFM Interface 3x CMI Interface 3x Full-size Mini-PCIe Sockets 1x SIM Socket 1x M.2 E Key Socket (CNVi) |
