PRODUCTS
- High-Performance Open Frame Panel PC (CO-100/P2000 Series)
- Power Efficient Open Frame Panel PC (CO-100/P1000 Series)
High-Performance Open Frame Panel PC (CO-100/P2000 Series)
Cincoze’s high-performance open-frame modular panel PCs (CO-100/P2000 series) use Intel® Core U series processors that provide high-performance data processing and graphics computing capabilities with only 15W low power consumption. The CO-100/P2000 series supports CFM technology that extends system functions according to requirements, with options such as Power Ignition Sensing (IGN) and Power over Ethernet (PoE). The series has multiple sizes, display ratios (4:3 and 16:9), and touchscreen options. Its integrated structure, exclusive adjustable mounting bracket, and support for multiple mounting methods to perfectly fit cabinets of different materials and thicknesses. The robust design also meets the application needs of harsh industrial environments.| Product | Model Name | Display | CPU | I/O | Expansion |
|---|---|---|---|---|---|

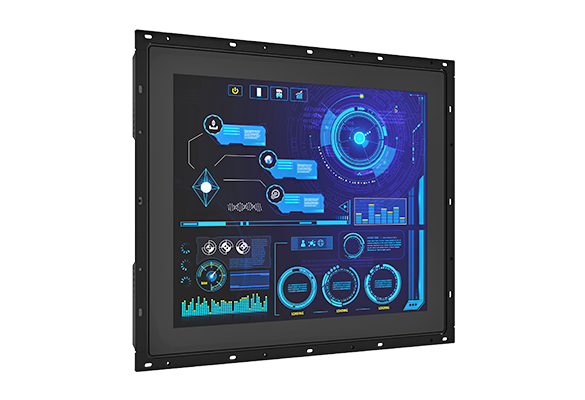

NEW  | CO-119C / P2202 Series | 19" TFT 1280x1024 (5:4) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CO-119C / P2102 Series | 19" TFT 1280x1024 (5:4) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CO-119C / P2002 Series | 19" TFT 1280x1024 (5:4) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
NEW  | CO-W121C / P2202 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CO-W121C / P2102 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CO-W121C / P2002 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
